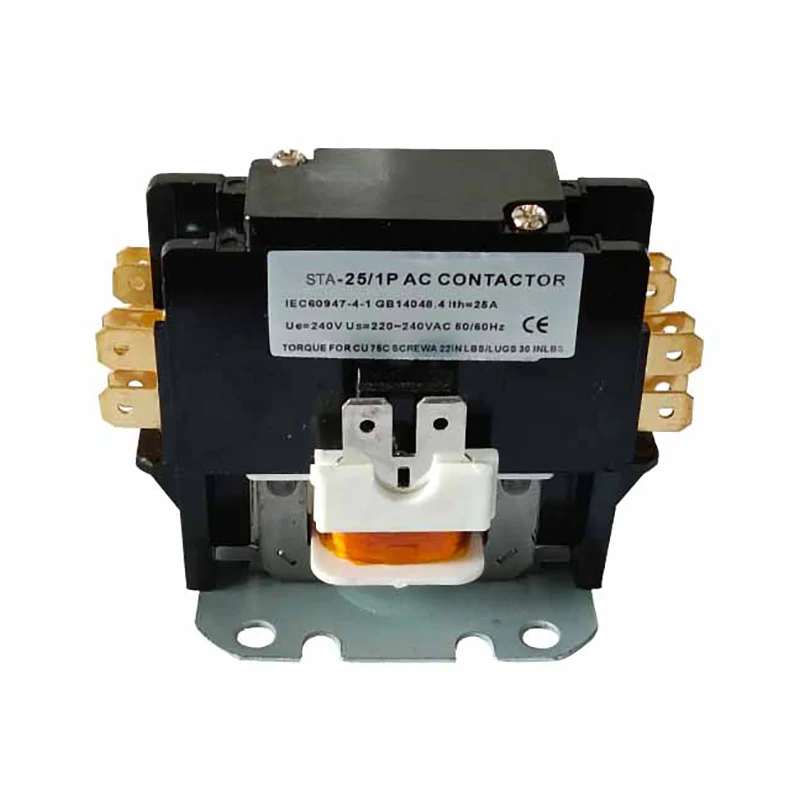

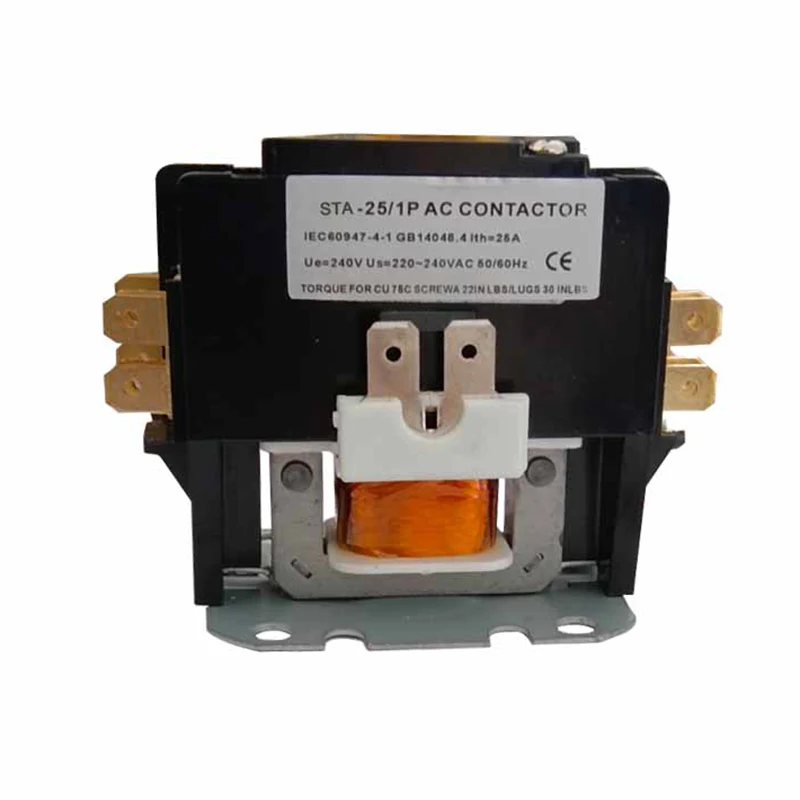

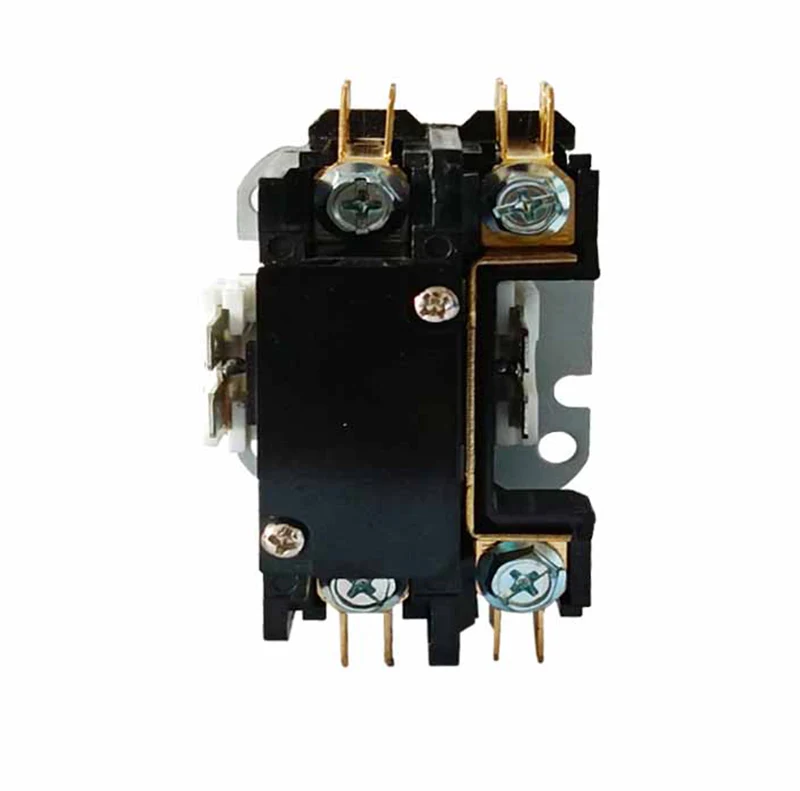

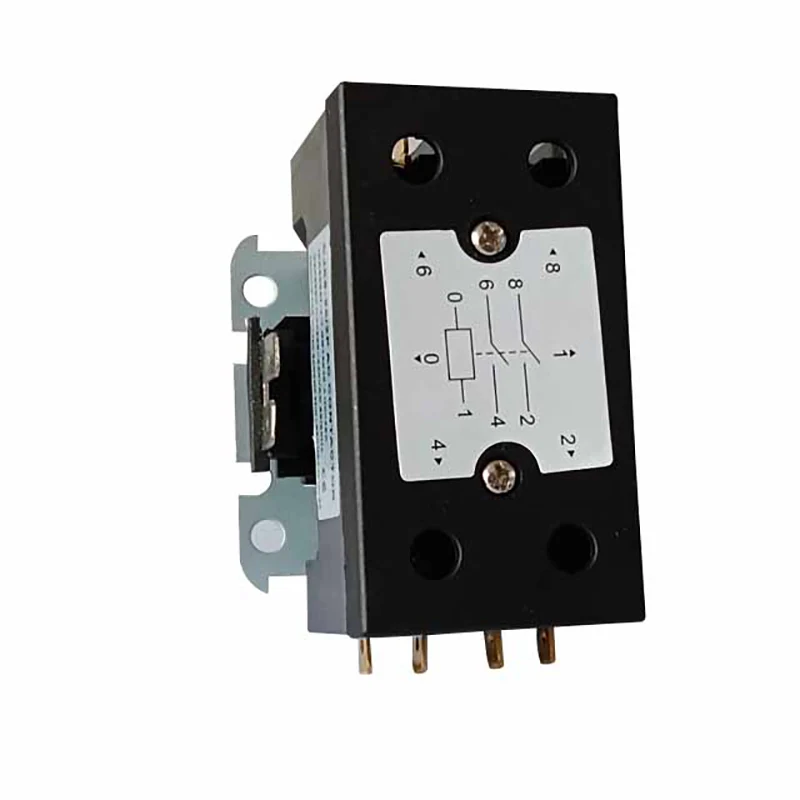

1.5P 25a air ac conditioning athintana naye

I-1.5P 25A AIR ACOWNOPTING TOMNTIONACTIVATIONS yinhloso eqondile yokuxhumana ye-AC yakhelwe ukusetshenziswa kwisiqandisi, isimo somoya, kanye nezinhlelo zokufudumala kagesi. Ukuxhunyaniswa kwamandla kungenziwa nge-Screwter Sternals nge-Quick Connects noma ama-lug terminals axhumeke okusheshayo Bathobela i-IEC60947-4-1

Thumela Uphenyo

Incazelo Yomkhiqizo

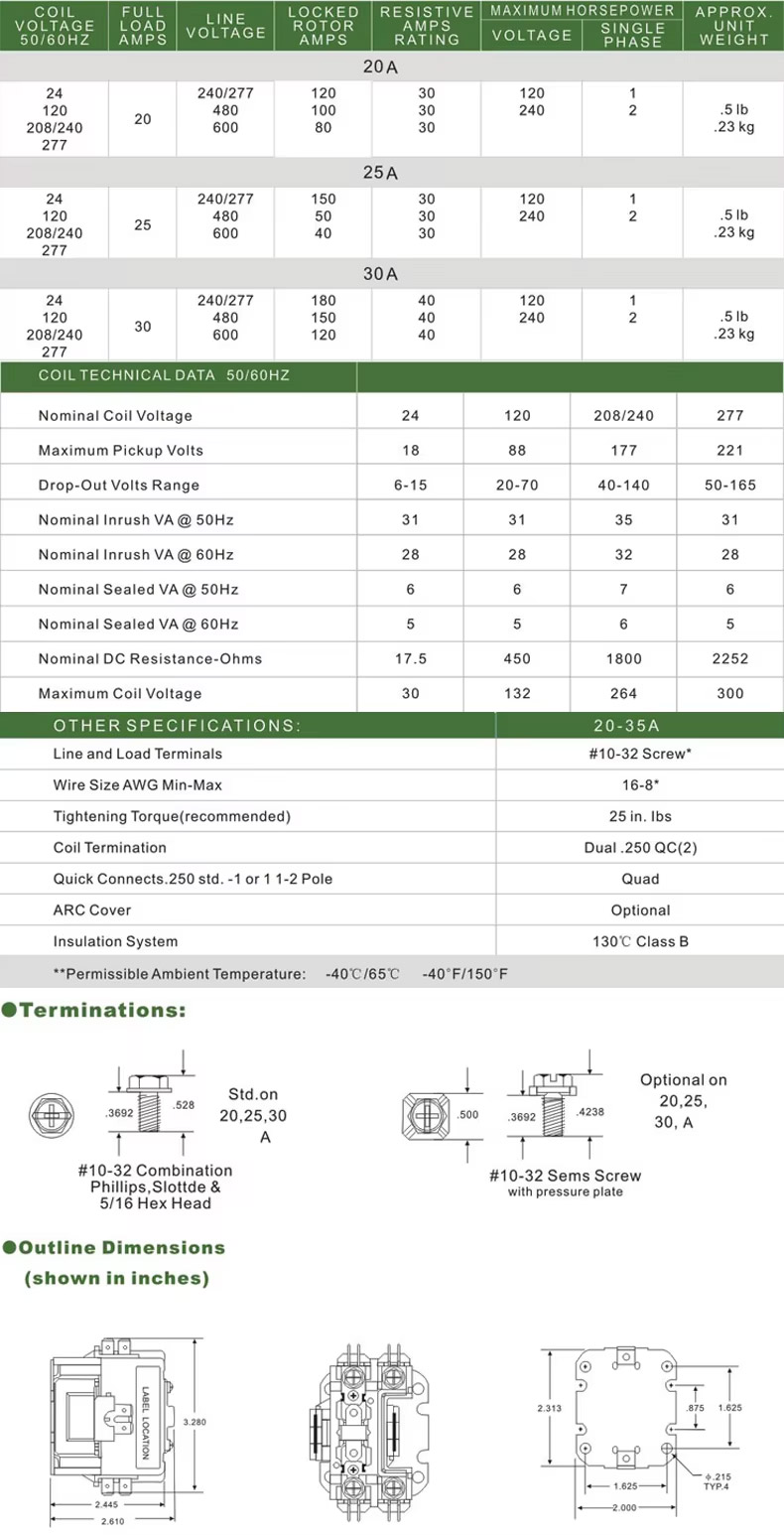

Model no	Umthwalo ogcwele	Ukumelana Amps (a)	I-Pole No.	I-Coil Voltage ( V)	Umugqa we-Voltage (V)	Max hp		-
Model no	AMPS (a)	Ukumelana Amps (a)	I-Pole No.	50 / 60hz	Umugqa we-Voltage (V)	Amandla kagesi (V)	-Nye zwi Ukuma	Okuthathu Ukuma
CJX9-20 / 1	20	30	1	24	240/277	120	1.5	-
I-CJX9-20 / 1.5			1.5
CJX9-20 / 2			2
Cjx9-20 / 3			3	120	480	240/270	3	7.5
I-CJX9-20 / 4			4	208/240	600	480/600	-	7.5
CJX9-25 / 1.5	25	35	1.5	24	240/277	120	2	-
CJX9-25 / 2			2	24	240/277	120	2	-
Cjx9-25 / 3			3	120	480	240/270	5	7.5
CJX9-25 / 4			4	208/240	600	480/600	-	15/20
CJX9-30 / 1.5	30	40	1.5	24	240/277	120	2	-
CJX9-30 / 2			2	120	480	240/270	5	10
CJX9-30 / 3			3	208/240	600	480/600	-	15/20
CJX9-30 / 4			4	208/240	600	480/600	-	15/20
CJX9-40 / 2	40	50	2	24	240/277	120	3	-
Cjx9-40 / 3	40	50	3	120	480	240/270	7.5	10
Cjx9-40 / 4	40	50	4	208/240	600	480/600	-	15/20
Cjx9-50 / 2	50	60	2	24	240/277	120	3	-
Cjx9-50 / 3	50	60	3	120	480	240/270	10	15
Cjx9-50 / 4	50	60	4	208/240	600	480/600	-	25/25
CJX9-60 / 2	60	70	2	24	240/277	120	5	-
Cjx9-60 / 3	60	740	3	120	480	240/270	10	20
CJX9-60 / 4	60	70	4	208/240	600	480/600	-	30/30
Cjx9-75 / 2	75	85	2	24	240/277	120	5	-
CJX9-75/3	75	85	3	120	480	240/270	15	25
Cjx9-75 / 4	75	85	4	208/240	600	480/600	-	40/40
Cjx9-90 / 2	90	100	2	24	240/277	120	7.5	-
Cjx9-90 / 3	90	100	3	120	480	240/270	20	30
Cjx9-90 / 4	90	100	4	208/240	600	480/600	-	50/50

Izinto ezifakiwe	I-block yokuxhumana ne-carriers ikhwalithi ephezulu I-Thermosetting Electrical-Ibanga le-Resin
Ububanzi bokushisa	-40 ° F kuye ku-150 ° F; -5- + 40
Impilo Yomshini (Awukho umthwalo)	Avumelanise ezilinganisweni ze-Ul ne-Ari
Impilo kagesi	Kuvumelanisa ukucaciswa kwe-ul kanye ne-ari -Vamile
Isisindo (cishe)	9.25 oz
Imvamisa yamakhoyili	50 / 60hz
Coil infa	I-Class B (130ºC)
Ukuqeda	Isixhumi sengcindezelo futhi kabili 1/4 Q.C
Hlinza	I-85% ye-coiltage yekhoyili yekhoyili; i-110% ephephile hlinza
Umjikelezo Womsebenzi	-Qhubekayo

Umgomo Wokusebenza

Lapho ikhoyili ye-1.5p 25A air conditing conditioning athintana nayo iyanikwa amandla, i-Iron Core iba yinkana futhi idonsela uhlelo lokuxhumana ukuze uvale, ngaleyo ndlela kuxhuma umthwalo kagesi emthonjeni wamandla. Lapho ikhoyili inika amandla, i-Iron Core ilahlekelwa ubude bayo nohlelo lokuxhumana lihlukaniswe yintwasahlobo, ngakho-ke inqamula umthwalo emthonjeni wamandla. Ngale ndlela, oxhumana naye evumela ukulawulwa okukude komthwalo kagesi.

Isicelo Oxhumana Nabo Oxhumana Nabo:

• I-CJX9 (noma i-STA) Uchungechunge lochungechunge lwe-Accor lusebenza ikakhulukazi kulayini we-AC 50Hz noma i-60hz, i-30ated Votation Votation ingu-240v futhi ilinganiswe ukusebenza noma ukucisha umugqa noma ukucisha umugqa

• Abantu abaxhumana nabo be-Air conditioner banenhloso eqondile ye-AC ac contact yakhelwe ukusetshenziswa kwisiqandisi, isimo somoya, kanye nezinhlelo zokufudumala kagesi.

• Ukuxhunyaniswa kwamandla kungenziwa nge-Screwter Sternals exhumeke okusheshayo noma ama-lug terminals axhumeke okusheshayo

• Bathobela i-IEC60947-4-1

Ukwakheka nezici

Isakhiwo:

Uhlelo lwe-Electromagnetic: kufaka phakathi i-Coil, umnyombo nakwezinye izingxenye, ezisetshenziselwa ukukhiqiza i-magnetic flux ukushayela ukuvulwa nokuvalwa kohlelo lokuxhumana.

Uhlelo lokuxhumana: kufaka phakathi oxhumana naye omkhulu kanye noxhumana naye onobuhle, oxhumana naye ophambili usetshenziselwa ukuphatha okuphezulu, futhi othintana naye asetshenziselwa ukubona ukuhambisa kanye nempendulo yesiginali yokulawula.

Idivaysi yokucisha i-ARC: Isetshenziselwa ukucisha i-ARC ekhiqizwa lapho oxhumana naye exhunyiwe ukuvikela ukuxhumana nomonakalo.

I-Shell: Isetshenziselwa ukuvikela izakhi zangaphakathi emvelweni yangaphandle, ngenkathi ihlinzeka ngokuvinjelwa kokushisa.

Izici:

Ngenhloso echazwe kahle kanye nomklamo othile wezinhlelo ezithile zamandla nezinhlobo zomthwalo.

Uhlelo lokuxhumana lwenziwa ngezinto ezisezingeni eliphakeme ezinokusebenza okuhle kagesi nokungamelana nokugqoka.

Uhlelo lwe-electromagnetic lunamandla okwanele wokubamba iqhaza ukuze uhlanganyele futhi ukhulule oxhumana nabo.

Idivayisi yokucisha i-ARC ingacisha ngempumelelo i-arc futhi ivikele oxhumana nabo ngomonakalo.

Igobolondo lenzelwe kahle amandla anele nokusebenza kokushisa kokushisa.
