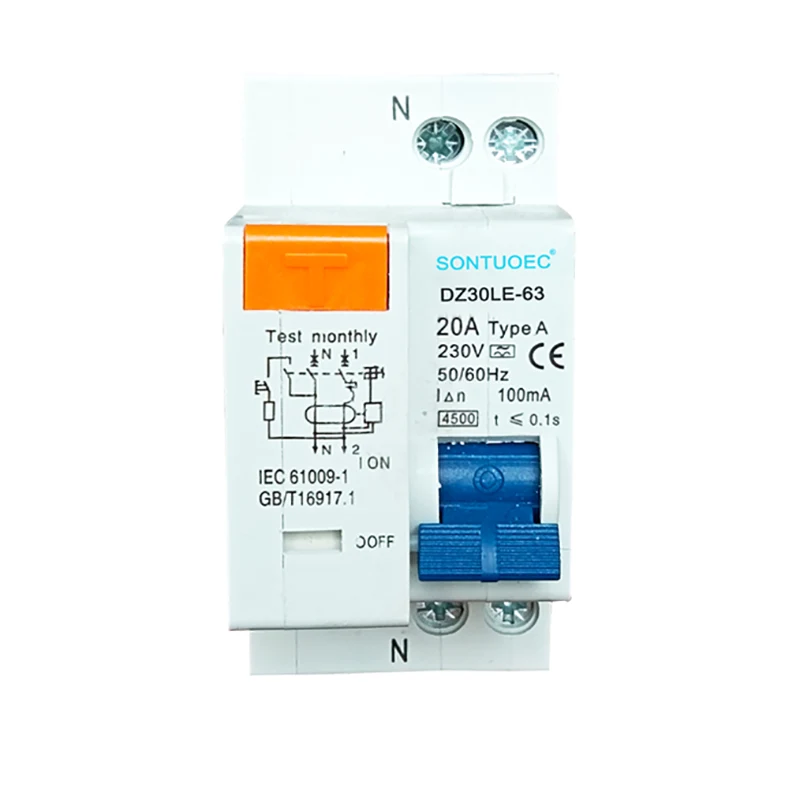

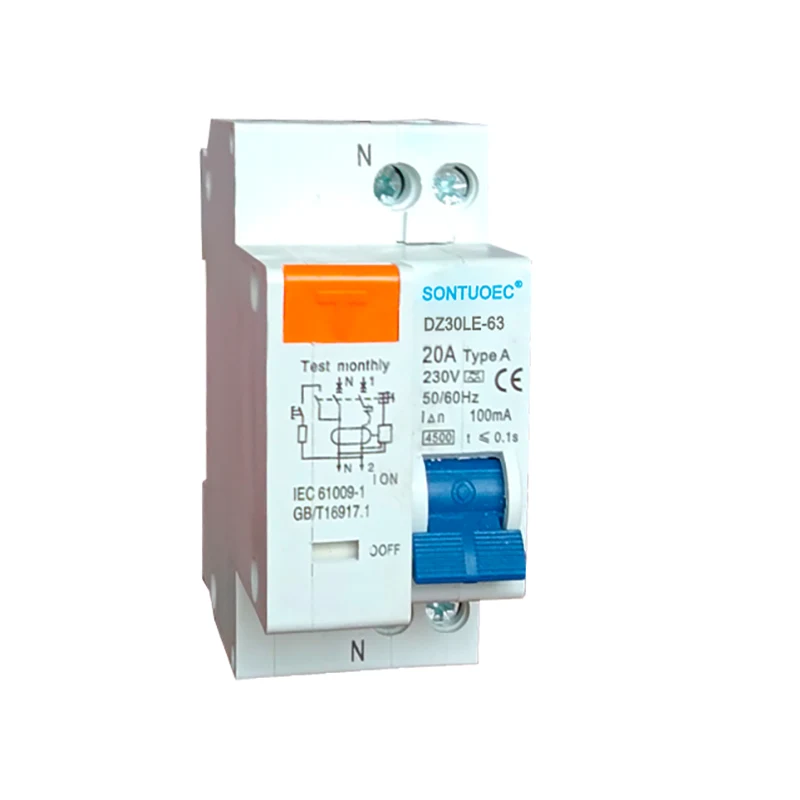

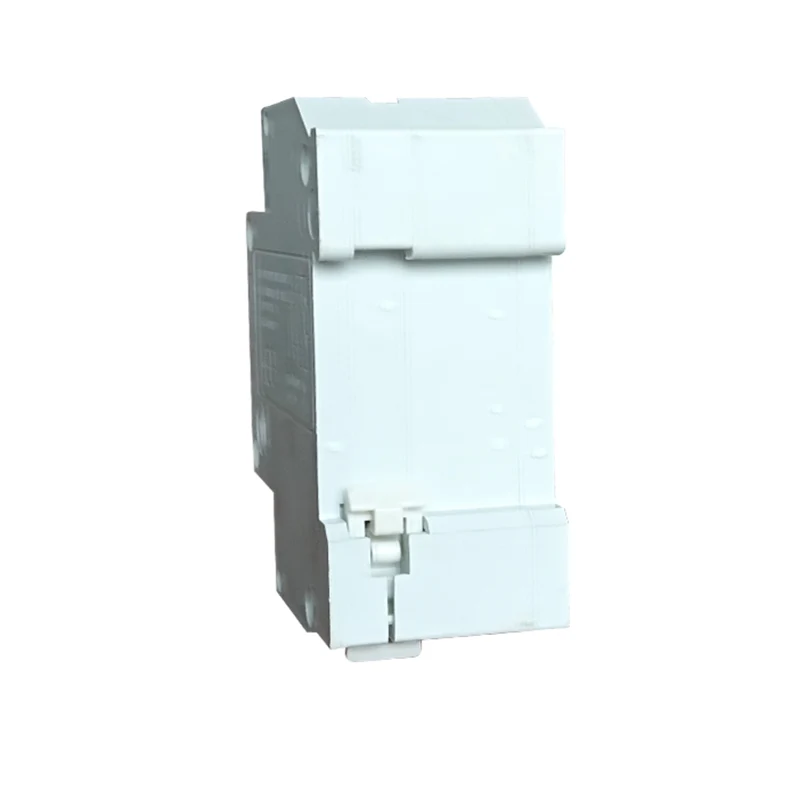

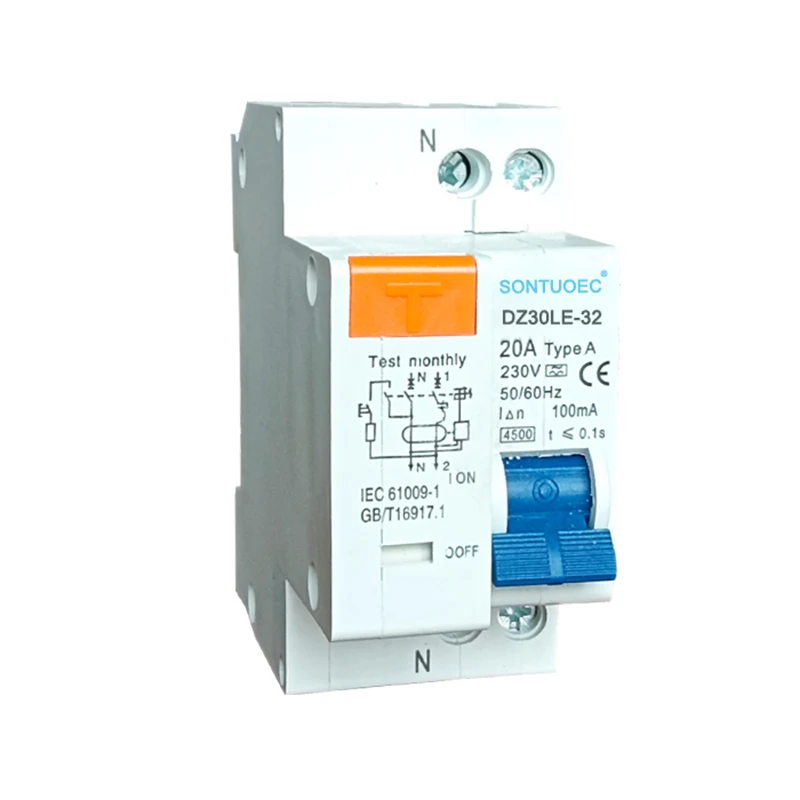

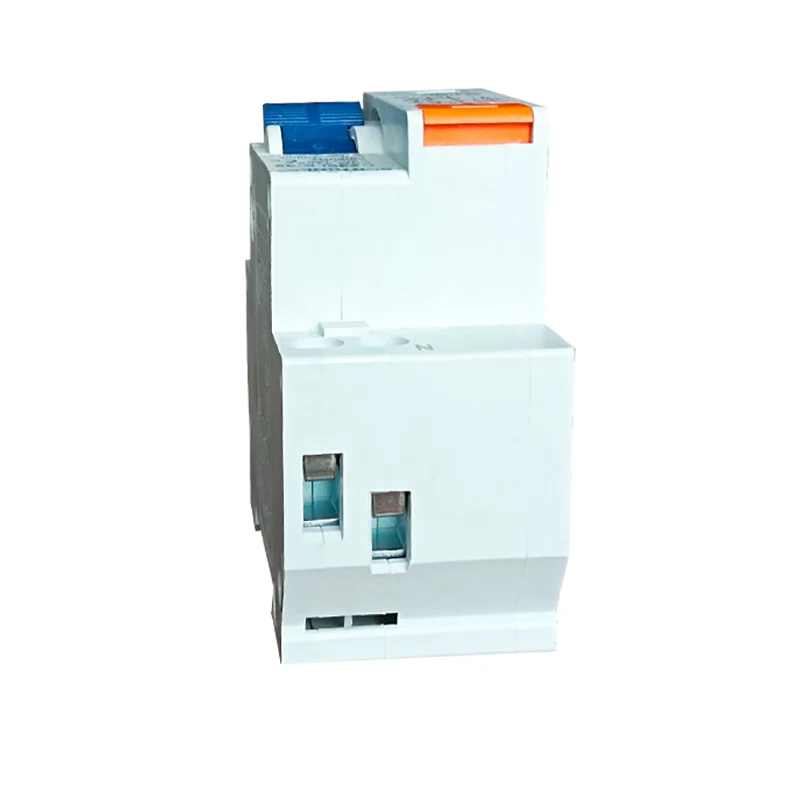

I-1P + N Type Electronic hlobo RCBO

I-1P + N Type RCBOIS uhlobo olukhethekile lwe-breaker yesekethe elisebenzisa umgomo we-electromagnetic ukuze uthole futhi unqamule okusasele kwamanje (ukuvuza kwamanje) esifundweni, ngaleyo ndlela kuvinjelwe izingozi zikagesi. Ngasikhathi sinye, futhi inomsebenzi wokuvikelwa ngokweqile, onganqunyelwa ngokuzenzakalelayo ukunikezwa kwamandla lapho umjikelezo ugcwele kakhulu noma uzungeza ukuphepha ukuvikela ukuphepha kwesekethe kanye nemishini.

Imodeli:DZ30LE-63

Thumela Uphenyo

Incazelo Yomkhiqizo

Igama lomkhiqizo	Dz30l-63
Isifanekiso	Uhlobo lwe-elekthronikhi (MCB + RCD)
Insika	1p + n	1p + n
Kukalwe manje (a)	6a, 10a, 16a, 20a, 25a, 32a, 402A, 40a, 63a
Kukalwe umjikelezo onemibandela onemibandela efushane	I-3KA, 4.5ka; 6Ka
-Vamile	IEC61009-1
Ukukhuthazela Kwe-Electro-Machical	Imijikelezo engaphezu kuka-4000
Kulinganiselwe okusele okusebenzayo kwamanje	10A, 30mA, 100MA, 300mA, 500MA

Umgomo Wokusebenza

 Ukutholwa okusasele okusele

Ukucutshungulwa kwesiginali nokuqhathanisa: Isiginali esele esatholiwe sizothuthukiswa, sihlungiwe futhi sicutshungulwe, bese siqhathaniswa nenani lamanje lesenzo.

Isenzo se-Trussing: Lapho okuseleyo okusele kufinyelela noma kudlula inani lesendlalelo esethiwe, i-RCBO izodala indlela yokuqalisa ukuze inqume amandla wesifunda esikhulu.

Izici nezinzuzo

 Umgomo we-Electromagnetic: usebenzisa umgomo we-elekthroniki wokutholwa okusele kwamanje, kubonakaliswa ukuzwela okuphezulu kanye nesivinini sokuphendula okusheshayo.

Ukuvikelwa okusebenzayo okuningi: Ngaphezu komsebenzi wokuvikelwa kwamanje osele, futhi kunomsebenzi wokuvikelwa ngokweqile, ongavikela ngokuphelele ukuphepha kwemibuthano kanye nezinto zokusebenza.

 Kuphephile futhi kunokwethenjelwa: i-rcbo yamukela izingxenye ezithuthukile ze-elekthronikhi kanye nendlela yokukhipha, enokwethenjwa okuphezulu nokuphepha.

Kulula ukufaka futhi ugcine: Isakhiwo sikaRCBO senzelwe ngokufanelekile, kulula ukusifaka, futhi ngasikhathi sinye kulula ukufeza ukulungiswa nokuphenya.

Le 1p + N ngo-elekthronikhi ye-RCBO isebenza njengenhlanganisela ye-Breaker Circuit kanye nedivaysi yamanje esele, evikela umuntu ngephutha likagesi ngenxa yesifunda esingaphezulu, esifushane, i-Earth Fass yamanje. Kuyazivikela kuze kube yilapho isizungu esifushane se-32a noma i-63A. Futhi uhambisane ne-IEC ejwayelekile / en 61009.1.

1. Ukuvikelwa kwe-1.Provide ngokumelene ne-Earth Earth / Ukuvuza Kwamanje kanye Nokwehlukaniswa

I-2.High Short-Circh-Circuit yamanje yokuthanda amandla

I-3.Phampluble ku-terminal ne-PIN / Fork Thayipha Uhlobo lweBusbar Connection

4. Ifakwe ngama-terminals okuxhumeka komunwe

I-5.automicame ngokuqondile isembozo lapho amaphutha omhlaba / ukuvuza kwamanje kwenzeka futhi kudlula ukuzwela okukalwe

6.Nculisekelweni athembekile wokuhlinzekwa kwamandla kanye nomugqa we-voltage, futhi mahhala ekuphazanyisweni kwangaphandle, ukushintshashintsha kwe-voltage.

1P+N Electronic Type RCBO
