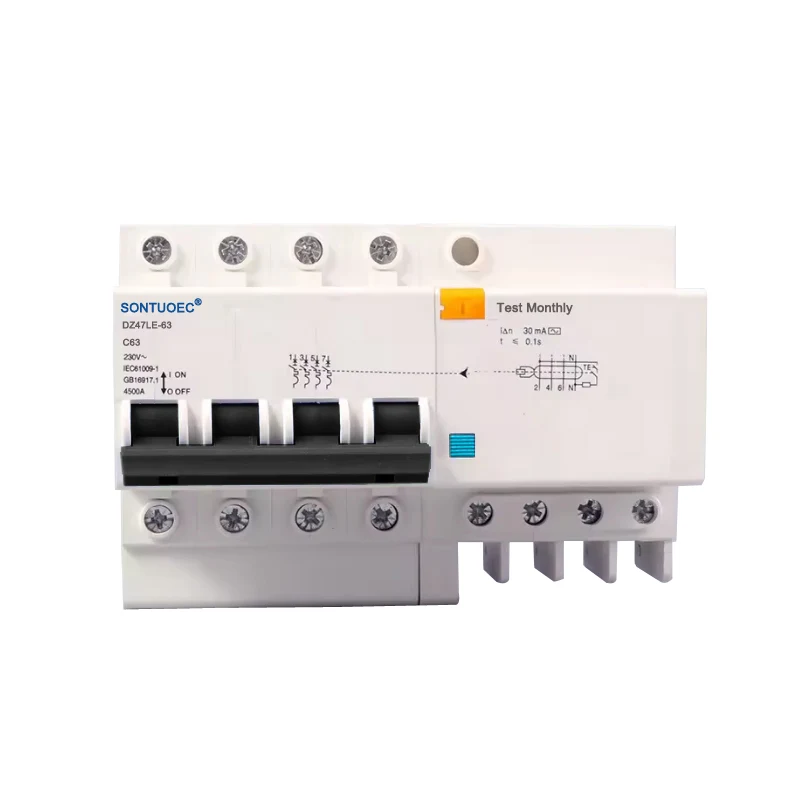

4P RCBO AC Uhlobo

Uhlobo lwe-4P RCBO AC luwuhlobo lwe-4-pole breaker oluhlanganisa ukuvikelwa kwamanje okuyinsalela nemisebenzi yokuvikela okudlulele, ikakhulukazi edizayinelwe amasekhethi amanje (AC) ashintshanayo. Ingakwazi ukunqamula ukunikezwa kwamandla ngokuzenzakalelayo lapho amandla asalayo (okungukuthi ukuvuza) kutholwa kusekethe ukuvimbela imililo kagesi kanye nezingozi zokushaqeka kukagesi komuntu siqu. Ngesikhathi esifanayo, iphinde ibe nomsebenzi wokuvikela ngokweqile onganqamula ngokuzenzakalelayo ukunikezwa kwamandla uma kwenzeka kune-overload noma i-short-circuit kumjikelezo ukuze kuvikelwe ukuphepha kwesifunda kanye nemishini.

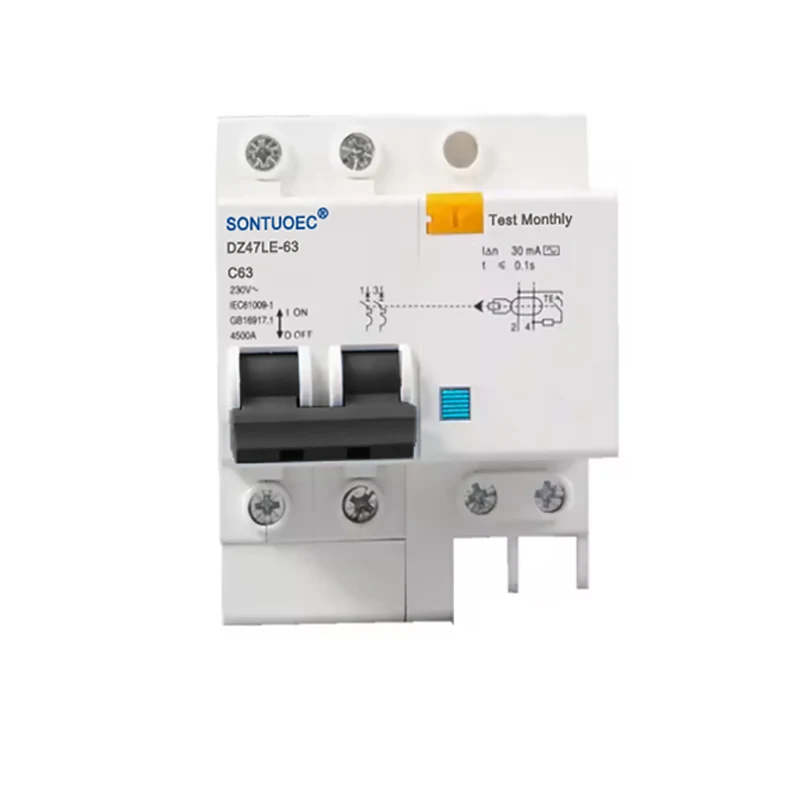

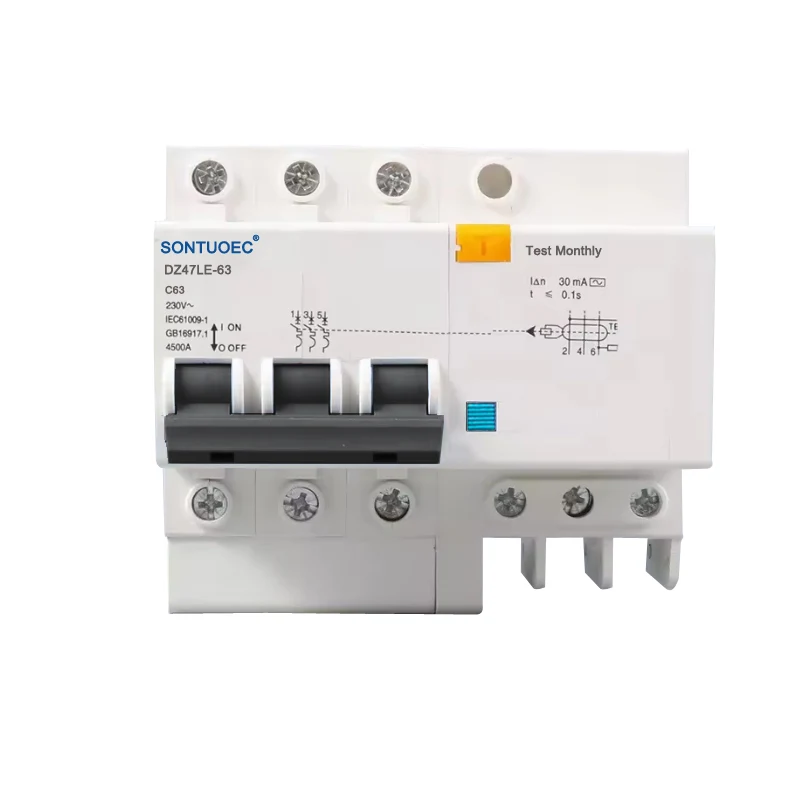

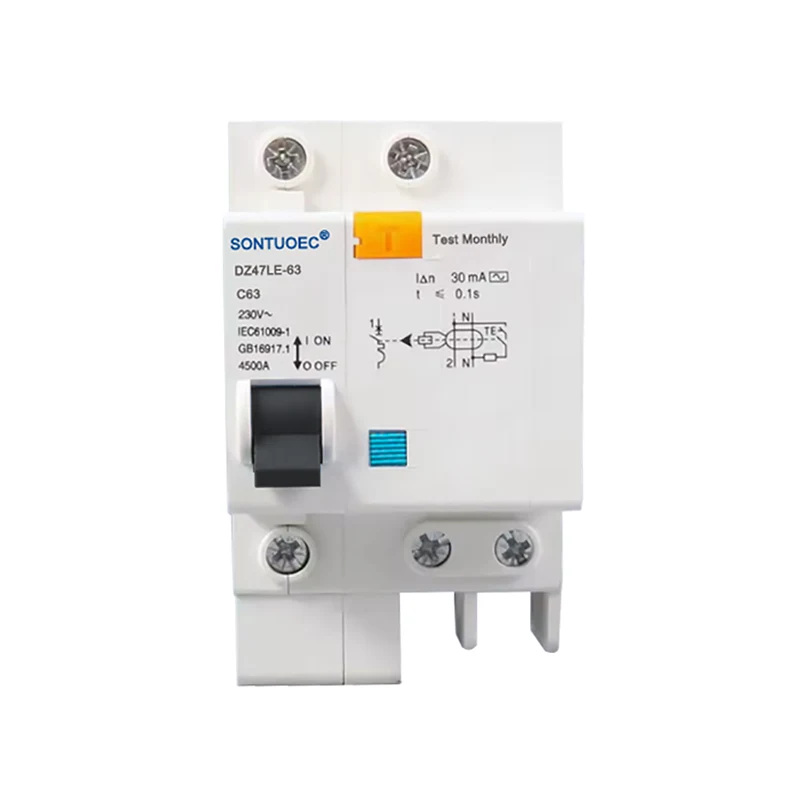

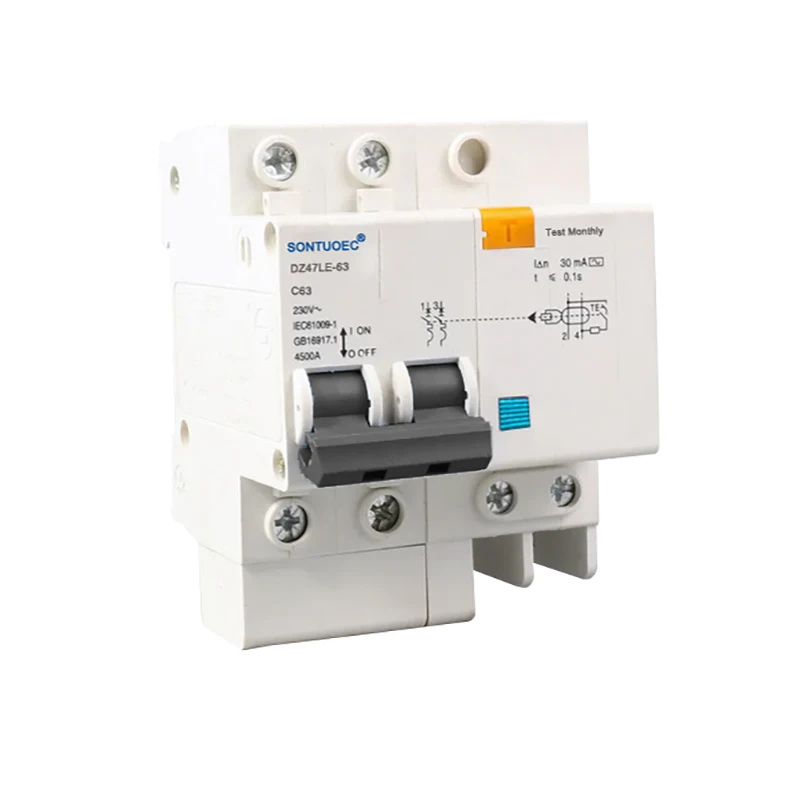

Imodeli:DZ47LE-63

Thumela Uphenyo

Incazelo Yomkhiqizo

igama	I-Residual Circuit Breaker enokuvikelwa kwe-Overcurrent
izici	ukulayisha ngokweqile/isekethe emfushane/ ukuvikela ukuvuza
I-Pole No	1P/2L, 2P/2L, 3P/3L, 3P/4L 4P/4L
Ukuphula Amandla	3kA,4.5KA,6KA
Kukalwe Okwamanje(A)	6A,10A,16A,20A,25A,32A, 40A,63A
Isilinganiso sokusebenza kwensalela yamanje:	10mA, 30mA, 100mA, 300mA, 500mA
Kukalwe Voltage(V)	240/415v
ukufakwa	uhlobo lwesitimela se-din
ejwayelekile	IEC61009-1, GB16917-1
isitifiketi	CE

Isimiso sokusebenza

Isimiso sokusebenza sohlobo lwe-4P RCBO AC sisekelwe enanini le-vector yamaza nokulandela izimiso kazibuthe kagesi. Lapho ama-currents kumjikelezo emlilweni (L) kanye ne-zero (N) izintambo zingalingani ngobukhulu, isamba se-vector yama-currents ohlangothini oluyinhloko lwesekethe ye-transformer ayiyona i-zero, ekhiqiza i-voltage ekhishwe kukhoyili eseceleni yesibili. La mandla kagesi angeniswayo anezelwa ku-electromagnetic relay, akhiqize amandla ashukumisayo adala amandla ahlehlayo asusa uzibuthe. Uma iphutha lamanje lifinyelela inani lamanje lokusebenza le-RCBO, la mandla asusa uzibuthe ahlehlayo azobangela ukuthi i-armature engaphakathi kwe-electromagnetic relay ukuthi ihlukane nejoka, iphushe indlela yokusebenza ukuthi isebenze futhi inqamule isekethe yamanje enephutha.

I-DZ47LE-63 yochungechunge lwe-electronic earth leakage protection circuit breaker ifaneleka kumjikelezo wokuhlala wesigaba esisodwa se-AC 50Hz/60Hz, i-voltage elinganiselwe engu-230V, futhi ikalwe i-6A~63A yamanje; I-400V yomjikelezo wezigaba ezintathu we-AC 50Hz/60Hz. Ingakwazi ukuvikela ukugcwala kwefomu lesifunda kanye nesifunda esifushane. Lo mkhiqizo unezinzuzo zevolumu encane, umthamo omkhulu wokuphuka, intambo ephilayo kanye nomugqa we-zero unqanyuliwe ngesikhathi esifanayo, futhi uvikela umuntu ekushaqekeni kokuvuza kagesi esimweni socingo lomlilo kanye nomugqa we-zero oxhumeke emuva.

Ihambisana ne-IEC61009-1,GB16917.1 ejwayelekile.

Isici:

1) .Inikeza isivikelo ngokumelene nokushaqeka kukagesi, iphutha lomhlaba, ukuvuza kwamanje;

2).Inikeza isivikelo ekulayisheni ngokweqile, i-short-circuit kanye ne-over-voltage;

3). Ivolumu encane, umthamo omkhulu wokuphuka; intambo ephilayo kanye nomugqa we-zero unqanyuliwe ngesikhathi esifanayo;

4). Usayizi omncane nesisindo, ukufakwa kalula kanye nezintambo, ukusebenza okuphezulu nokuqinile

5). Nikeza ngokumelene nokukhubeka kokusebenza kabi okubangelwa i-voltage esheshayo namandla asheshayo.

Izici & Izinzuzo

Ukuvikelwa kwemisebenzi eminingi: Uhlobo lwe-4P RCBO AC luhlanganisa ukuvikelwa kwamanje okuyinsalela nokuvikela okudlulele ukuze kunikeze ukuvikelwa okuphelele kwamasekhethi namathuluzi.

Ukuzwela okuphezulu: Ukuvikeleka okuzwela kakhulu ekufakweni okungazelelwe noma ukunyuka okunensayo kwensalela ye-sinusoidal AC yamanje kuqinisekisa ukuhlukana.

Uhlu olubanzi lohlelo lokusebenza: Ifanele izifunda ze-AC ezinhlelweni zokusabalalisa amandla ezifuywayo, ezezimboni nezohwebo, ikakhulukazi izintambo zomlilo owodwa-uziro.

Kulula ukufaka nokunakekela: idizayini yesakhiwo enengqondo, kulula ukuyifaka, futhi ngesikhathi esifanayo kulula ukuyilungisa nokulungisa kabusha.

Izimo zohlelo lokusebenza

I-4P RCBO AC Type isetshenziswa kabanzi ekuvikeleni isekethe ye-AC ezindlini, emahhovisi, ezakhiweni zezentengiselwano nasezikhungweni zezimboni. Ifaneleka ngokukhethekile izinhlelo zokusebenza ezidinga ukuvikelwa kokubili kwezintambo zoMlilo noZero, njengamasekhethi okukhanyisa, amasekhethi asokhethi kanye nokuvikelwa kwezinto zokusebenza ezifana namamotho.
