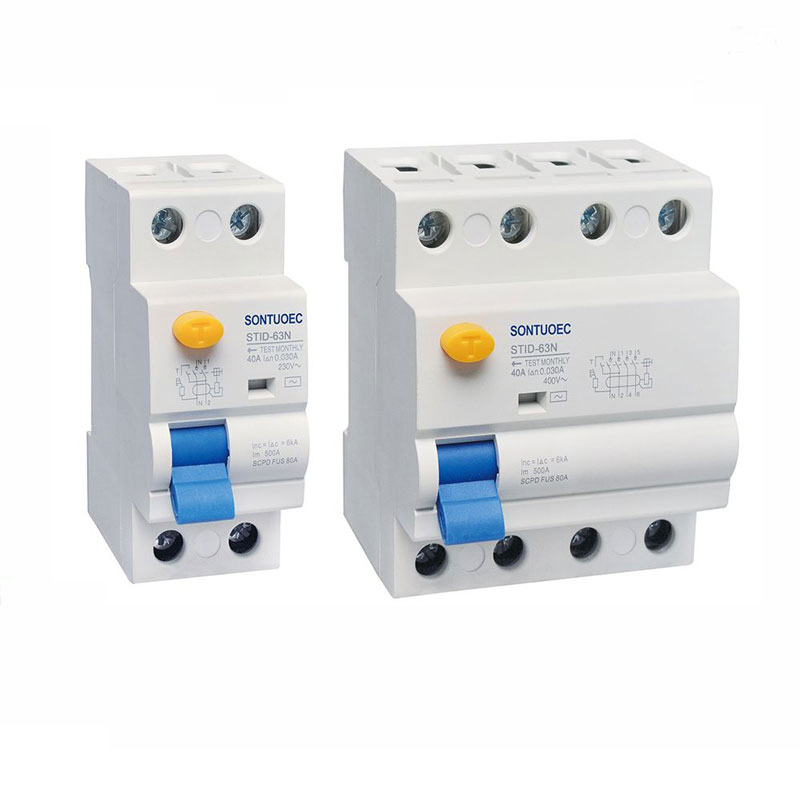

I-63a / 100mA Residial Precial Breaker RCCB

I-63A / 100A I-RCCB yesekeli yamanje ye-100A

Imodeli:STID-63N

Thumela Uphenyo

Incazelo Yomkhiqizo

Okujwayelekile:	IEC 61008-1
Imodeli:	Sign-63n
Izici Zamanje Zamanje:	Futhi, futhi
Isigxobo Cha.:	2p, 4p
Kukalwe manje:	16a, 25a, 32a, 40a, 63a;
I-VOLTAGE ekalwe:	230 / 400v AC
Imvamisa ekalwe:	50 / 60hz
Kulinganiselwe okusasele okusebenzayo kwamanje i-IelN:	10A, 30mA, 100MA, 300mA, 500MA
I-rated redial desidual engasebenzi yamanje I ΔNO:	≤0.5iΔ
Kulinganiselwe okunemibandela evamile ye-Short-Circuit CRELTER CASH:	6000a
Kulinganiselwe umjikelezo onemibandela onemibandela I-I1C yamanje:	6000a
Isikhathi Esithuthisiwe:	I-TRIPASHTER≤00.1SEC
I-Residial Tripping Range yamanje:	0.5iΔ ~ Ieln
Ukukhuthazela Nge-Electro-Mechanical:	Imijikelezo engu-4000
I-Torque esheshayo:	I-2.0NM
Isikhungo sokuxhuma:	Isikulungisa isisekelo sensipha
Ukufaka:	35mm din rail ukukhwela

Umgomo Wokusebenza

Umgomo wokusebenza we-RCCB ususelwa kwimigomo yokungeniswa kwe-electromagnetic nebhalansi yamanje. Lapho i-residial yamanje esifundeni idlula ku-transformer, i-transformer ikhiqiza i-flux ehambisanayo kazibuthe. Le Flux kazibuthe iguqulwa ibe isinali kagesi futhi icutshungulwe ngumjikelezo we-elekthronikhi. Lapho isiginali kagesi esetshenzisiwe ifinyelela umkhawulo osethiwe, i-RCCB ibangela indlela yokukhishwa ukuze isebenze, okwenza ukuba umfutho wesifunda anqume ngokushesha umjikelezo.

Izici eziyinhloko

Ukuzwela okuphezulu: I-RCCB iyakwazi ukuthola ama-currints amancane asele, imvamisa ngaphansi kwe-30mA (inani eliqondile lincike ekucacisweni komkhiqizo), okusiza ukunciphisa amasekethe ngesikhathi ngaphambi kokuba kwenzeke izingosi ze-electrocution.

Impendulo esheshayo: I-RCCB ingasusa ngokushesha umjikelezo phakathi kwama-millisecond ambalwa ngemuva kokuthola okusele kwamanje, okuvimbela ngempumelelo izingozi zikagesi nokusakazeka kwemililo kagesi.

Kuphephile futhi kunokwethenjelwa: I-RCCB yamukela izingxenye ezithuthukile ze-elekthronikhi kanye nokukhipha indlela yokunqamula ngokwethembeka okuphezulu nokuqina. Ngasikhathi sinye, futhi inemali ngokweqile kanye nemisebenzi yokuvikelwa okufushane, engavikela ngokugcwele ukuphepha kwemibuthano nemishini.

Kulula ukufaka futhi ugcine: I-RCCB ivame ukwamukela umklamo we-modular, isakhiwo esihlangene futhi kulula ukuyifaka. Kubuye kube nokuhlola okulula futhi kuhlole oxhumana nabo ngokulungiswa okujwayelekile nokuhlolwa.

Izimo Zokusebenza

I-RCCB yesekethe yamanje ye-63A / 100A I-RCCB yamanje ye-100A

Izakhiwo zokuhlala nezentengiselwano: Ukuvikelwa kwemishini kagesi nokuphepha komuntu siqu ngokumelene nezingozi zikagesi kanye nemililo kagesi. Emakhaya, ama-RCCB avame ukufakwa emabhokisini okusabalalisa njengokuvikelwa okuyinhloko noma kwegatsha ezifundazweni zasekhaya.

Umugqa Wokukhiqiza Izimboni: Kusetshenziselwa ukuvikela ukusebenza okujwayelekile kwemishini kagesi efana nama-motors, abaguquli, njll., Nokuvimbela ukulimala kwemishini nokuvalwa okubangelwa ukuvuza nokulayishwa ngokweqile. Ensimini yezimboni, ama-RCCB avame ukufakwa emaphethelweni okuphela amandla kagesi njengedivaysi yokuvikela imishini.

Izikhungo Zomphakathi: Njengezibhedlela, izikole, imitapo yolwazi nezinye izindawo, ama-RCCB asetshenziselwa ukuqinisekisa ukusebenza okuphephile kwemishini kagesi nokusetshenziswa kukagesi okuphephile ngabasebenzi. Lezi zindawo zivame ukuba nezidingo eziphakeme zokuphepha kukagesi, ngakho-ke i-RCCBS isetshenziswa kabanzi.

63A/100mA Residual Current Circuit Breaker RCCB
