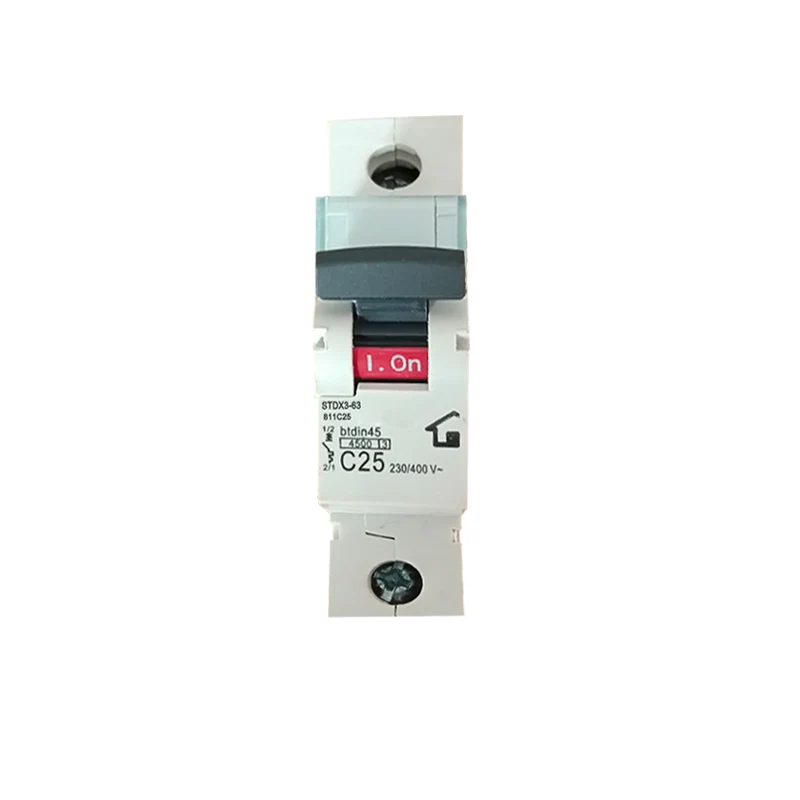

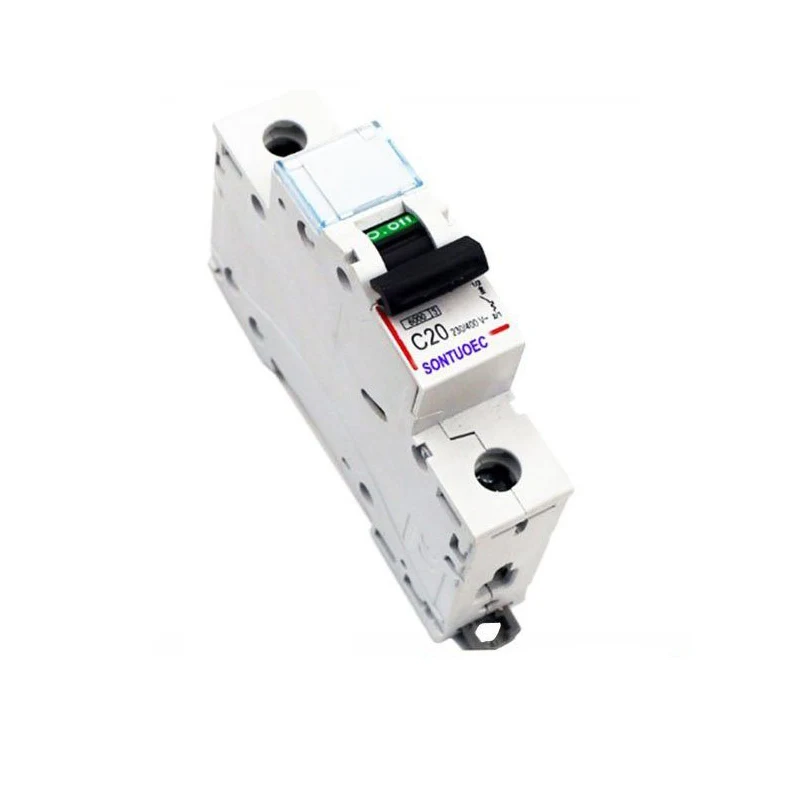

I-63A MCB

I-63A MCB inamandla okuphendula ngokushesha futhi inqume ngokunembile umjikelezo, ongavimba ngempumelelo imishini kagesi ekulinyazwe ngenxa yokulayishwa ngokweqile noma ngokujikeleza okufushane. I-63A MCB iyi-compact, kulula ukuyifaka futhi isebenzise kabusha, ukunciphisa izindleko zokulungiswa.63a MCB kusetshenziswa kabanzi ekuvikelweni kwesekethe ezindaweni ezahlukahlukene, ezentengiso, eziphakemeyo kanye nezindlu eziphakemeyo.

Imodeli:STDX3-63

Thumela Uphenyo

Incazelo Yomkhiqizo

-Vamile	Umuvo	IEC / EN 60898-1
-Gesi izici	Ikalwe njengamanje	A	5020,650,150,40,20,20,40,69
	Isigodlo	P	I-1P, 2P, 3P, 4P
	I-voltage ue	V	AC 230, 400
	I-UI yokufaka i-UI	V	500
	Imvamisa ekalwe	Hz	50/60
	Kulinganiselwe umthamo wokuphuka	A	3000, 4500, 6000
	Kulinganiswe i-Impulse I-Wortantle Voltage (1.2 / 50) UIMP	V	4000
	I-Dielectric Test Voltage e-Ind. Mahhala ye-1min	ingoma eleva	2
	Ukungcola iziqubu		2
	I-Thermo-Magnetic Delether Isici		B, c, d
-Omshini izici	Impilo kagesi	t	4000
	Impilo yomshini	t	10000
	Iziqu Zokuvikelwa		I-IP20
	Ukushisa kwereferensi kokuhlelwa ye-thermai element	ºC	30
	Izinga lokushisa elikhona (nge-average yansuku zonke ≤35ºC)	ºC	-5 ~ + 40 (Isicelo esikhethekile sicela ubheke ukulungiswa kwesinxephezelo sokushisa)
	Ukushisa okushisa	ºC	-25 ~ + 70
Ukufaka	Uhlobo lokuxhuma esibulalayo		Ikhebula / i-pin-hlobo busbar
	Usayizi we-terminal top / phansi ikhebula	mm2	25
		Kathathu	18-3
	Usayizi we-terminal top / phansi ngebhasi	mm2	25
		Kathathu	18-3
	Ukuqinisa i-torque	N * m	2
		I-LN-IBS.	18
	Engele		Ku-Din Rail en 60715 (35mm) ngedivayisi esheshayo ye-Clip
	Isihlobo		Kusuka phezulu nangaphansi

Ukucaciswa namapharamitha

Kulinganiswe njengamanje: 63a, okukhombisa ukuthi okuphezulu okukhona njengamanje ukuthi le mcb ingathwala ngokuphepha ngama-amps angama-63.

 I-Voltage evunyelwe

Inombolo yezigxobo: inani lezigxobo ze-MCBS zingahlukahluka kusuka kumodeli kumodeli, futhi okujwayelekile yi-single-pole (1p), i-Double-Pole (2p), i-Three-Pole Phakathi kwazo, i-4P ikhombisa ukuthi le mcb isetshenziselwa imibuthano yezigaba ezintathu.

Izinja

Isekethe ekhaya: ilungele ukuvikelwa kwesifunda kwemishini kagesi yasendlini, njengokukhanya, izisekelo nokunye.

Izakhiwo zezentengiso: Ezakhiweni zentengiso ezinjengezitolo ezinkulu zezitolo kanye nezakhiwo zehhovisi, i-63a MCB ingasetshenziswa ukuvikela imishini kagesi enemithwalo emikhulu.

 Izimboni: Ezizenzakalweni zezezimboni kanye

Imigqa yokukhiqiza , i-63a MCB ingasetshenziswa ukuvikela imishini ebalulekile yemishini kanye nemibuthano yokukhiqiza.
