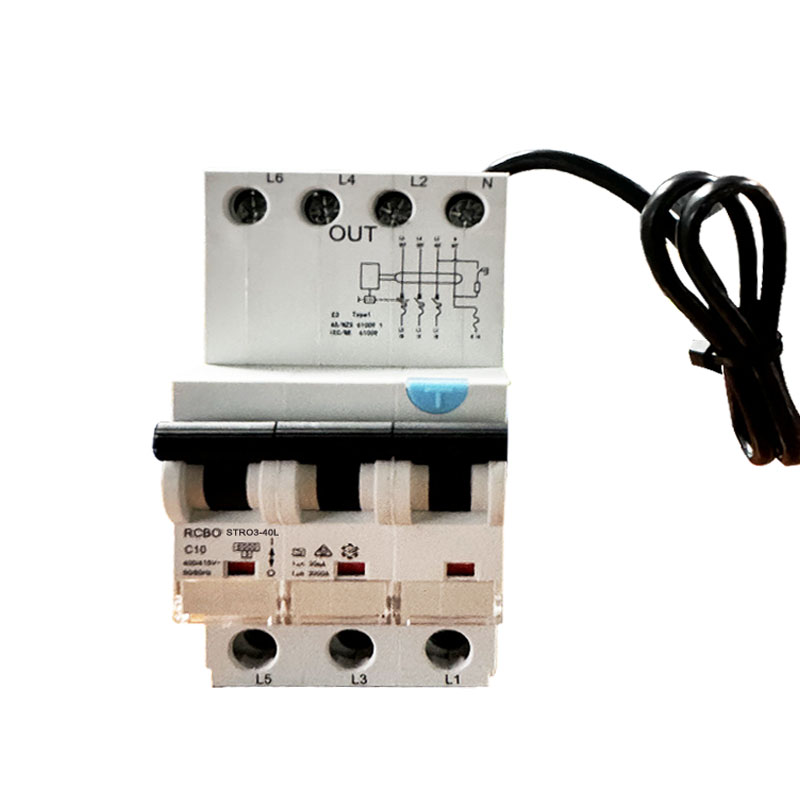

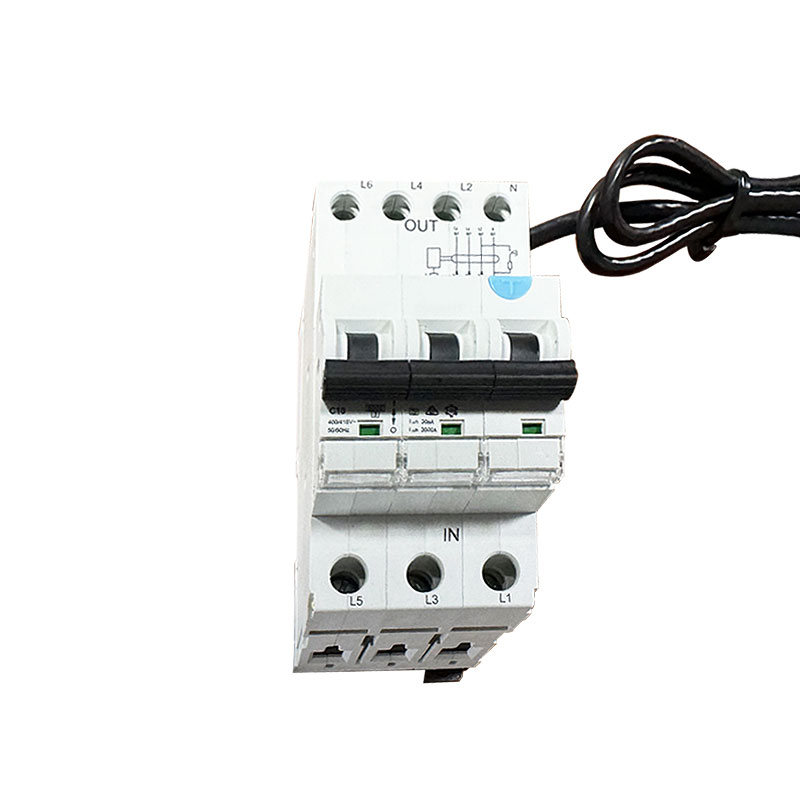

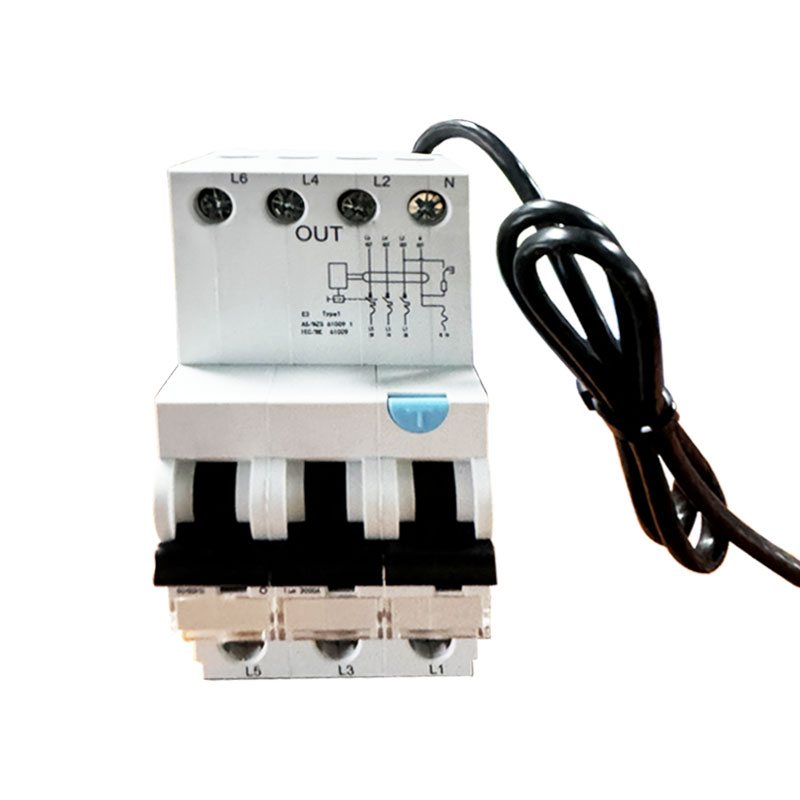

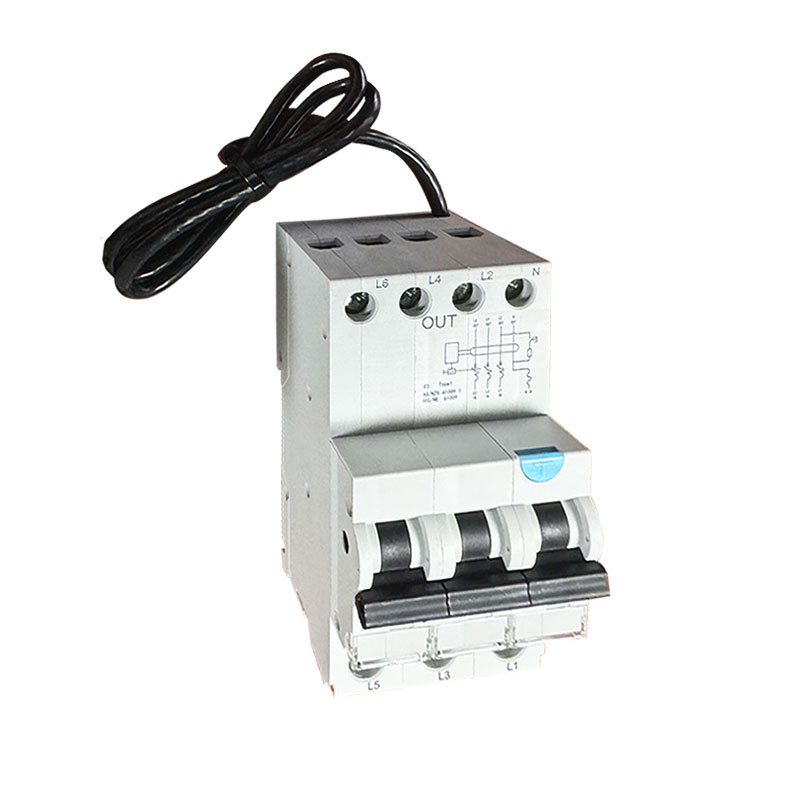

I-6ka 3p+N I-Leakage Circuit Breaker a (AC) Uhlobo lwe-RCBO enekhebula

I-SONTUOEC ingomunye wabahlinzeki/abakhiqizi baseShayina abasebenza ngokukhethekile ekukhiqizeni izinto zikagesi ezincane ezihlukahlukene 6ka 3P+N Leakage Circuit Breaker a (AC) Uhlobo lwe-RCBO eneCable isetshenziswa kakhulu ku-AC 50Hz(60Hz), i-voltage elinganiselwe 110/220V, 0 voltage low 4, 120 A low 4, 120 A low 4, 4 uhlelo. I-RCBO STRO3-40L ilingana nomsebenzi we-MCB+RCD; Isetshenziselwa ukuvikela ukushaqeka kukagesi kanye nokuvikela ukuthintana komuntu ngokungaqondile, ukuvikela impahla kagesi lapho umzimba womuntu uthinta ugesi noma ukuvuza kwenethiwekhi kagesi kudlula inani elishiwo, nokuvikelwa komthwalo ongaphezu komthwalo kanye nesekhethi emfishane.

Imodeli:STRO3-40L

Thumela Uphenyo

Incazelo Yomkhiqizo

Idatha yobuchwepheshe:

Sandard

I-IEC/EN61009-1

Izici zikagesi

Uhlobo(wave isimo sokuvuza komhlaba sizwakele)

I-electromagnetic uhlobo

Ilinganiselwe ku-In yamanje

A,AC

Izigxobo

(1P+N)

I-voltage elinganiselwe

110/220,120V

Ikalwe okwamanje :

6,10,16,20,25,32,40A

Ukuzwela okulinganiselwe I△n

0.01,0.03,0.1

I-Insulation voltage Ui

500

Kukalwe ukwenza izinsalela kanye

500

ukwephula umthamo I△m

I-Short-circuit current I△c

6000

I-SCPD fuse

6000, 10000A

I-BitmapBitmapBitmapBitmap

Isilinganiso sokuvama

50/60

Iziqu zokungcola

Izici zemishini

Ezogesi ukuphila

4000

Impilo yemishini

4000

Idigri yokuvikela

IP20

Izinga lokushisa le-ambient

ºC

-5~+40(Uhlelo lokusebenza olukhethekile sicela ubhekisele kulo ukulungiswa kwesinxephezelo sezinga lokushisa)

(ngesilinganiso sansuku zonke esingu-≤35ºC)

Izinga lokushisa lesitoreji

ºC

-25~+70

Ukufakwa

Itheminali uhlobo lokuxhuma

Ikhebula/uhlobo lwe-U ibha yebhasi/i-pin-type busbar

Usayizi wetheminali phezulu/phansi kwekhebula

mm²

AWG

18-5

Usayizi wetheminali phezulu/phansi kwe ibha yebhasi

mm²

AWG

18-5

I-torque yokuqinisa

N^*m

In-lbs

Ukukhweza

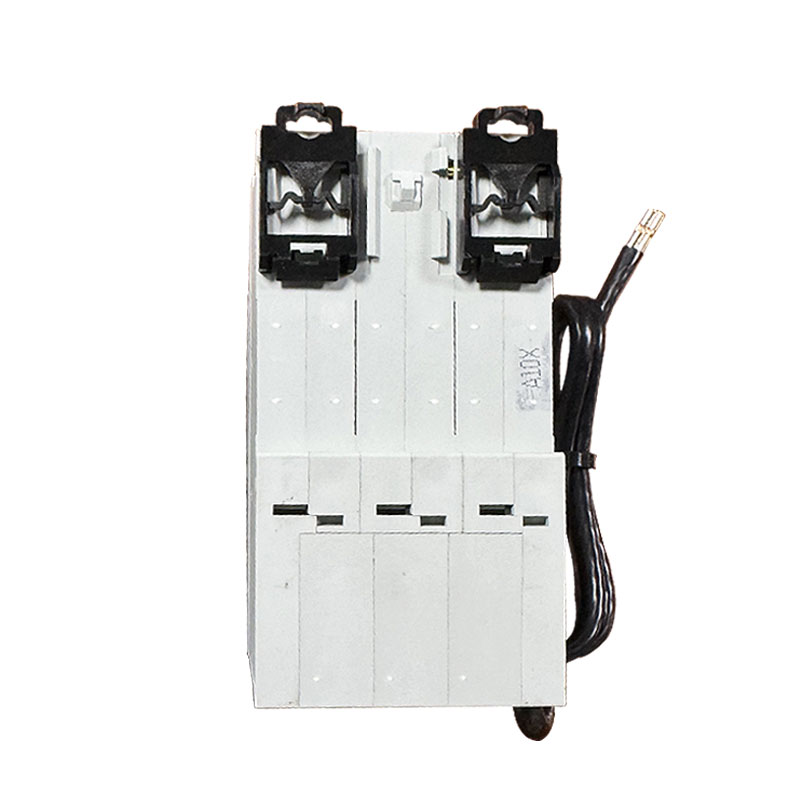

Vuliwe I-DIN ujantshi EN 60715(35mm) ngedivayisi yokunamathisela esheshayo

Ukuxhumana

Kusuka phezulu naphansi

Izici Eziyinhloko kanye Nemisebenzi

Ukuvikelwa kwamanje okuyinsalela: Uma umsinga oyinsalela (okungukuthi, ukuvuza kwamanje) kusekethe kufinyelela kunani elisethiwe, i-RCBO iyakwazi ukuthatha isinyathelo ngokushesha ukuze inqamule isekethe, ngaleyo ndlela ivimbele izingozi zomshini kagesi nemililo kagesi.

Ukuvikelwa kokulayisha ngokweqile: Uma i-current in circuit idlula i-current rated ye-RCBO, iyakwazi ukunqamula isekethe phakathi nesikhathi esinqunyiwe, ngaleyo ndlela ivimbele ukulimala kwesekethe noma izingozi zomlilo ezibangelwa ukugcwala ngokweqile.

Ukuvikelwa kwesekethe emfishane: Uma kwenzeka i-short-circuit kusekethe, i-RCBO ingasebenza ngokushesha ukuze inqamule i-short-circuit current futhi ivikele ukuphepha kwesekhethi nezinto zokusebenza.

Izici zokukhishwa zohlobo lwe-B: Njengoba kushiwo ngenhla, ama-RCBO ohlobo lwe-B afaneleka ngokukhethekile imithwalo engazweli ekulayishweni ngokushesha, kodwa azwelayo ekulayisheni isikhathi eside.

Izimo zohlelo lokusebenza

I-6ka 3p+N Leakage Circuit Breaker a (AC) Uhlobo lwe-RCBO enekhebuli isetshenziswa kabanzi ezindaweni lapho kudingeka khona imisebenzi ehlukahlukene yokuvikela isekethe, ikakhulukazi lawo masekhethi asebenzisa imithwalo enezidingo ezikhethekile nezici zokulayisha ngokweqile. Isibonelo:

Izakhiwo zokuhlala nezokuhwebelana: ezisetshenziselwa ukuvikela amasekhethi okukhanyisa, amasekhethi anesokhethi, njll. ukuze kuqinisekiswe ukuphepha komuntu siqu kanye nokuphepha kwemishini.

Izindawo zezimboni: zokuvikela izinto ezisetshenziswa ezimbonini ezahlukahlukene, njengezifudumezi ezingabambeki, izibani ze-incandescent, njll., ukuvikela ukulimala kwemishini noma izingozi zomlilo ezibangelwa ukugcwala noma ukuvuza.

Ezolimo kanye ne-horticulture: esetshenziselwa ukuvikela imishini yezolimo njengezindlu zokugcina izithombo, izinhlelo zokunisela, njll., Ukuqinisekisa ukusebenza okuvamile kwemishini kanye nokuphepha kwabasebenzi.

Izinyathelo Zokuqapha Nokunakekela

Ukukhethwa okulungile kwamandla amanje alinganiselwe: Uma ukhetha i- 6ka 3p+N Leakage Circuit Breaker a (AC) Uhlobo lwe-RCBO eneCable , inani elilinganiselwe lamanje kufanele likhethwe ngokusekelwe kumanje okulinganiselwe nezici zomthwalo.

Ukuhlola Nokunakekelwa Kwezikhathi: Hlola futhi unakekele i-RCBO ngezikhathi ezithile ukuze uqinisekise ukuthi isebenza ngendlela enokwethenjelwa, inezintambo ezivikelekile, futhi ayinawo umonakalo noma ukugqwala.

Gwema ukusebenza okungamanga: Lapho ufaka futhi usebenzisa, kufanele kuqashelwe ukugwema ukufaka i-RCBO endaweni engase ibe nokuphazamiseka ukuze kuvinjwe ukusebenza kwayo okungamanga.

Ukuphatha amaphutha ngesikhathi: Uma i-RCBO ihluleka noma isebenza, imbangela kufanele ikhonjwe futhi ukuxazululwa kwezinkinga kufanele kwenziwe kusenesikhathi ukuze kuqinisekiswe ukusebenza okuphephile kwesekethe.
