I-6ka I-Residual Circuit Breaker Yamanje Ngaphezu Kwe-RCBO Yokuvikela Yamanje

I-SONTUOEC ingomunye wabahlinzeki/abakhi baseShayina abasebenza ngokukhethekile ekukhiqizeni izinto zikagesi ezincane ezihlukahlukene i-STRO1-40 RCBO, igama eligcwele lithi I-Residual Current Circuit Breaker enokuvikelwa Okudlulele. Kuyidivayisi yokuphepha kagesi ehlanganisa ukuvikelwa kokulayishwa ngokweqile, ukuvikelwa kwesifunda esifushane kanye nokuvikelwa kokuvuza, futhi isetshenziswa kabanzi ezinhlelweni zikagesi ezindaweni zokuhlala, ezentengiselwano nezimboni ukuze kuqinisekiswe ukuphepha komuntu siqu nokusebenza okuphephile kwemishini.I-STRO7-40 RCBO iyithuluzi elibalulekile lokuphepha likagesi elinomthwalo omningi, isifunda esifushane kanye nokuvikelwa kokuvuza. Ngokuqonda isimiso sayo sokusebenza, izici, izimo zohlelo lokusebenza, nezindlela zokukhetha nezindlela zokufaka, ungasebenzisa kangcono futhi ulondoloze i-STRO7-40 RCBO ukuze uqinisekise ukusebenza okuphephile kwamasistimu kagesi.

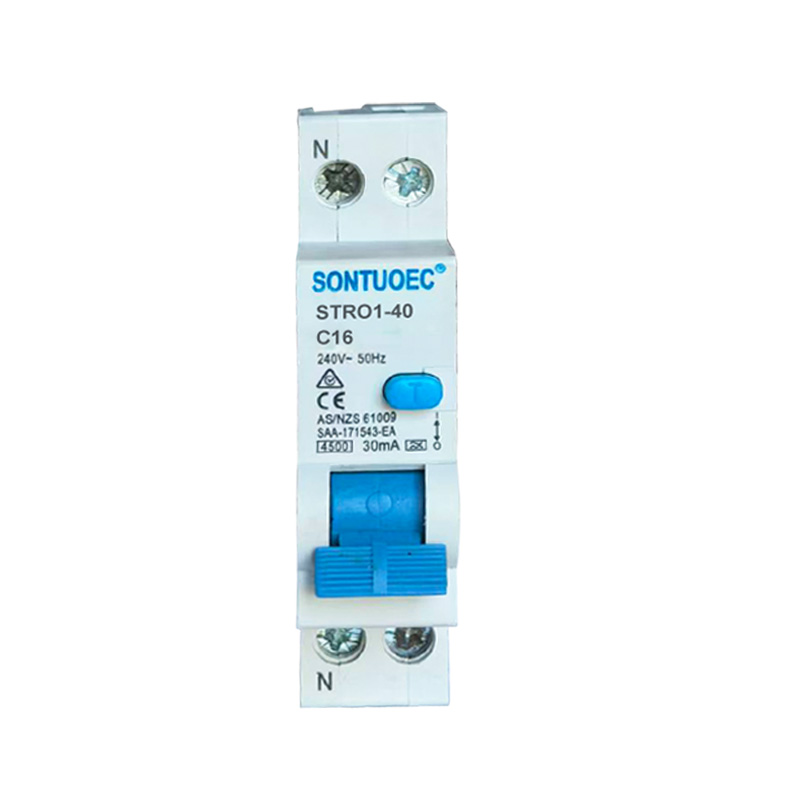

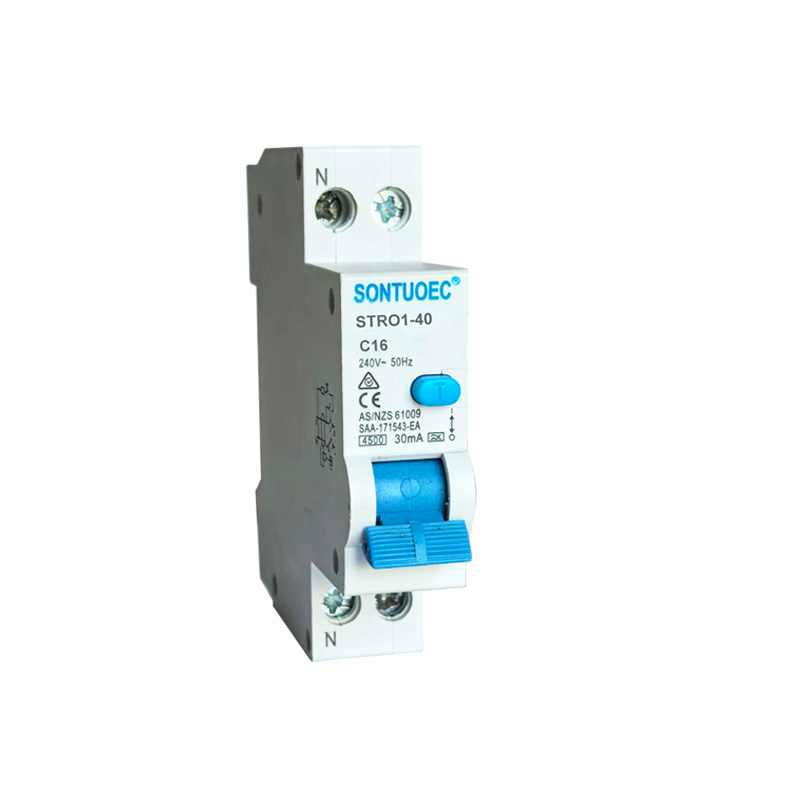

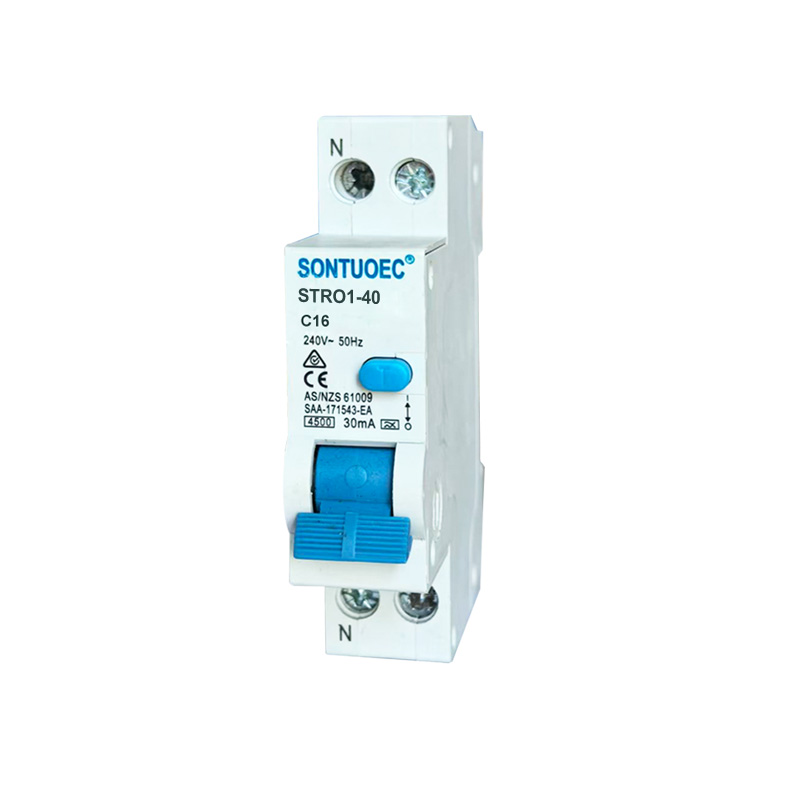

Imodeli:STRO1-40

Thumela Uphenyo

Incazelo Yomkhiqizo

Imininingwane:

Sandard			I-IEC/EN 61009-1
Ezogesi	Uhlobo(indlela yegagasi yokuvuza komhlaba izwakele)		Uhlobo lwe-elekthronikhi
izici	Ilinganiselwe ku-In yamanje	A	A,AC
	Izigxobo	P	1P+N
	I-voltage elinganiselwe	V	AC 230
	Ikalwe okwamanje :		6,10,16,20,25,32,40A
	Ukuzwela okulinganiselwe I△n	A	0.01,0.03,0.1,0.3,0.5
	I-Insulation voltage Ui	V	250
	Kukalwe ukwenza izinsalela kanye	A	500
	ukwephula umthamo I△m	A	500
	I-Short-circuit current I△c	A	45,006,000
	Isilinganiso sokuvama	Hz	50/60
	Iziqu zokungcola		2
Omakhenikha	Impilo kagesi	t	4000
izici	Impilo yemishini	t	10000
	Idigri yokuvikela		IP20
	Izinga lokushisa le-ambient	ºC	-25~+40
	(ngesilinganiso sansuku zonke esingu-≤35ºC)	ºC	-25~+40
	Izinga lokushisa lesitoreji	ºC	-25~+70

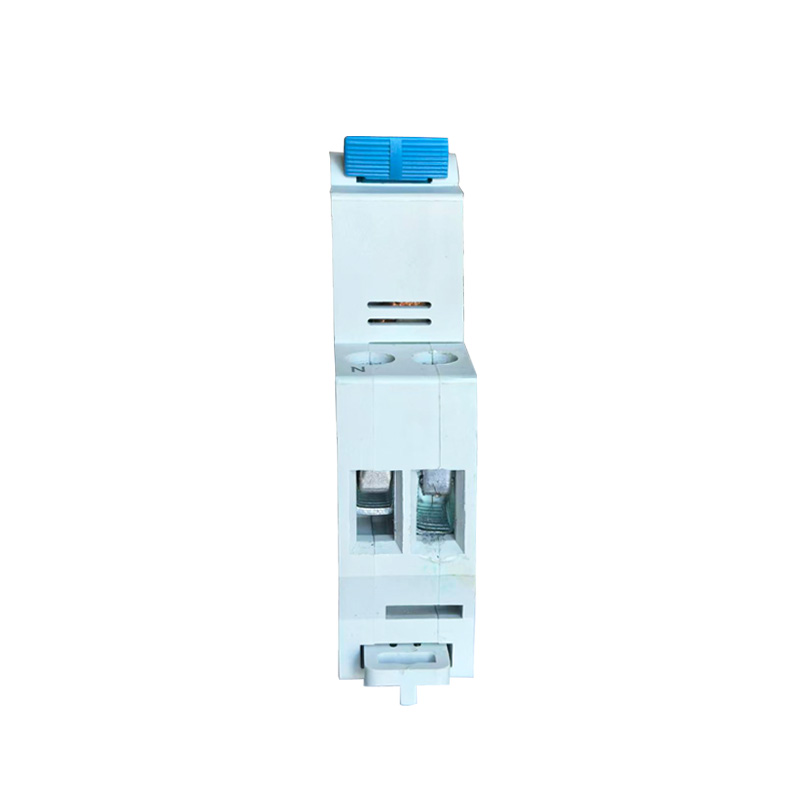

Ukufakwa	Uhlobo lokuxhuma kwetheminali		Ibha yekhebula/Uhlobo lwebhasi/ibha yebhasi yohlobo lwephini
	Usayizi wetheminali phezulu/phansi kwekhebula	mm2	25
	Usayizi wetheminali phezulu/phansi kwekhebula	AWG	18-5
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	mm2	25
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	AWG	18-3
	Ukukhweza		Ku-DIN ujantshi EN 60715(35mm) ngedivayisi yokunamathisela esheshayo
	Ukuxhumana		Kusukela phezulu naphansi

Imisebenzi esemqoka ye-STRO1-40 RCBO

Ukuvikela Ukulayisha Okungaphezulu: Uma i-current in circuit idlula inani elilinganiselwe le-STRO1-40 RCBO, izonqamula ngokuzenzakalelayo isifunda phakathi nesikhathi esimisiwe ukuvimbela isifunda kanye nemishini ekushiseni ngokweqile, ngaleyo ndlela igweme umlilo nokulimala.

Ukuvikelwa kwesifunda esifushane: Uma isifunda esifushane senzeka kumjikelezo, i-STRO1-40 RCBO izonqamula ngokushesha isifunda ukuze ivimbele umjikelezo omfushane ukuthi ubangele umonakalo omkhulu kumjikelezo kanye nemishini.

Ukuvikelwa Kokuvuza: I-STRO1-40 RCBO iyakwazi ukuthola amandla asele (okungukuthi, ukuvuza kwamanje) kusekethe. Uma umsinga osele udlula umkhawulo obekiwe, i-STRO1-40 RCBO izonqamula isekethe ngesikhathi esifushane kakhulu ukuze kuvinjelwe izingozi zogesi kanye nemililo kagesi.

Isimiso sokusebenza kwe-STRO1-40 RCBO

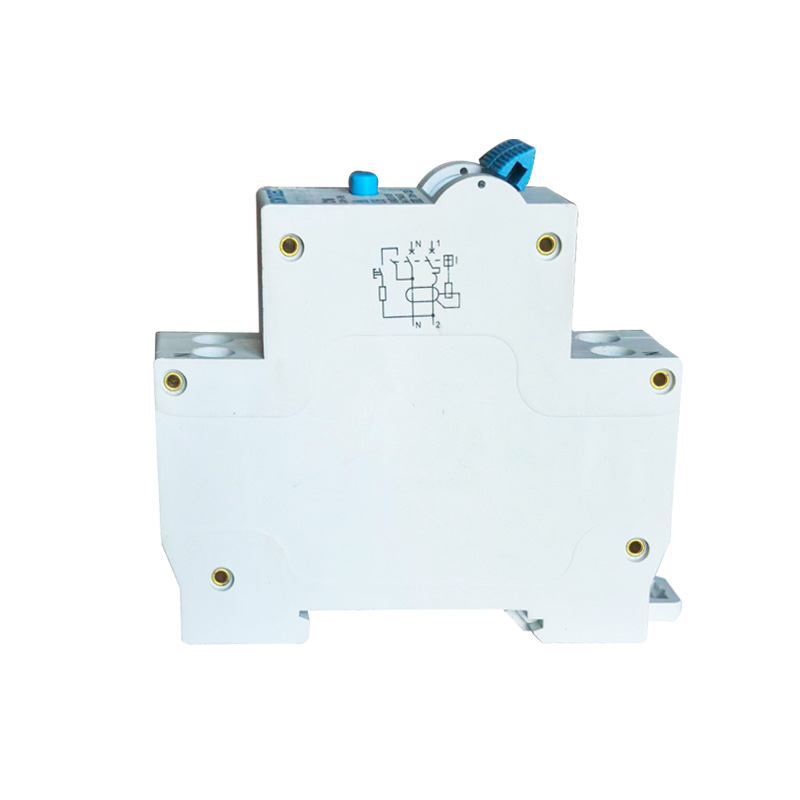

I-STRO1-40 RCBO iqukethe umtshina wohambo ozibuthe oshisayo wangaphakathi (wokulayisha ngokweqile nokuvikelwa kwesekethe emfushane) kanye nomtshina wamanje osele (ukuvikela ukuvuza). Uma intambo yamanje noma esele kusekethi ingajwayelekile, umhlaseli ohambisanayo ucupha indlela yokukhubeka ye-STRO7-40 RCBO, iyenze inqamule isekethi ngokushesha.

1.I-Thermal Magnetic Tripper: Isebenzisa ukushisa nezizibuthe ezikhiqizwa lapho i-current idlula ku-conductor ukuze icuphe ukukhubeka. Uma i-curse iphezulu kakhulu, ikhondukta iyashisa futhi ikhiqize inkambu kazibuthe, ibangele ukuthi i-bimetal engaphakathi kwesigadli sikazibuthe esishisayo igobe noma uzibuthe ukuze ihehe umgogodla we-iron, ngaleyo ndlela icuphe indlela yokukhubeka.

2.Isitshina samanje esisalelayo: Sisebenzisa i-transformer yamanje elandelanayo eyiziro ukuze ibone amandla asalayo kusekethe. Uma amandla asalayo edlula umkhawulo obekiwe, umtshina wamanje oyinsalela uzothumela isignali kumshini wokukhubeka ukuze unqamule isekethe.

Izici ze-STRO1-40 RCBO

Ukuhlanganiswa kwemisebenzi eminingi: I-STRO1-40 RCBO ihlanganisa imisebenzi yokuvikela ukulayishwa ngokweqile, isiyingi esifushane kanye nokuvuza, okwenza kube lula ukuklama nokufakwa kwamasistimu kagesi.

Ukuzwela okuphezulu: I-STRO1-40 RCBOs ingakwazi ukubona ngokushesha futhi inqamule imisinga engavamile kanye nensalela kumjikelezo, inikeze ukuvikeleka okuthembekile.

Kulula ukuyifaka nokuyinakekela: Ama-STRO1-40 RCBOs ngokuvamile ahlelwa ngendlela yokuthi afakwe kalula futhi alungiswe.

Ukuphepha okuphezulu: I-STRO1-40 RCBOs ihlolwe ngokuqinile futhi iqinisekiswe ukuphepha okuphezulu nokuthembeka ukuze kuqinisekiswe ukusebenza okuphephile kwezinhlelo zikagesi.

Izimo Zokusebenza ze-STRO1-40 RCBO

I-STRO1-40 RCBOs isetshenziswa kakhulu ezinhlelweni zikagesi ezindaweni zokuhlala, ezentengiselwano nezimboni, ikakhulukazi lezo ezidinga ukugcwala ngasikhathi sinye, ukujikeleza okufushane kanye nokuvikelwa kokuvuza komhlaba. Ngokuvamile zifakwa emabhokisini okusabalalisa, ama-switchboards noma amakhabethe okulawula ukuze kuvikelwe amasekhethi kanye nemishini emonakalweni obangelwa amandla angalungile kanye ne-voltage, nokuvimbela ugesi.
