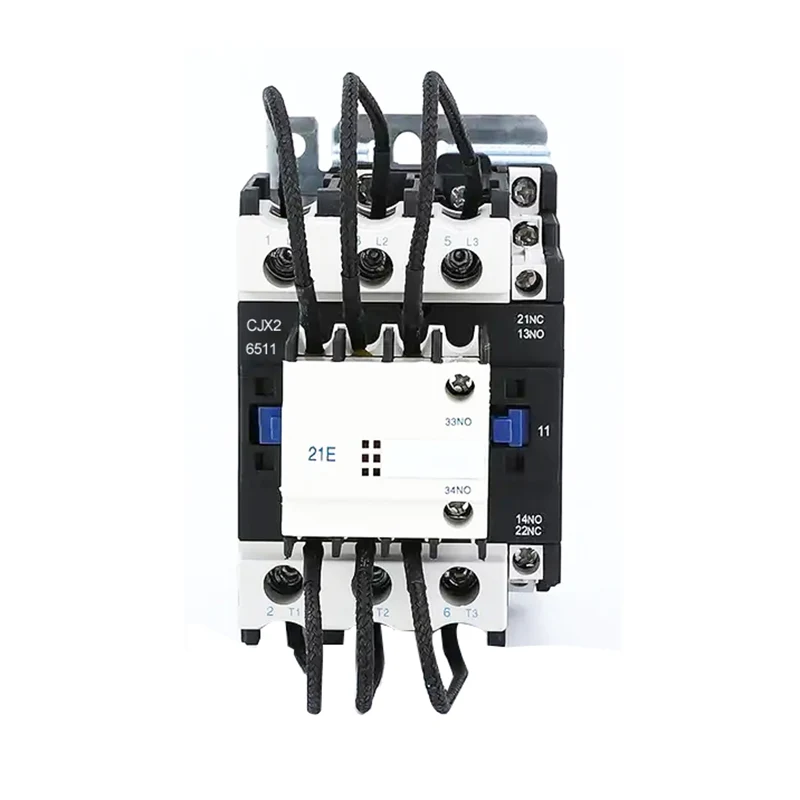

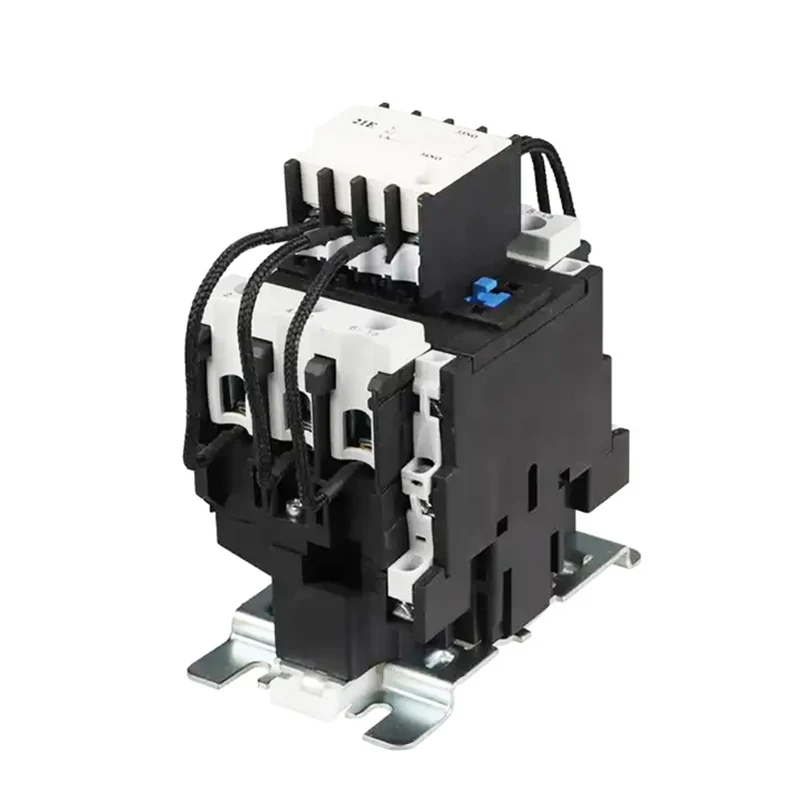

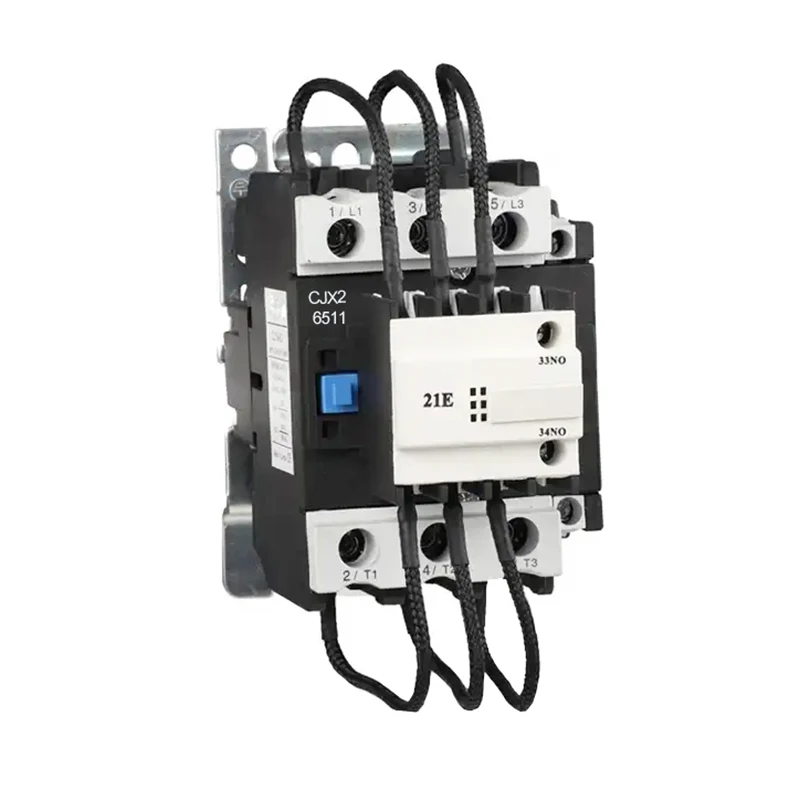

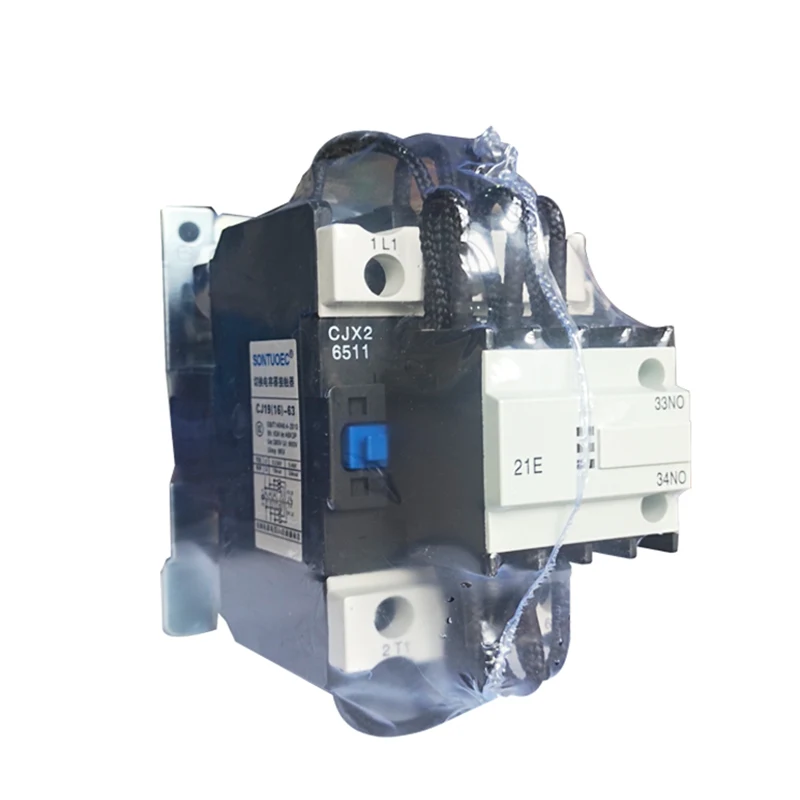

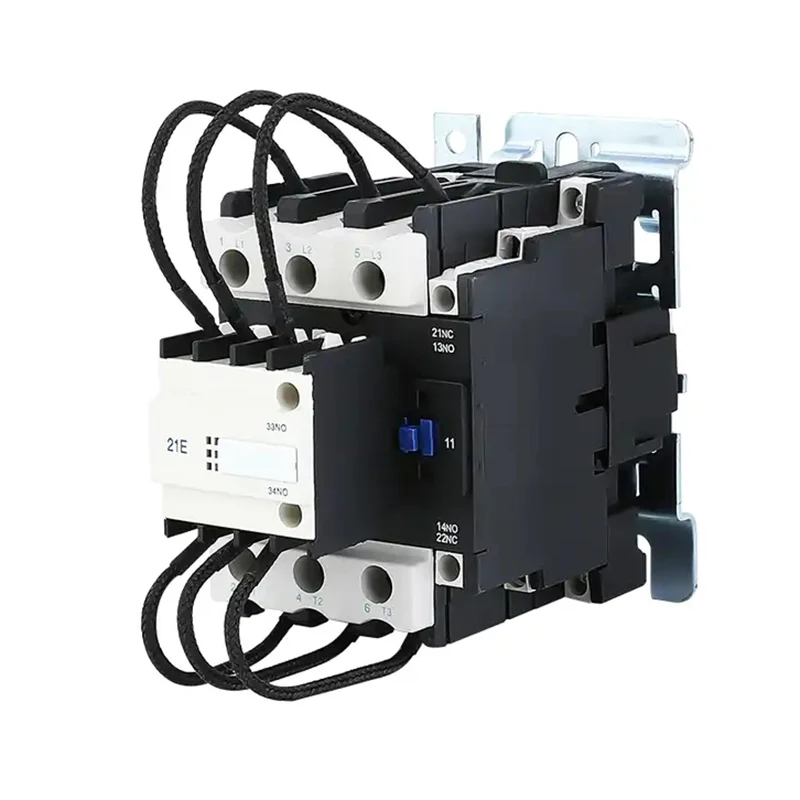

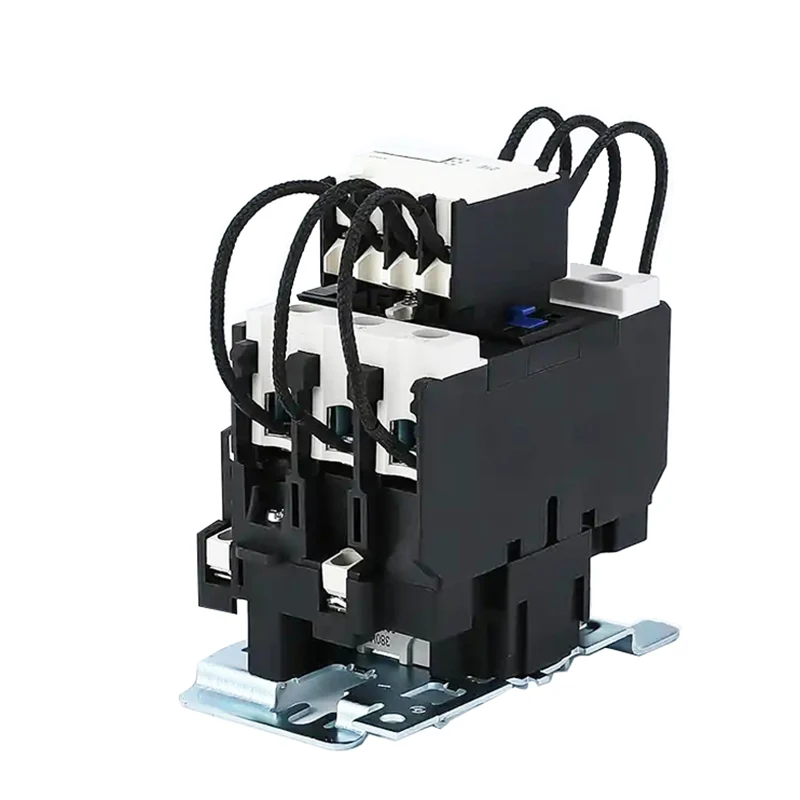

Ac magnetic othintana naye

I-AC Magnetic Oflometic isetshenziswa kwinethiwekhi yamandla ye-AC 50hz noma i-60hz, kuze kufike ku-380v, ngokusebenza noma ukushintshanisa i-LV capacitor control purtuit Power Circuit. Ngedivayisi ye-antisurge, inganciphisa umthelela wokuvalwa kokuvalwa futhi uvikele ekugcwalisweni ngokweqile njengokuphuka.

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukuthayipha		CJ19-09	CJ19-12	CJ19-18	CJ19-25	CJ19-32	CJ19-40	CJ19-50	CJ19-65	CJ19-80	CJ19-95
Kukalwe ukusebenza kwamanje (a)	AC3	9	12	18	25	32	40	50	65	80	95
Kukalwe ukusebenza kwamanje (a)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Izilinganiso ze-standardPlower zesigaba esingu-3 Motors 50 / 60hz Insatesory AC-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	I-415v	4	5.5	9	11	15	22	25	37	45	45
	I-500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	I-660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Kukalwe ukushisa kwamanje (a)		20	20	32	40	50	60	80	80	125	125
Impilo kagesi	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Impilo kagesi	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Impilo Yomshini (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Inani Lothintana Nabo	3p + cha					3p + NC + cha
Inani Lothintana Nabo	I-3P + NC					3p + NC + cha

I-SCJ19 Shintsha Ukushintshwa Koperacacitor Into oxhumana naye isetshenziswa ku-Power Network ye-AC 50hz noma i-60hz, kuze kufike ku-380v, ngokusebenza kwensiza yokulawula amandla e-LV esebenzayo. Ngedivayisi ye-antisurge, inganciphisa umthelela wokuvalwa kokuvalwa futhi uvikele ekugcwalisweni ngokweqile njengokuphuka.

Umgomo Wokusebenza

Umgomo wokusebenza we-AC Magnetic oxhumana naye ususelwa ekungenisweni kwe-electromagnetic namandla kazibuthe. Lapho ikhoyili inamandla, kwakhiqizwa amandla kazibuthe adonsela i-Iron Core futhi avale oxhumana nabo, ngaleyo ndlela avule umjikelezo. Lapho ikhoyili enikezwe amandla, amandla kazibuthe ayanyamalala, i-Iron Core ethengisa ngaphansi kwesenzo sentwasahlobo, othintana naye uphukile futhi umjikelezo uyanqanyulwa. Ngale ndlela, oxhumana naye we-AC Magnetic uyabona ukulawulwa komjikelezo we-AC.

Ukwakheka nokwakheka

I-AC Magnetic Ofloctorar ihlanganiswa ikakhulukazi ezingxenyeni ezilandelayo:

Uhlelo lwe-Electromagnetic: Kufaka phakathi izingxenye ezifana ne-Coil, umnyombo kanye ne-armature, okuyizingxenye ezisemqoka zokukhiqiza amandla kazibuthe kanye nesenzo sezinkazi.

Uhlelo lokuxhumana: Kufaka phakathi oxhumana naye ophambili kanye nokuxhumana okusizayo, okusetshenziselwa ukuvula nokujikeleza. Oxhumana nabo abaphambili bavame ukusetshenziselwa ukuphatha ama-currents amakhulu, kanti oxhumana nabo abasizayo besetshenziselwa ukuthola imisebenzi ehlukahlukene yokulawula.

Idivaysi yokucisha i-ARC: Isetshenziselwa ukucisha i-arc lapho oxhumana naye exhunyiwe, ukuvimbela i-arc ekulimaleni oxhumana naye.

Ezinye izakhi: ezinjengeziphethu, kubakaki, izindlu, njll.

Hlela

1.Umxhumana ohlangana nokumelana namanje okulinganiselwe, okwazi ukukhawulela ukushintshanisa kokuhlinzwa ngaphakathi kwenani elivumelekile.

I-2.Itholi lingemuva kokusebenza ngokuqondile kwesakhiwo sekhefu le-DIAL-Break, i-Actiming Mechanism iyashesha, kulula ukuyihlola ngesandla, i-compact subcureconving yokushintsha oxhumana nabo.

I-3.Ukubhubhana ebulalayo ivikelwe ngesembozo, iphephile futhi ithembekile.

I-4.Ingafakwa izikulufa, noma ngojantshi ojwayelekile ongu-35 / 75mm.

Ukusebenza nokufaka izimo

(1) Ukushisa okukhona: -5 ℃ - + 40 ℃, izinga lokushisa elijwayelekile akufanele libe ngaphezulu + 35 ℃ emahoreni angama-24.

. Emazingeni eliphakeme kakhulu enyangeni lokushisa eliphansi kakhulu + 25 ℃ Ngokwesilinganiso nomswakama omkhulu olinganiselwe ngu-90%, futhi ucubungula ushintsho lokushisa futhi lwenzeka ngoba umkhiqizo osendaweni yejeli.

(3) Ukuphakama okungaphakeme kune-2000m lapho ukufakwa.

(4) Isigaba Sokungcola: Isigaba esingu-3

(5) Isigaba sokufaka: III

(6.

Izici eziyinhloko

Ukusebenza Okuthembekile: I-AC Magnetic Oflometic yenziwa ngezinto ezisezingeni eliphakeme nenqubo yokukhiqiza esezingeni eliphezulu, enokwethenjwa okuphezulu nokuqina.

Impilo Eqakela Isikhathi Eside: Uhlelo lokuxhumana lwenziwa ngezinto zokugqoka ezingavinjelwa, ezingamelana nokushaqeka okukhulu kwamanje nokuthambekela kwamandla, kuqhubeke impilo yenkonzo.

Kulula ukulondolozwa: Isakhiwo senzelwe kahle, kulula ukuhlukanisa nokulungisa, ukunciphisa izindleko zokulungiswa.

Imininingwane ehlukahlukene: Ukuze uhlangabezane nezidingo zabasebenzisi abahlukahlukene, i-AC Magnetic Contalr inezincazelo ezahlukahlukene namamodeli ongakhetha kuzo, kufaka phakathi amazinga ahlukene wamanje, amazinga okuxhumana namandla okuxhumana okusungula.

AC Magnetic Contactor
