Ijika le-Curve d MCB miniture Breaker Breaker

Ngokuhambisana namazinga ezokuphepha akhona amazwe omhlaba kanye nezitifiketi ezigunyaziwe, ijika d MCB miniature Breaker ihlinzeka ngokuvikelwa okuthembekile kwezinhlelo zikagesi futhi isetshenziswa kabanzi ezinhlotsheni ezahlukahlukene lapho kuvikeleka khona okuphezulu nokuqina. Lapho ukhetha futhi usebenzisa i-Curve d Mcbs, kunconywa ukuthi ukukhethwa kusekelwe kwizidingo ezithile zoMkhakha kagesi kanye nezimpawu zokulayisha, nokuthi kulandelwa amakhodi afanele namakhodi afanele.

Imodeli:STM10-63

Thumela Uphenyo

Incazelo Yomkhiqizo

-Vamile		IEC / EN 60898-1
-Gesi izici	Ikalwe njengamanje	A	5020,650,150,40,20,20,40,69
	Isigodlo	P	I-1P, 2P, 3P, 4P
	I-voltage ue	V	AC 230/400
	I-UI yokufaka i-UI	V	500
	Imvamisa ekalwe	Hz	50/60
	Kulinganiselwe umthamo wokuphuka	A	3000, 4500, 6000
	Kulinganiswe i-Impulse I-Wortantle Voltage (1.2 / 50) UIMP	V	4000
	I-Dielectric Test Voltage end.freq.for 1 min	Ingoma eleva	2
	Ukungcola iziqubu		2
	I-Thermo-Magnetic Delether Isici		B, c, d
-Omshini izici	Impilo kagesi	t	4000
	Impilo yomshini	t	10000
	Iziqu Zokuvikelwa		I-IP20
	Ukushisa kwereferensi kokuhlelwa yento eshisayo	ºC	30
	Izinga lokushisa elikhona (nge-average yansuku zonke ≤35ºC)	ºC	-5 ~ + 40 (Isicelo esikhethekile sicela ubheke ku- Ukulungiswa kwesinxephezelo sokushisa)
	Ukushisa okushisa	ºC	-25 ~ + 70
Ukufaka	Uhlobo lokuxhuma esibulalayo		Ikhebula / i-pin-hlobo busbar
	Usayizi we-terminal top / phansi ikhebula	mm2	25
		Kathathu	18-3
	Usayizi we-therninal phezulu / phansi ngebhasi	mm2	25
		Kathathu	18-3
	Ukuqinisa i-torque	N * m	2
		Ku-lbs	18
	Engele		Ku-Din Rail en 60715 (35mm) ngedivayisi esheshayo ye-Clip
	Isihlobo		Kusuka phezulu nangaphansi

Izici zomkhiqizo

 Kulinganiswe njengamanje nama-voltage: Ijika le-D MCBS lilungele imijikelezo ebanzi ekalwe, enjenge-6a ,, 25a ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Izici zokuhoxisa: Ijika le-D MCBS lilungele kakhulu imithwalo ephezulu kakhulu nezinhlelo zokuhambisa ezikhiqiza ama-inrus amakhulu, njengezinhlelo zokulawulwa kwamandla, nezinhlelo zokusabalalisa amandla, nezinhlelo zokuhambisa amandla. Ukuqhekeka kwayo okusheshayo okujwayelekile kuvame izikhathi ze-10- 40

Ukuvikelwa kwe-D-Curve MCBS okufushane

Izindinganiso zokuphepha kanye nezitifiketi: Le mikhiqizo imvamisa ihambisana namazinga ezokuphepha akhona emhlabeni jikelele, njenge-EN / IEC 60898, i-IEC60948.1- njll., Ukuqinisekisa ukuthi imikhiqizo iphephile futhi ithembekile.

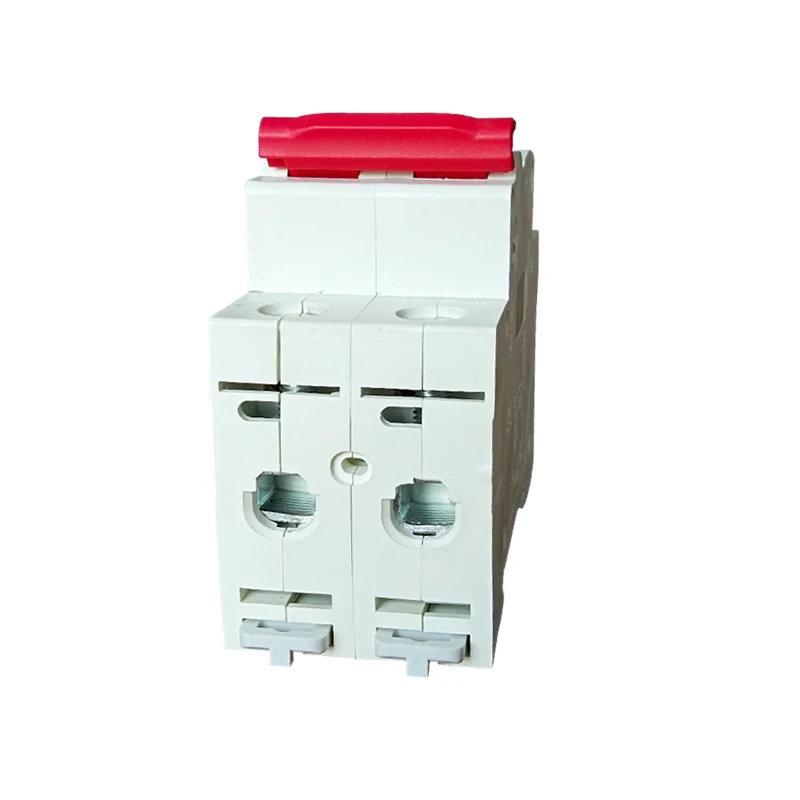

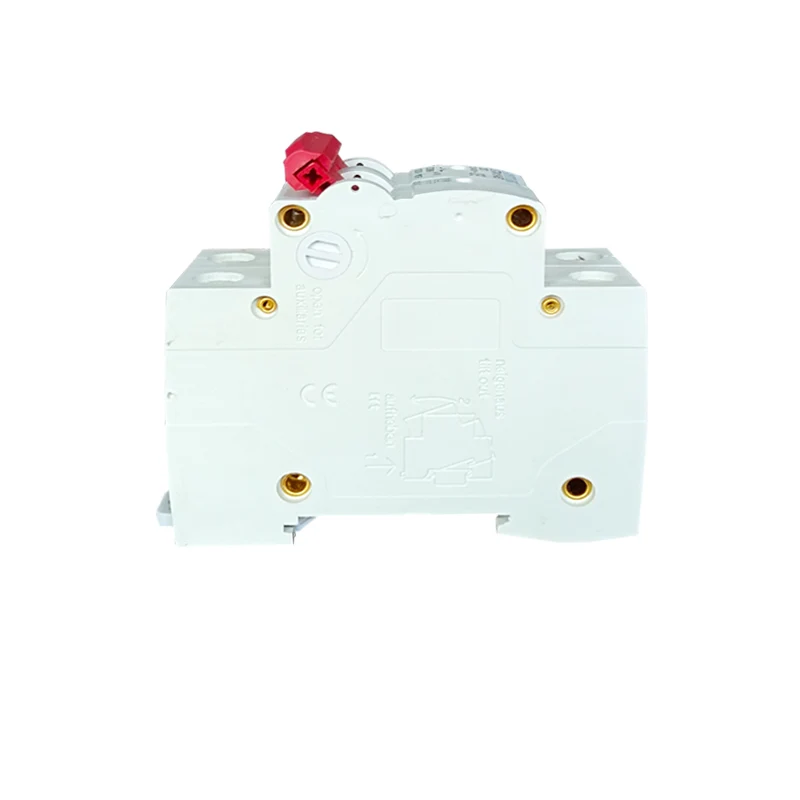

Curve D MCB Miniature Circuit Breaker
