DC Magnetic Ofloctoror

I-DC Magnetic Oflometic i-Apply Apply esebenzisa i-DC egeleza njengamanje ngekhoyili ukukhiqiza amandla kazibuthe avala noma aqede oxhumana nabo, ngaleyo ndlela alawule oxhumana nabo, ngaleyo ndlela alawule oxhumana nabo, ngaleyo ndlela alawule oxhumana nabo, ngaleyo ndlela balawule oxhumana nabo, ngaleyo ndlela balawule oxhumana nabo, ngaleyo ndlela balawule oxhumana nabo, ngaleyo ndlela balawule oxhumana nabo. Isetshenziswa ikakhulukazi ekulawulweni okukude, izinhlelo zokulawula ezenzakalelayo kanye nemijikelezo ye-DC edinga ukusebenza okuvama.

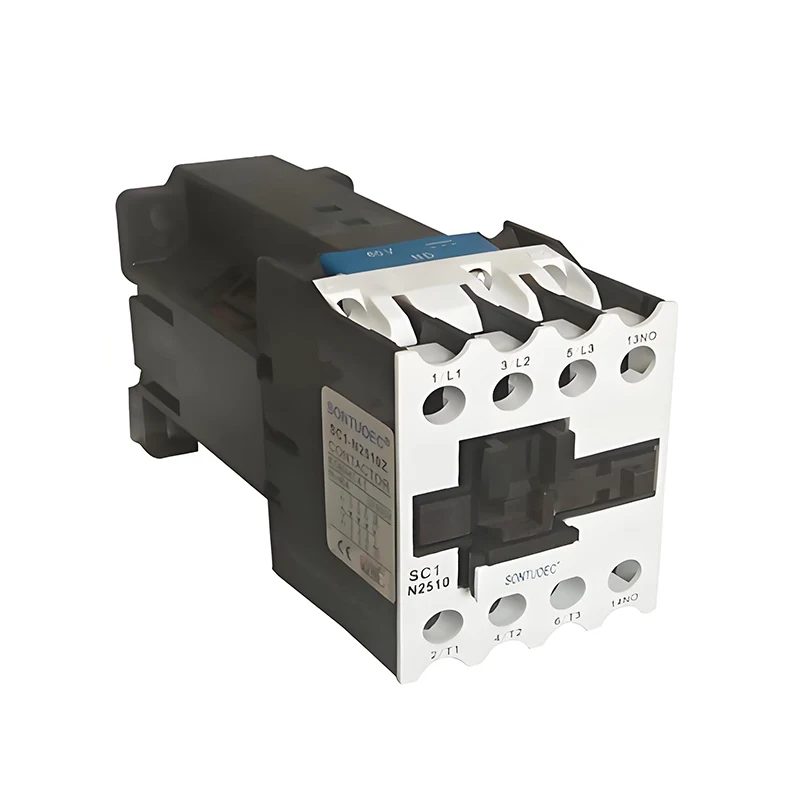

Imodeli:SC1-N

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukuthayipha		SC1-	SC1-	SC1-	SC1-	SC1-	SC1-	SC1-	SC1-	SC1-	SC1-
		9	12	18	25	32	40	50	63	80	95
									60
Ugesi we-Isulatio olinganiselwe		660	660	660	660	660	660	660	660	660	660
I-Thermal evamile		20	24	32	40	50	60	75	80	110	125
-dlulayo		20	24	32	40	50	60	75	80	110	125
Kukalwe ukusebenza		9	12	16	25	32	40	50	63	80	95
-dlulayo		9	12	16	25	32	40	50	63	80	95
-lowudwa	I-220v	2.2	3	4	5.5	7.5	11	15	18.5	22	25
Amandla (kW)	I-380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	I-415v	4	5.5	9	11	15	22	35	37	45	45
	I-440V	4	5.5	9	11	15	22	30	37	45	45
	I-660V	5.5	7.5	10	15	18.5	30	33	37	45	45
Incwajana		Ukufakwa kwe					Ukufakwa kwe
		Ukudluliselwa kungasebenzisa izikulufo ezimbili					ukudlulisela okungenani amathathu
		futhi futhi usebenzise i-35mm					izikulufa futhi zisebenzise futhi
		Ukufaka ujantshi					Ukufakwa kwe-75mm noma 35mm
							ujantshi wesitimela

Umgomo Wokusebenza

Lapho ikhoyili yomuntu oxhumana naye kazibuthe be-DC inamandla, i-DC yamanje kwikhoyili ikhiqiza amandla kazibuthe. Le nkambu kazibuthe izokwenza ukuthi i-static iron core ukukhiqiza ukumiswa kwe-electromagnetic, okuheha umnyombo wensimbi oshukumisayo, ngaleyo ndlela ukushayela uhlelo lokuxhumana ukuze kusebenze. Imvamisa, oxhumana nabo abavame ukuvalwa bazovuleka futhi oxhumana nabo abavame ukuvula bazovala, bakwazi ukulawula kwe-On / Out of the Circuit. Lapho ikhoyili inikezwe amandla, ukuncwina kwe-electromagnetic kuyanyamalala, kusethelwa kabusha i-Iron Iron Core ngaphansi kwesentwasahlobo, futhi oxhumana nabo babuyela esimweni sabo sokuqala.

Isakhiwo Esiyinhloko Nezimpawu

Uhlelo lwe-Electromagnetic: kufaka phakathi i-Coil, i-Static Iron Core kanye nokuhambisa i-Iron Core nezinye izinto, yingxenye ebalulekile yokukhiqiza amandla kazibuthe futhi alawule isenzo soxhumana nabo.

Uhlelo lokuxhumana: kufaka phakathi okujwayelekile oxhumana nabo abavulekile futhi kuvame ukuvalwa koxhumana nabo, obusetshenziselwa ukulawula umjikelezo futhi kuvaliwe. Izinto zokuxhumana zivame ukuba nokuvuka kukagesi okuhle nokusebenza okuphezulu kokushisa.

Idivaysi yokucisha i-ARC: Isetshenziselwa ukucisha i-arc lapho oxhumana naye ephukile, ukuvikela ukuxhumana nomonakalo. Kwabaxhumana abaningi abanamandla, ukwakheka kwensiza yokucisha i-ARC kubaluleke kakhulu.

I-DC Magnetic Contamract ibonakala ngesakhiwo esilula, isenzo esithembekile, impilo ende kanye nokulungiswa okulula. Ngasikhathi sinye, ngenxa yokusetshenziswa kwamandla e-DC, inokusetshenziswa kwamandla okuphansi nomsindo.

Ukukhetha kanye nokuqapha

Lapho ukhetha oxhumana naye we-DC Magnetic, lezi zinto ezilandelayo zidinga ukubhekwa:

I-VOLTAGE Elinganiselwe: Qiniseka ukuthi i-voltage evunyelwe yoxhumana naye okhethiwe ifana ne-DC Voltage esifundeni.

Kukalwe manje: Ngokuya ngenani lomthwalo wamanje ku-Circuit, khetha oxhumana nabo ngenani elifanelekile elilinganiselwe. Ngasikhathi sinye, kuyadingeka futhi ukuthi ucabangele umthamo we-Overload kanye ne-Short-Circuit aptandle forwortor.

Ifomu lokuxhumana nenombolo: Ngokwesidingo sokulawulwa kwesizungu, khetha ifomu lenombolo elifanele nenombolo. Isibonelo, noma ngabe kuvunyelwe oxhumana nabo ngokuvamile noma okuvamile okuvalekile, nokuthi bangaki abaxhumana nabo abadingekayo.

Brand nekhwalithi: Khetha imikhiqizo eyaziwayo nemikhiqizo esezingeni eliphakeme ukuqinisekisa ukuthembeka kanye nempilo yenkonzo yoxhumana naye. Futhi, cabanga ngezinto ezifana nensizakalo yangemva komkhiqizo kanye nokusekelwa kwezobuchwepheshe.

Lapho usebenzisa i-DC Magnetic engaxhumana nabo, udinga ukunaka izindaba ezilandelayo:

I-Wiring elungile: Qiniseka ukuthi i-wiring yoxhumana naye ilungile ukugwema ukufakwa okungalungile okuholela ekuhlulekeni kwesifunda noma ukulimala koxhumana naye.

Ukuhlolwa okujwayelekile nokulungiswa: Hlola njalo futhi ulondoloze oxhumana naye, kubandakanya nokuhlanza othintana nabo, ubheke ukumelana nekholi kanye nokumelana nokufakelwa. Qiniseka ukuthi oxhumana naye usesimweni esihle sokusebenza.

Gwema ukulayisha ngokweqile kanye nokujikeleza okufushane: Gwema ukuvumela oxhumana naye ukuthi usebenze ngaphansi kokulayisha ngokweqile noma ukujikeleza isikhashana isikhathi eside ukugwema ukulimaza oxhumana naye kanye nokuthinta ukuqina komjikelezo kanye nokuthinta ukuqina kwesifunda.

DC Magnetic Contactor
