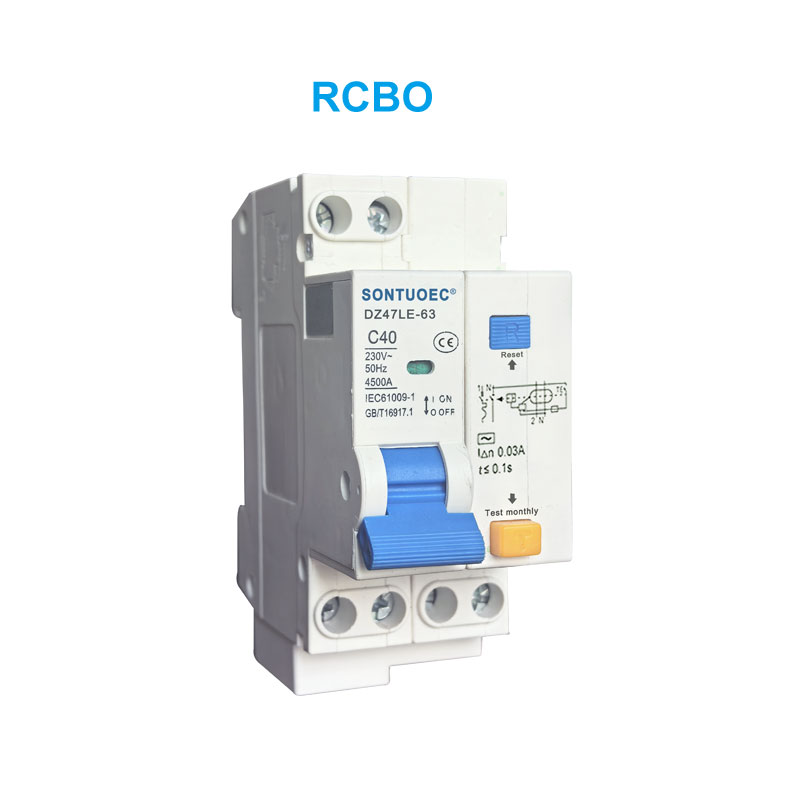

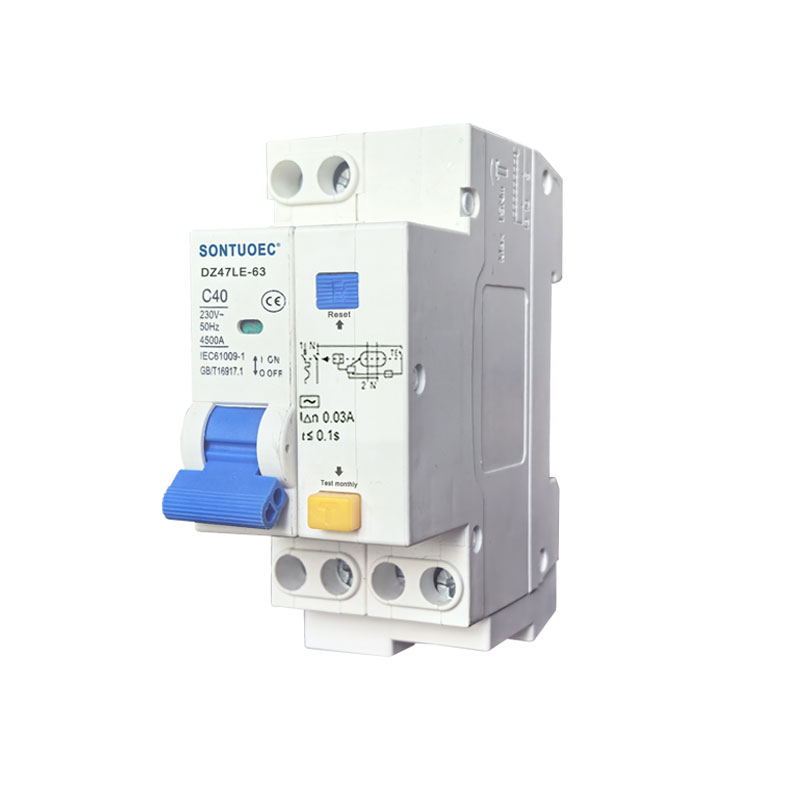

I-Dz47le-63 RCBO Series Ukuvuza I-Current Circuit Breaker

I-SONTUOEC ingomunye wabahlinzeki/abakhiqizi baseShayina abasebenza ngokukhethekile ekukhiqizeni izinto zikagesi ezincane ezihlukahlukene. I-DZ47LE isebenza kulayini ka-AC 50/60Hz olinganiswe ivoltage 230V yentambo eyodwa isigxobo ezimbili, 2 pole noma 300 V pole 4 V I-4 pole futhi ikalwe manje kufika kufika ku-63A. Ingakwazi ukuvikela umugqa kanye nemotho ekulayishweni okugcwele kanye nesifunda omfushane Ingase futhi isetshenziswe ekuguquleni umugqa okungavamile kanye nokuqala kwemotor okungavamile.Ivumelana nezindinganiso ze-IEC61009.1.

Imodeli:DZ47LE-63

Thumela Uphenyo

Incazelo Yomkhiqizo

Amapharamitha wezobuchwepheshe:

I-Voltage elinganiselwe(V)	Kukalwe inani lamanje le-Case Inm(A)	Izigxobo	I-Neutra	Ilinganiselwe i-CurentIn(A)	Ilinganiswe nge-Icu(KA) ye-Icu Circuit Breaking Capacity		Ilinganiselwe Ukuvuza Kwamanje Okuphuka Kwamanje	Kukalwe ngokuthi Okwamanje Akunqamuki (mA)
I-Voltage elinganiselwe(V)	Kukalwe inani lamanje le-Case Inm(A)	Izigxobo	Linel	Ilinganiselwe i-CurentIn(A)	Breaking Capacity Icu(KA)	I-COS	(mA))	Kukalwe ngokuthi Okwamanje Akunqamuki (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15,25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

I-DZ47LE I-Residual Current Operated Circuit Breaker enokuvikelwa kwamanje (i-Electronic):

1. Isicelo

Ukuvikelwa kwabasebenzi nomlilo

Ukuvikelwa kwekhebula nolayini ekulayishweni ngokweqile kanye nama-short-circuits

2. Imithetho evamile yokukhetha i-RCBO:

a.Ikalelwe ukusebenza kwensalela yamanje

Ku-≤ 30 mA: ukuvikeleka okwengeziwe esimweni sokuxhumana okuqondile Ku-≤300 mA: ukuvikelwa komlilo okuvimbelayo esimweni imisinga yamaphutha

b.Ikilasi lokuhamba

Ikilasi le-AC - Ukuhamba kuqinisekiswa ama-sinusoidal, ama-alternating currents, noma ngabe asetshenziswa ngokushesha noma akhuphuka kancane.

c.Ijika elijikayo

I-C curve (5-10 In) ukuvikela nokulawula amasekhethi ngokumelene nokulayishwa ngokweqile kanye nama-short-circuits; isivikelo semithwalo ephikisanayo ne-inductive ene-inrush current ephansi.

Ijika lika-D (10-14 In) ukuvikela nokulawula amasekhethi ngokumelene nokulayishwa ngokweqile kanye nama-short-circuits; isivikelo samasekhethi ahlinzeka ngemithwalo enamandla aphezulu okungena ngaphakathi ekuvaleni kwesekethe (ama-LV/LV transformer, amalambu okuwahlukanisa).
