I-Dz47le-63 Uchungechunge Oluhlanganisiwe Lokubukeka Usayizi Wesekethe I-RCBO

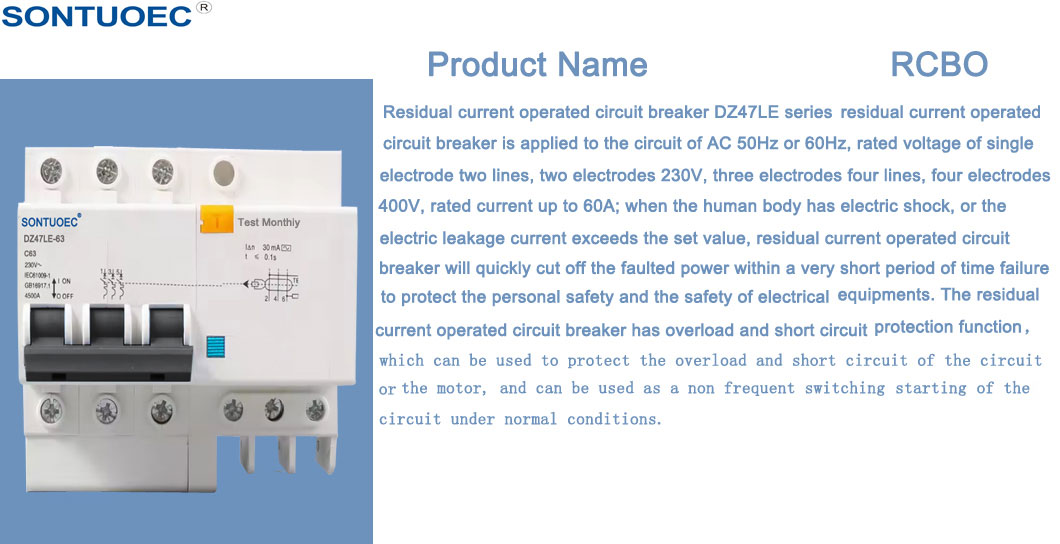

I-1.RCBO isetshenziswa kakhulu ku-AC 50Hz(60Hz), i-voltage elinganiselwe engu-230/400V, ikalwe ngo-6A yamanje kuya ku-63A kusistimu yokusabalalisa yetheminali kagesi ephansi. I-RCBO ilingana nomsebenzi we-MCB+RCD; Isetshenziselwa ukuvikela ukushaqeka kukagesi kanye nokuvikela ukuthintana komuntu ngokungaqondile, ukuvikela impahla kagesi lapho umzimba womuntu uthinta ugesi noma ukuvuza kwenethiwekhi kagesi kudlula inani elishiwo, kanye nokuvikela phezu komthwalo kanye nesekhethi emfishane; Kungase futhi kube u-opharetha ongewona ama-frequency kusekethe, esetshenziswa kakhulu endaweni yokuhlala kanye nesifunda sezohwebo. Ihambisana nezinga le-IEC61009-1. I-2.MCB isetshenziswa ku-AC50/60Hz, i-voltage elinganiselwe engu-230V3, izigxobo ezingu-4 400V, ikalwe okwamanje ukuze ibe ngu-63A ukuze kuvikelwe ukulayishwa ngokweqile kanye nesifunda esifushane kanye nokushintsha okungajwayelekile esimweni esivamile. Isetshenziswa kakhulu embonini, kwezohwebo nasendlini.Lo mkhiqizo uhambisana ne-IEC60898 ejwayelekile. I-3.RCCB ihambisana nezindinganiso ze-IEC61008.Ingakwazi ukunqamula i-fault circuit ngokushesha lapho ingozi yokushaqeka noma ukuvuza komhlaba kwe-trunkline.Ngakho ifaneleka ukugwema ingozi yokushaqeka nomlilo obangelwa ukuvuza komhlaba.Ingasetshenziswa kumasekhethi afika kusigaba esisodwa esingu-240V,isigaba sesithathu 40z noma 615V, izigaba ezintathu.

Imodeli:DZ47LE-63

Thumela Uphenyo

Incazelo Yomkhiqizo

Imininingwane:

I-I-RCBO

	Okujwayelekile	Iyunithi	I-IEC/EN 61009-1
Ezogesi	Imodi		Uhlobo lwe-elekthronikhi
izici	Uhlobo(indlela yegagasi yokuvuza komhlaba izwakele)		A, AC
	Isici sokukhululwa kwe-Thermomagnetic		B,C,D
	Ikalwe okwamanje ln	A	6,10,16,20,25,32,40,63
	Izigxobo	P	1P+N, 3P+N
	I-voltage elinganiselwe i-Ue	V	I-AC 230, 400
	Ukuzwela okulinganiselwe I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Ukwenziwa kwensalela okulinganiselwe kanye namandla okuphula l△m	A	500
	Umthamo we-short-circuit elinganiselwe I-Icn	A	6000
	Isikhathi sekhefu ngaphansi kwe-I△n	S	≤0.1
	Ikalwe imvamisa	Hz	50/60
	Isilinganiso se-impulsewithstand voltage (1.2/50) Uimp	V	4000
	I-Dielectric test voltage ku-ind.Freq ye-1min	kV	2
	I-Insulation voltage Ui	V	250
	Iziqu zokungcola		2
Izici zemishini	Impilo kagesi		4000
	Impilo yemishini		10000
	Inkomba yephutha yamanje		YEBO
	Idigri yokuvikela		IP20
	Izinga lokushisa le-ambient	ºC	-5~+40(Uhlelo lokusebenza olukhethekile sicela ubhekisele kulo
	(ngesilinganiso sansuku zonke≤35ºC)	ºC	ukulungiswa kwesinxephezelo sezinga lokushisa)
	Izinga lokushisa lesitoreji	ºC	-25~+70
Ukufakwa	Uhlobo lokuxhumeka kwetheminali		Ibha yekhebula/uhlobo lwephinikhodi/ibha yebhasi yohlobo lwe-U
	Usayizi wetheminali phezulu/phansi kwekhebula	mm2	25
	Usayizi wetheminali phezulu/phansi kwekhebula	AWG	5月18日
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	mm2	25
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	AWG	3月18日

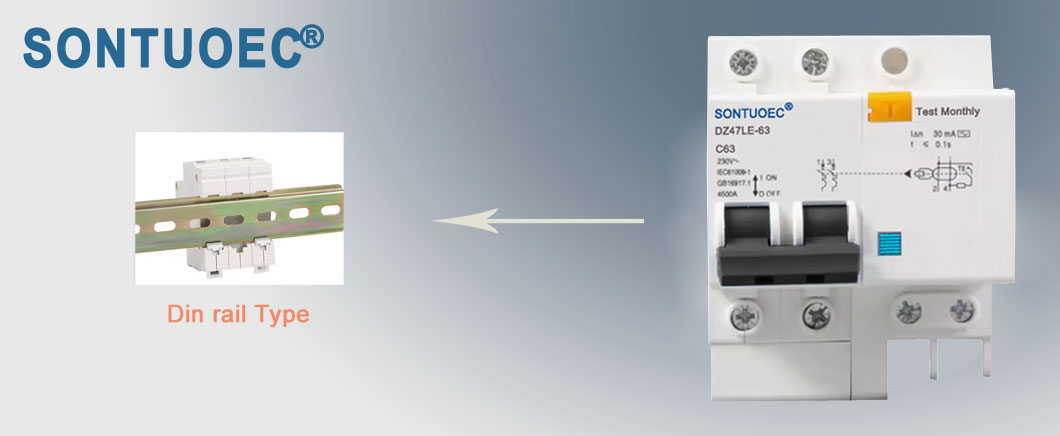

	Ukukhweza		Ku-DIN ujantshi EN 60715(35mm) ngedivayisi yokunamathisela esheshayo
	Ukuxhumana		Kusukela phezulu

Ukubuka Komzila:

1. Nikeza isivikelo ngokumelene nephutha lomhlaba/ukuvuza kwamandla kanye nomsebenzi wokuzihlukanisa

2. High short-circuit yamanje ukumelana umthamo3. Isebenza kutheminali kanye noxhumano lwebha yebhasi yohlobo lwephini/imfoloko

5. Nqamula ngokuzenzakalelayo isekethe lapho iphutha lomhlaba/ukuvuza kwamandla kwenzeka futhi kudlula ukuzwela okulinganiselwe

6. Akuzimele ekuhlinzekeni kwamandla kagesi kanye nolayini kagesi, futhi akunakuphazamiseka kwangaphandle, ukushintshashintsha kwamandla kagesi.

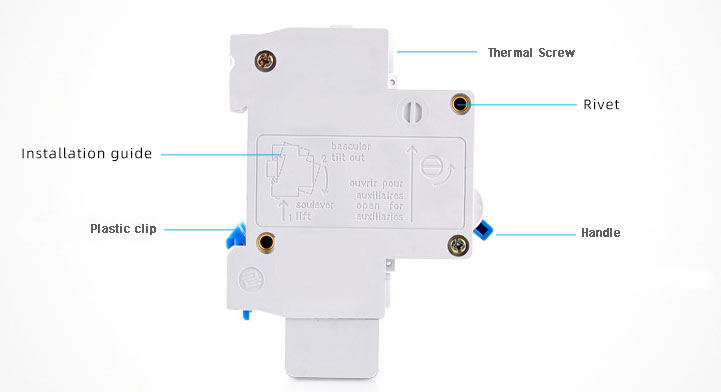

I-MCB

Imodeli	I-MCB
Okujwayelekile	I-IEC60898-1
Isigxobo	1P,2P,3P,4P
Ijika Elijikayo	B,C,D
Isilinganiso somthamo we-Short-circuit(Icn)	3KA,4.5KA,6KA,10KA
Ikalwe okwamanje(Ephakathi)	1,2,4,6,10,16,20,25,32,40,50,63A
I-Voltage elinganiselwe(Un)	I-AC230(240)/400(415)V
Ukukhishwa kwamagnetic	Ijika elingu-B: phakathi kuka-3 no-5 phakathi
	Ijika elingu-B: phakathi kuka-3 no-5 phakathi
	C ijika: phakathi 5 kanye 10in
	C ijika: phakathi 5 kanye 10in
	D ijika: phakathi kuka-10 no-14In
	D ijika: phakathi kuka-10 no-14In
Ukukhuthazela kwe-Electro-mechanical	imijikelezo engu-6000C

I-RCCB


	Okujwayelekile	Iyunithi	I-IEC/EN 61008-1
Ezogesi	Uhlobo(indlela yegagasi yokuvuza komhlaba izwakele)		AC, A
Isici	Ilinganiselwe ku-In yamanje	A	16,25,32,40,63
	Izigxobo	P	2,4
	I-voltage elinganiselwe i-Ue	V	230/400
	Ukuzwela okulinganiselwe I n	A	0.01,0.03,0.1,0.3
	I-Insulation voltage Ui	V	500
	Kukalwe ukwenza izinsalela kanye	A	630
	ukwephula umthamo I m
	I-short-circuit current I c	A	4500/6000
	I-fuse ye-SCPD	A	6000
	Isikhathi sokuphumula ngaphansi kwe-I n	s	<0.1
	Ikalwe imvamisa	Hz	50/60
	Iziqu zokungcola		2
MechanicaI	Impilo kagesi	t	4000
izici	MechanicaI Iife	t	20000
	Inkomba yamanje enephutha		Yebo
	Idigri yokuvikela		IP20
	Izinga lokushisa le-ambient	C	Ukusuka -25C kuya ku-40C
	(ngesilinganiso sansuku zonke esingu-35)
	Izinga lokushisa lesitoreji	C	Ukusuka -25C kuya ku-70C

FAQ

Q 1. ithini isikhathi sokukhokha? A. Samukela idiphozithi engu-TT, 30% kanye nebhalansi engu-70% uma iqhathaniswa nekhophi ye-BL

Q 2. sinjani isikhathi sokulethwa?

A. ngokuvamile kuzothatha izinsuku ezingaba ngu-25 ukukhiqizwa

Q 3. ngitshele izinga lephakheji?

A. Ngokuvamile amabhokisi, kodwa futhi singawapakisha ngokuvumelana nemfuneko yakho.

Q 4.Ungathanda ukusebenzisa uphawu lwethu ?

A. Uma unenani elihle, akunankinga nakancane ukwenza i-OEM.

Q5. Ngingakwazi ukuthatha amasampuli?

A: Yebo, sisekela ukuthatha amasampula ngaphambi kokufaka i-oda. Vele uzizwe ukhululekile ukuxhumana nathi uma unezidingo.

Q6. Ingabe uyi-Factory yokuqala?

A: Yebo, sinefekthri yethu.

Q7. Ungaqinisekisa kanjani ikhwalithi yemikhiqizo?

IMP: Sizovumelana nezindinganiso zamazwe ngamazwe ukuze sihlole yonke into ngaphambi kokuphuma efekthrini yethu. Thintana nathiSiyabonga ngokufunda kwakho. Uma noma yimuphi umkhiqizo uhlangabezana nesidingo sakho. Siyakwamukela ukuthi usithumelele i-imeyili noma nge-Wechat kanye ne-WhatsApp. Siyaqiniseka ukuthi noma yiluphi ulwazi lwakho lunganakwa ngaphandle kokulibala.
