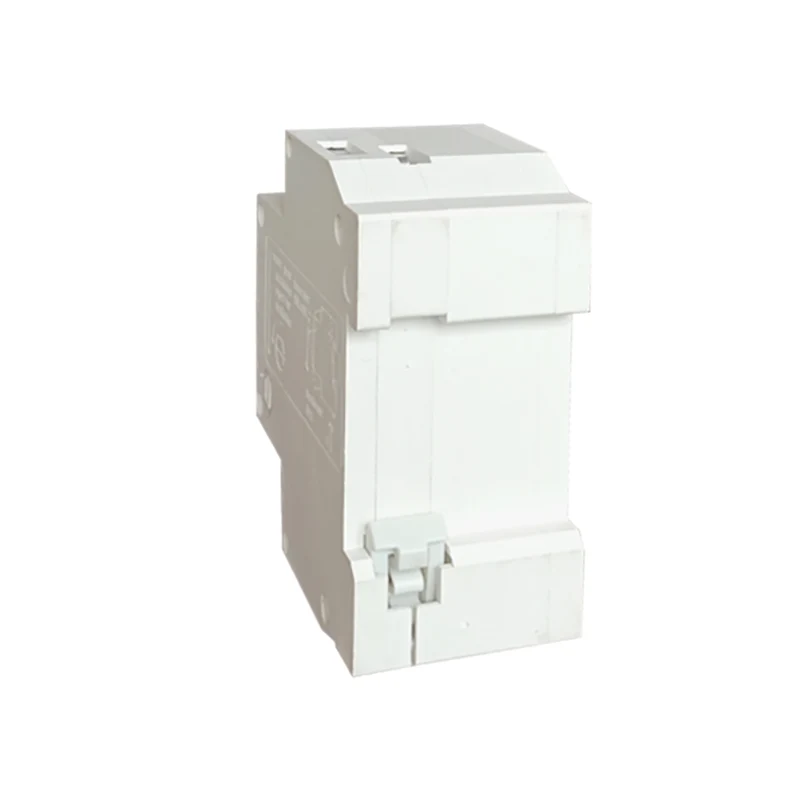

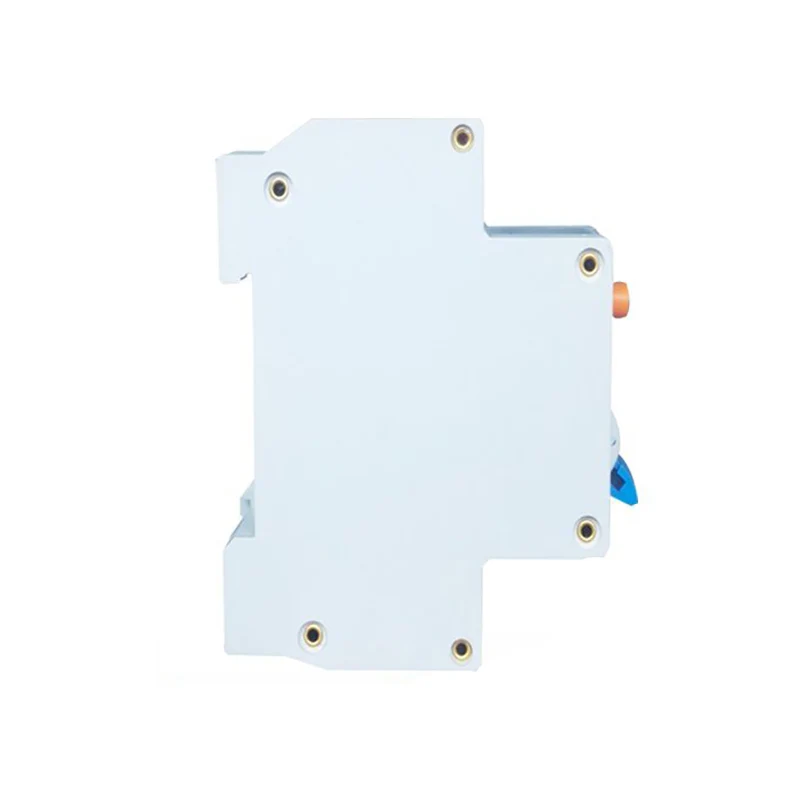

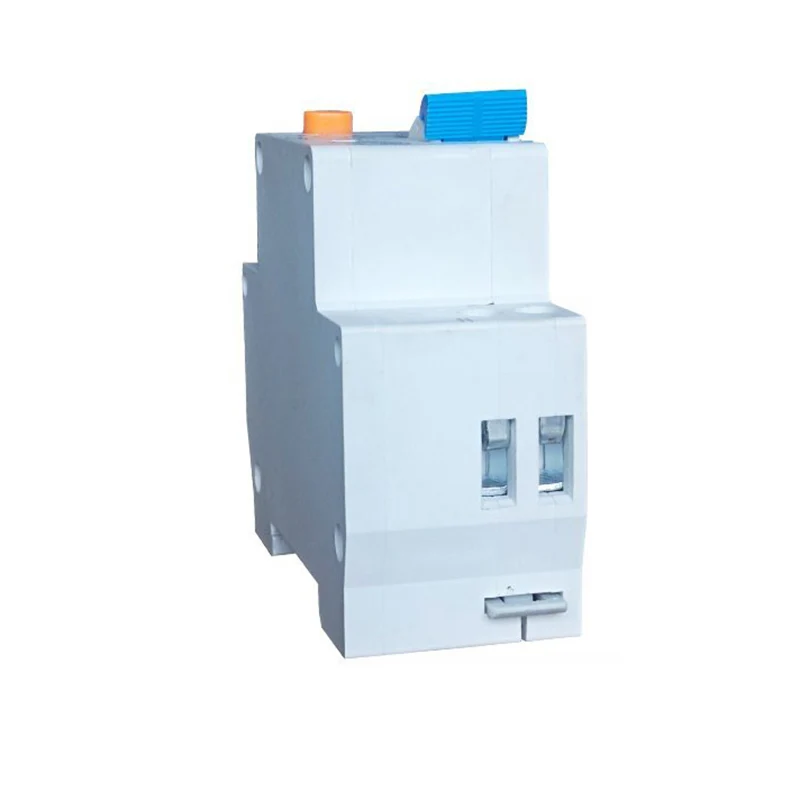

Uhlobo lwe-elekthronikhi rcbo

Uhlobo lwe-elekthronikhi i-RCBO ingaxhuma futhi iphule okukhona manje kusiko okuyisisekelo, futhi usike ngokuzenzakalelayo umjikelezo lapho okuseleyo kwamanje (ukuvuza kwamanje) kwenzeka emjikelezweni omkhulu, ukuze kuvimbele ukushaqeka kukagesi komuntu siqu noma izingozi zikagesi. Ngasikhathi sinye, i-RCBO ibuye ibe nomsebenzi wokuvikelwa ngokweqile, onganquma umjikelezo lapho isifunda esigcwele noma isifunda esifushane sivela esifundeni ukuvikela ukuphepha kwesekethe kanye nemishini.

Thumela Uphenyo

Incazelo Yomkhiqizo

Isifanekiso	Uhlobo lwe-elekthronikhi

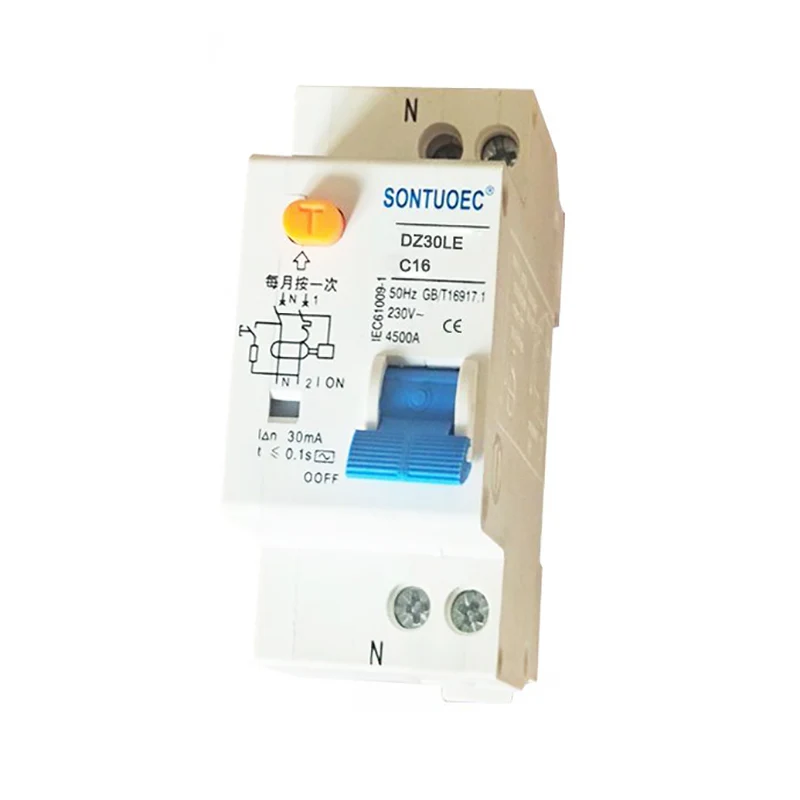

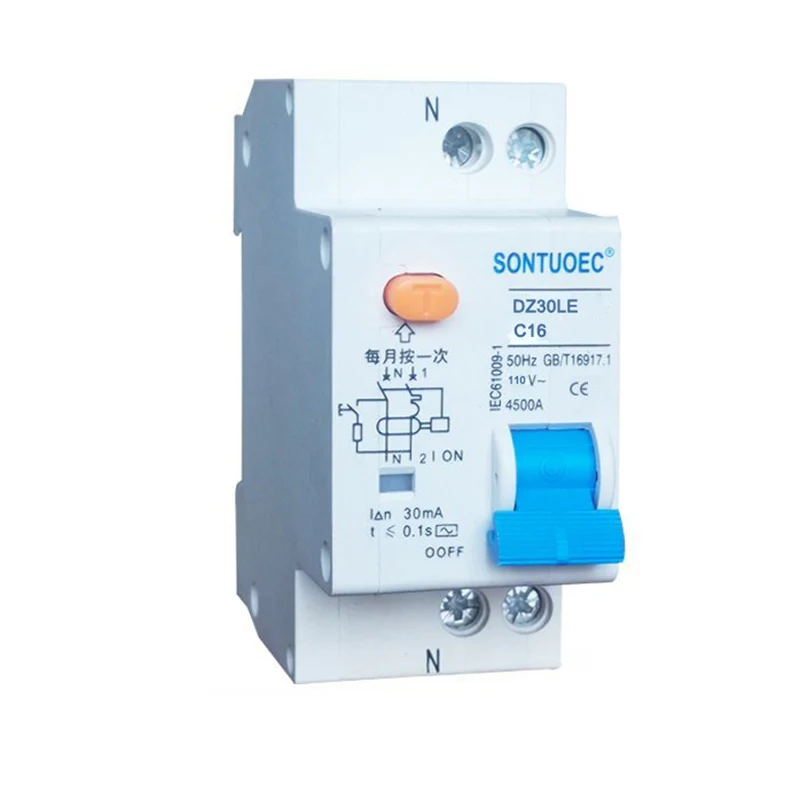

Igama lomkhiqizo	I-DZ30LE
-Vamile	IEC61009-1
Insika	1p + n
Kukalwe manje (a)	6a, 10a, 16a, 20a, 25a, 32a; 40akha
Kukalwe umjikelezo onemibandela onemibandela efushane	I-3KA; I-4.5ka: 6Ka
Ukukhuthazela Kwe-Electro-Machical	Imijikelezo engaphezu kuka-4000
Kulinganiselwe okusele okusebenzayo kwamanje	10A, 30mA, 100MA, 300mA, 500MA

Ukukhetha nokufakwa

Lapho ukhetha uhlobo, kufanele lukhethwe ngokuya ngamapharamitha afana ne-voltage ekhethiwe, ikalwe njengamanje, umthamo wokuphuka komjikelezo omfushane wesenzo sokuvuza esikhona sesifunda. Ngasikhathi sinye, inani lezigxobo ze-RCBO kanye nenombolo yezingelosi zamanje kufanele futhi zithathwe njengokuhlangabezana nezidingo zokuvikelwa komjikelezo.

Lapho ufaka, izimiso ezilandelayo kufanele zilandelwe:

I-RCBO kufanele ifakwe endaweni eyomile, efakwe umoya ngaphandle kwegesi ezonakalisayo futhi ayikho ingozi yokuqhuma.

I-wiring ye-RCBO kufanele ibe yinto efanele futhi ithembeke, ngaphandle kokuxhumana okuvulekile noma okumpofu.

Indlela yokusebenza ye-RCBO kufanele ibe nezimo futhi ithembeke, kube lula ukusebenza futhi ilondoloze.

I-RCBO kufanele ihlolwe futhi ihlolwe njalo ukuze iqinisekise ukusebenza kwayo okuthembekile.

Ukulungiswa nokuphenya

Ngesikhathi sokusebenzisa i-RCBO, ukulungiswa kanye nokushintsha ngokweqile kufanele kwenziwe ngezikhathi ezithile ukuze kuqinisekiswe ukusebenza okufanele. Ukulungiswa nokusebenzisa ngokweqile kufaka:

 Bheka ukuthi ukubukeka kwe-RCBO akunamqondo yini, kungabikho monakalo noma ukulangazelela.

 Bheka ukuthi inqubo yokusebenza ye-RCBO iyavumelana nezimo futhi ithembekile, nokuthi ngabe kukhona yini noma yimuphi umkhuba ongasebenzi kahle noma ongasebenzi kahle.

 Bheka ukuthi ngabe umsebenzi osele wokuvikelwa wamanje kanye nomsebenzi wokuvikela ongaphezulu we-rcbo uvamile.

Hlanza futhi uthuli i-rcbo ukuyigcina yomile futhi ihlanzekile.

Lolu hlobo lwe-RCBO (MCB + RCCB) lusebenza njengenhlanganisela ye-Breaker Circuit kanye nedivaysi yamanje esele, evikela umuntu ngephutha likagesi ngenxa yesifunda esingugesi esingemuva, esifushane, i-Earth Fass yamanje. Kuyazivikela kuze kufike kumjikelezo we-32a wesizungu esiphakeme samanje noma 40a. Futhi uhambisane ne-IEC ejwayelekile / en 61009.1.

1. Ukuvikelwa kwe-1.Provide ngokumelene ne-Earth Earth / Ukuvuza Kwamanje kanye Nokwehlukaniswa

I-2.High Short-Circh-Circuit yamanje yokuthanda amandla

I-3.Phampluble ku-terminal ne-PIN / Fork Thayipha Uhlobo lweBusbar Connection

4. Ifakwe ngama-terminals okuxhumeka komunwe

I-5.automicame ngokuqondile isembozo lapho amaphutha omhlaba / ukuvuza kwamanje kwenzeka futhi kudlula ukuzwela okukalwe

6.Nculisekelweni athembekile wokuhlinzekwa kwamandla kanye nomugqa we-voltage, futhi mahhala ekuphazanyisweni kwangaphandle, ukushintshashintsha kwe-voltage.

Electronic Type RCBO
