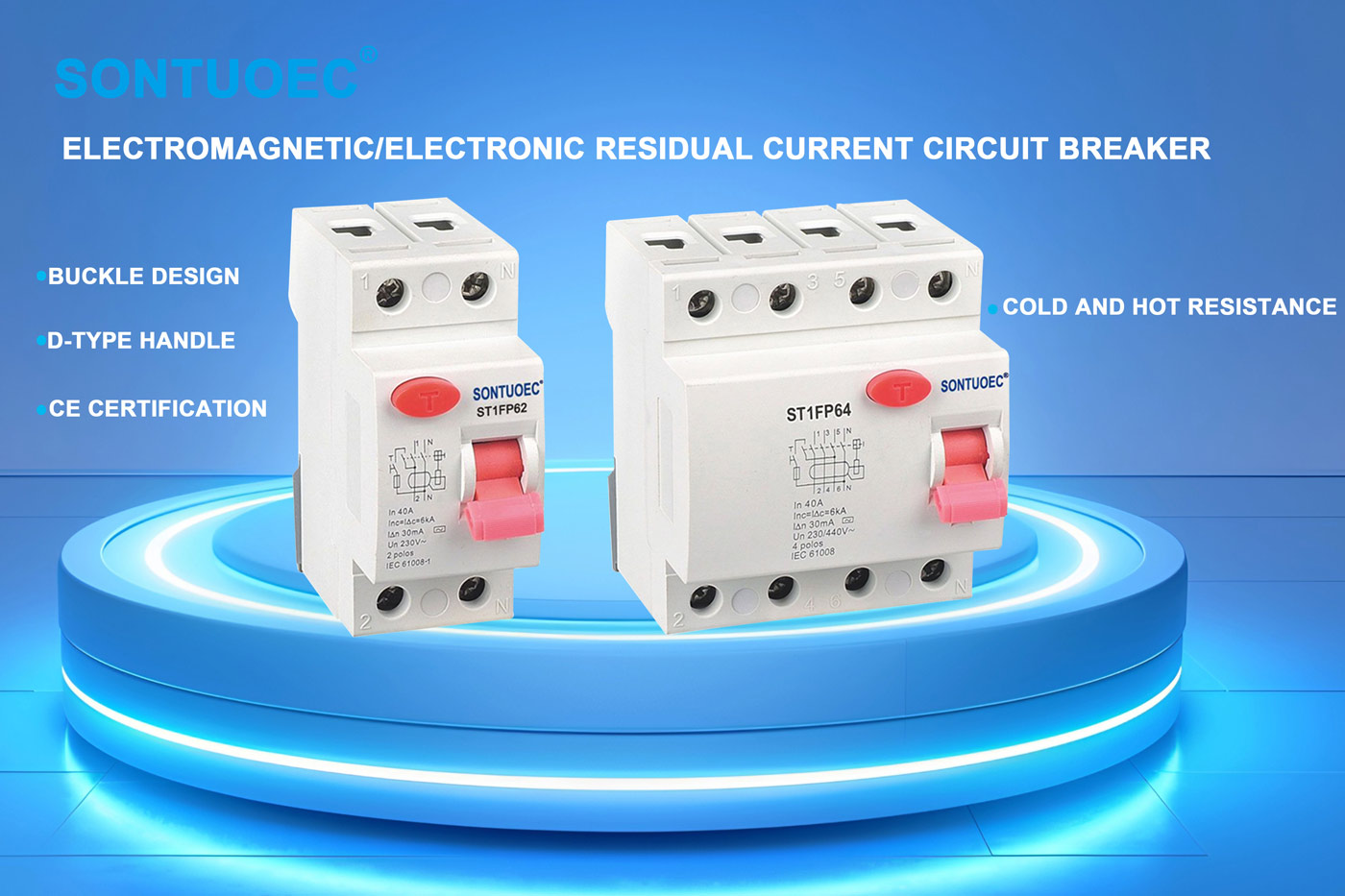

Uhlobo lwe-elekthronikhi RCCB

Lapho i-residial yamanje esifundeni idlula inani esethiwe, uhlobo lwe-elekthronikhi i-RCCB izothatha isinyathelo ngokushesha ukusika isekethe, ngaleyo ndlela ivimbele izingozi zikagesi kanye nemililo kagesi. I-Electronic RCCBS isebenzisa izakhi ze-elekthronikhi kanye nama-microprocessors nobunye ubuchwepheshe ukuhlinzeka ukuzwela okukhulu nokunemba.

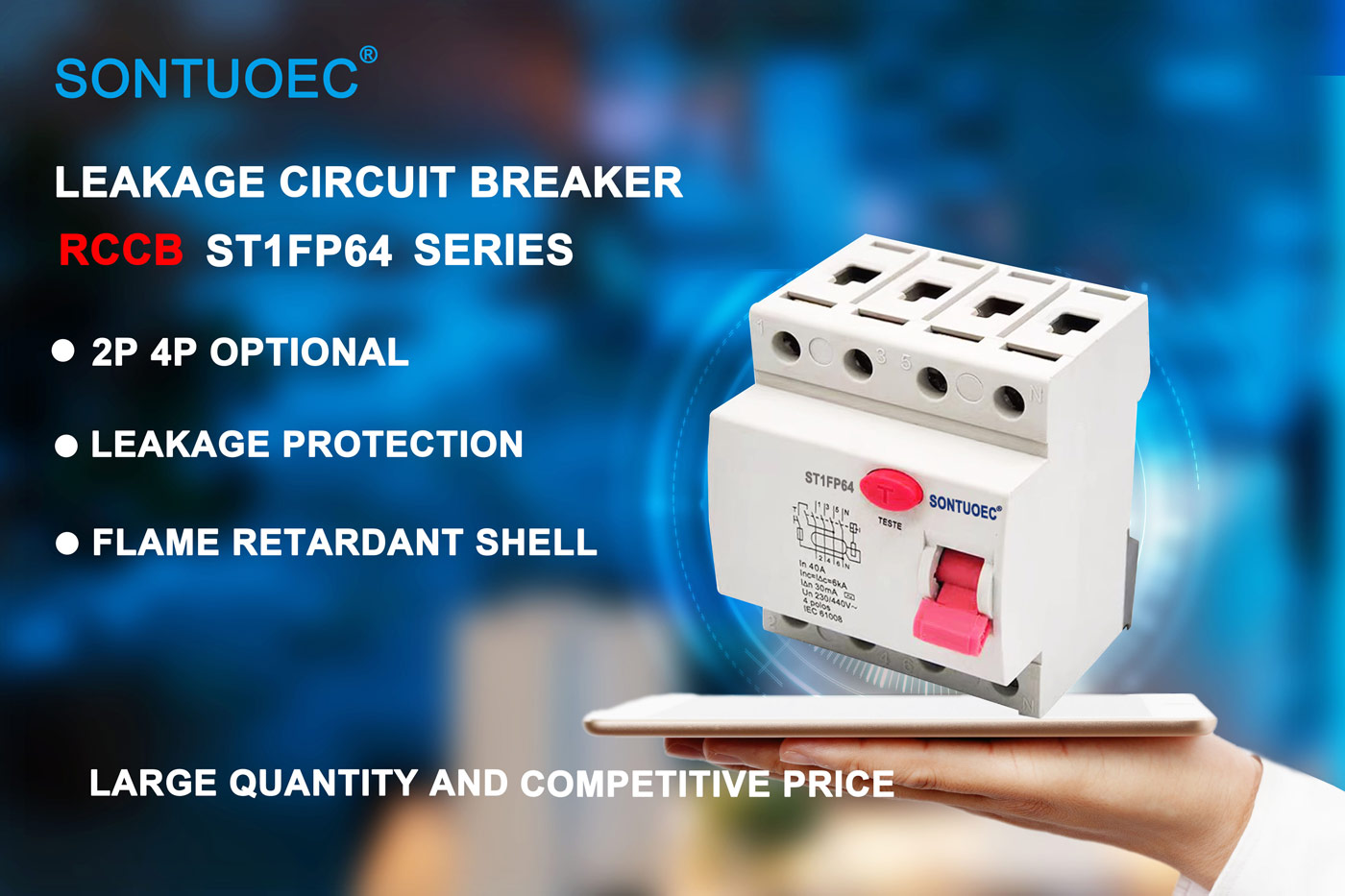

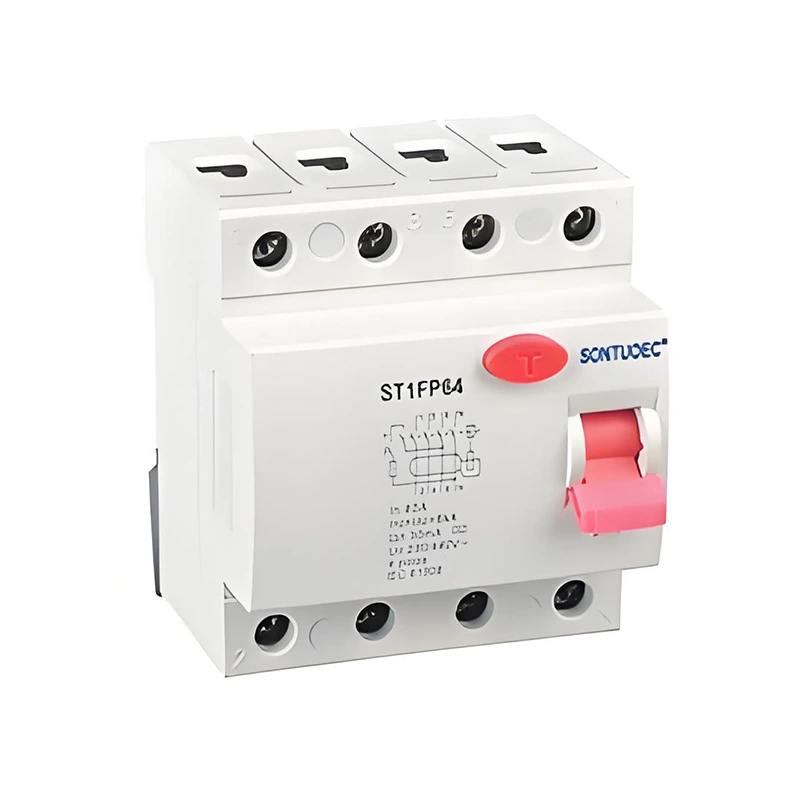

Imodeli:ST1PF64

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Sandard			IEC / EN61008.1
-Gesi	Thayipha (uhlobo lokuvuza komhlaba oluzwakala)		Uhlobo lwe-Electro-Magnetic, uhlobo lwe-elekthronikhi
izici	Ikalwe njengamanje	A	Futhi, futhi

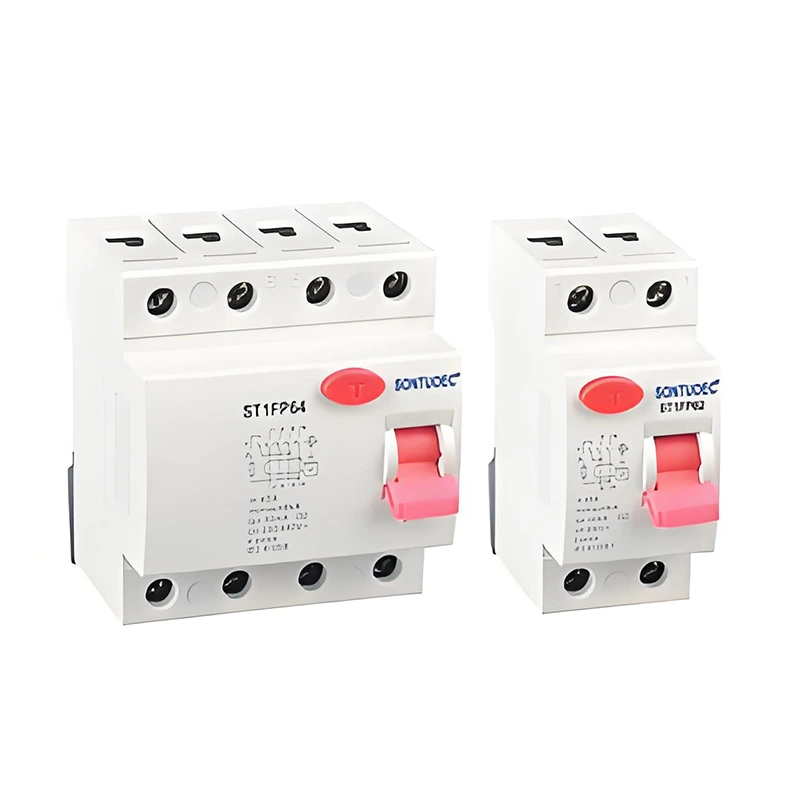

	Isigodlo	P	2,4
	Ulinganiselwe i-US	V	AC 240 / 415v; AC 230 / 400V

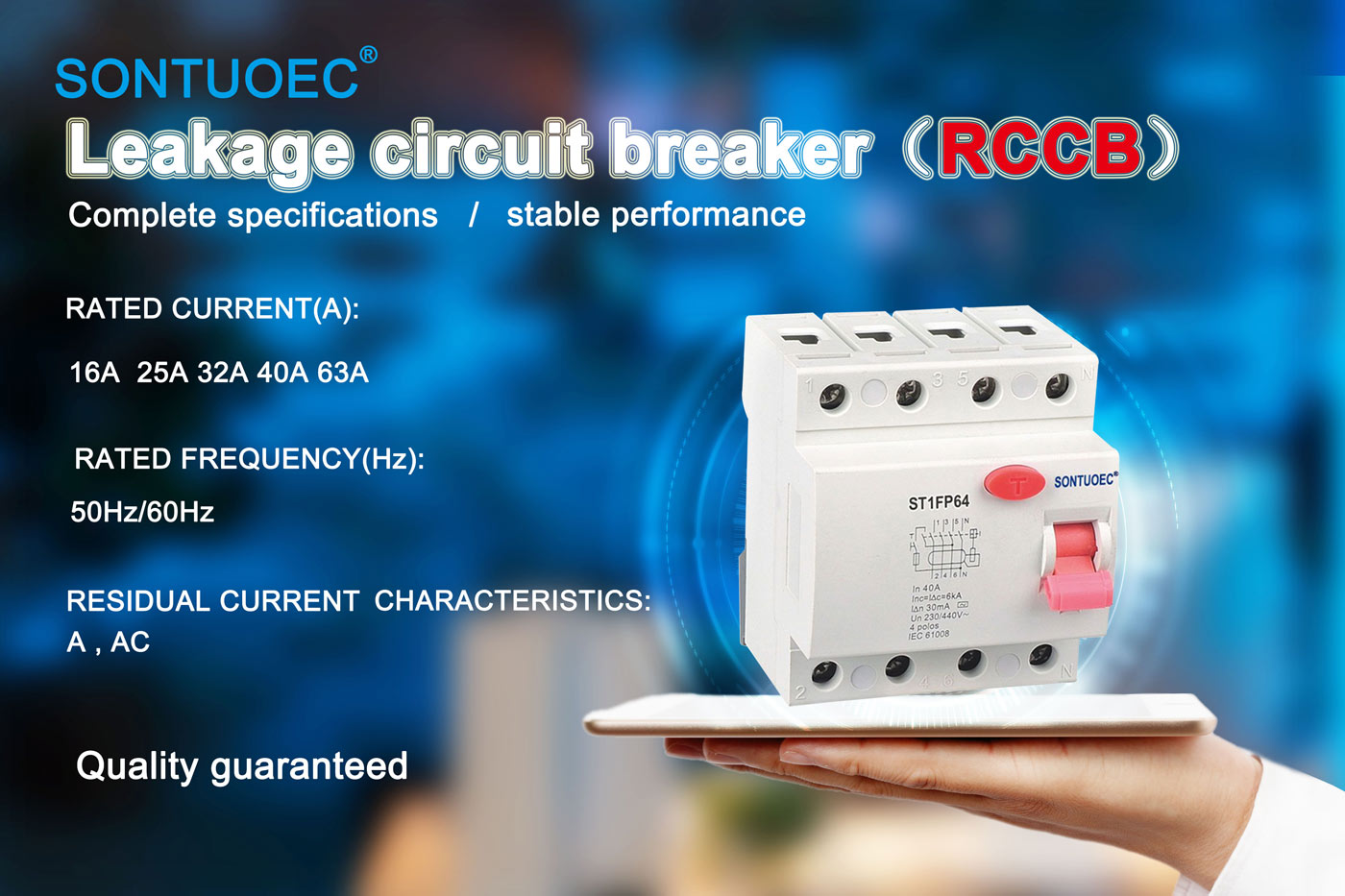

	Kukalwe manje		16,25,32,40,6ha
	Ukuzwela okulinganiselwe Mina △ n	A	0.01,0.03,0.1,0.1,0.5
	I-UI yokufaka i-UI	V	500
	Ukwenziwa okusalayo okulinganiselwe futhi	A	630
	Umthamo ophula umthetho engi	A	630
	I-Short-Circuit yamanje I △ c	A	6000
	I-SCPD fuse	A	6000


	Imvamisa ekalwe	Hz	50/60
	Ukungcola iziqubu		2
-Omshini	Impilo kagesi	t	4000
izici	Impilo yomshini	t	10000
	Iziqu Zokuvikelwa		I-IP20
	Izinga lokushisa elikhona	ºC	-25 ~ + 40
	(nge-average yansuku zonke ≤35ºC)	ºC	-25 ~ + 40
	Ukushisa okushisa	ºC	-25 ~ + 70
Ukufaka	Uhlobo lokuxhuma esibulalayo		Ikhebula / U-Type Busbar / Pin-Type Busbar
	Usayizi we-terminal top / phansi ikhebula	mm2	25
	Usayizi we-terminal top / phansi ikhebula	Kathathu	3.18
	Usayizi we-terminal top / phansi ngebhasi	mm2	25
	Usayizi we-terminal top / phansi ngebhasi	Kathathu	3.18
	Ukuqinisa i-torque	N * m	2.5
	Ukuqinisa i-torque	Ku-lbs	22
	Engele		Ku-Din Rail en 60715 (35mm) ngedivayisi esheshayo ye-Clip
	Isihlobo		Kusuka phezulu nangaphansi

Umgomo Wokusebenza

Umgomo wokusebenza we-Electronic Type RCCB ususelwa kwimigomo yokungeniswa kwe-electromagnetic kanye nokulinganisa kwamanje. Lapho i-Curents ye-Zero Line Currents esifundeni ayinakulinganiswa, isbE. I-Reallial yamanje ikhona, i-transformer yamanje ngaphakathi kwe-RCCB izothola le ndlela yokungalingani futhi iveze isiginali ehambisanayo. Lesi siginali, ngemuva kokucutshungulwa ngumjikelezo we-elekthronikhi, kuzodala isenzo sendlela yokukhishwa, ukuze umfukha wokujikeleza usheshe anqume umjikelezo ngokushesha.

Izici eziyinhloko

Ukuzwela okuphezulu: I-Electronic RCCBS iyakwazi ukuthola amasondo amancane asele, imvamisa ngaphansi kwe-30ma noma ephansi.

Isenzo esisheshayo: Uma nje okuseleyo okusele kutholwe ukwedlula inani elisethiwe, i-RCCB izothatha isinyathelo ngokushesha ukusika isekethe futhi ivikele izingozi.

Kuphephile futhi kunokwethenjelwa: I-RCCB yamukela izingxenye ezithuthukile ze-elekthronikhi kanye nobuchwepheshe be-microprocessor ukuhlinzeka ukuthembeka okuphezulu nokuqina.

Kulula ukuyifaka futhi uyilondoloze: I-RCCC ye-elekthronikhi ivame ukuba nesakhiwo esihlangene ne-wiring elula, ibenze kube lula ukufaka nokugcina.

Izimo Zokusebenza

I-Electronic RCCBS isetshenziswa kabanzi ezinhlobonhlobo zezimo lapho kuvikelwa khona ugesi, kufaka phakathi kepha kungagcini ku:

Izakhiwo zokuhlala nezentengiselwano: zisetshenziselwa ukuvikela imishini kagesi nokuphepha komuntu siqu, ukuvimba izingozi zikagesi ezishaqekile nemililo kagesi.

Imigqa yokukhiqiza yezimboni: Isetshenziselwa ukuvikela imishini kagesi efana nama-motors nabaguquli kusuka ekusebenzeni okujwayelekile, ukuvimbela ukulimala kwemishini kanye nesikhathi sokuphumula ngenxa yokulayisha ngokweqile.

Izikhungo zomphakathi: njengezibhedlela, izikole, imitapo yolwazi nezinye izindawo, ezisetshenziselwa ukuqinisekisa ukusebenza okuphephile kwemishini kagesi nokusetshenziswa kukagesi okuphephile kwabasebenzi.
