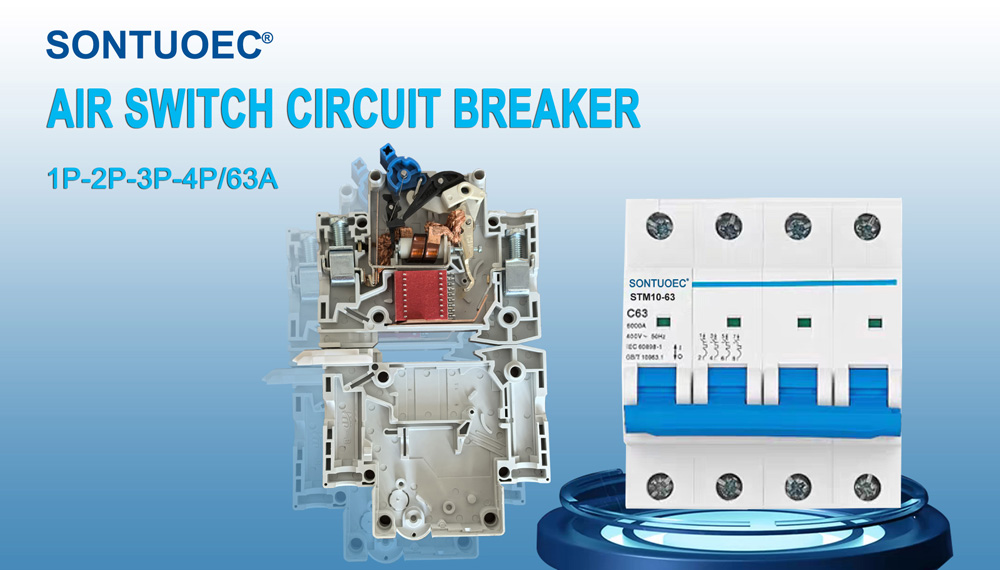

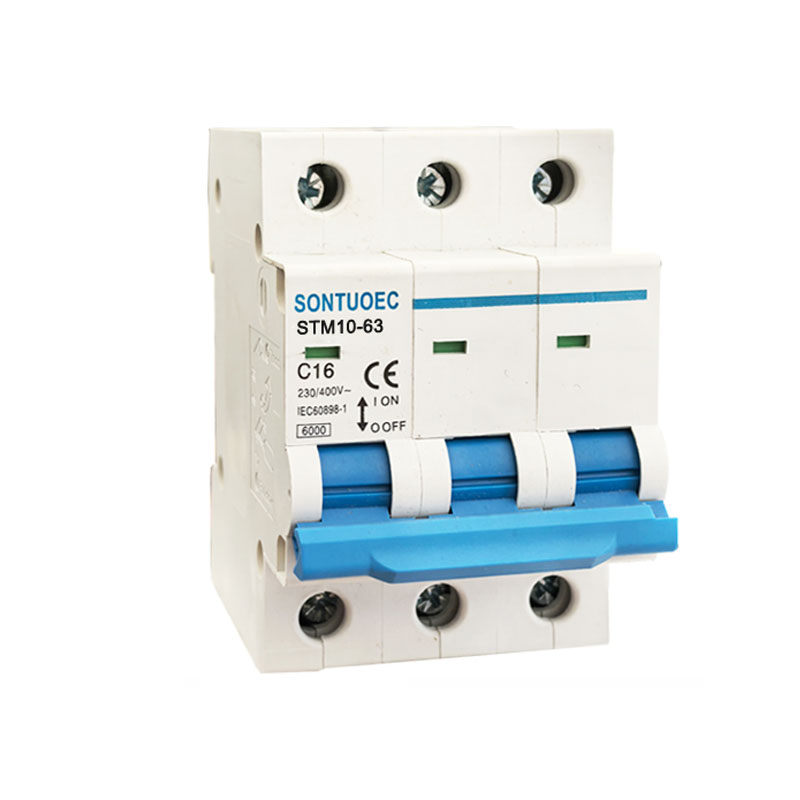

Ifektri eqondile Ithengisa i-MCB STM10-63 Series 6ka miniature Breaker Breaker

ISontuoec ingesinye sabahlinzeki be-Chinese / abakhiqizi abasebenza ngokukhiqiza izinto ezahlukahlukene zogesi amancane i-STM10-63 Series High Breaking Breaker inesici sesakhiwo esisezingeni eliphakeme, i-Shecking Amandla aphezulu, isici sayo se-flame-retardant. Kufanelekile ohlelweni lwamandla wemvamisa engama-50 noma ama-60, i-400V nangaphansi, i-UI 63a nangaphansi.it ahambisana namazinga we-IEC60898.1

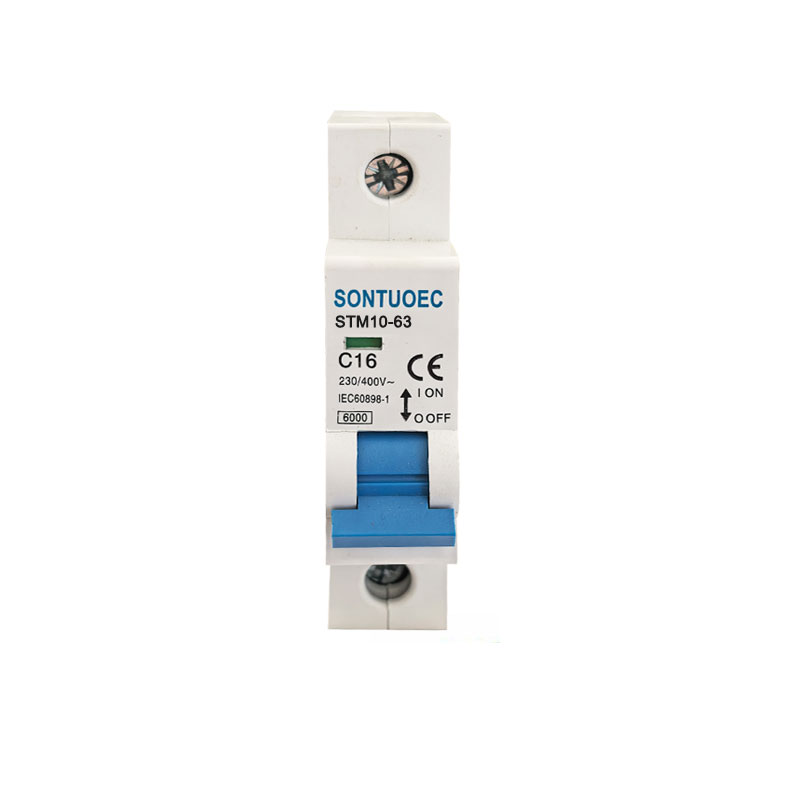

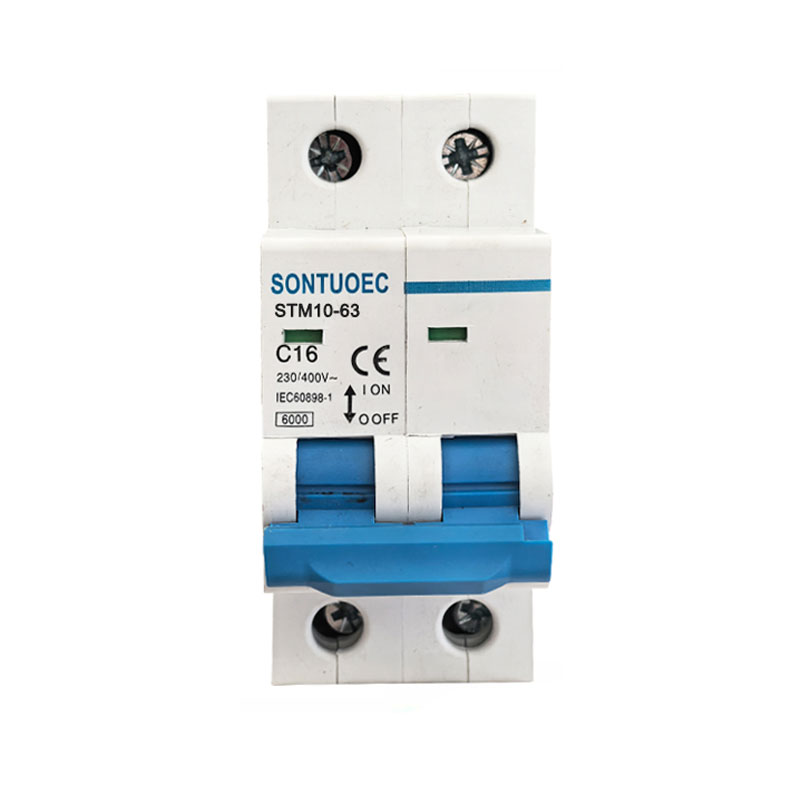

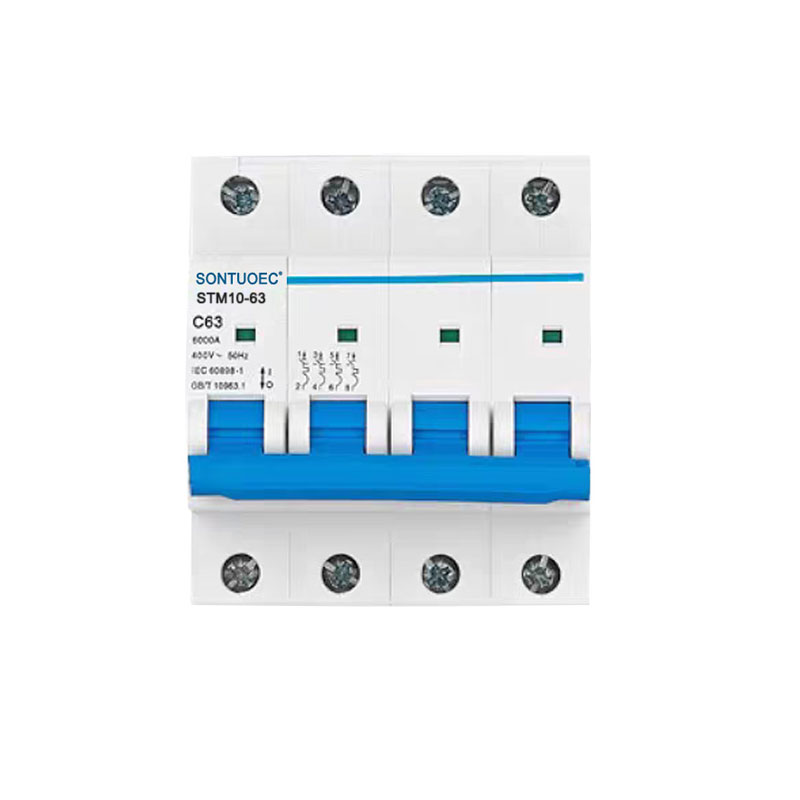

Imodeli:STM10-63

Thumela Uphenyo

Incazelo Yomkhiqizo

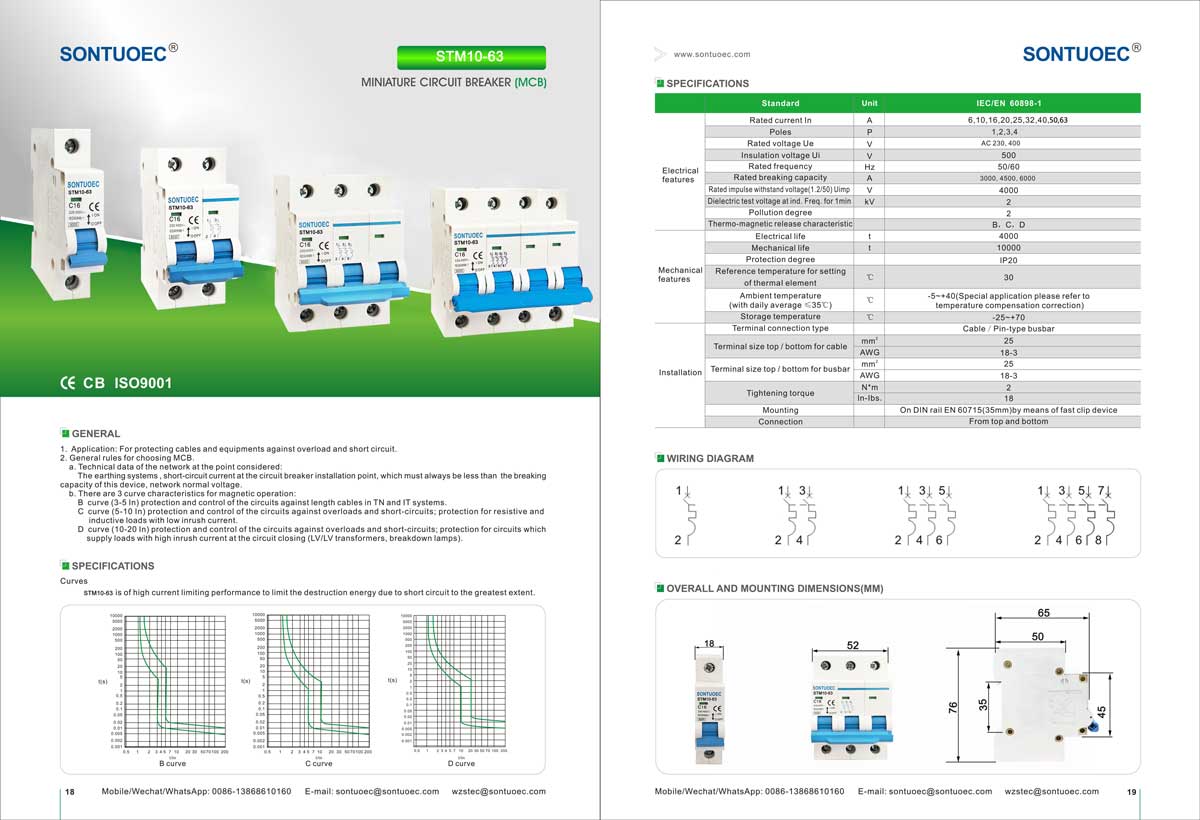

Ukucaciswa:

	-Vamile		IEC / EN 60898-1
-Gesi	Ikalwe njengamanje	A	50,20,20,10,40,30

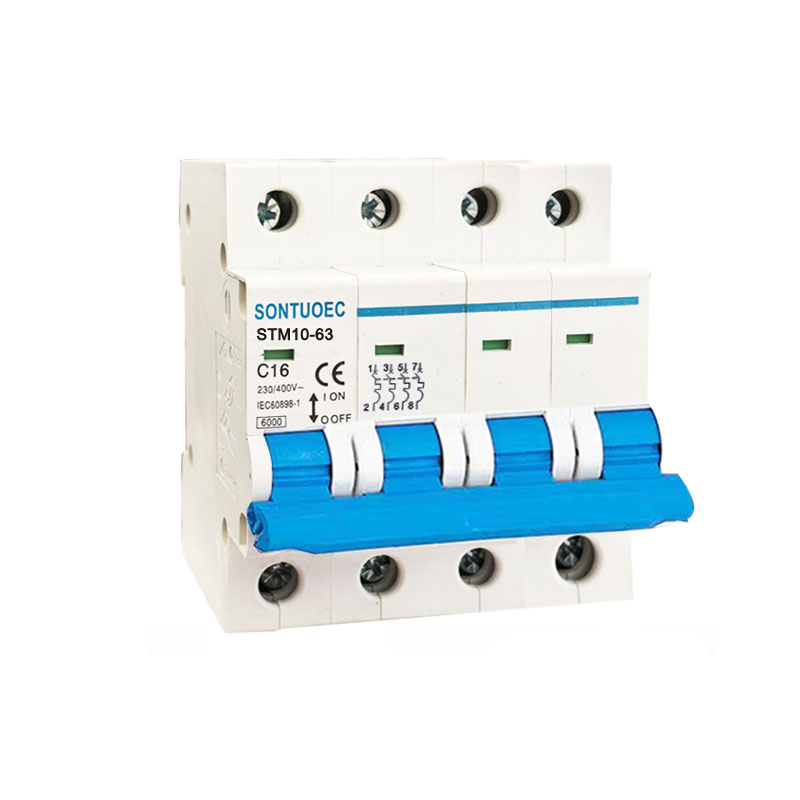

izici	Isigodlo	P	1,2,3,4
	I-voltage ue	V	AC 230, 400
	I-UI yokufaka i-UI	V	500
	Imvamisa ekalwe	Hz	50/60
	Kulinganiselwe umthamo wokuphuka	A	3000, 4500, 6000
	Kulinganiswe i-Impulse I-Wortantle Voltage (1.2 / 50) UIMP	V	4000
	I-Dielectric Test Voltage end.freq.for 1 min	Ingoma eleva	2
	Ukungcola iziqubu		2
	I-Thermo-Magnetic Delether Isici		B, c, d
-Omshini	Impilo kagesi	t	4000
izici	Impilo yomshini	t	10000
	Iziqu Zokuvikelwa		I-IP20
	Ukushisa kwereferensi kokuhlelwa	ºC	30
	yento eshisayo	ºC	30
	Izinga lokushisa elikhona	ºC	-5 ~ + 40 (Isicelo esikhethekile sicela ubheke ku-
	(nge-average yansuku zonke ≤35ºC)	ºC	Ukulungiswa kwesinxephezelo sokushisa)
	Ukushisa okushisa	ºC	-25 ~ + 70

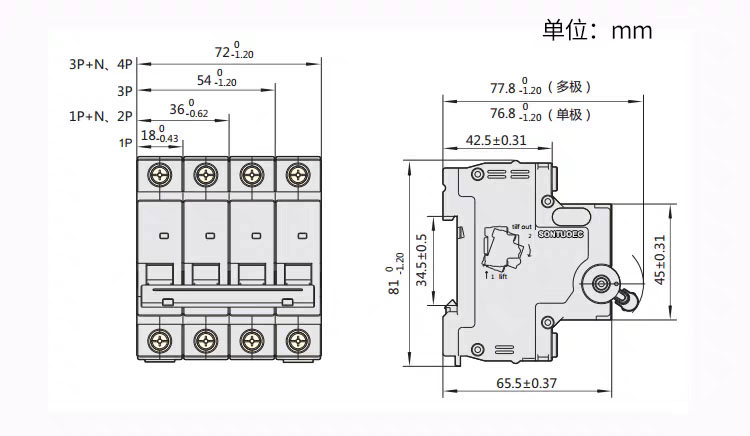

Ukufaka	Uhlobo lokuxhuma esibulalayo		Ikhebula / i-pin-hlobo busbar
	Usayizi we-terminal top / phansi ikhebula	m2	25
	Usayizi we-terminal top / phansi ikhebula	Kathathu	Mashi 18th
	Usayizi we-therninal phezulu / phansi ngebhasi	m2	25
	Usayizi we-therninal phezulu / phansi ngebhasi	Kathathu	Mashi 18th
	Ukuqinisa i-torque	N*m	2
	Ukuqinisa i-torque	Ku-lbs	18

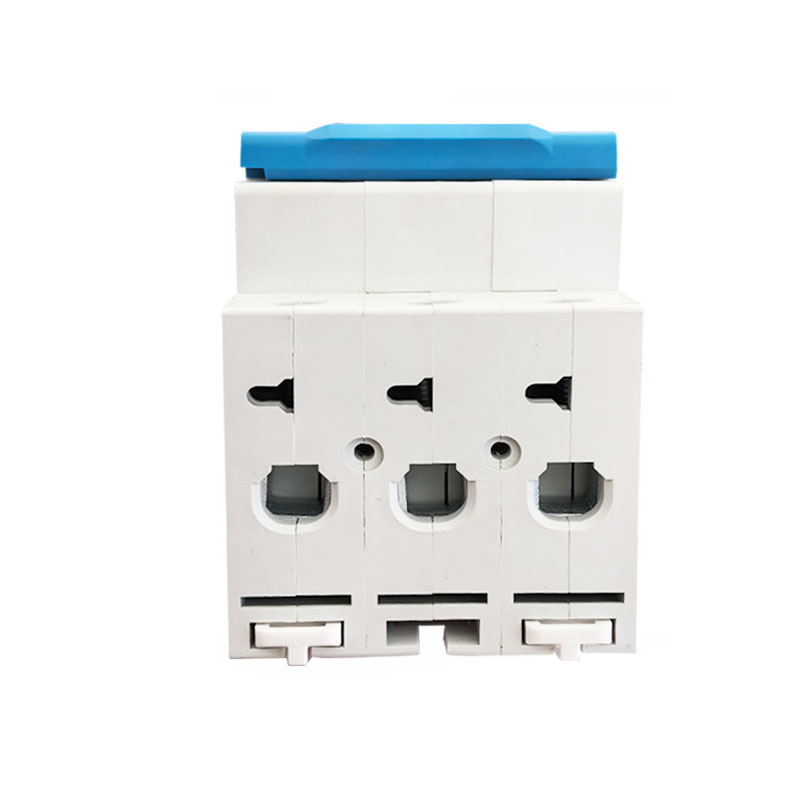

	Engele		Ku-Din Rail en 60715 (35mm) ngedivayisi esheshayo ye-Clip
	Isihlobo		Kusuka phezulu nangaphansi

Imisebenzi eyinhloko yeSTM10-63 Miniature Circuit Breaker

Ukuvikelwa kwe-1.Over: Lapho okwenziwa khona kwalesi sifunda kudlula inani elilinganiselwe le-MCB, i-STM10-63 miniature Breakererwill ibeka ngokuzenzakalelayo isekethe ngesikhathi sesethingile isikhathi sokuvimbela ukushelela kanye nemishini ekushiseni ngokweqile.

Ukuvikelwa kwe-2.Short-Circular

Ukuvikelwa kwe-3.Keakage (Amanye ama-MCBS analo msebenzi): Ama-MCB anokuvikelwa okuvuzayo, lapho kuba khona ukuvuza esifundeni, i-STM10-63 Breaker Breakerer Swererwill esheshe inqume isifunda ukuvikela ukuphepha komuntu.

Isimiso sokusebenza kweMCBS

I-MCBS imvamisa iqukethe umtshina kazibuthe we-thermal noma we-elekthronikhi ngaphakathi, okusetshenziselwa ukuthola izinguquko kumanje esifundeni. Lapho okwamanje kungukungajwayelekile, umgadli ubangela indlela yokuhamba nge-MCB, ebangela i-STM10-63 I-Miniature Breakerto Breakerto ngokushesha isekele.

1.Kwathi-ke umgadli wamandla kazibuthe: Isebenzisa ukushisa okukhiqizwayo lapho kudlula khona okukhona kulo umqhubi ukuze aqale phansi. Lapho okukhona manje kukhulu kakhulu, umqhubi wesifundo ufudumeza phezulu, ebangela ukuba umgadli oshisayo we-thermal ugobe, ngaleyo ndlela kubangele indlela yokuhamba.

Umgadli we-2.electronic: Isebenzisa izakhi ze-elekthronikhi ukuthola izinguquko zamanje futhi ilawula isenzo sendlela yokuqondisa. Lapho kutholwa njengamanje okungekho emthethweni, umgadli we-elekthronikhi uthumela isibonakaliso emshinini wokuphakanyiswa ukuze anqume umjikelezo.

Izimo zesicelo se-MCB

Ama-MCBS asetshenziswa kabanzi ezinhlelweni zikagesi ezindaweni zokuhlala, ezentengiso kanye nezimboni ukuvikela amasekethe kanye nemishini evela kumonakalo odalwe imisinga engajwayelekile. Ngokuvamile zifakwe emabhokisini okusabalalisa, ama-sptchboards noma amakhabethe okulawula futhi asetshenziswa njengokushintsha okusemqoka noma ukushintshwa kwegatsha komjikelezo.

Ukukhetha kanye nokufakwa kwama-MCBS

I-1.Kelection: Lapho ukhetha ama-MCB, udinga ukubheka izici ezinjengezilinganiso zamanje zesifunda, izinga lamandla kagesi, izici zokuvikela, nokuthi ukuvikelwa ukuvuza kuyadingeka. Kubalulekile futhi ukuthi uqinisekise ukuthi ama-STM10 akhethiwe ama-breakerclies ama-breakerclies akhethiwe anamazinga nemigomo yezokuphepha kagesi yasendaweni.

I-2.INSTALLANGATION: I-STM10-63 Miniature Circuit BreakerHous Ngesikhathi sokufakwa, imithetho efanelekile yokuphepha kagesi nezinqubo zokusebenza kufanele zibhekwe.

Umthandi

Q1. Ngabe ikotimu yakho yenza kanjani mayelana nokulawulwa kwekhwalithi?

A. Yonke imikhiqizo izohlolwa ngo-100% ngaphambi kokuhanjiswa.

Q2. Ingabe ungumkhiqizi noma inkampani yokuhweba?

A. Singumkhiqizi onesipiliyoni seminyaka engaphezu kwengu-20, futhi singakuqinisekisa ngentengo yethu okokuqala, kushibhile kakhulu futhi kuyancintisana.

Q3. Yimaphi amagama okukhokha atholakalayo?

A. Samukela i-TT, 30% Idiphozithi kanye ne-70% ibhalansi ye-Agaisnt Copy of BL.

Q4. Isikhathi sokulethwa sinjani?

A. Imvamisa kuzothatha izinsuku ezingama-25 ukuze kukhiqizwe.

Q5. Ngitshele indinganiso yephakeji?

A. Imvamisa amabhokisi, kepha futhi futhi singapakipha ngokuya ngesidingo sakho.

Qenga. Ngingafaka ilogo yami kuyo?

A. Uma unenani elihle, akunankinga yini ukwenza i-OEM.

Qeda. Ingabe unikeza amasampula? Ingabe kumahhala noma okungeziwe? Ngabe unikeza amasampula? Ingabe kumahhala noma okungeziwe?

A. Yebo, singanikeza amasampula imali ekhokhwayo mahhala, kepha imali ekhombisa idinga ukukhokhwa ngabathengi.

Q8. Imibandela yakho yokukhokha?

A. Samukela i-TT, 30% Idiphozithi kanye ne-70% ibhalansi ye-Agaisnt Copy of BL.
