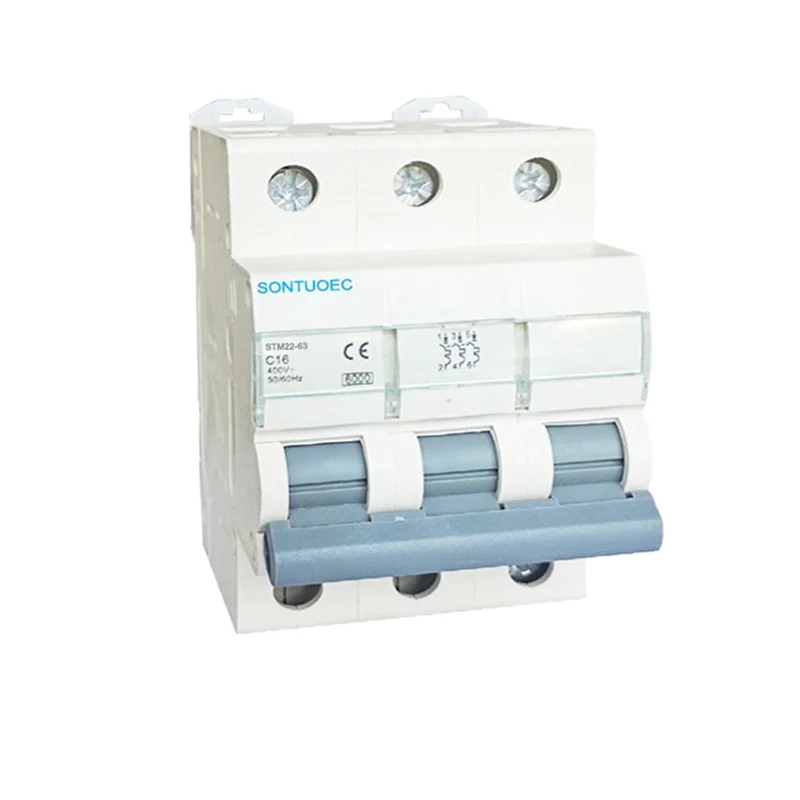

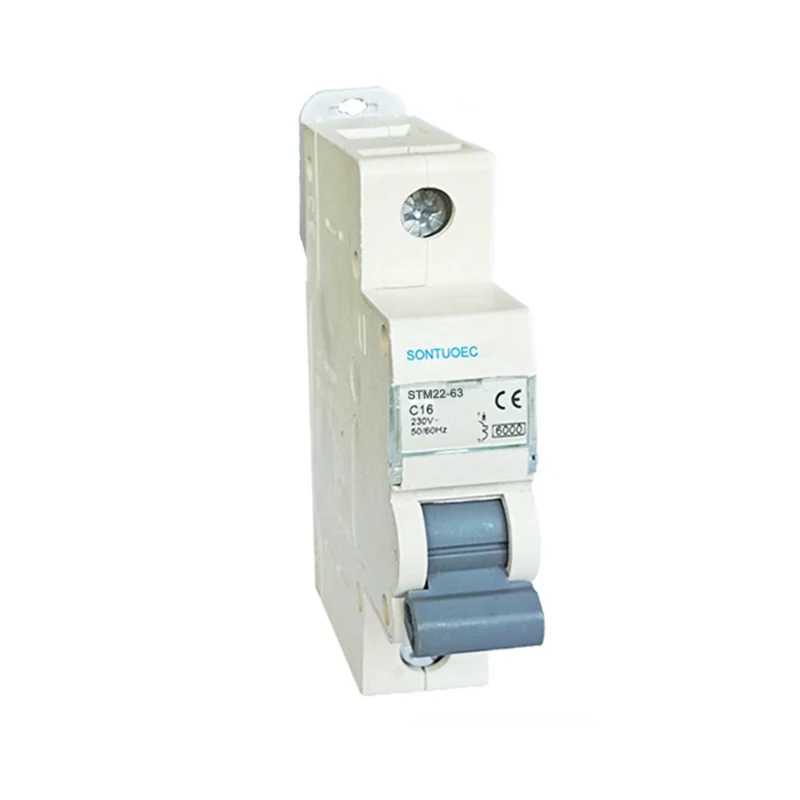

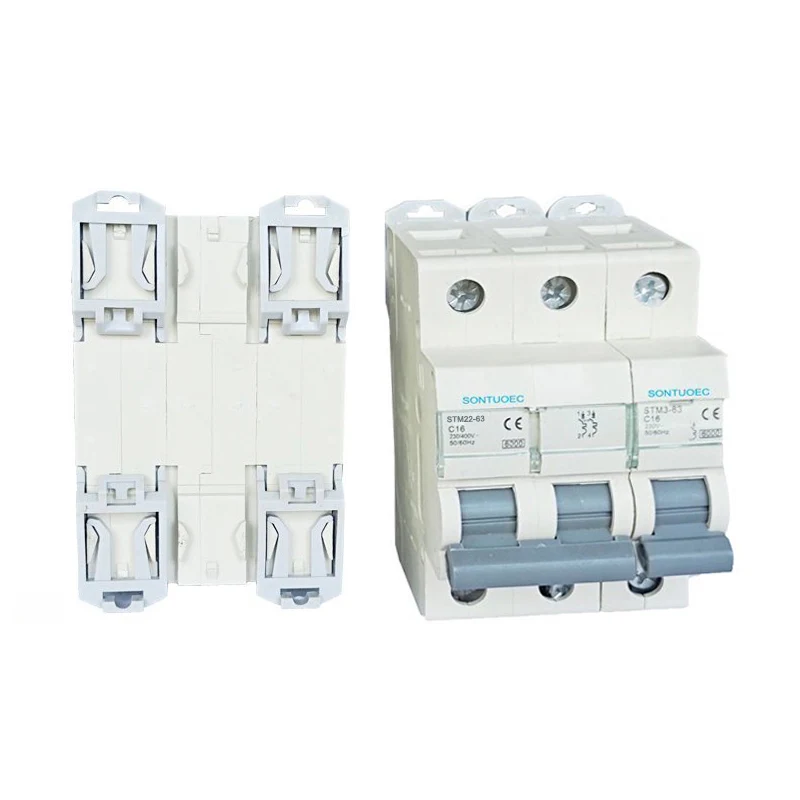

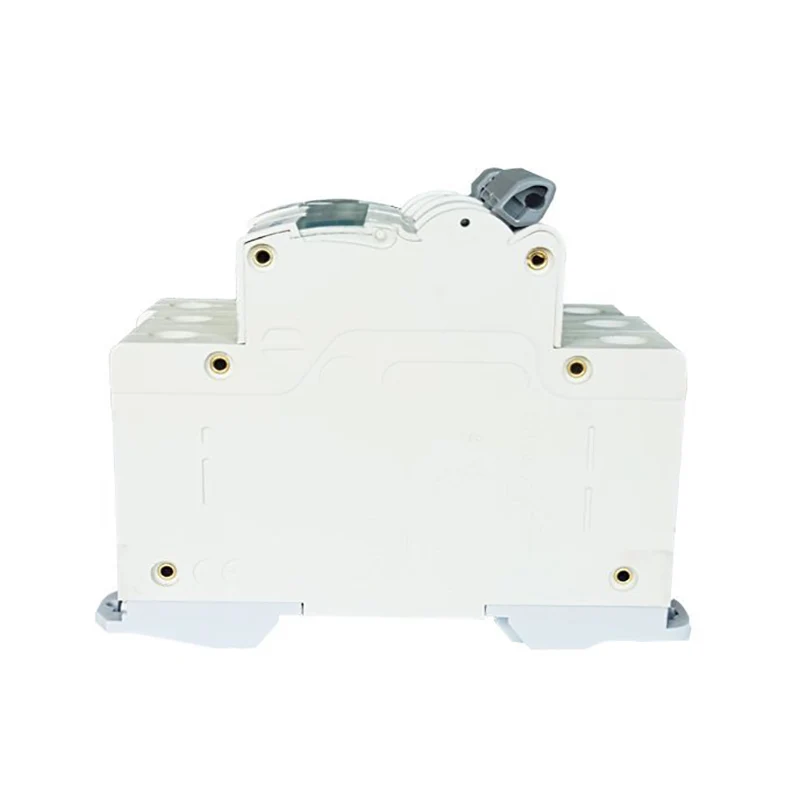

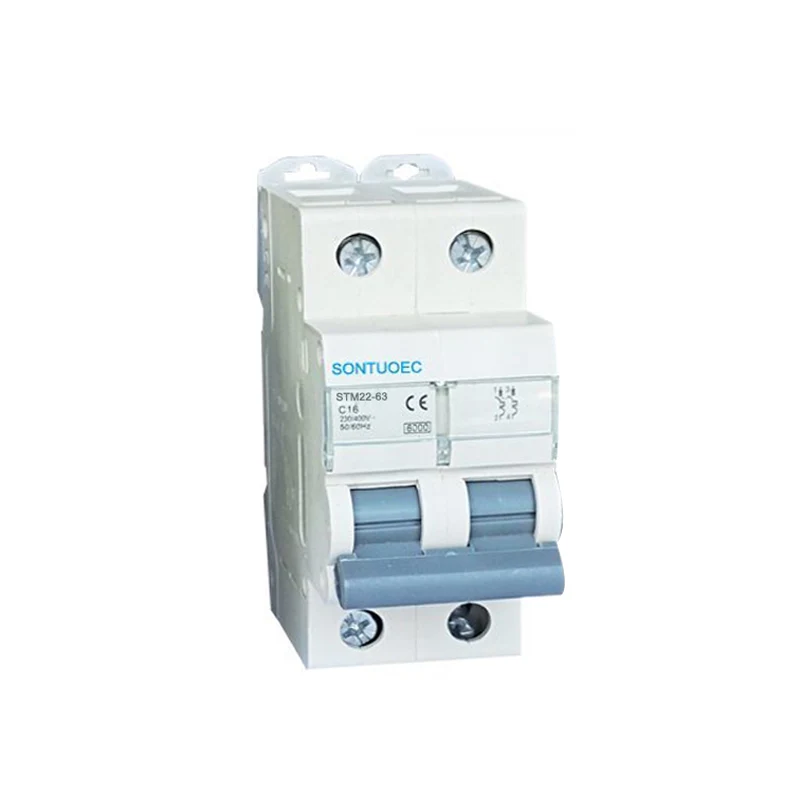

I-High Breaking Prequenting MCB 6Ka

I-High Breaking Precinkent MCB 6KA ibhilishi elincane lokujikeleza elenzelwe ukuhlinzeka ngokuvikela kumasekethe anemijikelezo emjikelezweni emifushane kuze kube ngama-amperes ayi-6000. I-High Breaking Precinkent MCB 6Ka iyakwazi ukusika ngokushesha ukukhishwa kwamandla uma kwenzeka kunesimo esingajwayelekile njengokulayisha ngokweqile noma ukujikeleza okufushane, ngaleyo ndlela kuvikela imishini kanye nabasebenzi esifundeni kanye nabasebenzi esifundeni kanye nabasebenzi esifundeni.

Imodeli:STM22-63

Thumela Uphenyo

Incazelo Yomkhiqizo

Isifanekiso	Stm22-63
-Vamile	IEC60898-1
Insika	I-1P, 2P, 3P, 4P
Ijika lejika	B, c, d
Kukalwe umthamo wesizungu omfushane (i-ICN)	3Ka, 4.5ka, 6ka
Kukalwe manje (ku)	5020,650,150,40,20,20,40,69
I-voltage ekalwe (un)	AC230 (240) / 400 (415) v
Ukukhishwa kazibuthe	B Curve: phakathi kuka-3in no-5 ku C ijika: phakathi kuka-5in no-10in D Curve: phakathi kuka-10in no-14in
Ukukhuthazela Nge-Electro-Mechanical	Imijikelezo engaphezu kuka-6000

Amapharamitha Ezobuchwepheshe

 Kulinganiswe njengamanje: Ibanga elilinganiselwe lamanje livame phakathi kwe-1A ne-63A ngokuya ngemodeli ethile kanye nokucaciswa.

 I-Voltage evunyelwe: Imvamisa 230V / 400V (AC), kepha futhi iyatholakala kwimibuthano ye-DC.

Umthamo we-Breaking: 6000a (ngaphansi kwezimo ezithile, e.g. Lapho isifunda esifushane seseketheli asidluli leli nani).

Impilo ye- Mechancy: Imvamisa kuya ezikhathini ezingama-20,000 noma ngaphezulu.

Impilo kagesi: imvamisa isukela ezinkulungwaneni kuya kumashumi ezinkulungwane zemijikelezo, kuya ngemibandela yokusetshenziswa kanye nokucaciswa komkhiqizi.

Izici eziyinhloko

 umthamo oqhekekile ophakeme

 Ukucaciswa okuningi okutholakalayo: Ukucaciswa okuningiliziwe namamodeli we-High Breaking Platy MCB 6Ka akhona emakethe, njenge-Curture ehlukene (i-1p, 2p, 3p, 4p), njll. Ukuhlangabezana nezidingo ezahlukahlukene.

Kusetshenziswe kabanzi: Lezi zindawo zokujikeleza zisetshenziswa kabanzi ezinhlelweni zokusabalalisa kwamandla kwezindawo zokuhlala, izakhiwo zezentengiso, izindawo zezimboni nezinye izindawo ukuhlinzeka ngezindawo ezahlukahlukene zemishini kagesi nemibuthano.

High Breaking Capacity MCB 6KA
