Oxhumana Nabo Abasekhaya

Oxhumana nabo be-STH8-100 abaxhumana nabo abaxhumana nabo baklanyelwe i-AC 50hz (noma i-60hz), nge-voltage ekhiqizwayo ebekwe ku-400V. Banokusebenza okulinganiselwe kwamanje okufika ku-100a ngaphansi kwesigaba sokusetshenziswa kwe-AC-7A kanye ne-40A ngaphansi kwesigaba sokusetshenziswa kwe-AC-7B. Lezi zixhumana zisetshenziselwa ukulawula imithwalo ephansi noma ephansi kancane ezisetshenzisweni zokuhlala nezifanayo, kanye nokulawula imithwalo yezimoto yasendlini. Umkhiqizo usetshenziswa kakhulu emakhaya, amahhotela, amafulethi, izakhiwo zehhovisi, ezakhiweni zomphakathi, izitolo ezinkulu, izindawo zemidlalo, ukufeza imisebenzi yokulawula ezenzakalelayo. Ukuhambisana namazinga: IEC61095, GB / T17885.

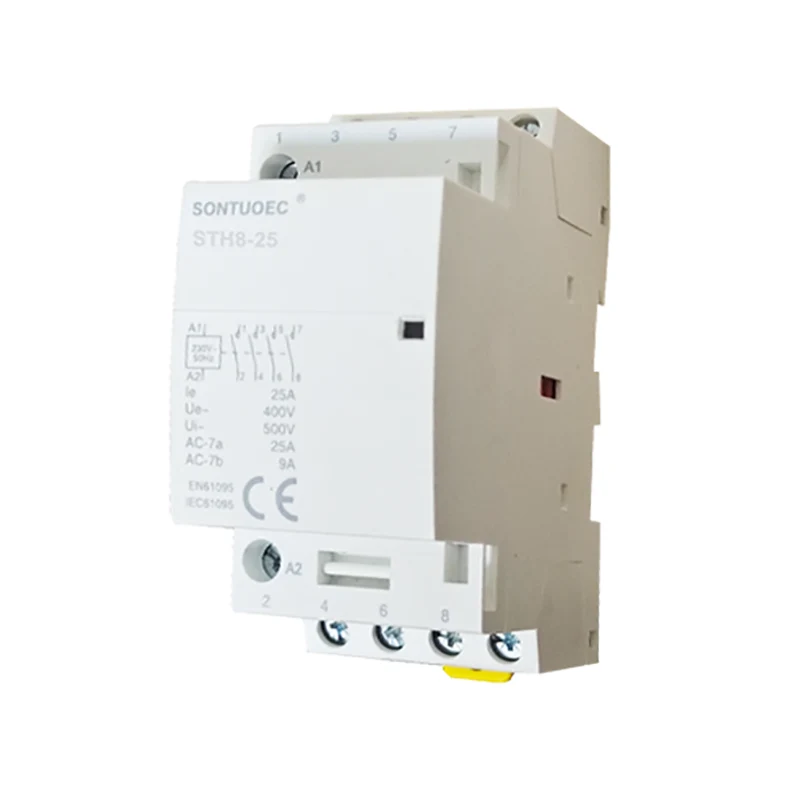

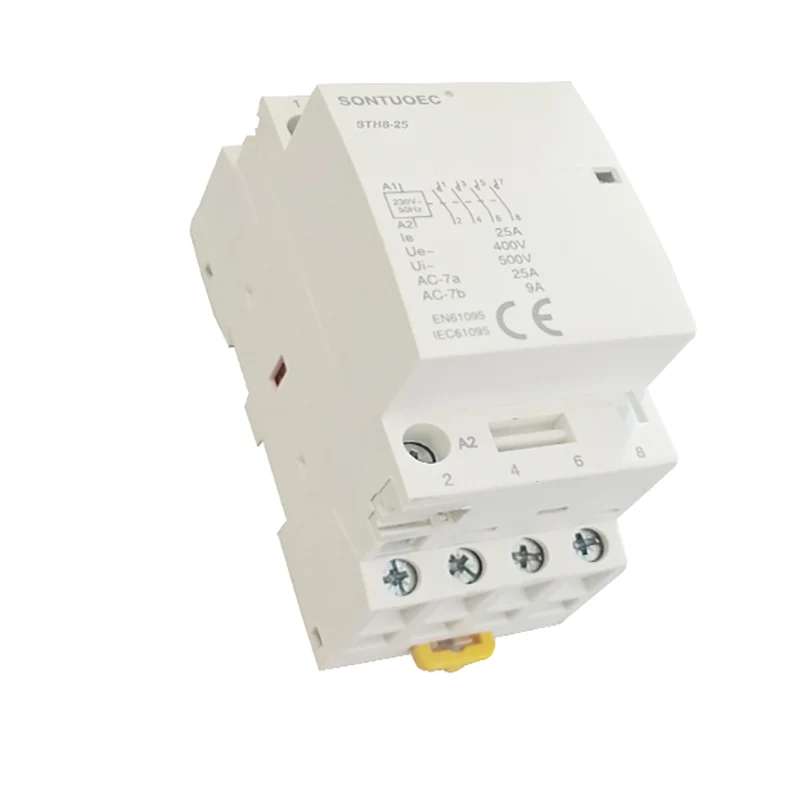

Imodeli:STH8-25

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukuthayipha	I-Internator
Ukukala a	16	20	25	32	40	63	100
Ingcebe	Yebo
I-BctSindication AAUXISIARY	Yebo
Ihhashi Lawula ngokusiza ngo -qanda xer clies	Yebo

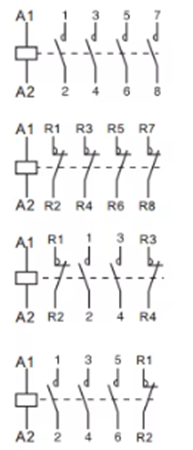

Ukuthayipha					Ububanzi ngo-9mm amashumane
1p	Isilinganiso (ln) AC-7A	Isilinganiso (ln) AC-7A	Ukuphatha amandla kagesi (Vac) (50hz)	Thintana
	Hola	65A	24	1NO	2
	20	Vala	110	I-1NC
	25A	9	230
2p
	Hola	65A	24	2No	2
	20	Vala	110	1no + 1nc
	25A	9	230	I-2nc
	32A	Okucishe kwakha	24	2No	4
	40akha	18A	110	1no + 1nc
	63a	25A	230	I-2nc
	100A	_	24		6
			110	2No
			230
Okusezingenibhabhozaphakathi
	Hola	65A	24	3ko	4
	20	Vala	110	I-3NC
	25A	9	230
	32A	Okucishe kwakha	24	3ko	6
	40akha	18A	110	I-3NC
	63a	25A	230
-Khitheni-
	Hola	65A	24	4NO	4
	20	Vala	110	I-4NC
	25A	9	230	2no + 2nc 3no + 1nc
	32A	Okucishe kwakha	24	4NO	6
	40akha	18A	110	I-4NC
	63a	25A	230	2no + 2nc 3no + 1nc
	100A	_	24	4NO	12
			110
			230

Isakhiwo Esiyinhloko

Oxhumana nabo basendlini bavame ukufana nalezi zingxenye ezilandelayo:

Uhlelo lokuxhumana: kufaka phakathi oxhumana nabo abaphambili kanye noxhumana nabo oxhumana nabo. Oxhumana naye oyinhloko asetshenziselwa ukuvula futhi aphule umjikelezo omkhulu, okuvame ukuba ne-CASTARD yamanje; Oxhumana naye osizayo asetshenziselwa ukuvula futhi aphule umjikelezo wokulawula, onamanje alinganiswe amanje.

Uhlelo lwe-Electromagnetic: Siqukethe i-Iron Core, i-armature nekhoyili. Lapho ikhoyili inamandla, umnyombo wakha amandla kazibuthe adonsela i-armature futhi avale oxhumana nabo; Lapho ikhoyili inikezwe amandla, i-magnetic field iyanyamalala, kukhishwe i-armature futhi oxhumana nabo baphukile.

Idivaysi yokucisha i-ARC: Isetshenziselwa ukucisha i-arc lapho oxhumana nabo benqanyuliwe, ukuvimbela i-arc ukuthi ilimaze othintana nabo.

I-Shell nezinye izesekeli: Igobolondo lisetshenziselwa ukuvikela izakhi zangaphakathi ethonyeni lendawo yangaphandle; Izesekeli zifaka kubakaki ezikhuphukayo, ama-terminals, njll., ezisetshenziselwa ukuqaphela ukufakwa kanye ne-wiring yoxhumana naye.

Umgomo Wokusebenza

Umgomo osebenzayo wabaxhumana nabo basekhaya asuselwa emgomweni wokungeniswa kwe-electromagnetic. Lapho ikhoyili inamandla, i-Iron Core ikhiqiza amandla kazibuthe adonsela i-armature futhi avale oxhumana nabo; Lapho ikhoyili inikezwe amandla, i-magnetic field iyanyamalala, kukhishwa i-armature futhi oxhumana nabo banqanyuliwe. Ngokulawula amandla okunika amandla kanye nokunika amandla ikhoyili, ukulawulwa okukude nokuvikelwa kwemibuthalo yezindlu kungabonakala.

Amapharamitha Ezobuchwepheshe

Amapharamitha aphambili obuchwepheshe abaxhumana nabo bendlu afaka ama-voltage alinganiselwe, abekwe imvamisa yamanje, imvamisa ekalwe, ukuxhuma kanye nokuqhekeka komthamo nokunye. Ukukhethwa kwalawa mapharamitha kufanele kunqunywe ngokuya ngesimo sangempela sesifunda sasekhaya ukuqinisekisa ukusebenza okujwayelekile nokusetshenziswa okuphephile koxhumana naye.

I-voltage ekalwe: ibhekisa ezingeni lamandla kagesi lapho oxhumana nabo besebenza ngokujwayelekile.

Kukalwe njengamanje: Kubhekiswa kulokho okuphezulu okukhona okungumuntu oxhumana naye angamelana nesikhathi eside ngaphansi kwamandla kagesi alinganiselwe.

Imvamisa ekalwe: imvamisa yokunikezwa kwamandla lapho oxhumana naye esebenza ngokujwayelekile.

Ukuxhuma kanye nokuphula umthamo: inani eliphakeme lamanje lokuthi oxhumana naye angaxhuma ngokuthembekile futhi aphule ngaphansi kwezimo ezibekiwe.
