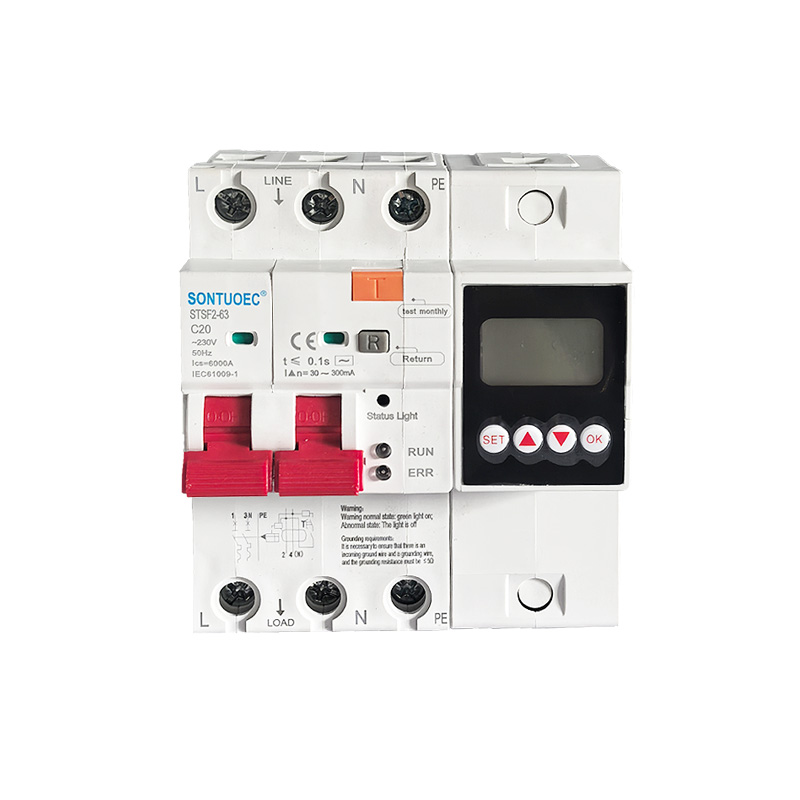

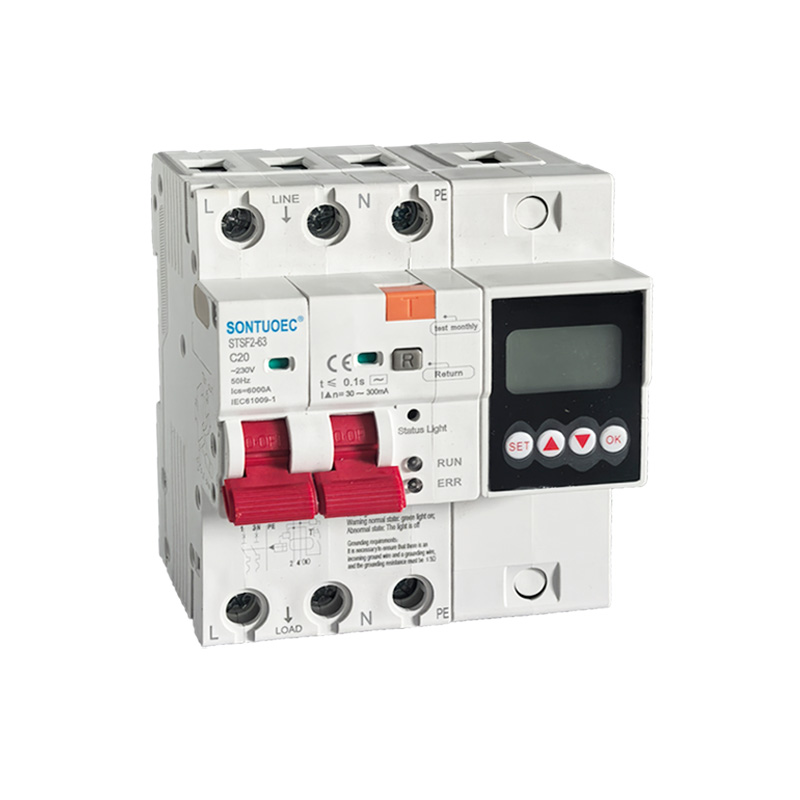

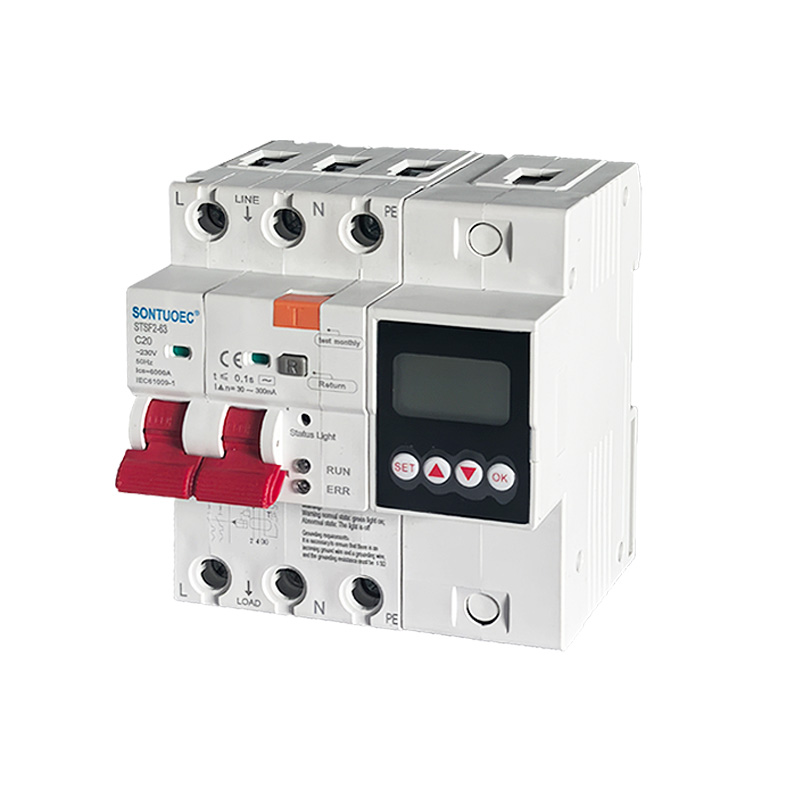

Intelligent immersion anti electric shock leakage protector 220V air circuit breaker

I-STSF2-63/100 100A 2p 4p Multifunctional RCBO ifaneleka ku-AC 50/60Hz, ikalwe kuyisekethe enevoltheji engu-230V-400V kanye namandla amanje alinganiselwe angu-100A, lapho umuntu ebanjwa ugesi noma igridi yamandla ivuza. Lapho ukuvuza, i-overvoltage, kanye ne-undervoltage kufinyelela kumanani amisiwe, i-circuit breaker yamanje eyinsalela ingasebenza ngokushesha ngesikhathi esifushane kakhulu inqamule ukunikezwa kwamandla. Lapho izinga lokushisa lokuqapha le-residual current circuit breaker lifinyelela inani elimisiwe, intambo yaphansi yokuqapha ayixhunyiwe. Uma uxhumekile, umkhiqizo ukhipha umsindo we-alamu ukuze uvikele ukuphepha kwabasebenzi nezinto zikagesi, futhi ungagwema Vimbela ukulimala okokusebenza okubangelwa ukugcwala ngokweqile kwegridi yamandla. Inomthwalo omningi, isekethe elifushane, ukuvuza, i-overvoltage Imisebenzi yokuvikela i-Undervoltage kanye nokushisa ngokweqile ingase isetshenziselwe ukuvula nokuvala ngezikhathi ezithile amadivaysi kagesi ngaphansi kwezimo ezivamile. Ama-circuits okukhanyisa, ikakhulukazi afanele izinhlelo zokusabalalisa izibani zezimboni nezohwebo. Umkhiqizo unomthamo omncane, ukwakheka okuhlangene, nokusebenza kahle kwezindleko kuneminye imikhiqizo efanayo. Inokubukeka okuhle, Umthamo omkhulu wokuphulwa kwenza kube ukukhetha okuhle kokusatshalaliswa kwamandla ekhaya. Lo mkhiqizo uhambisana namazinga e-GB/T 16917.1 kanye ne-IEC 61009-1 futhi uthole isitifiketi se-CE.

Imodeli:STFS2-63

Thumela Uphenyo

Incazelo Yomkhiqizo

IMICIMBI:

Ezogesi izici	Okujwayelekile	Iyunithi	I-IEC/EN 61009-1
	Imodi		Uhlobo lwe-elekthronikhi
	Uhlobo(indlela yegagasi yokuvuza komhlaba izwakele)		AC
	Isici sokukhululwa kwe-Thermomagnetic		B,C,D
	Ikalwe okwamanje ln	A	6-100A(6,10,16,20,25,32,40,63;80,100A) Iyalungiseka
	Izigxobo	P	1P+N, 3P+N
	I-voltage elinganiselwe i-Ue	V	I-AC 230, 400 (Iyalungiseka)
	Ukuzwela okulinganiselwe I△n	A	30-300mA(30,100,300mA) Iyalungiseka
	Isilinganiso sokwenziwa kwensalela kanye namandla okuphula l△m	A	500
	Umthamo we-short-circuit elinganiselwe I-Icn	A	6000
	Isikhathi sokuphumula ngaphansi kwe-I△n	S	≤0.1
	Isilinganiso sokuvama	Hz	50/60
	Isilinganiso se-impulsewithstand voltage (1.2/50)Uimp	V	4000
	I-Dielectric test voltage ku-ind.Freq ye-1min	kV	2
	I-Insulation voltage Ui	V	250
	Iziqu zokungcola		2
Okunyer	Ukuvikelwa kwe-voltage ngaphezulu/ngaphansi;	futhi	Ukuvikelwa Kwezinga Lokushisa ; I-Fire-alwarm nabanye
Izici zemishini	Impilo kagesi		4000
	Impilo yemishini		10000
	Inkomba yephutha yamanje		YEBO
	Idigri yokuvikela		IP20
	Izinga lokushisa le-ambient	ºC	-5~+40(Uhlelo lokusebenza olukhethekile sicela ubhekisele kulo
	(ngesilinganiso sansuku zonke≤35ºC)	ºC	ukulungiswa kwesinxephezelo sezinga lokushisa)
	Izinga lokushisa lesitoreji	ºC	-25~+70
Ukufakwa	Uhlobo lokuxhuma kwetheminali		Ibha yekhebula/uhlobo lwephinikhodi/ibha yebhasi yohlobo lwe-U

	Usayizi wetheminali phezulu/phansi kwekhebula	mm2	25
	Usayizi wetheminali phezulu/phansi kwekhebula	AWG	18-5
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	mm2	25
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	AWG	18-3
	Ukukhweza		Ku-DIN ujantshi EN 60715(35mm) ngedivayisi yokunamathisela esheshayo
	Ukuxhumana		Kusukela phezulu

ITHEMPERATURE YOMOYA EZIZUZE:

1. Izinga lokushisa lomoya osendaweni akumele libe ngaphansi kuka -5 1C, lingabi ngaphezu kuka+40 C, futhi inani elimaphakathi lansuku zonke akufanele lidlule +35 C.

2. Ukuphakama: Ukuphakama kwendawo yokufaka akumele kudlule u-2000m.

3.Izimo ze-atmospheric

Umoya uhlanzekile, futhi ezingeni lokushisa eliphakeme lika-+40 'C, umswakama ohlobene womoya awuphezulu Ngaphezu kuka-50%. Umswakama ophakeme uvunyelwe emazingeni okushisa aphansi, njengaku-+20 C;

Umswakama ohlobene akufanele udlule u-90%. Ngenxa yokufiphala okusesilinganisweni ngezikhathi ezithile okubangelwa ukushintsha kwezinga lokushisa, kufanele kuqashelwe ekuthatheni izinyathelo ezifanele.

4. Isigaba Sokufaka Izigaba zokufakwa yi-lI kanye ne-III

Yamanje kanye Nenombolo Yezigxobo

I-100A: Lokhu kubonisa ukuthi i-RCBO ilinganiselwe kuma-amps ayi-100. Isilinganiso samanje yinani eliphezulu lamanje i-breaker yesifunda engakwazi ukulithwala ngokuqhubekayo ngaphandle kokubangela ukushisa noma ukulimala.

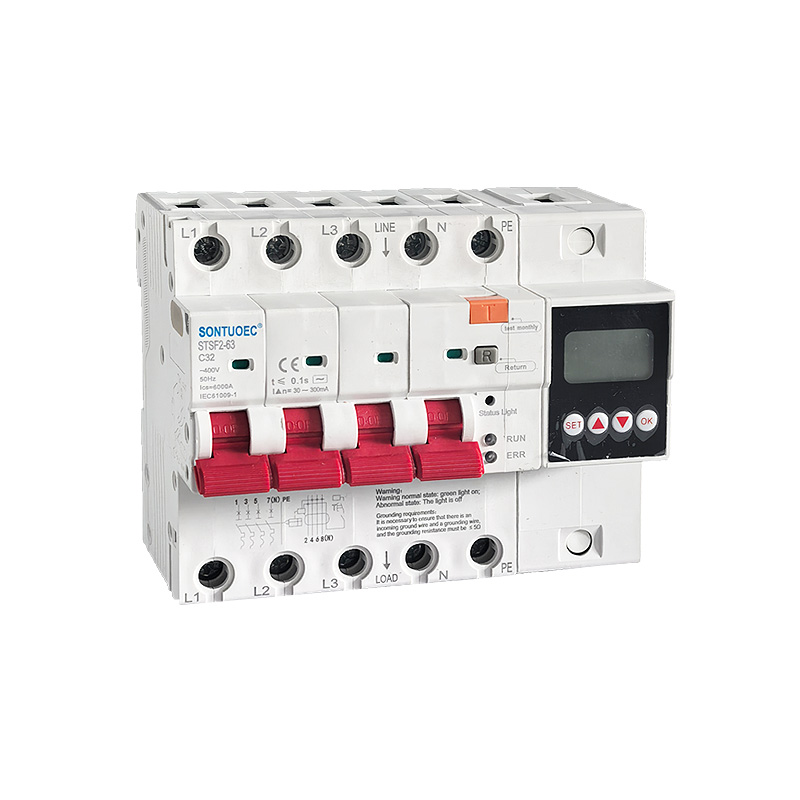

2p, 4p: I-"p" lapha imele inombolo yezigxobo, okungukuthi, inani lezigaba zesifunda lapho i-breaker circuit ingaxhunywa khona. I-2p isho ukuthi i-circuit breaker ingaxhunywa ezigabeni ezimbili zesekethe (ngokuvamile i-Fire kanye ne-Zero), kanti i-4p isho ukuthi ingaxhunywa ezigabeni ezine zesekethe (ngokuvamile i-Fire yezigaba ezintathu kanye ne-Zero).

Imisebenzi eminingi

I-Multifunctional ibonisa ukuthi le 100A 2p 4p Multifunctional RCBO ifakwe imisebenzi ehlukahlukene yokuvikela. Ngokungeziwe ekulayishweni okuyisisekelo kanye nokuvikelwa kwesifunda esifushane, inganikeza nokuvikela ukuvuza, ukuvikelwa kwe-undervoltage, ukuvikelwa kwe-overvoltage, njalonjalo. ukuvikelwa kwezinga lokushisa，I-alamu yokungena kwamanzi，Iyamanje ne-voltage eguquguqukayo.Lokhu kuvikela kuvumela i-RCBO ukuthi inikeze ukuvikeleka okubanzi kwamasekhethi nezinto zokusebenza.

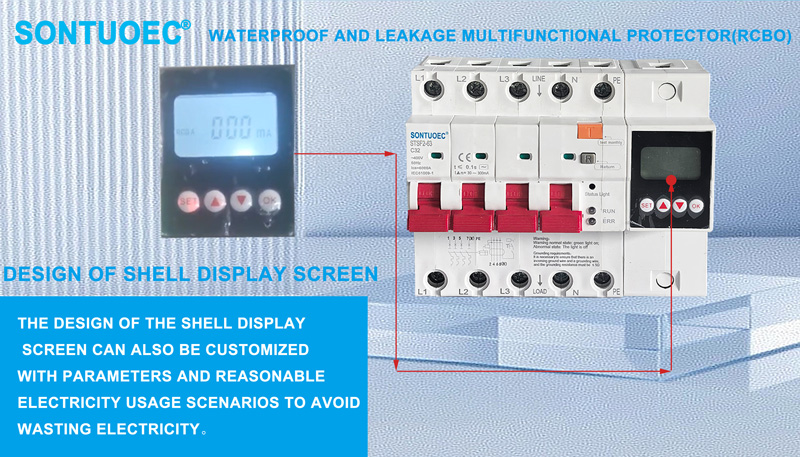

Isexwayiso!

Isimo esijwayelekile sesexwayiso: ukukhanya okuluhlaza kuvuliwe;

Isimo esingavamile: Isibani sivaliwe

Izidingo zokuqalisa:

Kudingekile ukuqinisekisa ukuthi kukhona ucingo olungena emhlabathini kanye nocingo oluphansi, futhi ukumelana komhlaba kufanele kube yi-s 5Q!

Isicelo Scenario

Njengoba i-RCBO inemisebenzi eminingi yokuvikela, ivamise ukusetshenziswa kumasekhethi adinga ukuphepha komuntu siqu, njengamasekhethi kagesi okukhanyisa, amandla abuthakathaka, nezinto zikagesi ezindlini nasezindaweni zomphakathi. Lezi zindawo zivame ukubonakala ngamanzi kanye nomswakama, okungadala kalula izingozi zokuvuza. Ngaphezu kwalokho, i-RCBO ingasetshenziswa futhi kumasistimu kagesi wezimboni lapho ukuphepha komuntu kuyimfuneko, njengamasekhethi okulawula ukukhanya okuzungezile, amasistimu e-radar, namathuluzi okuhlola umhlaba.
