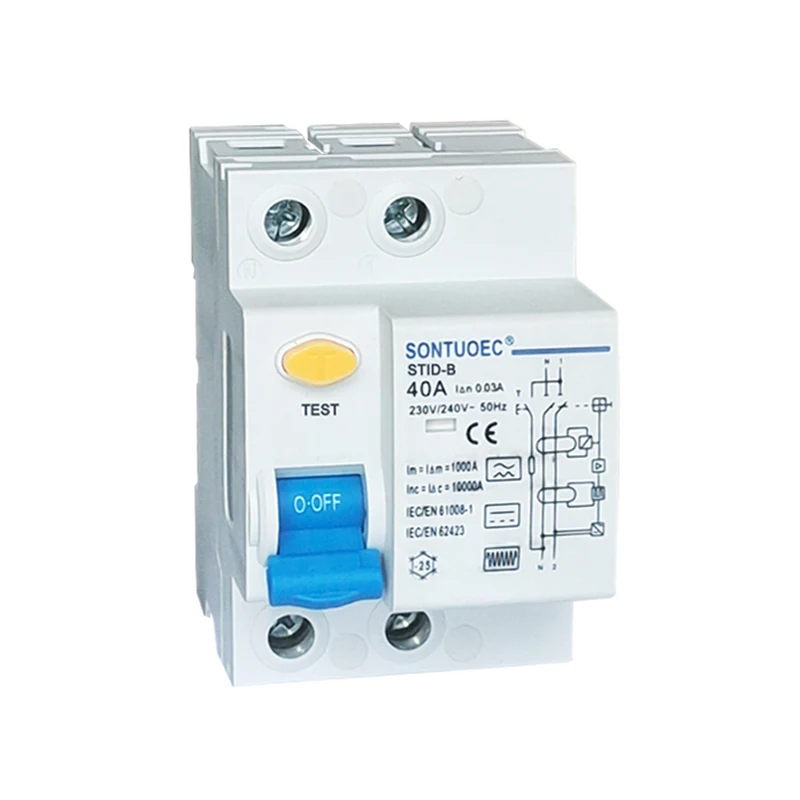

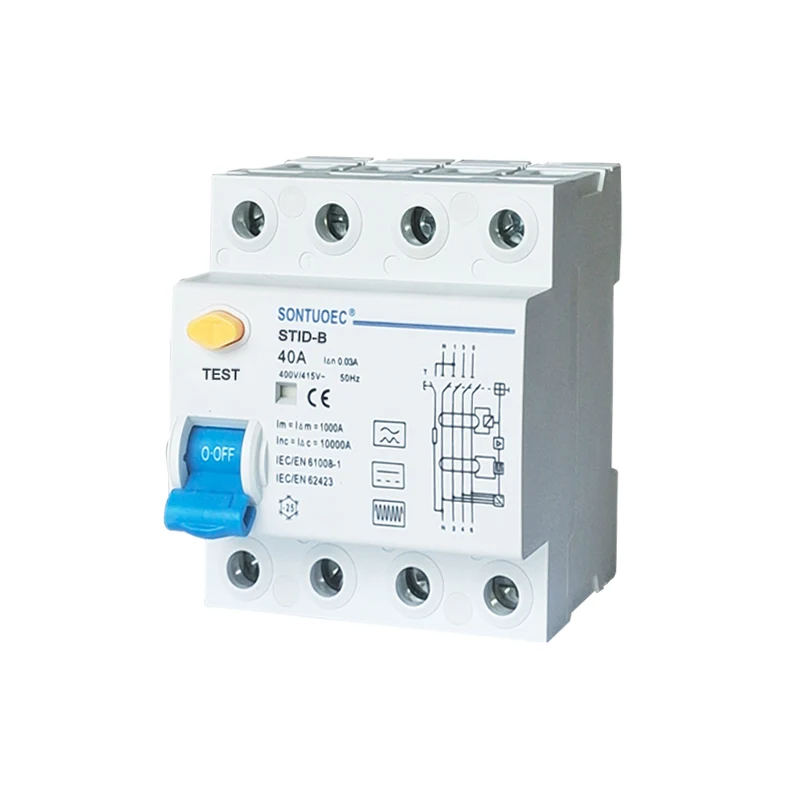

I-RCCB B Model Residial Precial Breaker yamanje

I-RCCB B Model Residial Residium Yamanje ivikela uma kungamaphutha angenakuphikwa kumanethiwekhi amathathu esigaba: Izisetshenziswa kanye nama-Inverters, ama-Inverges (DC) ahambisana ne-IEC / EC61008-1 ne-IEC / EN624423 standard.

Imodeli:STID-B

Thumela Uphenyo

Incazelo Yomkhiqizo

-Gesi Ubuso	-Vamile		IEC / EN62423 & IEC / EN61008-1
	Thayipha (uhlobo lokuvuza komhlaba oluzwakala)		B
	Ikalwe njengamanje	A	25,40,63
	Isigodlo	P	1p + n, 3p + n
	I-voltage ue	V	IP + N: 230 / 240V; 3p + N: 400 / 415v
	Ulwelwe ukuzwela i n	A	0.03,0.1,0.3
	I-UI yokufaka i-UI	V	500
	Ukwenziwa okusalayo okulinganiselwe futhi	A	500 (ku = 25a / 40a)
	I-Breaking Policy I M	A	I-630 (ku = 63a)
	I-Short-Circuit yamanje i c	A	10000
	I-SCPD fuse	A	10000
	Isikhathi sekhefu ngaphansi kwe-i n	s	≤0.1
	Imvamisa ekalwe	Hz	50
	I-adgese yokumelana nokumelana ne-voltage (1.2 / 5.00) i-uimp	V	4000
Khethani Khethani izici	I-Dielectric Test Voltage e-Ind. Fred. ye-1min	ingoma eleva	2.5
	Ukungcola iziqubu		2
	Impilo kagesi		2000
	Mechanicai iife		10000
	Inkomba yamanje yecala		Yebo
	Iziqu Zokuvikelwa		I-IP20
	Ukushisa okukhona (okunama-avareji nsuku zonke 35)	ºC	-40 ~ + 55ºC
	Ukushisa okushisa	ºC	-40 ~ + 70ºC

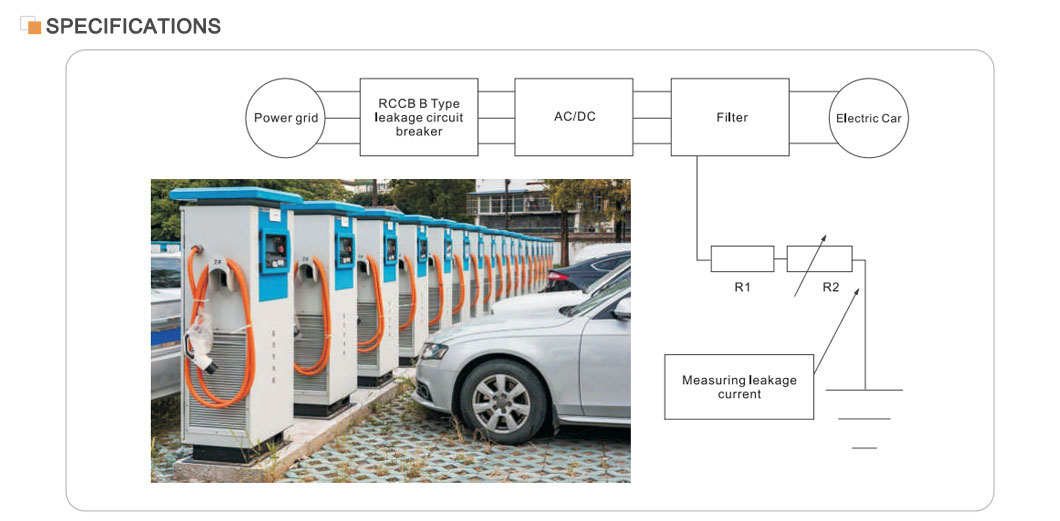

I-STID-B RCCB B I-Redidial Residium Yamanje Breaker ilungele ukuthayipha a futhi ilungele nemijikelezo yensalela ye-DC evundlile, ama-DC asele wemijikelezo engahle aqhamuke emijikelezweni eqondile kanye nemvamisa ephezulu ye-AC Inikeza ukuvikela uma kwenzeka kunemisiphi eqhubekayo yephutha kumanethiwekhi wesigaba ezintathu. Ama-STID-B asetshenziswa kakhulu emikhakheni yeziteshi zokushaja, imishini yezokwelapha kanye nezinsimbi, abalawuli kanye nama-drives aguqukayo, amashaja webhethri kanye ne-Inverters (DC). Ama-STID-B ahambisana ne-IEC / EN61008 ne-IEC / En624423.

Izici eziyinhloko

Kukalwe manje: 40a, kufanelekile amasistimu amakhulu kagesi.

Ukuvikelwa okuvuzayo: ngokuzwela okuphezulu nokunemba, kungathola ukuvuza kwamanje futhi kunqunywe ukunikezwa kwamandla ngesikhathi esifushane kakhulu.

Ukusebenza Kwezokuphepha: Kuvumelana namazinga aphesheya anjenge-IEC / EN61008.1 ne-GB16916.1, ukuqinisekisa ukuphepha nokwethembeka komkhiqizo.

Ububanzi besicelo: Kusetshenziswa kabanzi kuma-Industrial, Ezentengiso, Ukuphakama Okuphezulu Nezakhiwo Zomphakathi ukuhlinzeka ngokuvikelwa okuphelele kohlelo kagesi.

Umgomo Wokusebenza

I-RCCB B Model Residial I-Precial Breaker yamanje isuselwa ku-zero ukulandelana kwamanje transformer. Isigaba ngasinye esiqhuba sidlula ngokulandelana okungu-zero kwamanje transformer, uhlangothi lwesibili lwayo luxhumeke ku-electromagnetic dent. Ngaphansi kwezimo ezijwayelekile, inani le-vector yemisinga yesigaba ngokusebenzisa i-zero ukulandelana kwamanje i-transformer iyi-zero, ngakho-ke i-flux ngokusebenzisa i-transformer ingu-zero, i-aultage yokuphuma yesibili nayo ngeke isebenze. Kodwa-ke, lapho ukuvuza kwamanje kwandisiwe futhi kushayela i-voltage ye-Selicational Side Output ukuze ikhule ibe sezingeni elithile, ukukhishwa kwe-electromagnetic kusebenze, ukunqamulashini okusebenzayo ukuze kusebenze futhi kunqamule oxhumana nabo abaxhumene nokuvikelwa kwamandla.

Ukukhetha nokufakwa

Ukukhetha: Lapho ukhetha i-RCCB, amapharamitha afana ne-voltage ekalwe, ulinganiswe nesenzo sokuvuza samanje kanye nesikhathi sesenzo sohlelo lukagesi kufanele lubhekwe. Kuyadingeka futhi ukukhetha i-RCCB efanelekile ngohlobo lokuvikelwa oludingekayo (e.g. Ukuvikelwa okuqondile kokuxhumana noma ukuvikela okuqondile kokuxhumana).

Ukufakwa: I-RCCB kufanele ifakwe ekugcineni okungenayo kohlelo lukagesi noma emgqeni wegatsha ukuqinisekisa ukuvikelwa okugcwele kwalo lonke uhlelo lukagesi noma umugqa othile wegatsha. Ngesikhathi sokufakwa, amazinga afanele namakhodi kufanele abonwe ngokuqinile ukuqinisekisa ukuxhumana okufanele nokusebenza okuthembekile kwe-RCCB.
