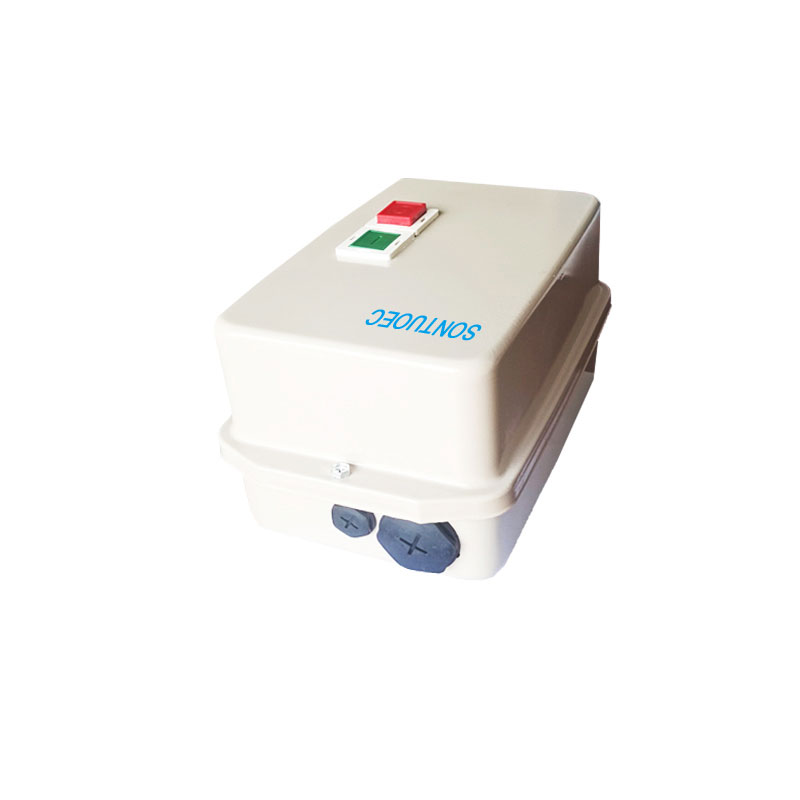

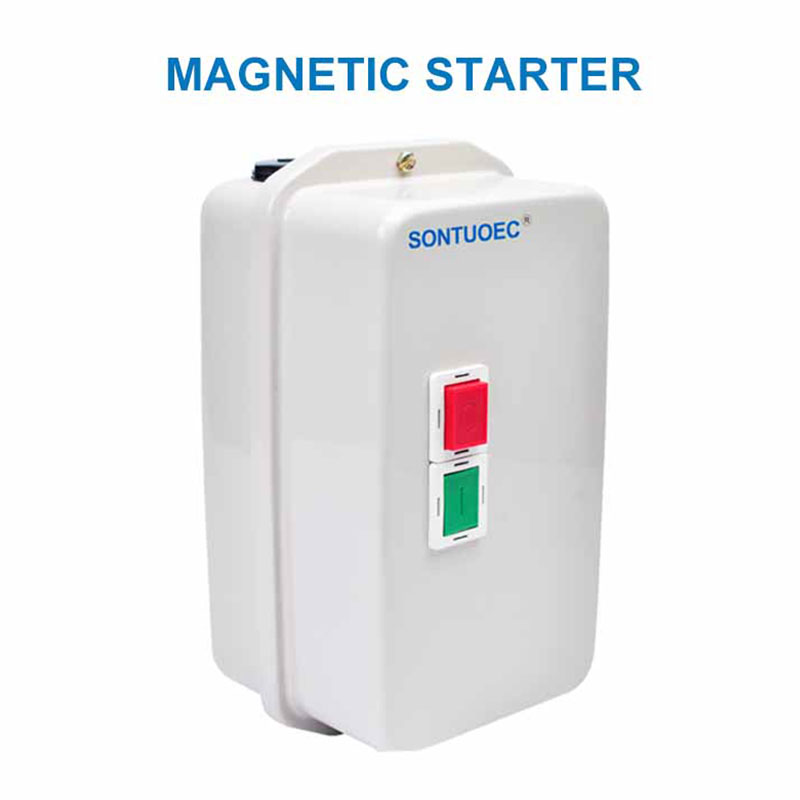

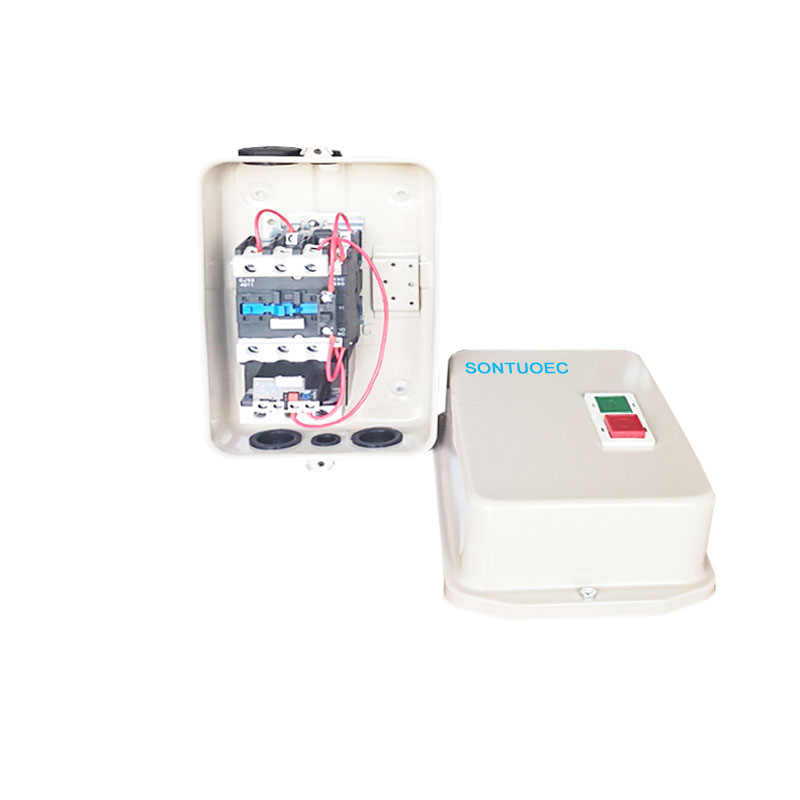

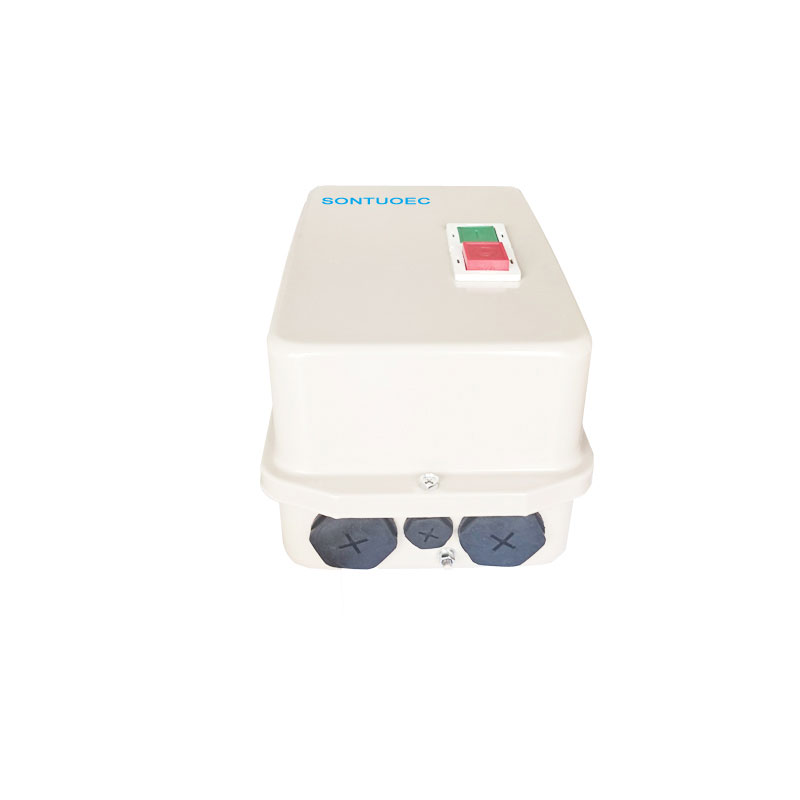

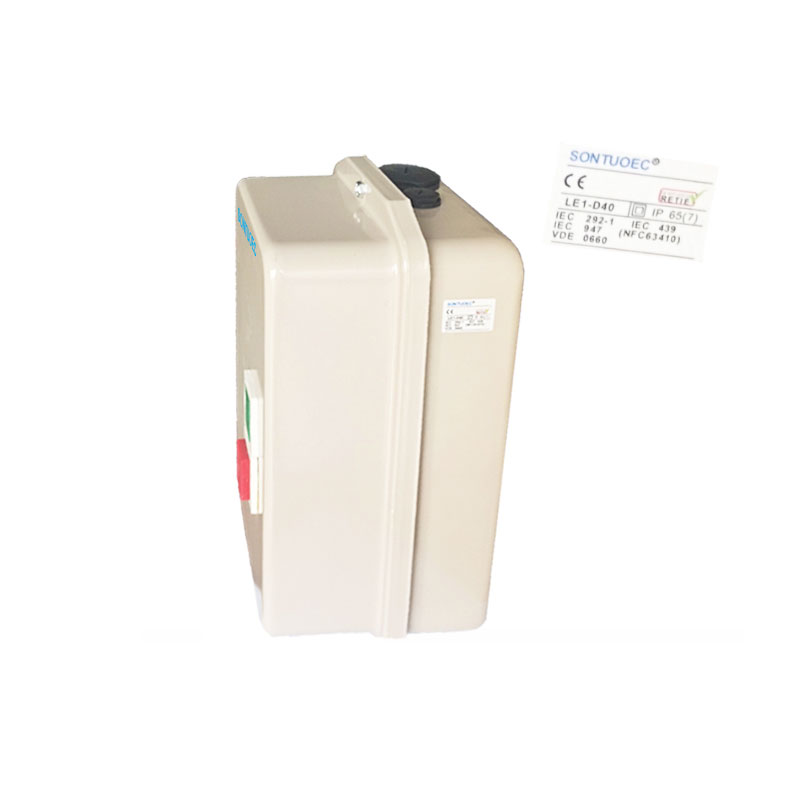

Sleise1-D Series Magnetic Starter

I-Sleise1-D Series Magnetic Starter iyithuluzi lokulawula kagesi elisebenza ukuqala nokuma kwemoto kagesi ngamandla kagesi. Imvamisa iqukethe ikhoyili ye-electromagnetic, lapho inika amandla, ikhiqiza amandla kazibuthe adonsela ukunyakaza kwesisekelo sensimbi, eshayela ukuvalwa noma ukwephulwa koxhumana nabo ukuze kufezekiswe ukulawula imoto.

Imodeli:SLE1-D

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukucacisa

Imodi Yomkhiqizo Cha.Ngakho	Salala1-09 no-12	Kabili ku-sucured, evikelwe Tolp429 (3) noma, F659 (4)
Into ebiyelayo	Salala1-18 no-25	Kabili eSulated, evikelwe Tolp427 (3) noma, F5577 (4)
	Bule1-32 no-95	Matal, LP65 kuya ku-559
Ukulawula (2 Push izinkinobho ezingenamandla Isembozo Esibekiwe)	Bule1-32 no-95	Inkinobho yokuqalisa eyi-1 eluhlaza '1', i-1red stop / teset buttion "O"
Ukunye ukuxhumana	Bule1-32 no-95	Amandla kagesi nokulawula ukuxhumana kabusha

Amapharamitha aphambili wezobuchwepheshe:

Ukuthayipha		Salala1-9	Salala1-12	Salala1-18	Sle1-25	Vele1-32	Salala1-40	SELWE1-50	Salala1-65	Is1-80	Kuvele1-95
I-KW / HP (AC-3) Amandla aphethwe (AC-3) IEC60947-4	I-220v	2.2 / 3	3/4	4/ 5.5	5.5 / 7.5	7.5/10	11/5	15/20	18.5 / 25	22/35	25/35
I-KW / HP (AC-3) Amandla aphethwe (AC-3) IEC60947-4	I-380V	4/ 5.5	5.5 / 7.5	7.5/10	11/15	15/20	18.5 / 25	22/30	30/40	37/50	45/60
Iphinde yaqala (AC-3) GB14048.4	I-220v	9	12	15	21	26	36	52	63	75	86
Iphinde yaqala (AC-3) GB14048.4	I-380V	9	12	16	21	25	37	43	59	72	85
Ukubuyiselwa kokushisa kwamanje (a)			25	32	40	50	60	80		125
I-pured depage (v) 660
Ukuxhumana kwe-Auxicary AC-15	Thintana	-vamile	1NO				1no + 1nc
	Iphinde yaqala (a)	I-220v	1.6
	Iphinde yaqala (a)	I-380V	0.95
Ukudluliselwa kwe-QuitAbie Thermal		Lr2d-1305/1314 (0.63 ~ 1.0 / 7 ~ 10)	Lr2d-1316 (9 ~ 13)	Lr2d-1321 (12 ~ 18)	Lr2d-1322 (17 ~ 25)	Lr2d-1353 (23 ~ 32)	Lr2d-3355 (30 ~ 40)	Lr2d-3359 (48 ~ 65)	Lr2d-3361 (55 ~ 70)	Lr2d-3363 (63 ~ 80)	Lr2d-3365 (80 ~ 93)
Ukulinganisa okuvamelana		I-LP65

Umgomo Wokusebenza

Umgomo osebenzayo we-Sleile1-D Series Magnetic Starter kususelwa ekuxhumaneni kwe-electromagnetic ukungeniswa kanye namandla e-electromagnetic. Lapho ukunikezwa kwamandla okulawula kunamandla, i-electromagnetic Coil yakha amandla kazibuthe, adonsela umnyombo wensimbi ukuhambisa futhi avale oxhumana nabo, futhi motor ihlinzekwa ngamandla futhi iqala ukusebenza. Lapho ukunikezwa kwamandla okulawula kunikezwe amandla, amandla kazibuthe ayanyamalala, ama-Iron Core ahlala phansi ngaphansi kwesenzo sentwasahlobo, oxhumana nabo baphukile futhi ama-motor aqala ukusebenza.

Izinhlobo nezici

Kunezinhlobo ezahlukene zokuqalwa kwamandla kazibuthe eziyi-d, njengokuqanjwa okuqondile kulayini (dol) iziqalo ze -1-D zibulezwe1-D iziqalo zenkanyezi, inkanyezi-delta (Star-delta) iziqalo, iziqalo ze-autotransformer nokunye. Izinhlobo ezahlukene zokuqalwa kwamandla kazibuthe ezibulewe1-D zinezici ezihlukile kanye nobubanzi besicelo.

I-1.Direct on-line (DOL) Sle1-D Starter kaMagnetic:

Isakhiwo esilula, izindleko eziphansi.

Kufanelekile ukuqala nokumisa ukulawula kwamandla amancane ama-motors.

I-2.Star-Delta (Star-Delta) Starter:

Ngokushintsha i-wiring yemoto, ibona inhloso yokunciphisa i-voltage kanye namanje ngesikhathi sokuqala.

Ilungele ukulawula okuphakathi kwemoto ephakathi.

I-3.Autotranransformer Charter:

Isebenzisa i-autotranformer ukuze yehlise ama-voltage futhi okwamanje lapho uqala imoto.

Kusebenza ekuphathweni okuqala kwamandla aphezulu e-motors.

SLE1-D Series Magnetic Starter

Izimo Zokusebenza

Iziqalo zikamabanzi ezibuswini1 zisetshenziswa kabanzi ezinhlotsheni ezahlukahlukene zezimboni nakwezentengiso ezinjengokukhiqiza, ukwakhiwa, ezolimo kanye nokuhamba. Zisetshenziselwa ukulawula izinhlobo ezahlukahlukene zama-motors ezinjengezigaba ezintathu ze-asynchronous motors, i-DC Motors, njll. Ukukhiqizwa okuzenzakalelayo nokulawulwa okukude kwemishini.
