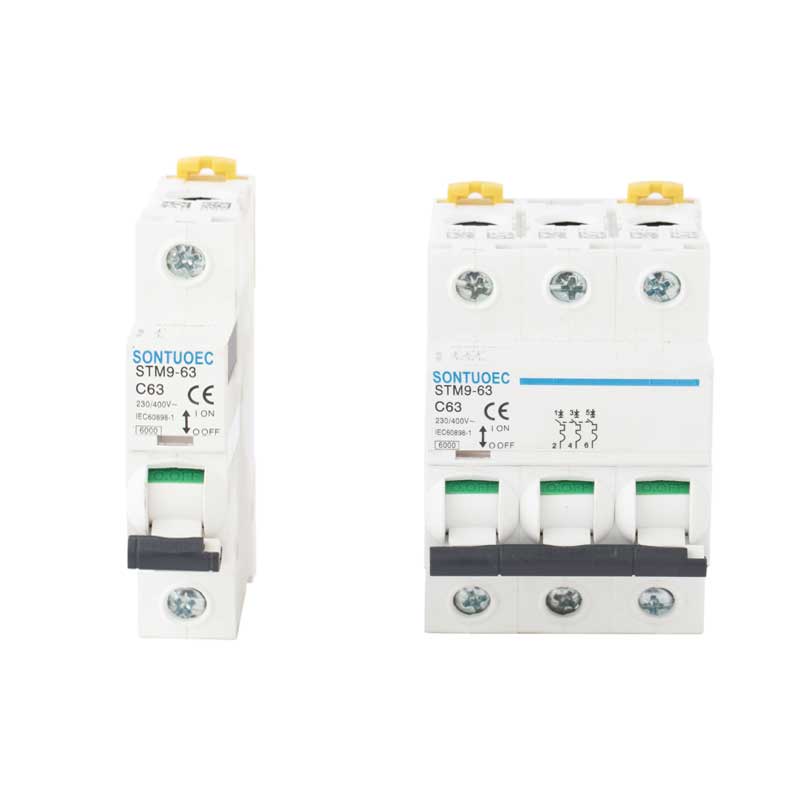

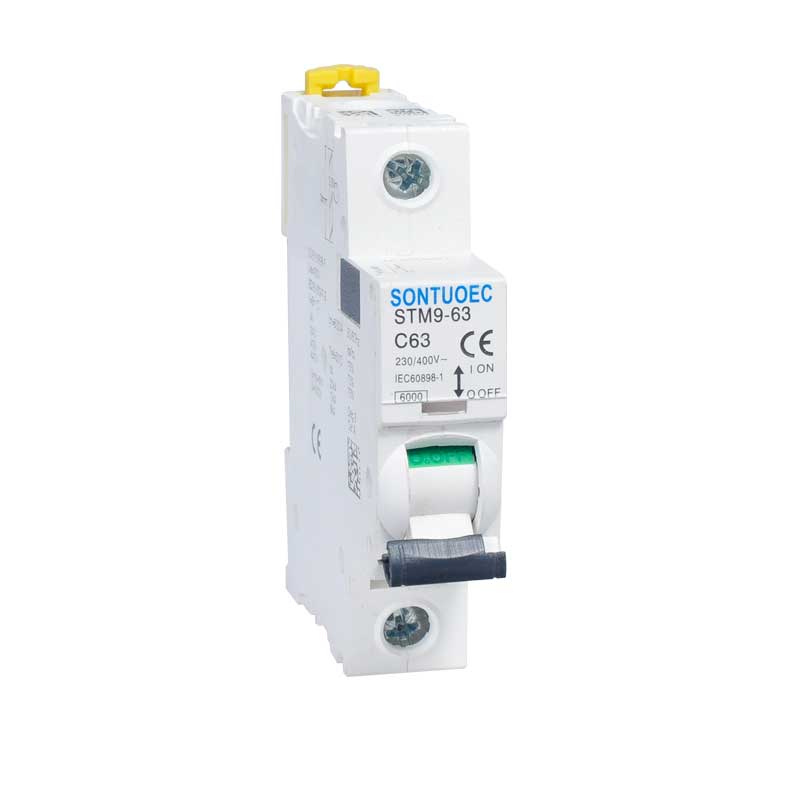

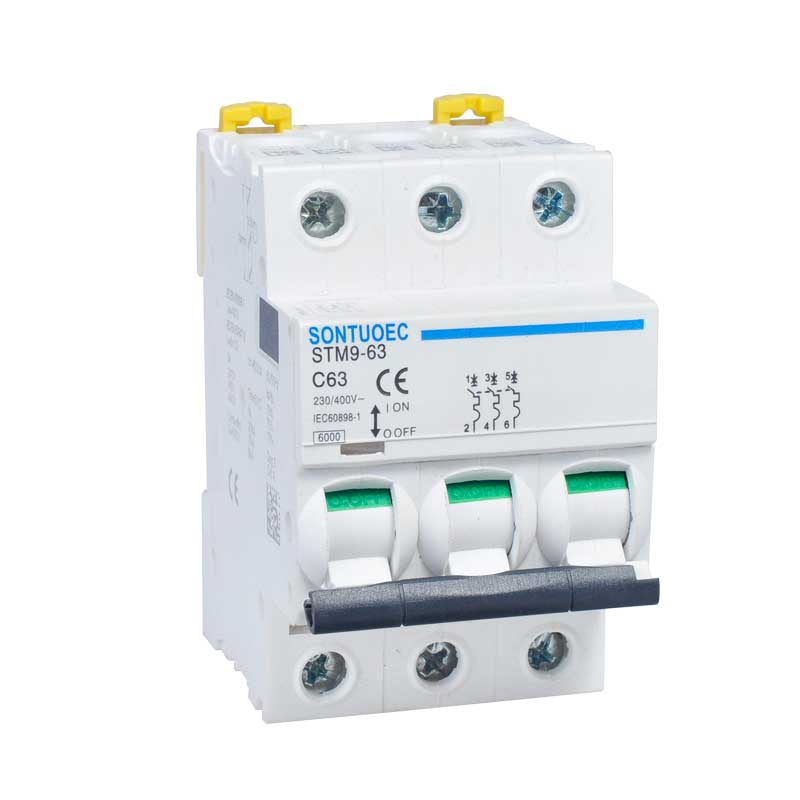

I-Smart Circuit Breaker

I-Smart Circuit Breaker idivaysi yokuvikela kagesi ephezulu, esetshenziselwa ikakhulukazi ukuvikela imishini ebalulekile ohlelweni lwamandla kusuka kumonakalo odalwe umjikelezo omfushane, ogcwele ngokweqile noma ezinye izimo ezingejwayelekile. Kuhlanganisa umsebenzi wokuvikelwa we-ndabuko yesekethe ye-breaker enobuchwepheshe obunobuhlakani obunobuhlakani bokuqapha ukuqapha kwesikhathi sangempela kwesimo sesekethe, ukulawula okuhlakaniphile kanye nokuxhumana okukude.

Imodeli:STM9-63

Thumela Uphenyo

Incazelo Yomkhiqizo

-Vamile		IEC / EN 60898-1
-Gesi izici	Ikalwe njengamanje	A	5020,650,150,40,20,20,40,69
	Isigodlo	P	I-1P, 2P, 3P, 4P
	I-voltage ue	V	AC 240/415
	I-UI yokufaka i-UI	V	500
	Imvamisa ekalwe	Hz	50/60
	Kulinganiselwe umthamo wokuphuka	A	6000, 10000a
	I-inflese ye-unded I-Voltage (1.2 / 50) i-UIMP	V	4000
	I-Dielectric Test Voltage e-Ind.freq.for 1 imiz	Ingoma eleva	2
	Ukungcola iziqubu		2
	Ukukhishwa kuka-Thermo-Magnetic -yisimilo		B, c, d
-Omshini izici	Impilo kagesi	t	4000
	Impilo yomshini	t	10000
	Iziqu Zokuvikelwa		I-IP20
	Ukushisa kwereferensi kokuhlelwa yento eshisayo	ºC	30
	Izinga lokushisa elikhona (nge-average yansuku zonke ≤35ºC)	ºC	-5 ~ + 40 (isicelo esikhethekile sicela Bheka ukulungiswa kwesinxephezelo sokushisa)
	Ukushisa okushisa	ºC	-25 ~ + 70
Ukufaka	Uhlobo lokuxhuma esibulalayo		Ikhebula / i-pin-hlobo busbar
	Usayizi we-terminal top / phansi ikhebula	mm2	25
	Usayizi we-terminal top / phansi ikhebula	Kathathu	18-3
	Usayizi we-therninal phezulu / phansi ibhanoyi	mm2	25
	Usayizi we-therninal phezulu / phansi ibhanoyi	Kathathu	18-3
	Ukuqinisa i-torque	N * m	2
	Ukuqinisa i-torque	Ku-lbs	18
	Engele		Ku-Din Rail en 60715 (35mm) nge yedivaysi esheshayo ye-clip
	Isihlobo		Kusuka phezulu nangaphansi

Imisebenzi eyinhloko

Ukuvikelwa okufushane kwesizungu: lapho kwenzeka isifunda esifushane ohlelweni lwamandla, i-smart circuit breaker ingasusa ngokushesha okukhona ukuze ivikele i-FAMET.Ukuvikelwa kokukhiqizwa ngokuzenzakalela

Ukuqapha real-time kanye nokuhlaziywa kwedatha: ngokusebenzisa izinzwa ezakhelwe ngaphakathi kanye nama-algorithms ahlakaniphile, i-smart circuit breaker Ukuqapha isimo esikude kanye nokuxhumana okuphelele, futhi kuvumela abasebenzisi ukuthi bakwazi ukubheka kude isimo sesekethe, bavuselele amapharamitha okuvikela noma basebenzise eminye imininingwane ngenethiwekhi.

Izici Zobuchwepheshe

I-Digitalized interface: I-Smart Circuit Breaker ine-interface edijithali, engadlulisela imininingwane yesikhundla, imininingwane yesimo, ukuqhekeza kanye nokuvala imiyalo, njll. Ngenethiwekhi, ukubona ukudluliselwa okusheshayo nokwabelana ngemininingwane.

Ukuqashelwa okunobuhlakani kanye nokulungiswa: Lapho uhlelo luhluleka, i-Smart Circuit Breaker ingabona ngokuzenzakalelayo uhlobo lwephutha futhi lulungise amapharamitha okusebenza okusebenzayo, ukuqiniseka okusheshayo kanye nokusika okusheshayo kwephutha lamanje.

Ukuthembela Okuphezulu: I-Intelligent Pluecker Breaker yenziwa ngobuchwepheshe obuthuthukisiwe nezinto zokwakha, ezinokuthembela okuphezulu nokuqina, futhi kungasebenza isikhathi eside isikhathi eside ngaphansi kwendawo enzima yokusebenza.
