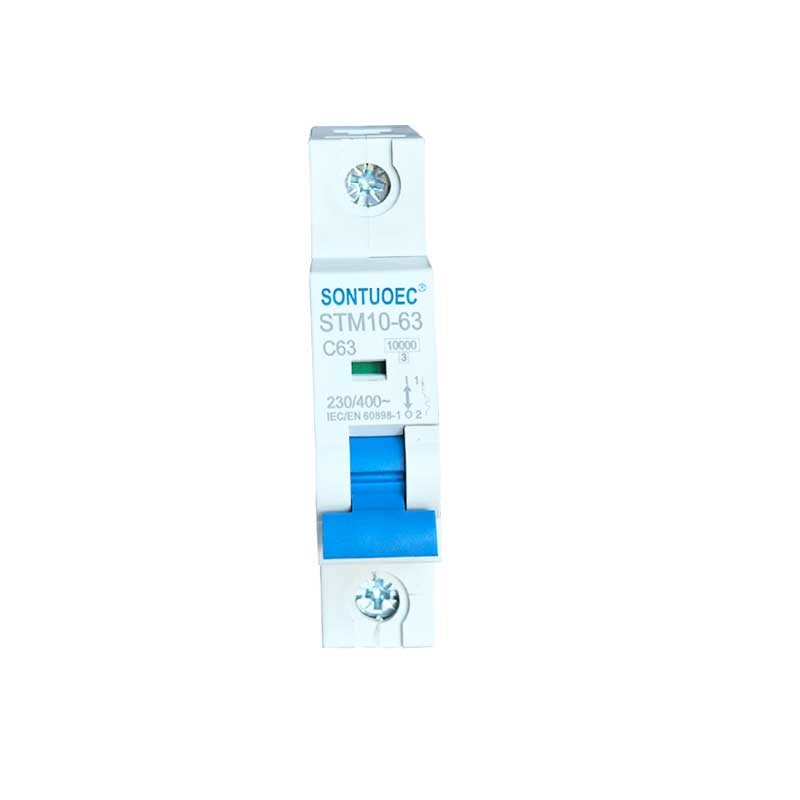

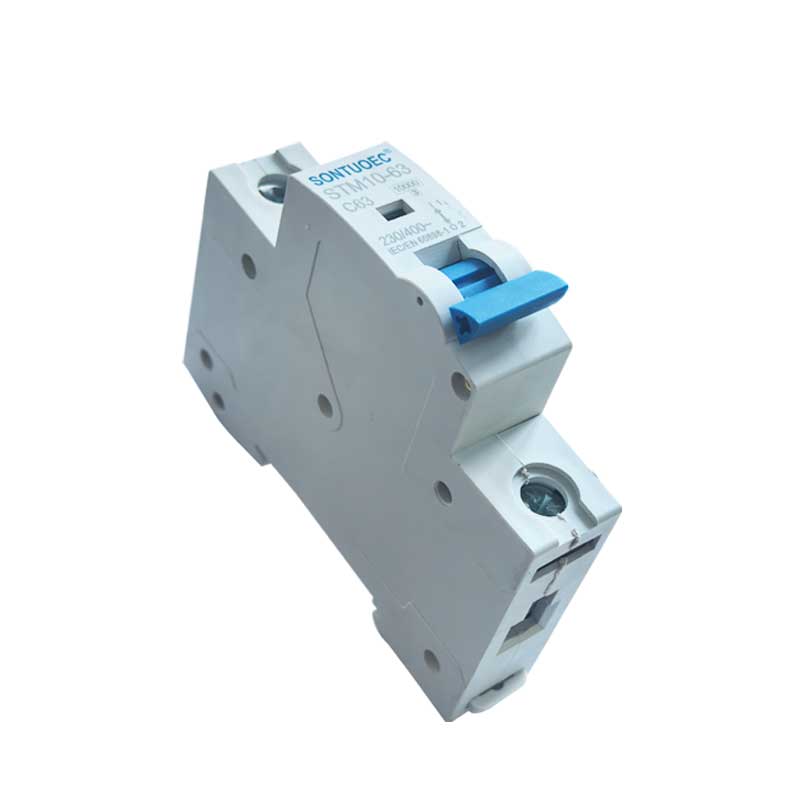

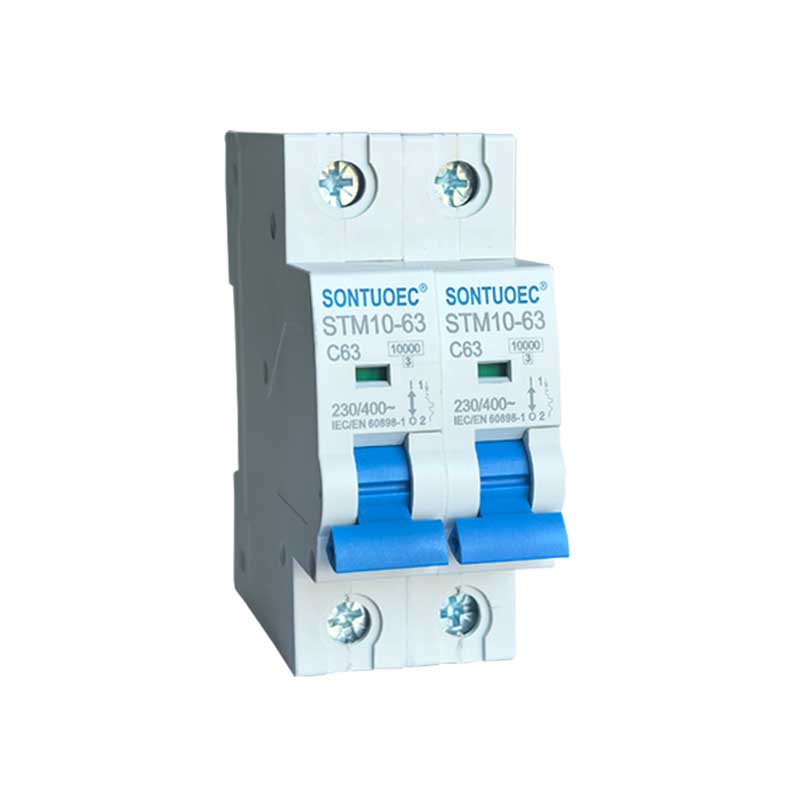

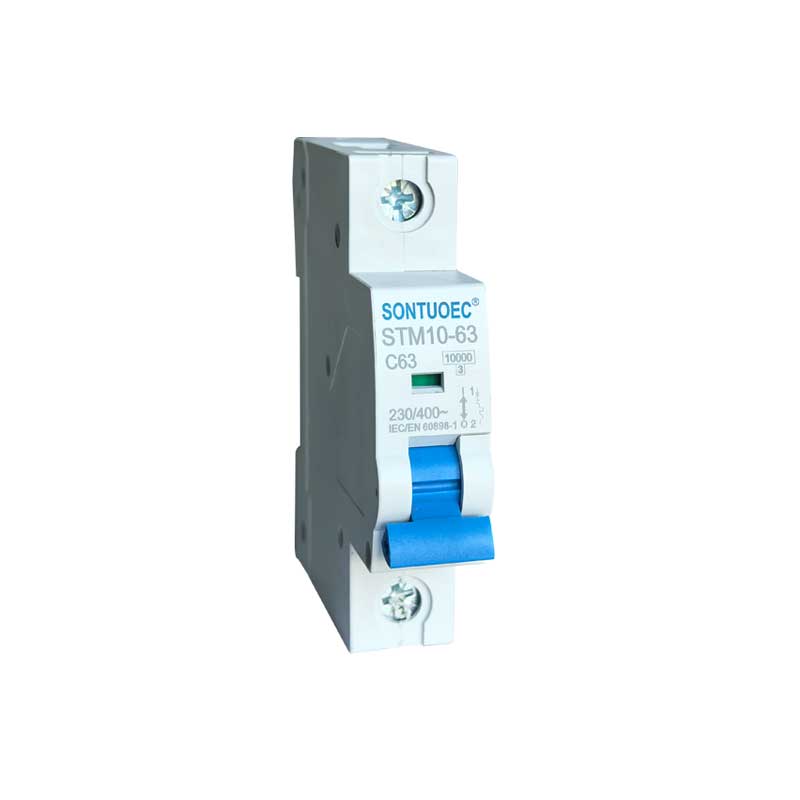

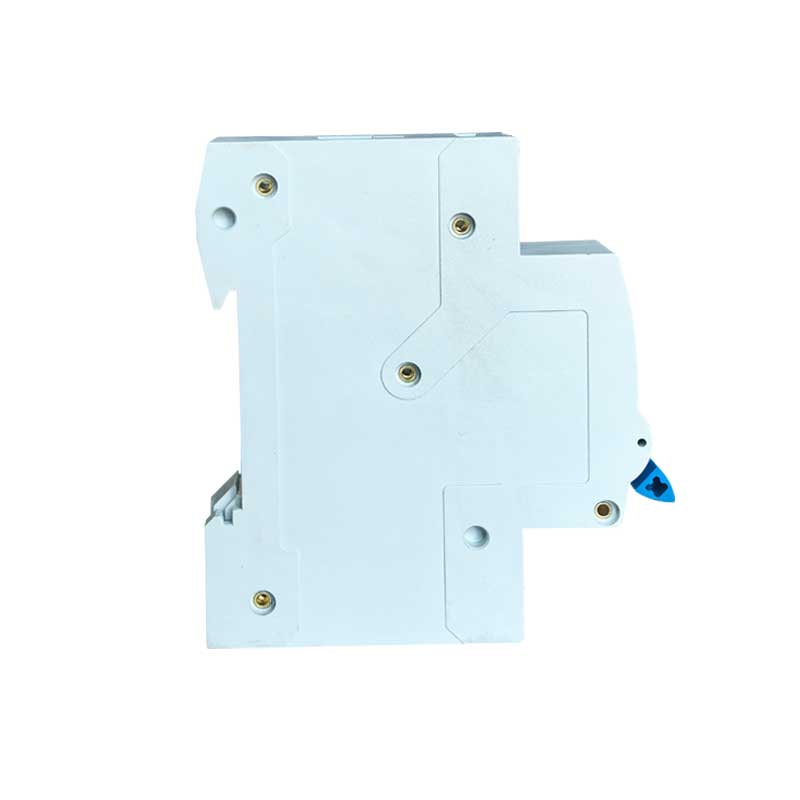

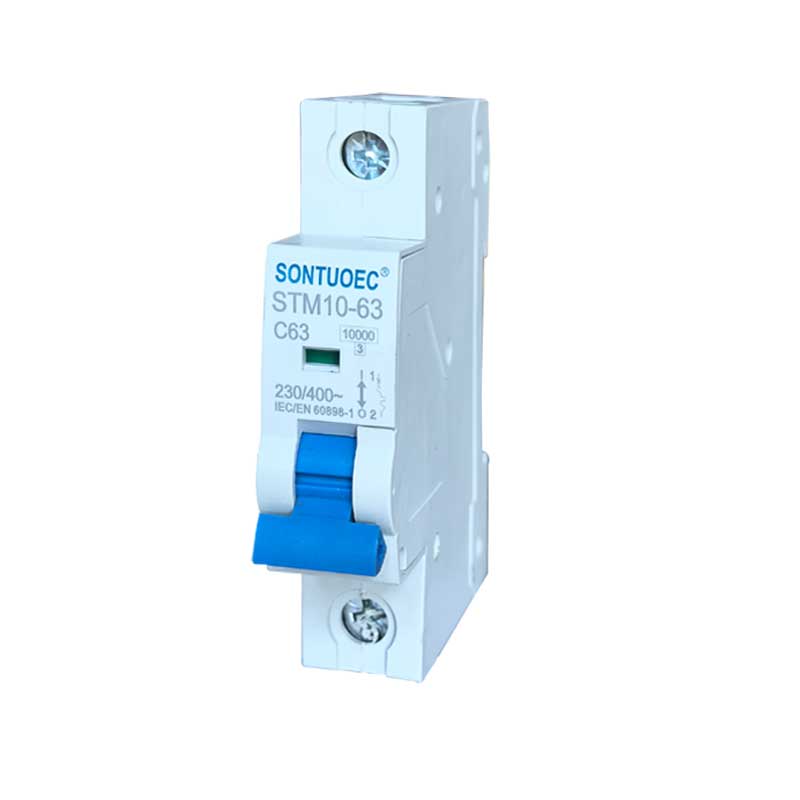

I-Sontuoec Factory Direct Sale MCB Stm10-63 Series 6ka Miniature Circuit Breaker

I-SONTUOEC ingomunye wabahlinzeki/abakhiqizi baseShayina abasebenza ngokukhethekile ekukhiqizeni izinto zikagesi ezincane ezihlukahlukene ze-STM10-63 Series high breaking miniature breaker inezici zesakhiwo esithuthukisiwe, ukusebenza okuthembekile, ukuphuka kwamandla aphezulu, ukubukeka kunhle futhi igobolondo layo kanye nezingxenye zenziwe ngezinto ezinokumelana nomthelela, isici esiqinile esinganqamuki ilangabi. Ifaneleka kuhlelo lwamandla lwama-50 noma ama-60 imvamisa, i-Ue 400V nangaphansi, i-Ui 63A nangaphansi. Isetshenziswa kakhulu ekwakhiweni kwamahhovisi, endaweni yokuhlala, ukukhanyisa, ukusatshalaliswa kwamandla kanye nokugcwala ngokweqile kanye nokuvikela isifunda esifushane semishini. Ngokuvamile, ingasetshenziswa futhi njengokungadluliswa okuvamile kwesistimu yamandla. Ihambisana namazinga IEC60898.1 kanye GB10963.1

Imodeli:STM10-63

Thumela Uphenyo

Incazelo Yomkhiqizo

Imininingwane:

	Okujwayelekile		I-IEC/EN 60898-1
Ezogesi	Ilinganiselwe ku-In yamanje	A	1,2,4,6,10,16,20,25,32,40,50,63A
izici	Izigxobo	P	1,2,3,4
	I-voltage elinganiselwe i-Ue	V	I-AC 230, 400
	I-Insulation voltage Ui	V	500
	Ikalwe imvamisa	Hz	50/60
	Isilinganiso sokuphulwa	A	3000, 4500, 6000
	I-impulse elinganiselwe imelana ne-voltage (1.2/50) Uimp	V	4000
	I-Dielectric test voltage ku-ind.Freq.for 1 min	Kv	2
	Iziqu zokungcola		2
	Isici sokukhululwa kwe-Thermomagnetic		B,C,D
Omakhenikha	Impilo kagesi	t	4000
izici	Impilo yemishini	t	10000
	Idigri yokuvikela		IP20
	Izinga lokushisa eliyisithenjwa sokusetha	ºC	30
	isici esishisayo	ºC	30
	Izinga lokushisa le-ambient	ºC	-5~+40(Uhlelo lokusebenza olukhethekile sicela ubhekisele kulo
	(ngesilinganiso sansuku zonke esingu-≤35ºC)	ºC	ukulungiswa kwesinxephezelo sezinga lokushisa)
	Izinga lokushisa lesitoreji	ºC	-25~+70
Ukufakwa	Uhlobo lokuxhumeka kwetheminali		Ibha yebhasi yekhebula/yephini
	Usayizi wetheminali phezulu/phansi kwekhebula	mm2	25
	Usayizi wetheminali phezulu/phansi kwekhebula	AWG	3月18日
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	mm2	25
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	AWG	3月18日
	I-torque yokuqinisa	N*m	2
	I-torque yokuqinisa	In-lbs	18
	Ukukhweza		ku-DIN ujantshi EN 60715(35mm) ngedivayisi yokunamathisela esheshayo
	Ukuxhumana		Kusukela phezulu naphansi

Imisebenzi esemqoka ye-STM10-63 Miniature Circuit Breaker

1.Ukuvikela ukulayisha ngokweqile: Uma i-current in circuit idlula inani elilinganiselwe le-MCB, i-STM10-63 Miniature Circuit Breakerwill izosika ngokuzenzakalelayo isekethe phakathi nesikhathi esimisiwe ukuze ivimbele isekethe nezinto zokusebenza ekushiseni ngokweqile.

2.Isivikelo somjikelezo omfushane: Uma kwenzeka i-short-circuit kusekethe, i-STM10-63 Miniature Circuit Breakerwill inqamule isekethe ngokushesha ukuze ivimbele i-short-circuit current ukuthi ingalimazi isekethe nezinto zokusebenza.

3.Ukuvikela ukuvuza (amanye ama-MCB analo msebenzi): kuma-MCB anokuvikela ukuvuza, uma kukhona ukuvuza kusekethe, i-STM10-63 Miniature Circuit Breakerwill izonqamula ngokushesha isekethe ukuze ivikele ukuphepha komuntu siqu.

Umgomo wokusebenza kwama-MCBs

Ama-MCB ngokuvamile aqukethe umtshina wohambo ozibuthe oshisayo noma we-elekthronikhi, osetshenziselwa ukuthola izinguquko kumjikelezo kumjikelezo. Uma i-current ingajwayelekile, umhlaseli ucupha indlela yokukhubeka ye-MCB, okubangele i-STB1-63 Miniature Circuit Breakerto inqamule isekethe.

1.Isihlaseli sikazibuthe esishisayo: Sisebenzisa ukushisa okukhiqizwa lapho i-current idlula ku-conductor ukuze icuphe ukukhubeka. Uma i-current inkulu kakhulu, ikhondukta iyashisa, ibangele i-bimetal engaphakathi kwesigadli sikazibuthe esishisayo ukuthi igobe, ngaleyo ndlela kucuphe indlela yokukhubeka.

2.Isihlaseli se-elekthronikhi: Sisebenzisa izingxenye ze-elekthronikhi ukuthola izinguquko zamanje kanye nokulawula isenzo somshini wokukhubeka. Uma kutholwa igagasi elingavamile, isigayigayi se-elekthronikhi sithumela isignali kumshini wokukhubeka ukuze inqamule isekhethi.

Izimo Zokusebenza ze-MCB

Ama-MCB asetshenziswa kakhulu ezinhlelweni zikagesi ezindaweni zokuhlala, ezentengiselwano nezimboni ukuze kuvikelwe amasekhethi nezinto zokusebenza emonakalweni obangelwa amaza angavamile. Zivame ukufakwa emabhokisini okusabalalisa, ama-switchboards noma amakhabethe okulawula futhi asetshenziswa njenge-switch enkulu noma ukushintsha kwegatsha kwesekethe.

Ukukhethwa nokufakwa kwama-MCB

1.Ukukhethwa: Uma ukhetha ama-MCB, udinga ukucabangela izici ezifana nesilinganiso samanje sesekhethi, ileveli kagesi, izici zokuvikela, nokuthi ukuvikela ukuvuza kuyadingeka yini. Kubalulekile futhi ukuqinisekisa ukuthi i-STB1-63 Miniature Circuit Breaker ekhethiwe ithobela izindinganiso nemithetho zokuphepha kagesi yendawo.

2.Ukufakwa: I-STB1-63 Miniature Circuit Breaker kufanele ifakwe endaweni eyomile, engenawo umoya oshisayo futhi iqinisekise ukuthi ifakwe izintambo ngendlela efanele futhi ivikelekile. Ngesikhathi sokufakwa, imithethonqubo yokuphepha kagesi efanele kanye nezinqubo zokusebenza kufanele zigcinwe.
