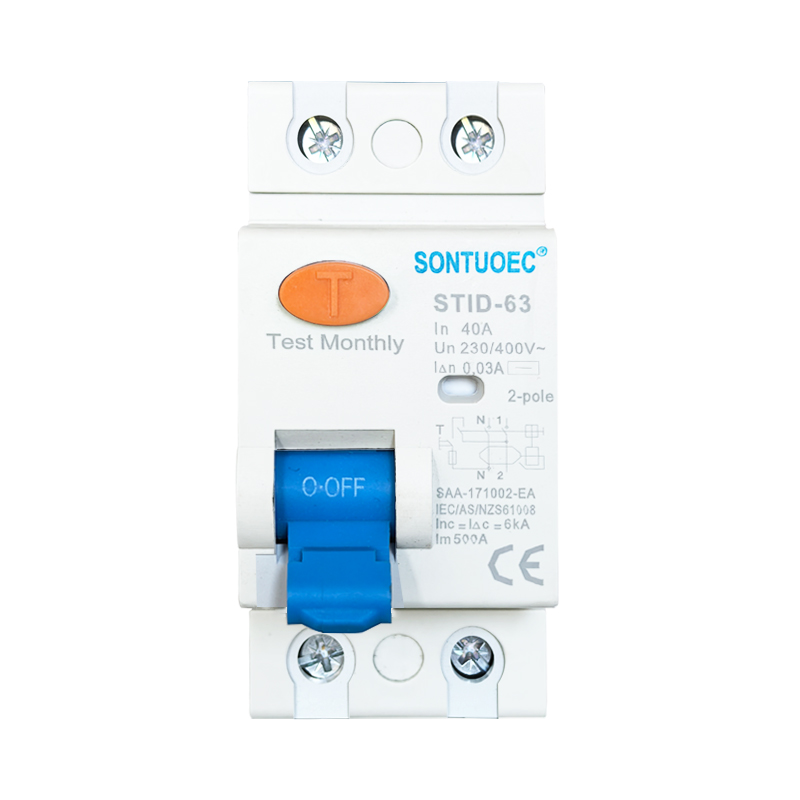

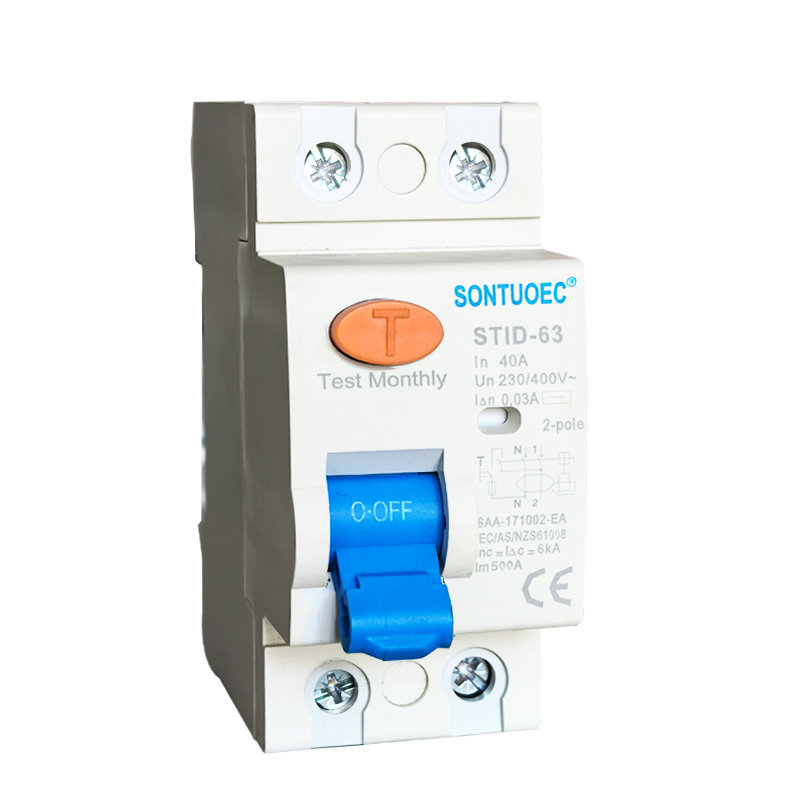

I-STID-63 Series RCCB 230V 63a Indawo esele yesekethe yamanje

ISontuoec ingesinye sabahlinzeki be-Chinese / abakhiqizi abakhethelwe ukukhiqizwa kwemishini emincane kagesi ye-STID-63 Uchungechunge lwe-RCCB 230v 63a desiual crealer crealer is breaker yamanje ye-Iec61008.

Imodeli:STID-63

Thumela Uphenyo

Incazelo Yomkhiqizo

I-STID-63 Series RCCB 230v 63a I-Resiual Precial Breaker yamanje ingasika umjikelezo wephutha ngokushesha emcimbini wokushayeka noma umlilo odonswa yi-TrunkLiness

Ukucaciswa:

Isifanekiso	Uhlobo lwe-elekthronikhi / Uhlobo kazibuthe
Izici eziseleyo zamanje	Futhi, futhi

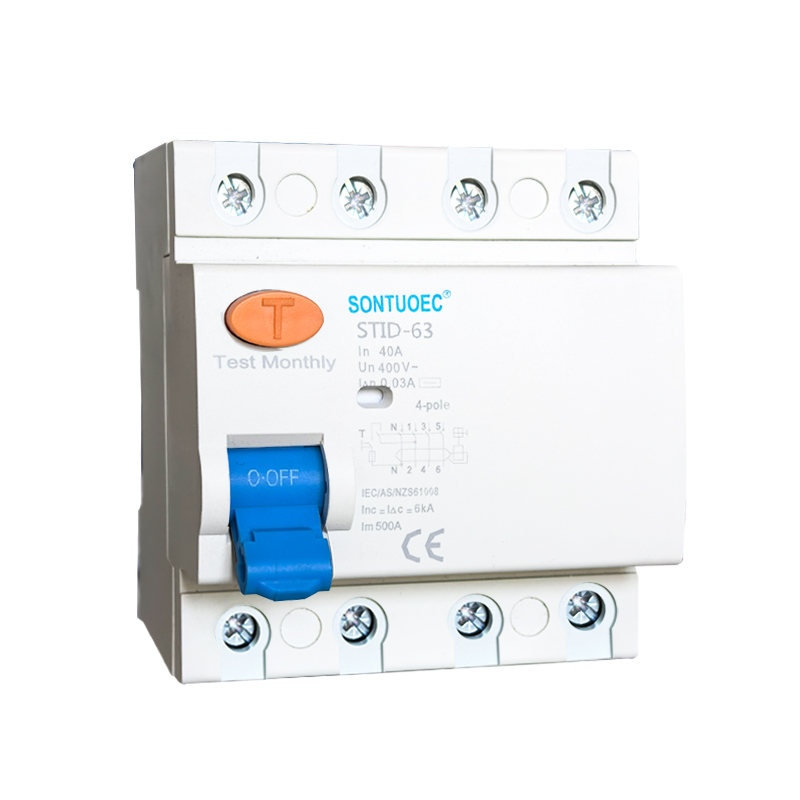

Isigxobo cha	2P / 4P
Kukalwe manje (a)	16a, 20a, 25a, 32a, 40a, 63a
I-voltage kagesi (v)	240 / 415v
Kulinganiselwe okusele okusebenzayo kwamanje	I-30 Ma, 100mA, 300mA, 500MA
Kukalwe umjikelezo wesekethe wamanje we-refmational	6Ka
Ukukhuthazela Kwe-Electro-Machical	Imijikelezo engaphezu kuka-4000

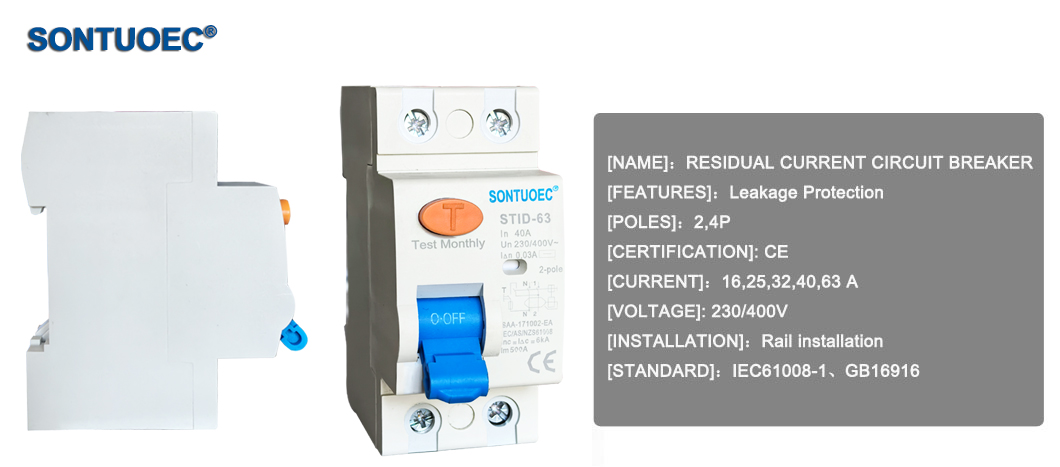

Umkhiqizo Over View:

1. Ukuvikelwa kwe-1.Provide ngokumelene ne-Earth Earth / Ukuvuza Kwamanje kanye Nokwehlukaniswa

I-2.High Short-Circh-Circuit yamanje yokuthanda amandla

I-3.Phampluble ku-terminal ne-PIN / Fork Thayipha Uhlobo lweBusbar Connection

4. Ifakwe ngama-terminals okuxhumeka komunwe

I-5.automicame ngokuqondile isembozo lapho amaphutha omhlaba / ukuvuza kwamanje kwenzeka futhi kudlula ukuzwela okukalwe

6.Nculisekelweni athembekile wokuhlinzekwa kwamandla kanye nomugqa we-voltage, futhi mahhala ekuphazanyisweni kwangaphandle, ukushintshashintsha kwe-voltage.

Umthandi

Q 1. Yini igama lokukhokha?

A. Samukela i-TT, 30% Idiphozithi kanye ne-70% Balance Agaisnt Copy of BL

Q 2 2. Sinjani isikhathi sokulethwa?

A. Imvamisa kuzothatha izinsuku ezingama-25 zokukhiqiza

Q 3 3. Ngitshele indinganiso yephakeji?

A. Imvamisa amabhokisi, kepha futhi futhi singapakipha ngokuya ngesidingo sakho.

Q 4.WUNGANI WENZE UKUSEBENZISA I-LOG yethu?

A.Uma unenani elihle, akunankinga ukuze wenze i-OEM.

Q5. Ngingakwazi ukuthatha amasampula athile?

A: Yebo, sisekela ukuthatha amasampula ngaphambi kokubeka i-oda. Vele uzizwe ukhululekile ukuxhumana nathi uma unazo izidingo.

Qenga. Ingabe uyifektri yasekuqaleni?

A: Yebo, sinefektri yethu.

Qeda. Ungaqiniseka kanjani ukuthi ikhwalithi yemikhiqizo?

A: Sizovuma amazinga asezingeni lomhlaba wonke ukuyohlola yonke into ngaphambi kokushiya ifektri yethu

Q8. Kungakanani iminyaka?

A: Amaqembu ethu anawo ulwazi lwangaphezu kuka 20years.

Q9: Isikhathi Sawaranti?

A: 18months.

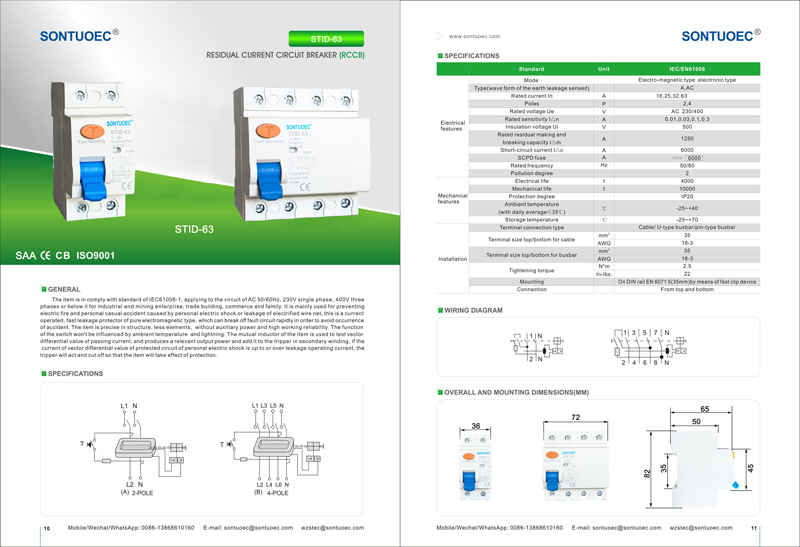

I-Sandard			IEC / EN61008
-Gesi	Thayipha (wave uhlobo lokuvuza komhlaba oluzwakalayo)		I-Electro-Magnetic Uhlobo, uhlobo lwe-elekthronikhi
izici	-Lingene zama ngaphakathi	A	Futhi, futhi
	Isigodlo	P	2,4
	-Lingene votagis US	V	R 240/415
	-Lingene ukuzwela i △ n	A	0.01,0.03,0.1,0.1,0.5
	Ukwahlukanisa I-Voltage UI	V	500
	-Lingene ukwenza okusalayo kanye	A	630
	ukugqashula Amandla I △ m	A	630
	Umjikelezo omfushane Okwamanje i △ c	A	6000
	I-SCPD intambo ephethe umsizi	A	6000


	-Lingene ubuningi bokwenzeka	Hz	50/60
	Ukungcolisa ibanga		2
-Omshini	-Gesi impilo	t	4000
izici	-Omshini impilo	t	10000
	Ukuvikela ibanga		I-IP20
	-Lamula izinga lokushisa nokubanda	ºC	-25 ~ + 40
	(nge Isilinganiso sansuku zonke ≤35ºC)	ºC	-25 ~ + 40
	Ukubeka izinga lokushisa nokubanda	ºC	-25 ~ + 70
Ukufaka	Isikhumulo Uhlobo lokuxhumeka		Ikhebula / Uhlobo I-Busbar / Pin-Type Busbar

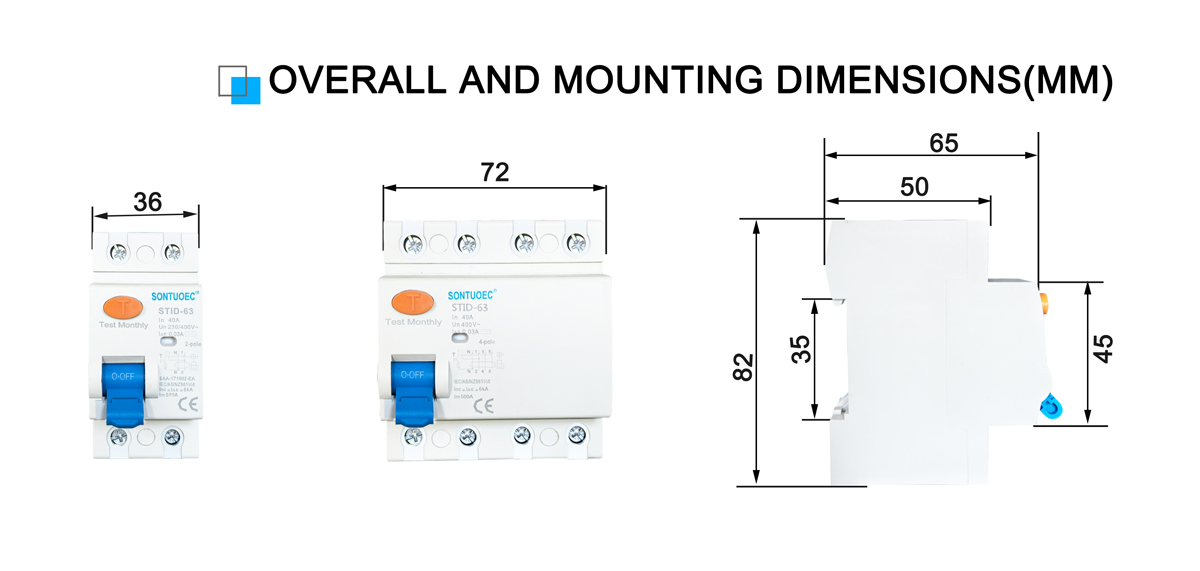

	Usayizi we-terminal top / phansi ikhebula	mm2	25
	Usayizi we-terminal top / phansi ikhebula	Kathathu	3.18
	Usayizi we-terminal top / phansi ngebhasi	mm2	25
	Usayizi we-terminal top / phansi ngebhasi	Kathathu	3.18
	Ukuqinisa i-torque	N * m	2.5
	Ukuqinisa i-torque	Ku-lbs	22
	Engele		Phezu kwa- I-Din Rail en 60715 (35mm) ngedivaysi esheshayo ye-clip
	Isihlobo		Ukusuka phezulu nangaphansi

I-Sandard			IEC / EN61008
-Gesi	Thayipha (wave uhlobo lokuvuza komhlaba oluzwakalayo)		I-Electro-Magnetic Uhlobo, uhlobo lwe-elekthronikhi
izici	-Lingene zama ngaphakathi	A	Futhi, futhi
	Isigodlo	P	2,4
	-Lingene votagis US	V	R 240/415
	-Lingene ukuzwela i △ n	A	0.01,0.03,0.1,0.1,0.5
	Ukwahlukanisa I-Voltage UI	V	500
	-Lingene ukwenza okusalayo kanye	A	630
	ukugqashula Amandla I △ m	A	630
	Umjikelezo omfushane Okwamanje i △ c	A	6000
	I-SCPD intambo ephethe umsizi	A	6000


	-Lingene ubuningi bokwenzeka	Hz	50/60
	Ukungcolisa ibanga		2
-Omshini	-Gesi impilo	t	4000
izici	-Omshini impilo	t	10000
	Ukuvikela ibanga		I-IP20
	-Lamula izinga lokushisa nokubanda	ºC	-25 ~ + 40
	(nge Isilinganiso sansuku zonke ≤35ºC)	ºC	-25 ~ + 40
	Ukubeka izinga lokushisa nokubanda	ºC	-25 ~ + 70
Ukufaka	Isikhumulo Uhlobo lokuxhumeka		Ikhebula / Uhlobo I-Busbar / Pin-Type Busbar
	Usayizi we-terminal top / phansi ikhebula	mm2	25
	Usayizi we-terminal top / phansi ikhebula	Kathathu	3.18
	Usayizi we-terminal top / phansi ngebhasi	mm2	25
	Usayizi we-terminal top / phansi ngebhasi	Kathathu	3.18
	Ukuqinisa i-torque	N * m	2.5
	Ukuqinisa i-torque	Ku-lbs	22
	Engele		Phezu kwa- I-Din Rail en 60715 (35mm) ngedivaysi esheshayo ye-clip
	Isihlobo		Ukusuka phezulu nangaphansi
