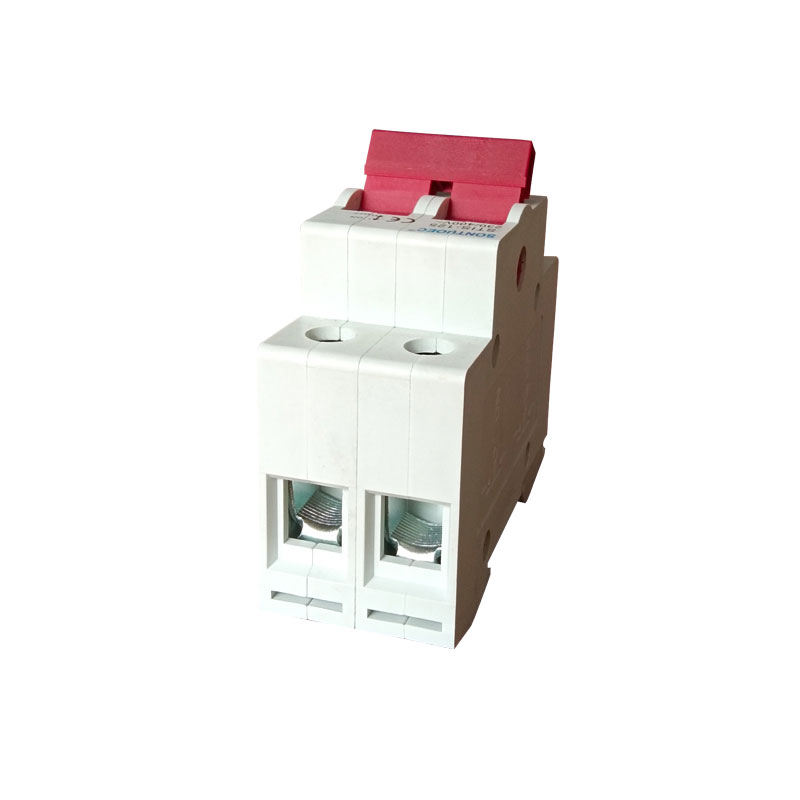

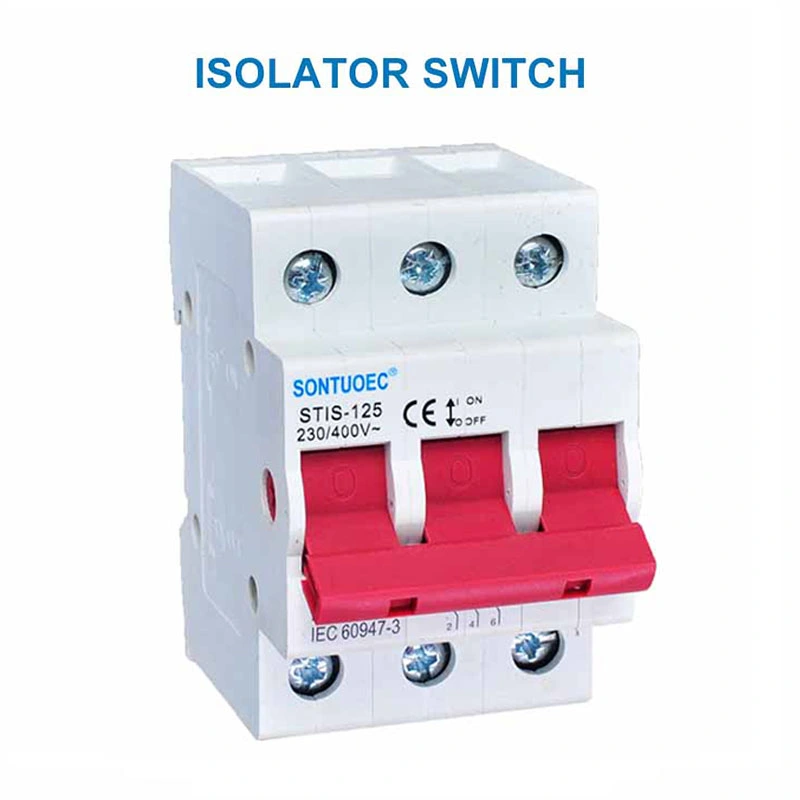

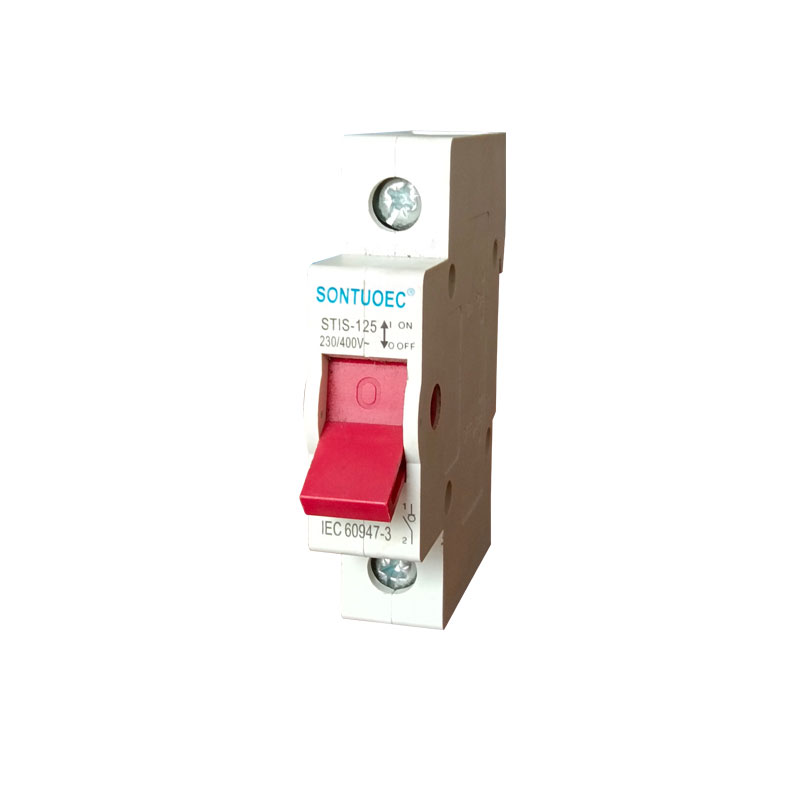

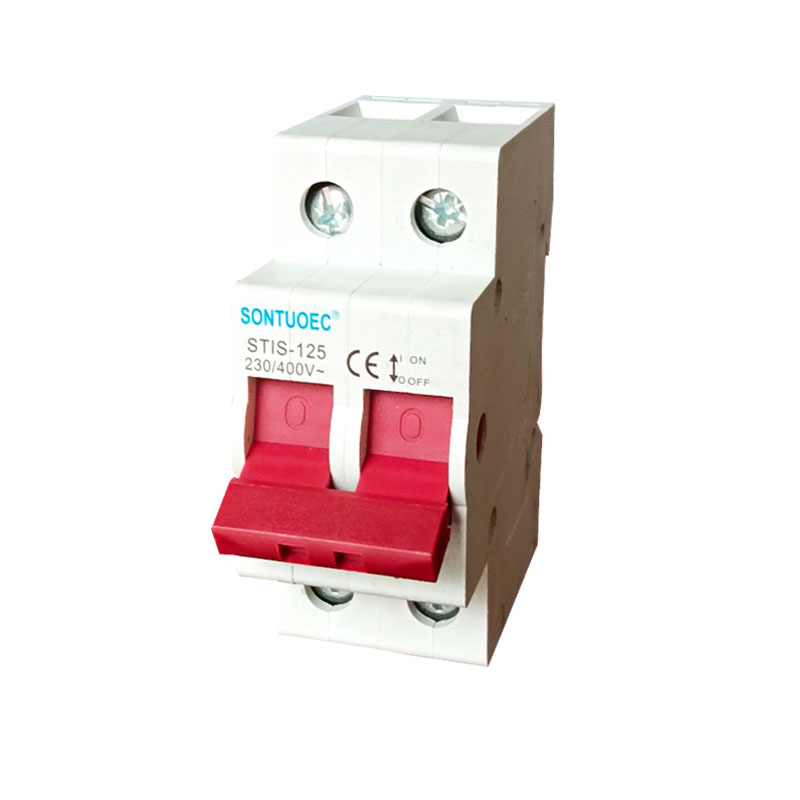

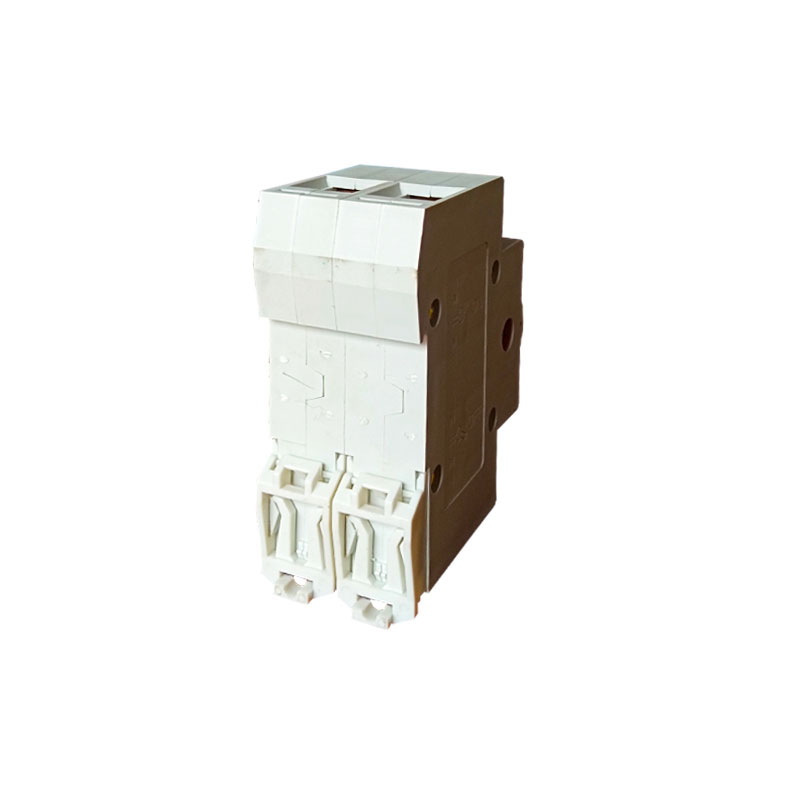

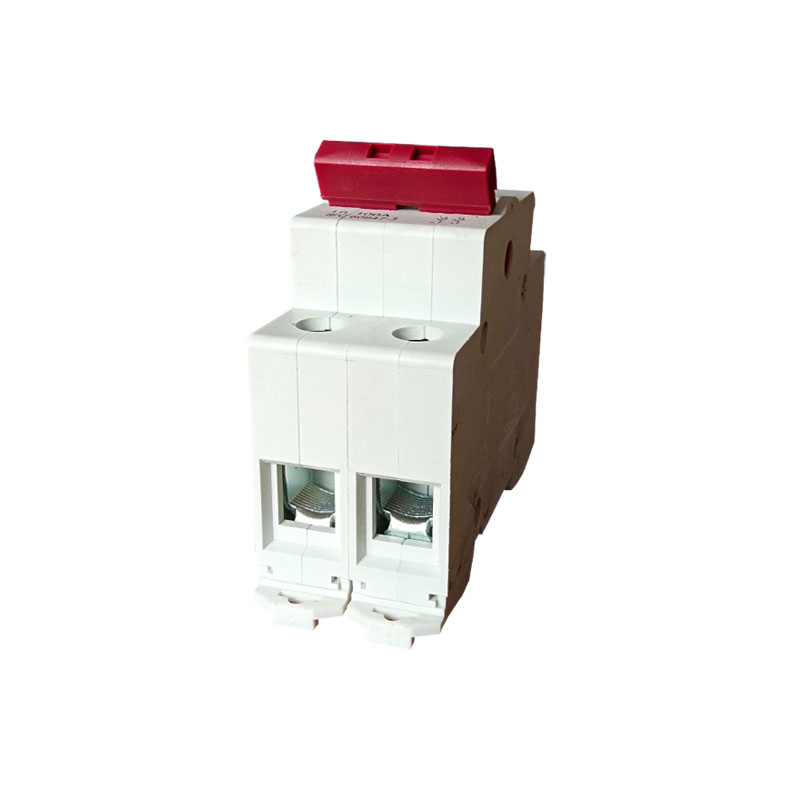

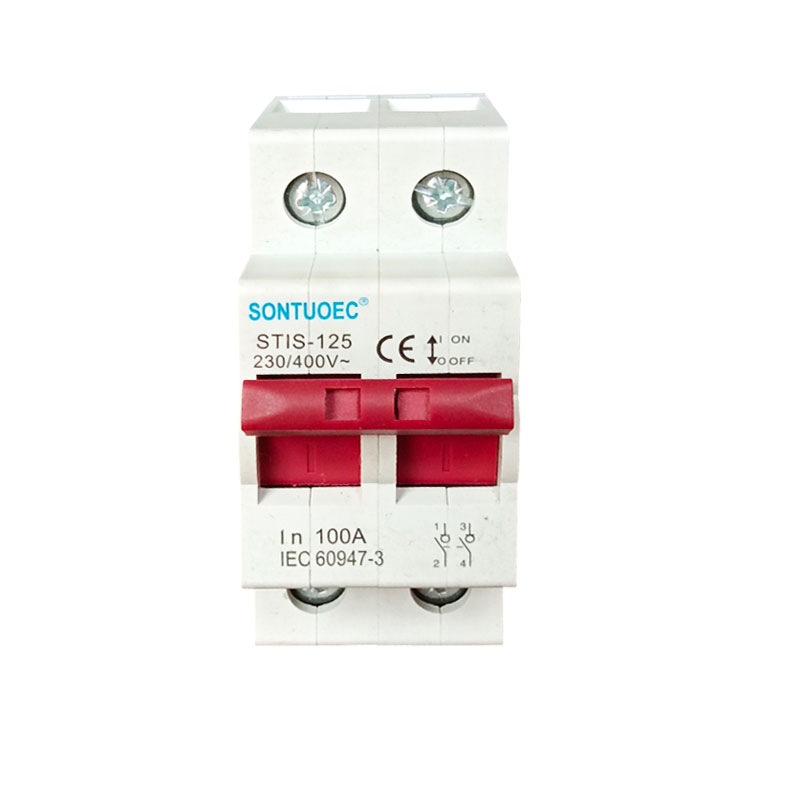

STI-125 Shintsha i-Isolator

I-STI-125 Switch switch ye-Isolator eklanywe ngokukhethekile esetshenziselwa ukuhlukanisa, ukuhlanganisa noma ukuxhuma amasekethe ezinhlelweni zikagesi. Akuvamisile ukuba nekhono lokuphula imisinga yokulayisha, kepha lingahlukanise ngokuphepha futhi livale amasekethe lapho kungekho umthwalo noma khona omncane kakhulu wamanje. Umsebenzi oyinhloko wokushintsha ukunqamula ukuhlinzeka ngephuzu elibonakalayo lokunqamula ukuqinisekisa ukuthi imishini kagesi ingatholakala ngokuphephile ngabasebenzi lapho isetshenziswa noma ihlolwe.

Imodeli:STIS-125

Thumela Uphenyo

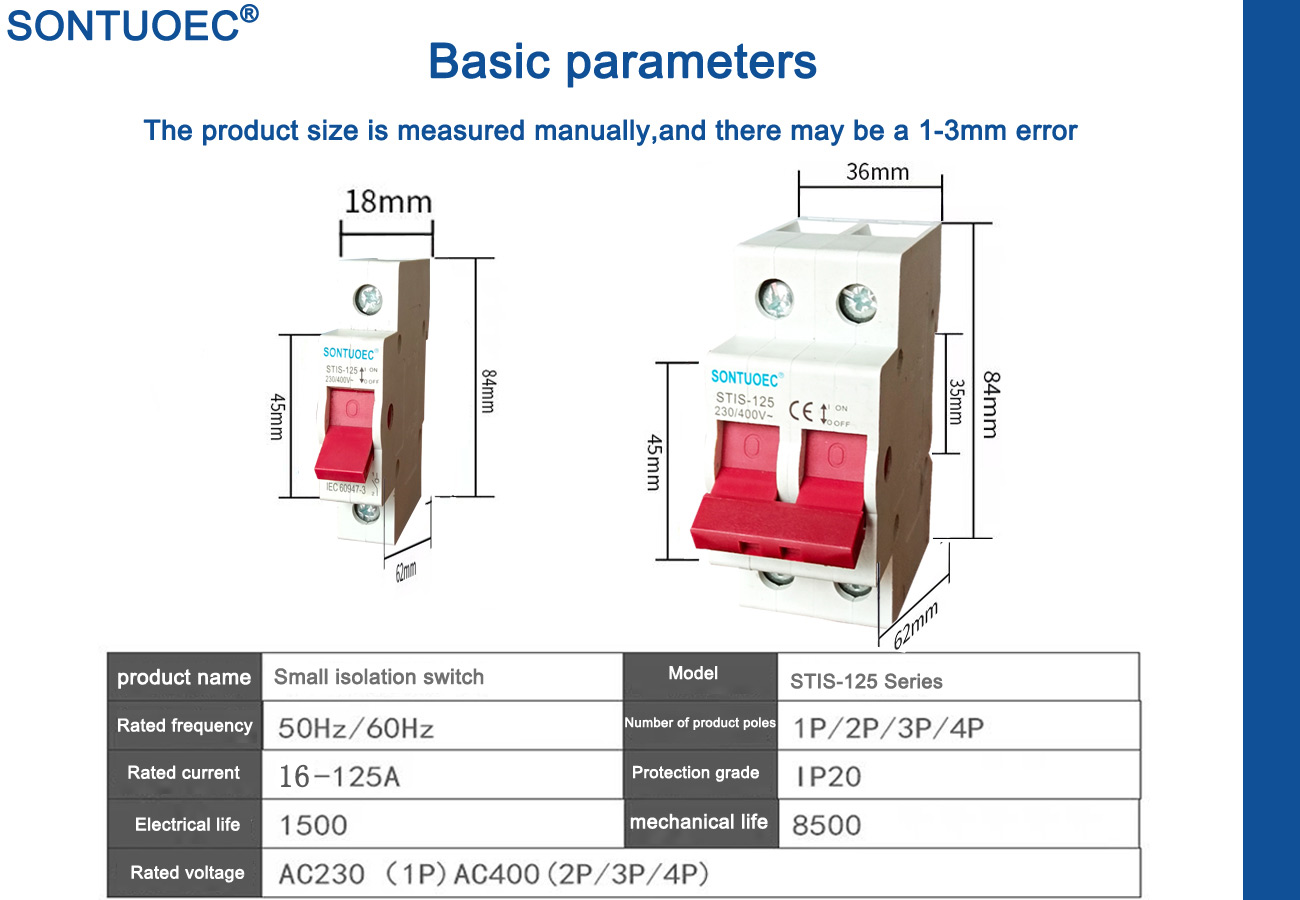

Incazelo Yomkhiqizo

Igama lomkhiqizo	STI-125 Shintsha i-Isolator
Insika	1P 2p 3p 4P
-Lingene -Dlulayo	16a, 20a, 25a, 40a, 63a, 80a, 100a, 125a
-Lingene Amandla kagesi	I-1P: AC230V I-2P, 3P.4P: AC400V
I-Insulation Votage Ui	I-690V
-Lingene I-Impulse Imelana ne-voltage (1.2 / 50) uimp	I-6kv
Kukalwe amafushane Isifunda sihambisana namanje i-ICW	12le / 1s
Kukalwe amafushane ukujikeleza kwendlela yokulinganisa iCM	20le / 0.1s
Ukwenza Kwenziwe kanye nokuphula umthamo	I-3IE, 1.05UE, COSφ = 0.8
Sebenzisa isigaba	AC-21B, AC-22A
-Gesi Impilo	1500
-Omshini Impilo	8500
Ukungcolisa Ibanga	3
Ukubeka Izinga lokushisa nokubanda	-35ºC ~ + 70ºC
Ukufaka ukuphakama phezu kolwandle	<2000m
Okusekugcineni umthamo we-wiring (NM²)	16 (20a ~ 63a) 50 (80a ~ 125a)
Okusekugcineni Khawulela i-torque	2.0 (20a ~ 63a) 3.5 (80a ~ 125a)

Ukwakheka nezici

1.Ukuhlela:

I-STI-125 Switch switch ye-Isolator iyatholakala ezinhlotsheni ezahlukahlukene, kepha imvamisa ifaka oxhumana naye ohleliwe kanye noxhumana naye oshukumisekayo. Ngendlela yokusebenza (isb. Ukubamba, motor, njll.), Oxhumana naye angahanjiswa ukuze avule noma avale umjikelezo.

2.Izici:

Izakhiwo eziphakeme zokufaka ezifakwayo: Izingxenye ezifana noxhumana nabo, ama-insulators kanye nezindlu zokushintshanisa ama-disconnect zivame ukwenziwa ngezinto zokuvimbela ezibandakanya kakhulu ukuqinisekisa ukuthi ukumelana nokufakelwa kuphezulu ngokwanele umbuso onqamukile.

Iphuzu lokunqamula okusobala: Lapho i-STIS-125 Sering Switch Switch Switch ye-STIS-125 isesimweni esinqunyiwe, igebe eliphakathi koxhumana nabo likhulu ngokwanele ukunikeza indawo esobala yokuthola ukunqamula, okwenza kube lula kubasebenzi ukubona isimo sesifunda.

Ukusebenza kalula: Izixhobo ezixhunyiwe ku-Series zivame ukuklanywa ngenqubo elula yokusebenzisa okuvumela abasebenzi ukuthi bavule noma bavale umjikelezo kalula.

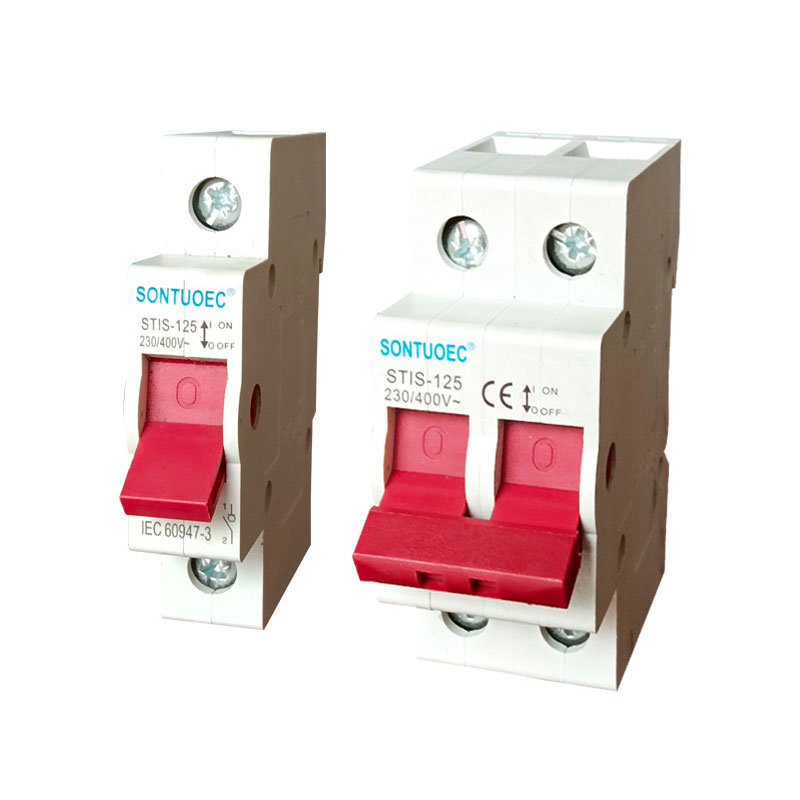

STIS-125 Isolator Switch

Izimo Zokusebenza

I-Series QorkNontrors isetshenziswa kabanzi ezinhlelweni zikagesi ezahlukahlukene, kufaka phakathi: Isistimu yamandla, amaseluleko asetshenzisiwe, ama-STICELS Systems asetshenziselwa ukuhlukanisa nokuvikela ama-Systems ahlukahlukene kagesi. Izakhiwo zezentengiselwano kanye nezinye izinhlelo zokwakha, uchungechunge lokushintshwa kokunqamula luvame ukufakwa ebhokisini lokusabalalisa, elisetshenziselwa ukulawula ukuvala isifunda.

Izindlela zokuqapha zokukhethwa nokusetshenziswa

I-1.Kelection:

Lapho ukhetha ukushintshwa kwe-Isolator ye-STI-125, udinga ukubheka i-voltage ekalwe futhi kulinganiswe njengamanje yesifunda, indawo esetshenziswayo (e.g.

I-2.Precaunts Yokusebenzisa:

Ngaphambi kokusebenzisa ukunqamula kokunqamula, qiniseka ukuthi umjikelezo uyanqanyulwa noma kunesimo esingekho umthwalo.

Ngesikhathi sokusebenza, bheka imithetho efanelekile yokuphepha kagesi nezinqubo ezisebenzayo.

Hlola njalo futhi ugcine ukucisha ukuxhumanisa ukuqinisekisa ukusebenza kwayo okujwayelekile nokuphepha.
