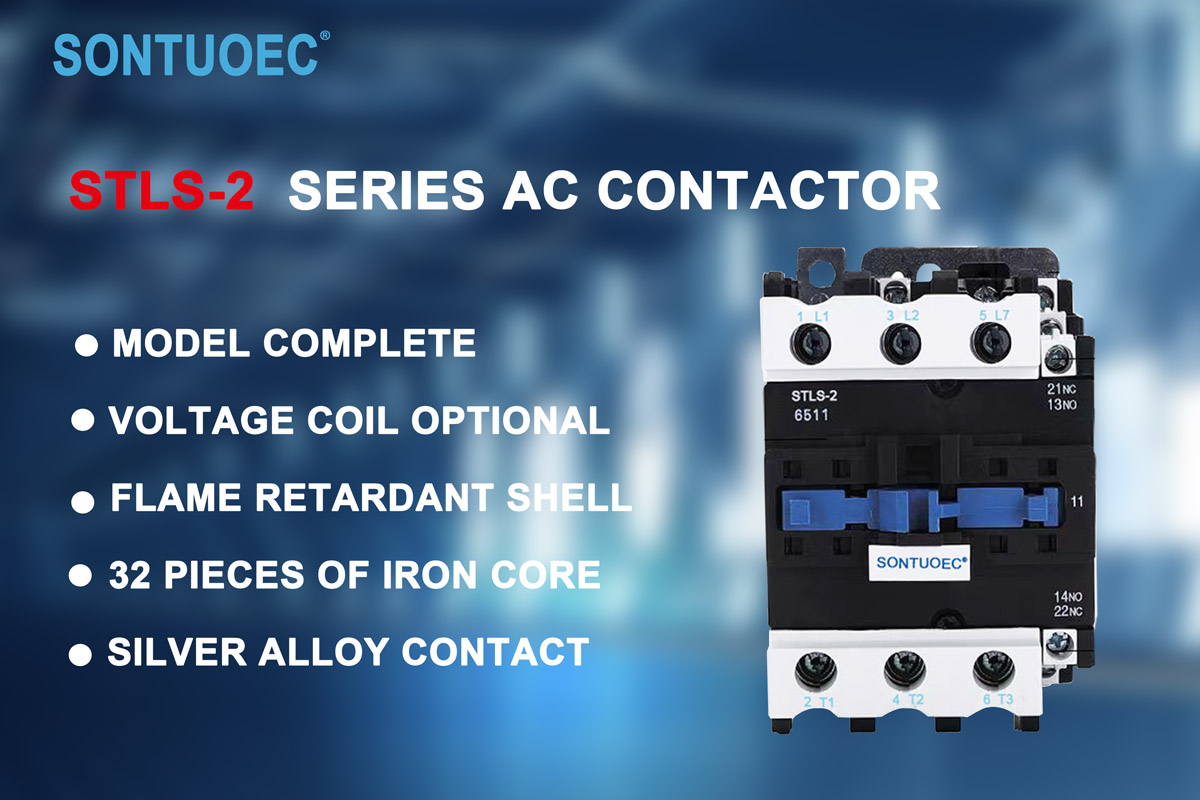

Stls-2(Cjx2) Series Mechanical Interlocking Contactor

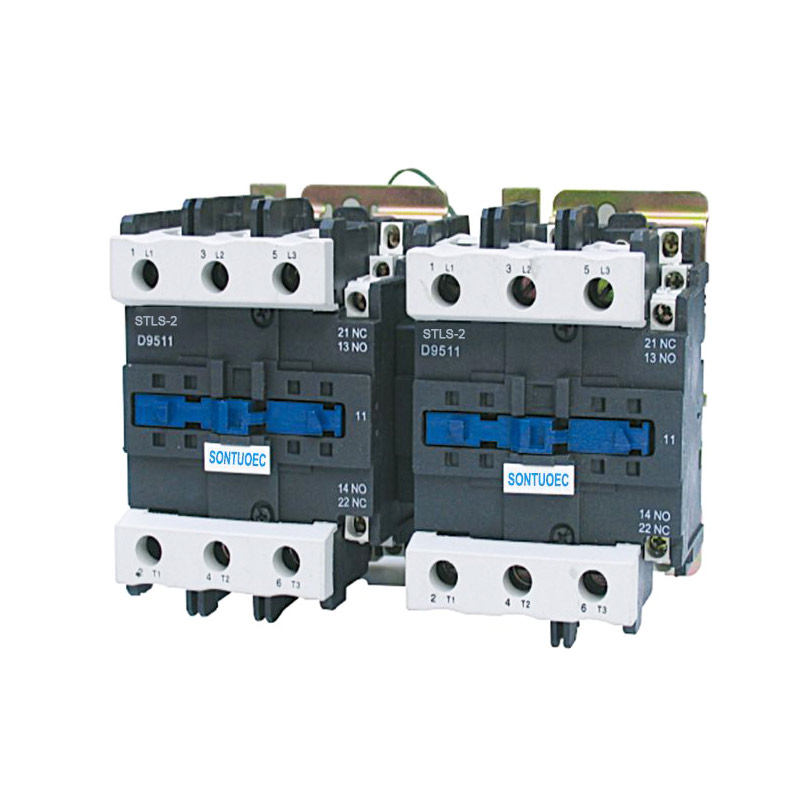

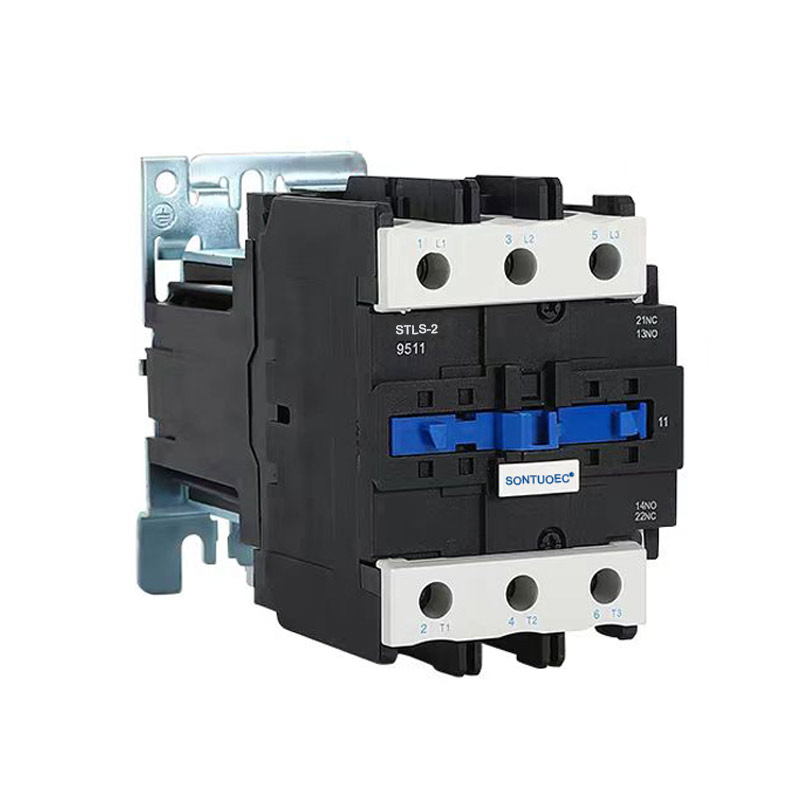

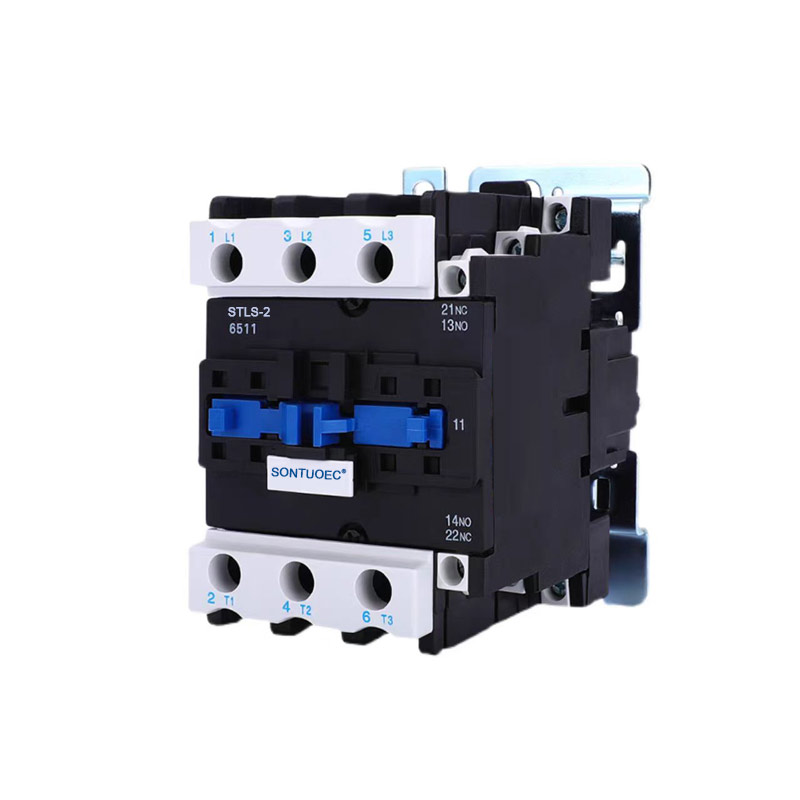

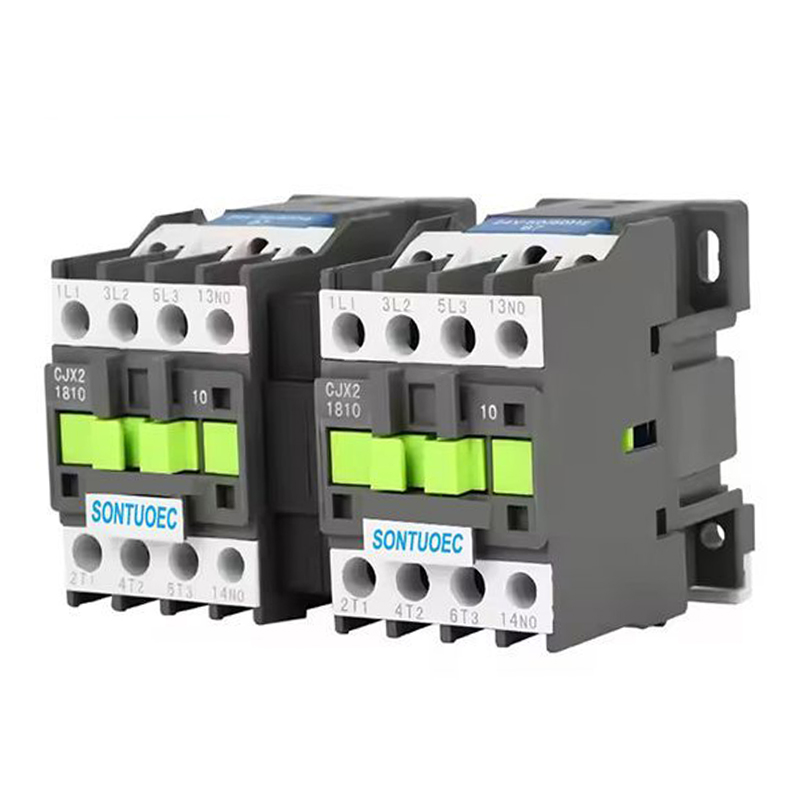

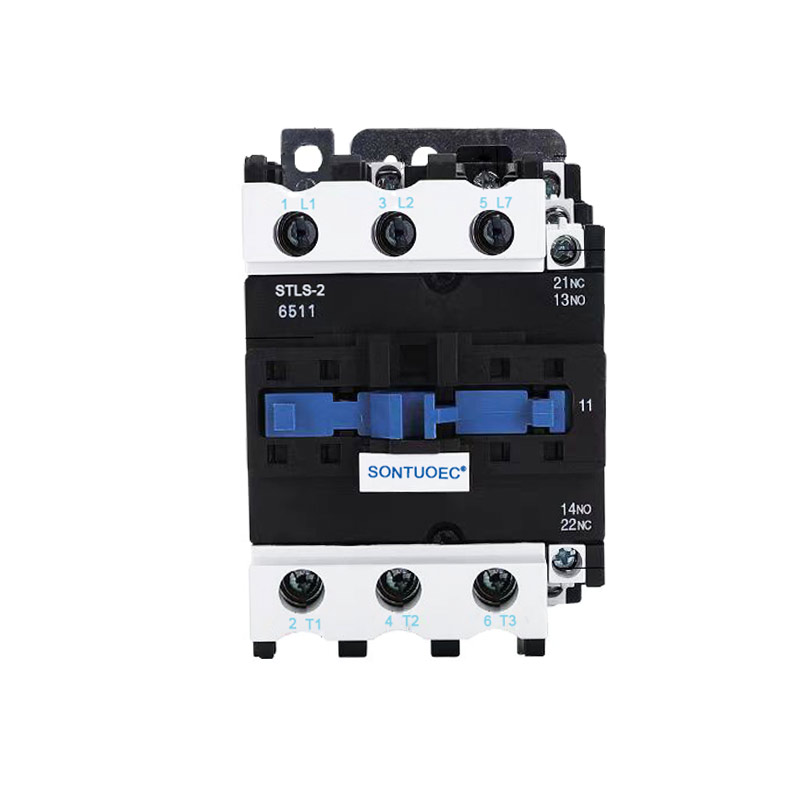

I-Stls-2(Cjx2) Series Mechanical Interlocking Contactor ilungele ukusetshenziswa kumasekhethi afika ku-voltage elinganiselwe engu-660V AC 50Hz, engu-620A yamanje, ukuze ilawuleke injini. Le divayisi yokukhiya ehlanganisayo iqinisekisa ukushintsha kokuxhumana kwezixhumi ezimbili eziguqulekayo. Ihambisana namazinga e-IEC60947-4-1.

Imodeli:STLS-2(CJX2)

Thumela Uphenyo

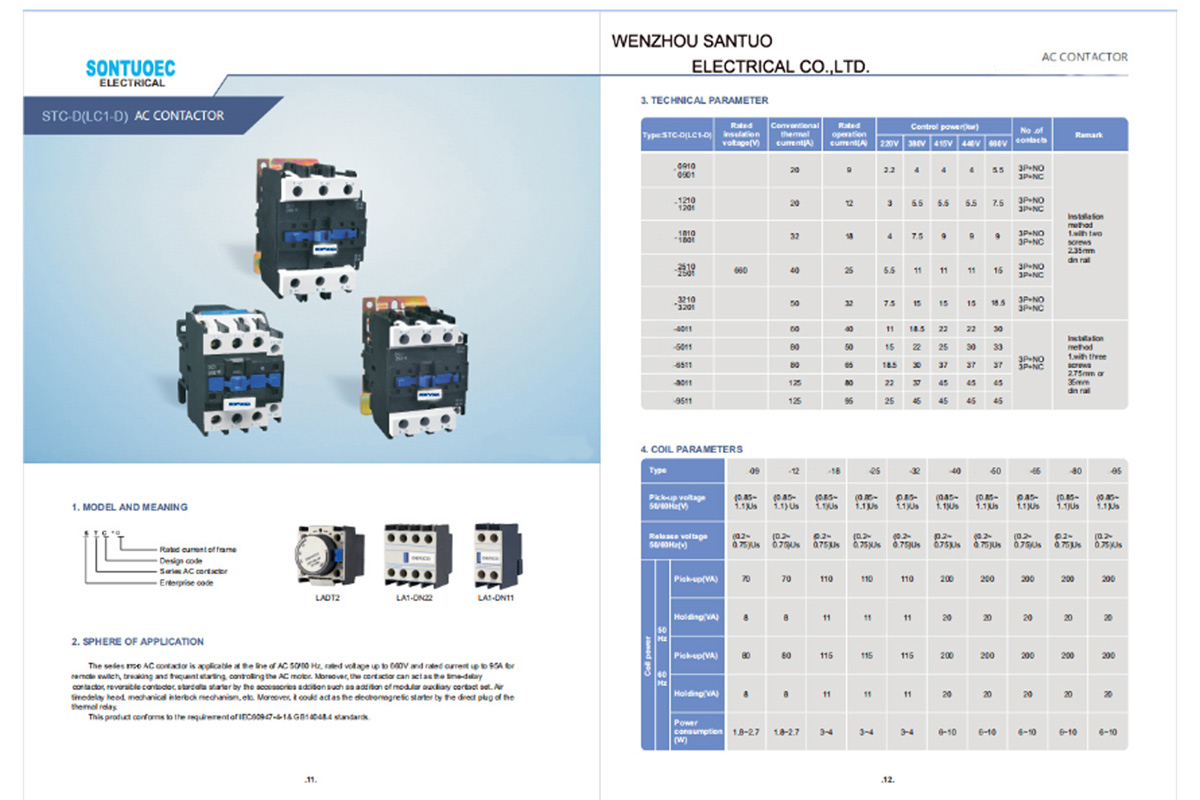

Incazelo Yomkhiqizo

Uhlobo		I-STLS-2	I-STLS-2	I-STLS-2	I-STLS-2	I-STLS-2	I-STLS-2	I-STLS-2	I-STLS-2	I-STLS-2	I-STLS-2
		9	12	18	25	32	40	50	63	80	95
									60
Isilinganiso se-insulatio voltage		660	660	660	660	660	660	660	660	660	660
ezishisayo ezivamile		20	24	32	40	50	60	75	80	110	125
okwamanje		20	24	32	40	50	60	75	80	110	125
Ilinganiselwe ukusebenza		9	12	16	25	32	40	50	63	80	95
okwamanje		9	12	16	25	32	40	50	63	80	95
kulawulwa	220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
amandla(kw)	380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	35	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	660V	5.5	7.5	10	15	18.5	30	33	37	45	45

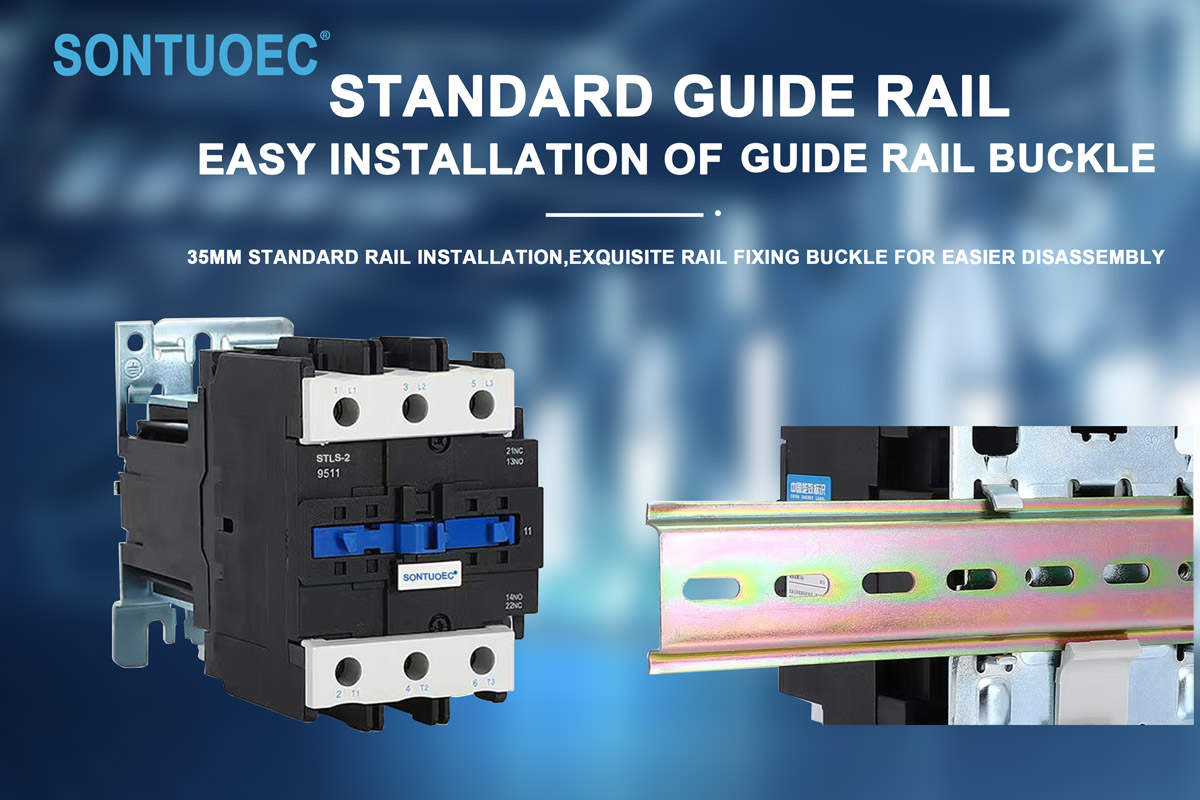

Qaphela		Ukufakwa kwe-					Ukufakwa kwe-
		ama-relay angasebenzisa izikulufu ezimbili					udlulisela can ezintathu
		futhi usebenzise i-35mm					ngezikulufo futhi usebenzise i
		umzila wesitimela					75mm noma 35mm ukufakwa
							ujantshi

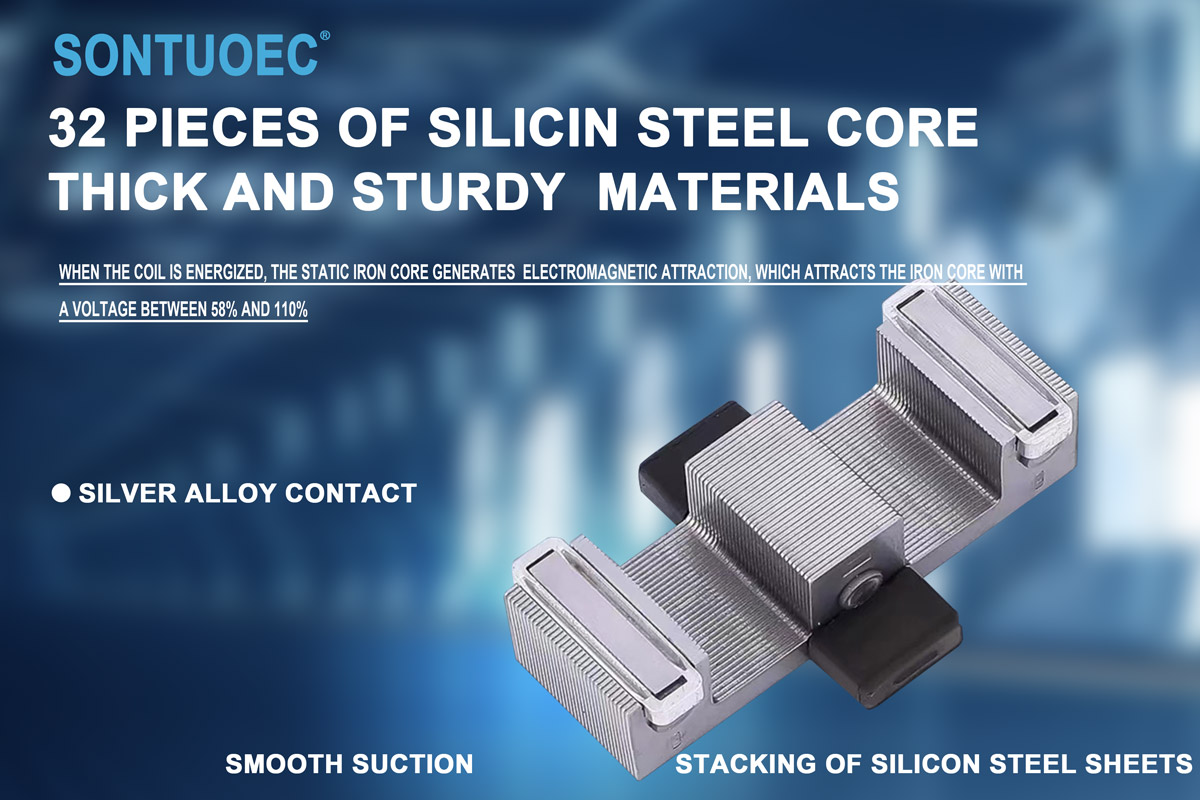

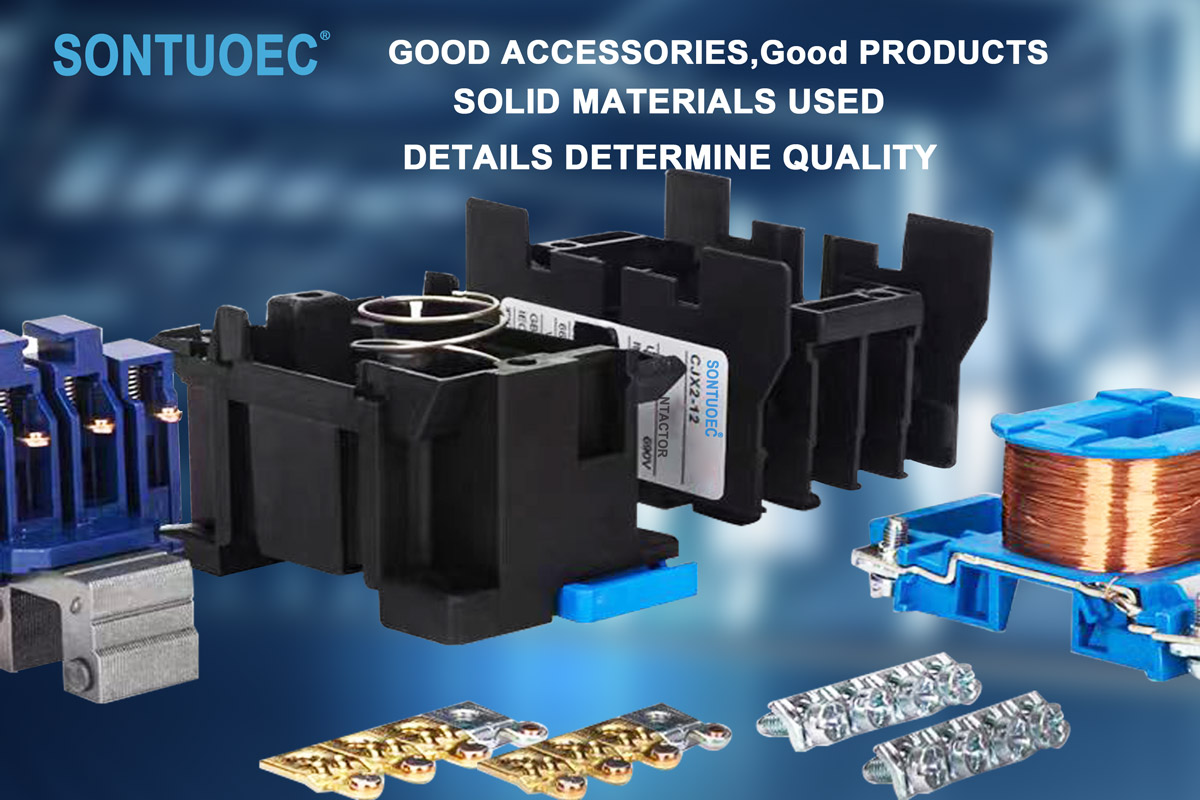

Isakhiwo nezici

Isakhiwo:

I-3P AC Contactor ngokuvamile iqukethe uhlelo lwe-electromagnetic (okuhlanganisa ikhoyili, umgogodla, njll.), isistimu yokuxhumana (okuhlanganisa ukuthintana okuyinhloko nokuxhumana okuwusizo), idivayisi yokucisha i-arc kanye negobolondo nezinye izingxenye. Phakathi kwabo, othintana naye oyinhloko usetshenziselwa ukuthwala izinga eliphezulu lamanje, futhi ukuxhumana okusizayo kusetshenziselwa ukuqaphela ukudluliswa kanye nempendulo yezimpawu zokulawula.

Izici:

Ngoxhumana nabo abathathu abazimele, ingakwazi ukulawula amandla ezigaba ezintathu kanye nomugqa owodwa onguziro ngesikhathi esisodwa.

Uhlelo lokuxhumana lwenziwa ngezinto ezisezingeni eliphezulu ezine-conductivity enhle nokumelana nokugqoka.

Uhlelo lwe-electromagnetic lunamandla anele okudonsa ukuze ahlanganyele ngokuthembekile futhi akhulule abathintwayo.

Idivayisi yokucisha i-arc ingacisha ngempumelelo i-arc ekhiqizwe lapho abathintwayo benqanyulwa, ivikele abathintwayo emonakalweni.

I-Stls-2(Cjx2) Series Mechanical Interlocking Contactor ifaneleka ekusebenziseni kumasekhethi amandla kagesi akalwe afika ku-660V AC 50Hz noma 60Hz, akalwe amanje afika ku-95A, ekwenzeni nokuphuka, ukuqala nokulawula injini ye-AC. Ihlanganiswe nesivimbeli sokuxhumana, ukubambezeleka kwesibali sikhathi & idivayisi yokuxhuma umshini njll, iba isixhumi sokulibaziseka, isixhumi esixhumene ngomshini, isiqalisi senkanyezi-delta. Nge-relay eshisayo, ihlanganiswa ibe yi-electromagnetic starter. I-Contactor ikhiqizwa ngokuvumelana ne-IEC 60947-1.

Isimiso sokuSebenza

Lapho ikhoyili ye-3P AC Contactor inikwa amandla, umgogodla wensimbi ukhiqiza uzibuthe futhi uhehe isistimu yokuxhumana ukuthi ivale, ngaleyo ndlela ixhume ukunikezwa kwamandla kwezigaba ezintathu kanye nentambo enguziro. Uma ikhoyili ikhishwa amandla, ingqikithi ilahlekelwa uzibuthe futhi isistimu yokuxhumana iyahlukana ngaphansi kwesenzo sesiphethu, ngaleyo ndlela inqamule ukunikezwa kwamandla kwezigaba ezintathu kumugqa onguziro. Ngale ndlela, i-3P AC Contactor ingakwazi ukubona isilawuli kude semithwalo kagesi.

Izimo zohlelo lokusebenza

I-3P AC Contactor isetshenziswa kabanzi ezinhlelweni zamandla ezahlukahlukene ezidinga ukulawula amandla ezigaba ezintathu kanye nomugqa owodwa onguziro ngesikhathi esifanayo, njenge:

Inkambu ye-automation yezimboni: isetshenziselwa ukulawula ukuqala kwemoto, ukumisa nokuhlehlisa ukusebenza.

Uhlelo lwamandla: lusetshenziselwa ukubona isilawuli kude nokuvikelwa kwesistimu yamandla.

I-automation yokwakha: isetshenziselwa ukulawula ukuqala nokumiswa kokukhanyisa, isimo somoya nezinye izinto zokusebenza.

Stls-2(Cjx2)Series Mechanical Interlocking Contactor
