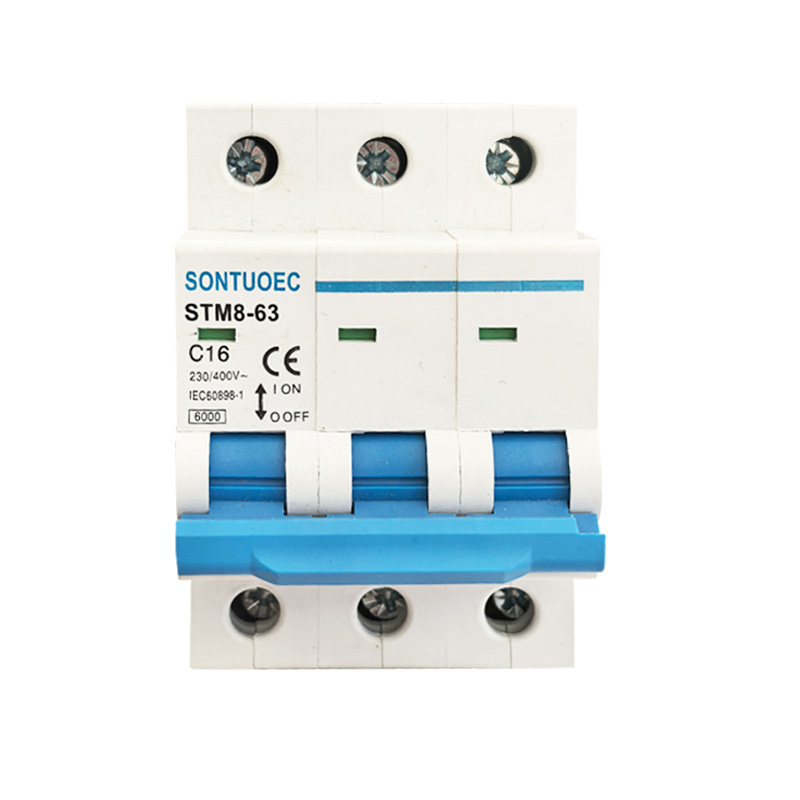

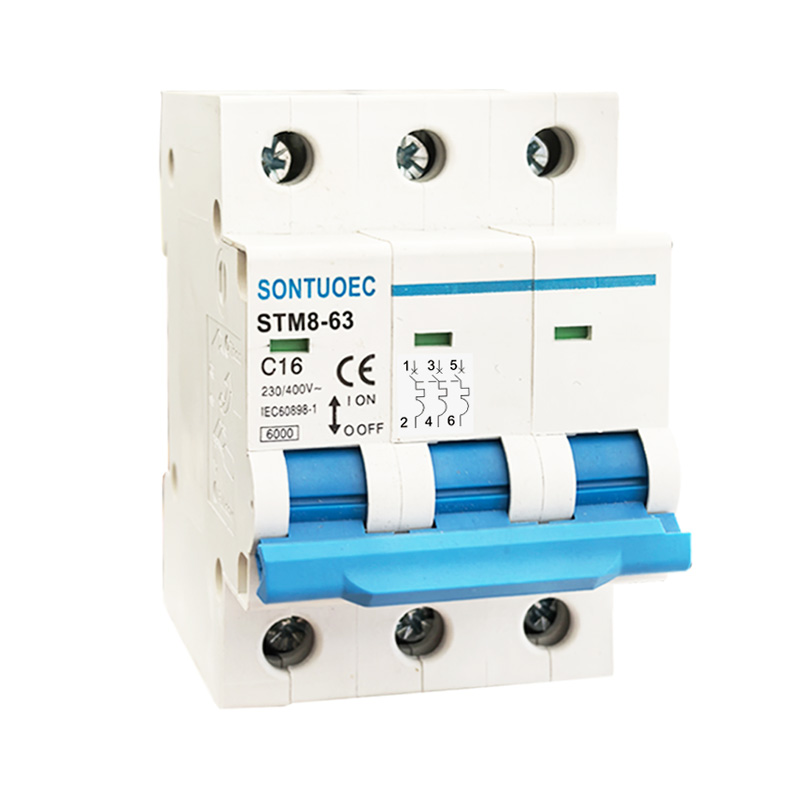

I-STM8-63 miniture Circuit Breaker 6Ka 1p 2p 3p 4p 16a 230 / 400V

ISontuoec ingesinye sabahlinzeki be-Chinese / abakhiqizi abasebenza ngokukhiqiza izinto ezahlukahlukene zogesi ezincane ze-STM8-63 Miniature Breaker 6Ka 1a 230 / 400V inezici zesakhiwo esisezingeni eliphakeme, i-Shecking Peroughting kanye nezingxenye zalo ze-Flame-Retardant. Kufanelekile ohlelweni lwamandla we-AC 50 / 60hz, i-voltage ekalwe ka-230 / 400V, futhi ikalwe njengamanje lifinyelela ku-63a. Isetshenziswa kakhulu esakhiweni sasehhovisi, indawo yokuhlala, ekukhanyiseni, ukusatshalaliswa kwamandla nokulayishwa ngokweqile nokuvikelwa kwesisu okufushane kwemishini. Imvamisa, futhi ingasetshenziswa njengokudluliswa njalo kohlelo lwamandla. Ivumelanisa amazinga IEC60898-1.

Imodeli:STM8-63

Thumela Uphenyo

Incazelo Yomkhiqizo

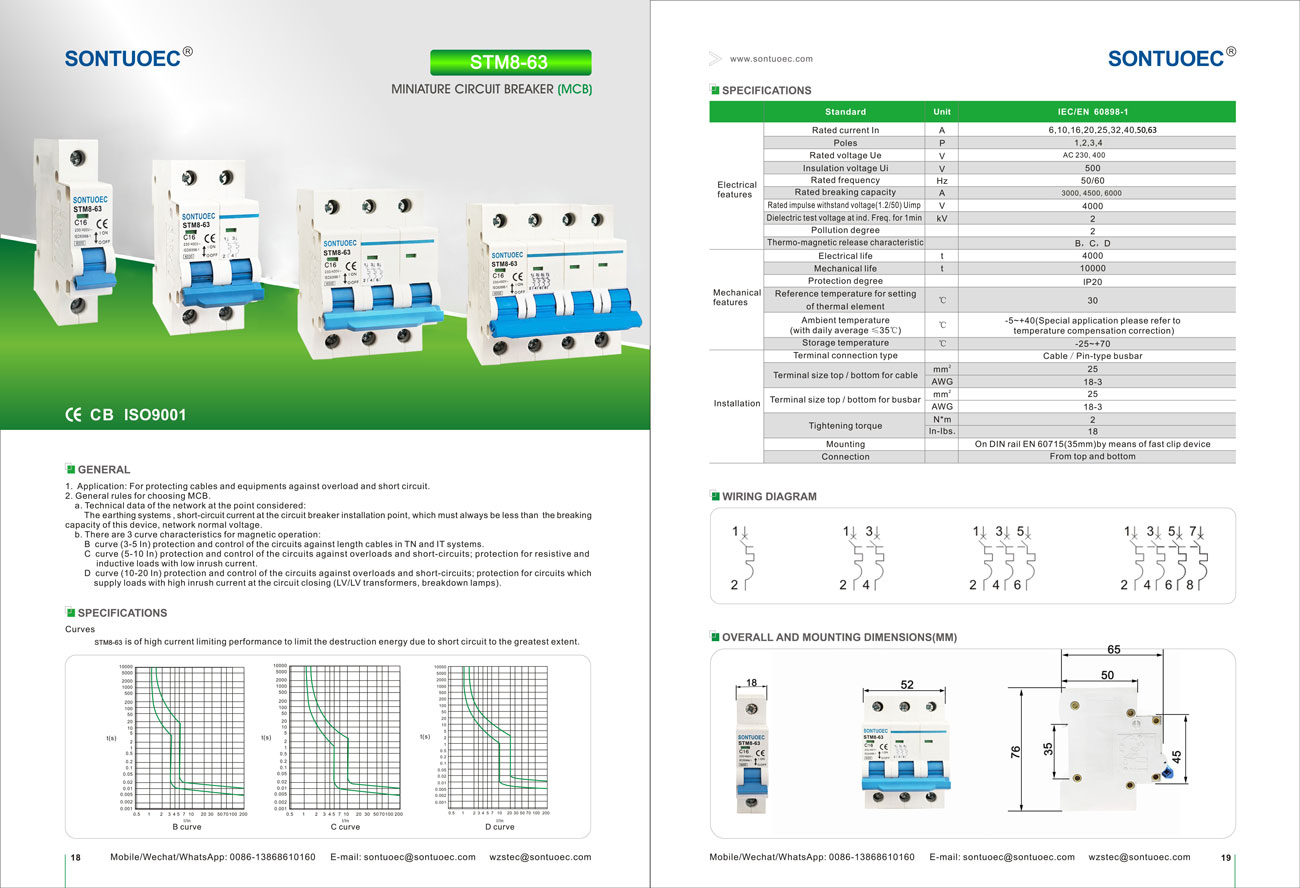

Ukucaciswa:

	-Vamile		IEC / EN 60898-1
Izici zikagesi	-Lingene zama ngaphakathi	A	1,20,6,6,10,10,20,2050,2050
	Isigodlo	P	1,2,3,4
	I-voltage ue	V	R I-230, 400
	I-UI yokufaka i-UI	V	500
	Imvamisa ekalwe	Hz	50/60
	Kulinganiselwe umthamo wokuphuka	A	3000, 4500, 6000
	Kulinganiswe i-Impulse I-Wortantle Voltage (1.2 / 50) UIMP	V	4000
	I-Dielectric Test Voltage end.freq.for 1 min	Ingoma eleva	2
	Ukungcola iziqubu		2
	I-Thermo-Magnetic Delether Isici		B, c, d
Izici zeMehendi	-Gesi impilo	t	4000
	Impilo yomshini	t	10000
	Iziqu Zokuvikelwa		I-IP20
	Ukushisa kwereferensi kokuhlelwa	ºC	30
	yento eshisayo	ºC	30
	Izinga lokushisa elikhona	ºC	-5 ~ + 40 (ekhethekile Isicelo sicela ubheke ku
	(nge-average yansuku zonke ≤35ºC)	ºC	izinga lokushisa nokubanda Ukulungiswa kwesinxephezelo)
	Ukushisa okushisa	ºC	-25 ~ + 70
Ukufaka	Isikhumulo Uhlobo lokuxhumeka		Ikhebula / Pin-Type ibhanoyi
	Usayizi we-terminal top / phansi ikhebula	m²	25
	Usayizi we-terminal top / phansi ikhebula	Kathathu	Mashi 18th
	Usayizi we-therninal phezulu / phansi ibhanoyi	m²	25
	Usayizi we-therninal phezulu / phansi ibhanoyi	Kathathu	Mashi 18th
	Ukuqinisa i-torque	N^*m	2
	Ukuqinisa i-torque	Ku-lbs	18
	Engele		phezu kwa- I-Din Rail en 60715 (35mm) ngedivaysi esheshayo ye-clip
	Isihlobo		Ukusuka phezulu nangaphansi

Imisebenzi esemqoka ye-STB1-63 Miniature Circuit Breaker

Ukuvikelwa kwe-1.Avere: Lapho okwenziwa khona kwesekethe kudlula inani elilinganiselwe le-MCB, i-STM8-63 miniature Breaker Breaker 6ka 1P 20 / 400V izoyinquma ngokuzenzakalelayo isekethe kanye nemishini ekushiyiwe ngokweqile.

Ukuvikelwa kwe-2.Short-Circuit: Lapho kwenzeka isifunda esifushane esifundeni, iStb1-63 Circuiture Breaker Breakerwill Sinqume ngokushesha ngokushesha ukuvikela isizungu esifushane sokulimaza umjikelezo kanye nemishini.

Ukuvikelwa kwe-3.Keakage (Amanye ama-MCBS analo msebenzi): Ama-MCB anokuvikelwa okuvuzayo, lapho kuba khona lapho kuvuza esifundeni, iSTB1-63 Breaker Breakerer Swerererwill sinqume ngokushesha umjikelezo ukuvikela ukuphepha komuntu.

Isimiso sokusebenza kweMCBS

I-MCBS imvamisa iqukethe umtshina kazibuthe we-thermal noma we-elekthronikhi ngaphakathi, okusetshenziselwa ukuthola izinguquko kumanje esifundeni. Lapho okwamanje kungukungajwayelekile, umgadli ubangela indlela yokuqondisa ye-MCB, ebangela i-STB1-63 I-Miniaturature Breakerto Breakerto ngokushesha inqume umjikelezo.

1.Kwathi-ke umgadli wamandla kazibuthe: Isebenzisa ukushisa okukhiqizwayo lapho kudlula khona okukhona kulo umqhubi ukuze aqale phansi. Lapho okukhona manje kukhulu kakhulu, umqhubi wesifundo ufudumeza phezulu, ebangela ukuba umgadli oshisayo we-thermal ugobe, ngaleyo ndlela kubangele indlela yokuhamba.

Umgadli we-2.electronic: Isebenzisa izakhi ze-elekthronikhi ukuthola izinguquko zamanje futhi ilawula isenzo sendlela yokuqondisa. Lapho kutholwa njengamanje okungekho emthethweni, umgadli we-elekthronikhi uthumela isibonakaliso emshinini wokuphakanyiswa ukuze anqume umjikelezo.

Izimo zesicelo se-MCB

Ama-MCBS asetshenziswa kabanzi ezinhlelweni zikagesi ezindaweni zokuhlala, ezentengiso kanye nezimboni ukuvikela amasekethe kanye nemishini evela kumonakalo odalwe imisinga engajwayelekile. Ngokuvamile zifakwe emabhokisini okusabalalisa, ama-sptchboards noma amakhabethe okulawula futhi asetshenziswa njengokushintsha okusemqoka noma ukushintshwa kwegatsha komjikelezo.

Ukukhetha kanye nokufakwa kwama-MCBS

I-1.Kelection: Lapho ukhetha ama-MCB, udinga ukubheka izici ezinjengezilinganiso zamanje zesifunda, izinga lamandla kagesi, izici zokuvikela, nokuthi ukuvikelwa ukuvuza kuyadingeka. Kubalulekile futhi ukuthi uqinisekise ukuthi ama-STB1-63 ama-breakerclies wesekethe amancane ama-Breaker Compleclies anamazinga nemigomo yezokuphepha kagesi yasendaweni.

I-2.Installation: I-STM8-63 miniature Breaker Breaker 6ka 1p 2p 3p 4p 16a 230 / 400V kufanele ifakwe endaweni eyomile, enomoya onamanzi mahhala futhi iqinisekise ukuthi inentambo kahle nangokuphephile. Ngesikhathi sokufakwa, imithetho efanelekile yokuphepha kagesi nezinqubo zokusebenza kufanele zibhekwe.
