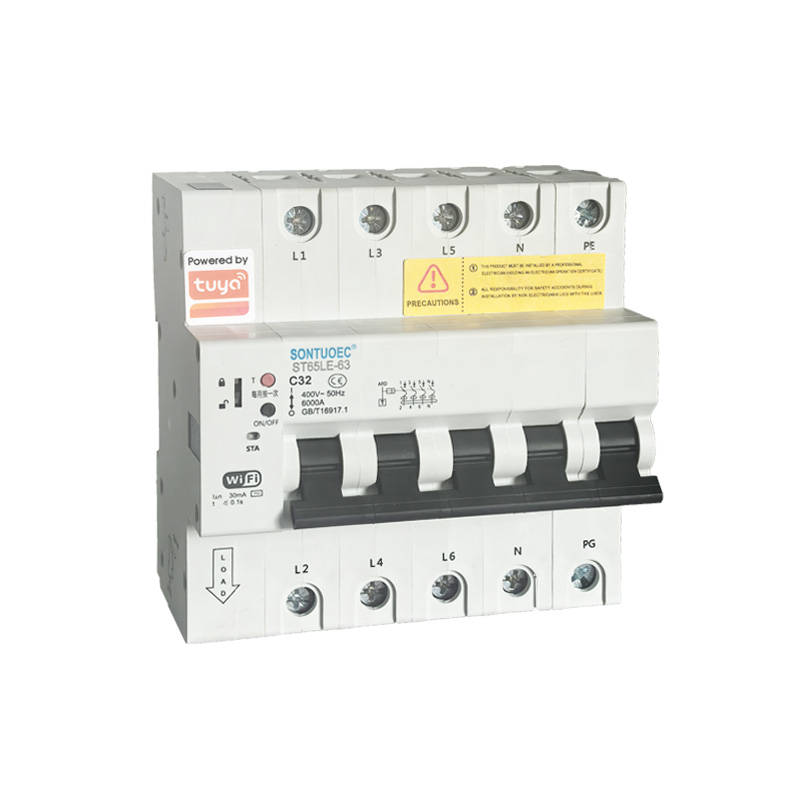

I-WiFi ST65LE-63wf2 Series Multi Functional IoT Intelligent RCBO Intelligent Circuit Breaker

IMICIMBI:

	Okujwayelekile		I-IEC/EN  60898-1
Izici zikagesi	Ilinganiselwe ku-In yamanje	A	1,2,4,6,10,16,20,25,32,40,50,63
	Izigxobo	P	1,2,3,4
	I-voltage elinganiselwe i-Ue	V	AC   230/400;  240/415
	I-Insulation voltage Ui	V	500
	Isilinganiso sokuvama	Hz	50/60
	Isilinganiso sokuphulwa	A	4500  ;6000
	I-impulse elinganiselwe imelana ne-voltage (1.2/50) Uimp	V	4000
	I-Dielectric test voltage ku-ind.Freq.for 1 min	Kv	2
	Iziqu zokungcola		2
	Isici sokukhululwa kwe-Thermomagnetic		B,C,D
Izici zemishini	Impilo kagesi	t	4000
	Impilo yemishini	t	10000
	Idigri yokuvikela		IP20
	Izinga lokushisa eliyisithenjwa sokusetha	ºC	30
	isici esishisayo
	Izinga lokushisa le-ambient	ºC	-5~+40(Uhlelo lokusebenza olukhethekile sicela ubhekisele kulo
	(ngesilinganiso sansuku zonke esingu-≤35ºC)		ukulungiswa kwesinxephezelo sezinga lokushisa)
	Izinga lokushisa lesitoreji	ºC	-25~+70
Ukufakwa	Uhlobo lokuxhuma kwetheminali		Ibha yebhasi yekhebula/yephini
	Usayizi wetheminali phezulu/phansi kwekhebula	mm2	25
		AWG	18-3
	Usayizi wetheminali phezulu/phansi kwebha yebhasi	mm2	25
		AWG	18-3
	I-torque yokuqinisa	N*m	2
		In-lbs	18

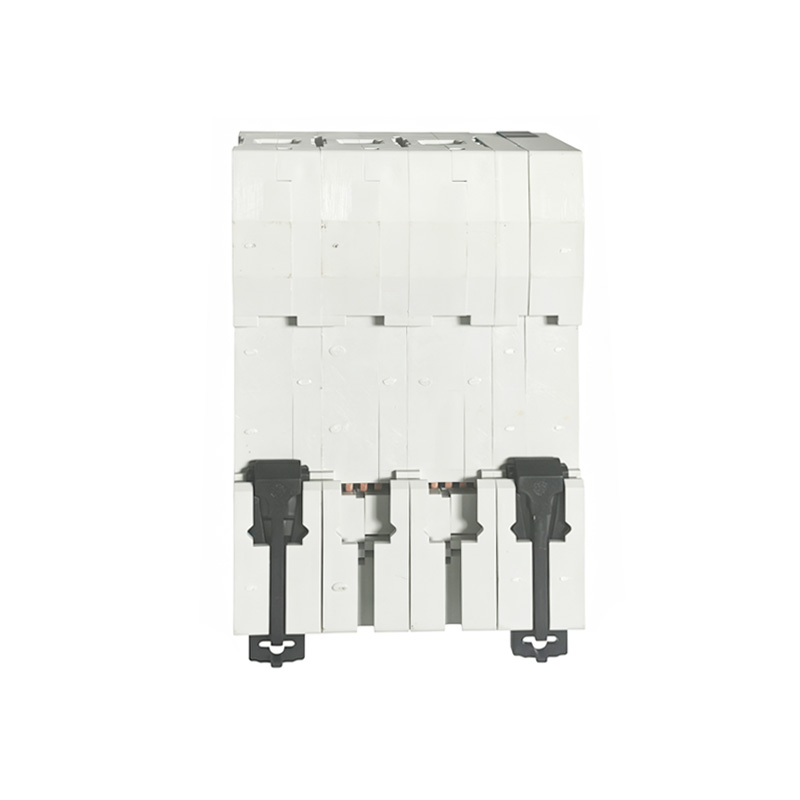

	Ukukhweza		ku-DIN ujantshi EN 60715(35mm) ngedivayisi yokunamathisela esheshayo
	Ukuxhumana		Kusukela phezulu naphansi

I-WiFi Smart Circuit Breaker iyidivayisi yokuvikela isekethe enobuchwepheshe bokuxhumana be-Wi-Fi obuhlanganisiwe, obuvumela abasebenzisi ukuthi balawule bekude isimo sokushintsha sesekhethi noma nini, noma kuphi nge-smartphone noma enye idivayisi ehlakaniphile. Le breaker yesekethe ayihlinzeki nje ngokugcwala ngokweqile kwendabuko kanye nokuvikelwa kwesiyingi esifushane, kodwa futhi iletha ukunethezeka okungakaze kubonwe kanye nokuvumelana nezimo kubasebenzisi ngoxhumo lwe-Wi-Fi.

Amaphuzu Avelele Omsebenzi

I-ST65LE-63  uchungechunge lwe-WiFi Smart Circuit Breaker iyiswishi ehlakaniphile enemisebenzi eminingi ehlanganisa imisebenzi yokulinganisa ugesi, ukulayishwa ngokweqile, isifunda esifushane, ngaphezulu nangaphansi kwe-voltage, ukuvuza, ukuvikelwa kwezinga lokushisa elingaphezu kwamandla, ukuvula nokuvala okukude, isikhathi, ukuxhumana kwenethiwekhi nokunye. Ingasetshenziswa kabanzi ezindaweni ezihlakaniphile zokuphatha amandla njengezentengiselwano, ezolimo, izikole, izibhedlela, amahhotela, izindawo zokuzijabulisa, iziteshi, izindawo zokuvikela izinsalela zamasiko, ukuphathwa nokulawula kwezibani zasemgwaqweni zasemadolobheni, futhi ingasetshenziswa kabanzi ekulawuleni ukusetshenziswa kwamandla emabhizinisini ezimboni nezimayini, izakhiwo zamahhovisi nezinye izindawo.

Isicelo

Lesi sihlukanisi sesekethe esihlakaniphile se-WIFI singasetshenziswa kabanzi ezindlini, emafekthri, e-sduent dormitroy, epulazini, emisebenzini ye-muicipal futhi singakwazi ukulawula iphampu yamanzi ngobuhlakani, isifudumezi samanzi, izinto zokushisisa ezingaphansi, njll.

Umsebenzi

Le  ikhefu lesekhethi evala kabusha ifanele isekethe engu-50Hz/60Hz, 230/400V 0~125A enomsebenzi ofana nokuvikela ukugcwala kakhulu, ukuvikela isifunda esifushane nokuvikela okuhlukanisayo. Ngaleso sikhathi, le breaker yesekethe ehlakaniphile evala kabusha inomsebenzi wokuvula i-oof/ukukhanyisa isilawuli kude somhlaba wonke ngomakhalekhukhwini ohlakaniphile.
