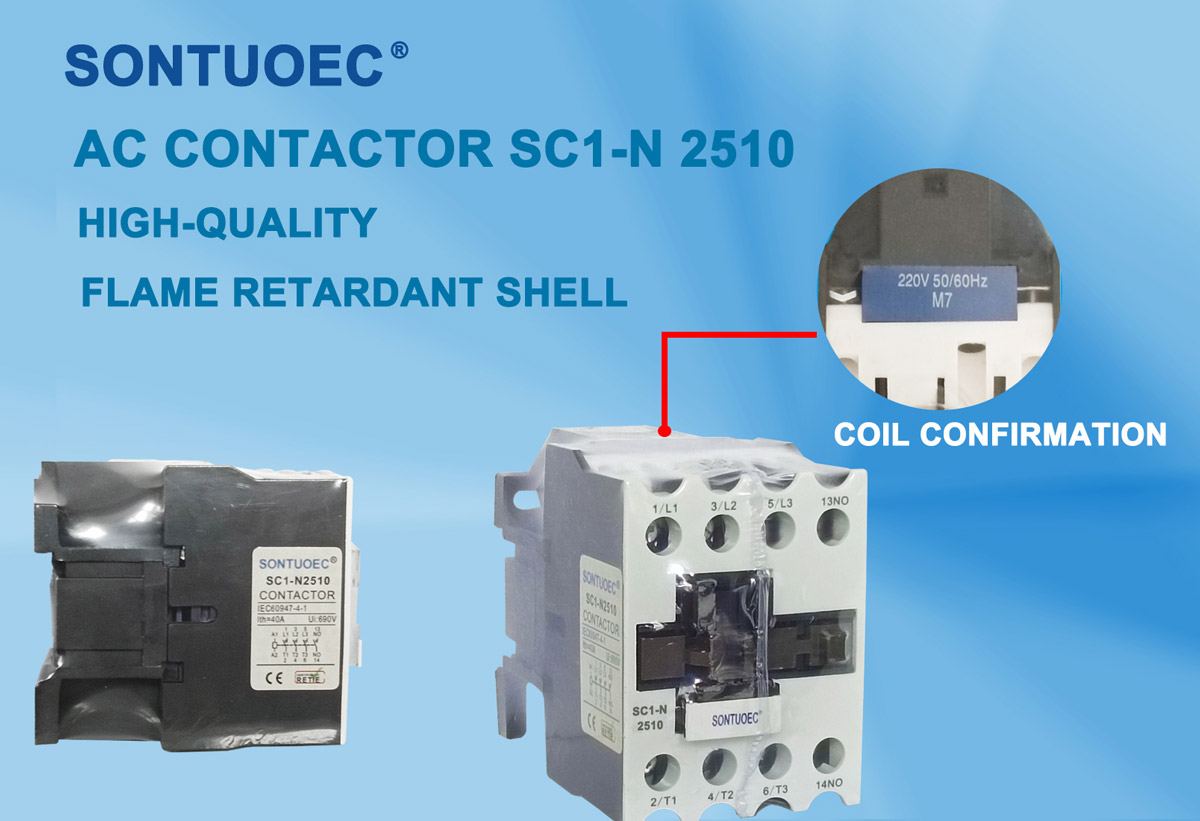

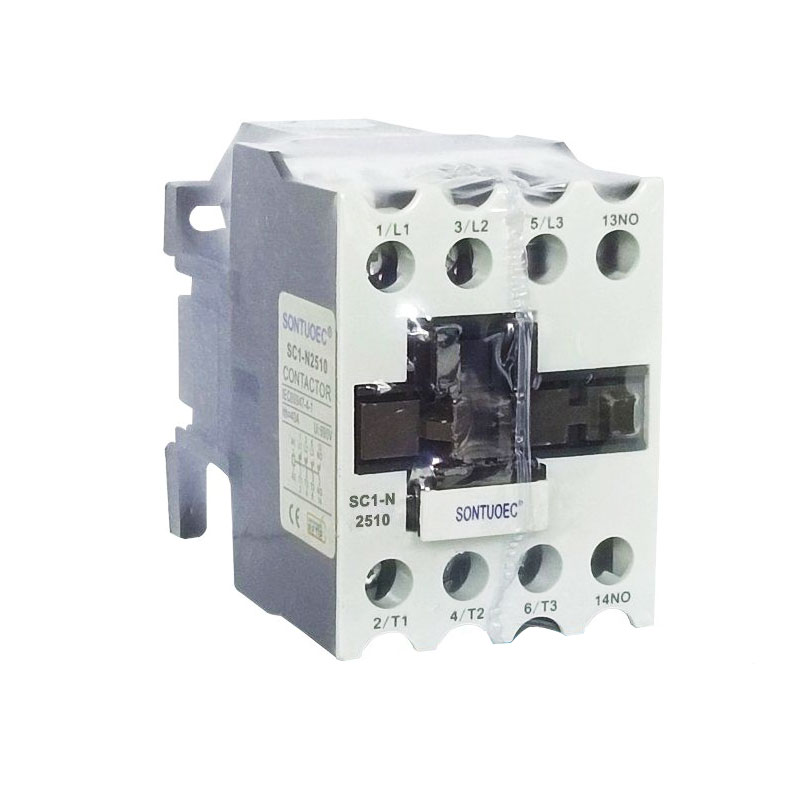

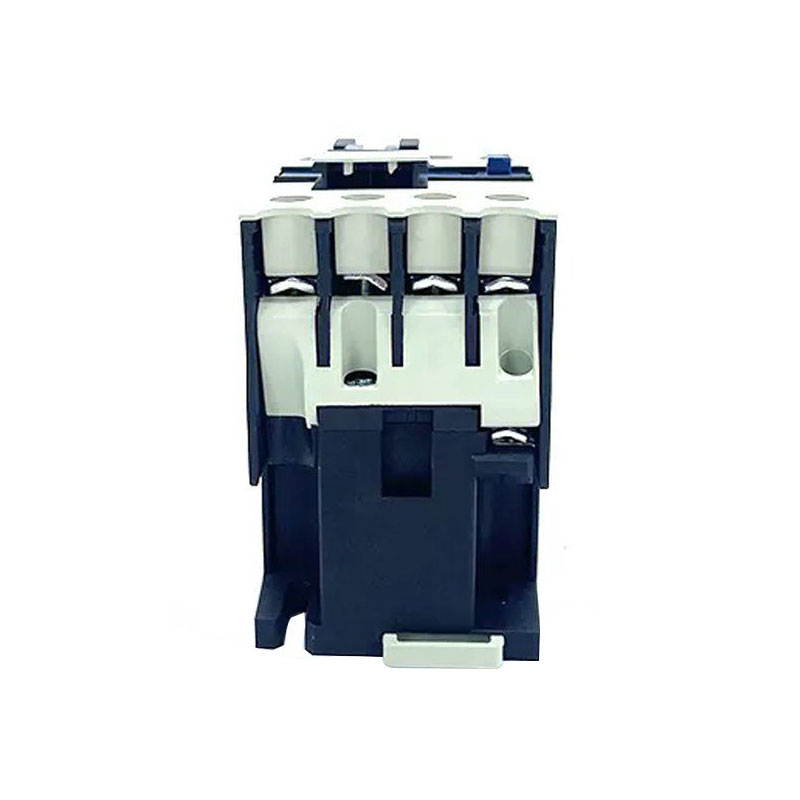

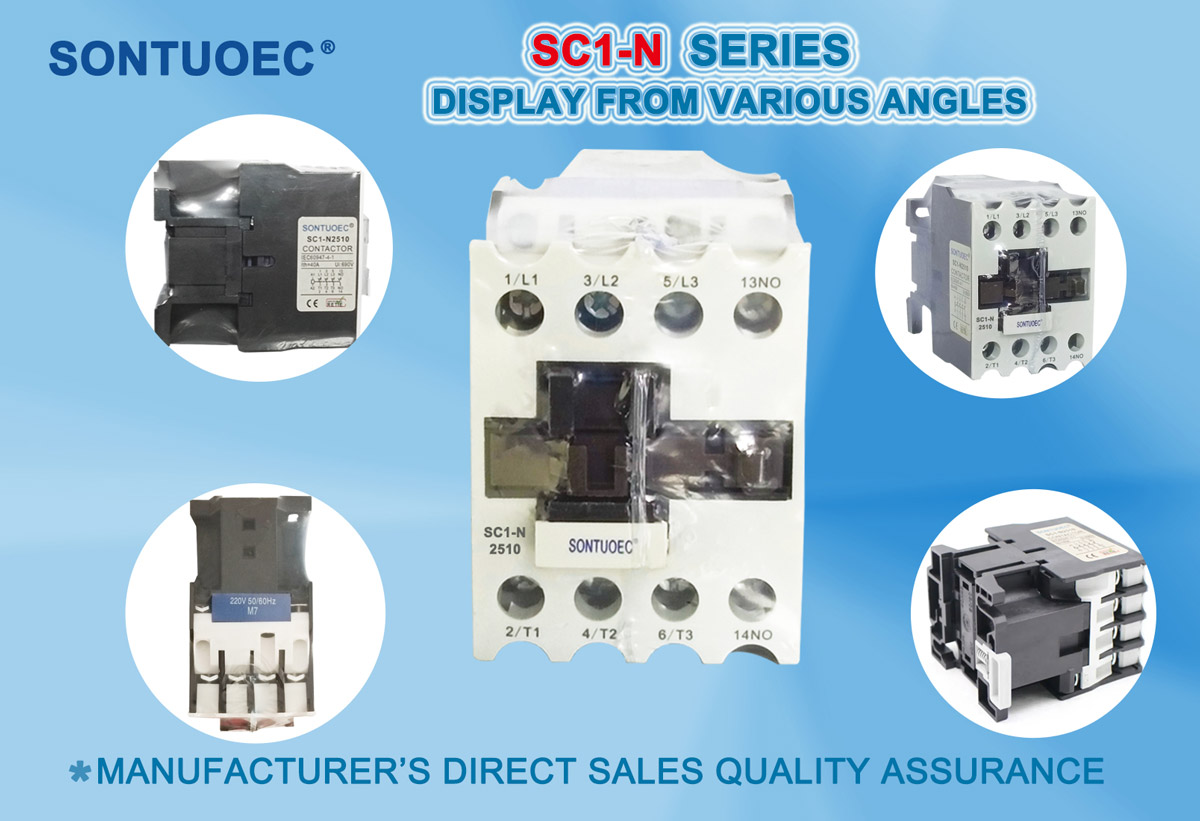

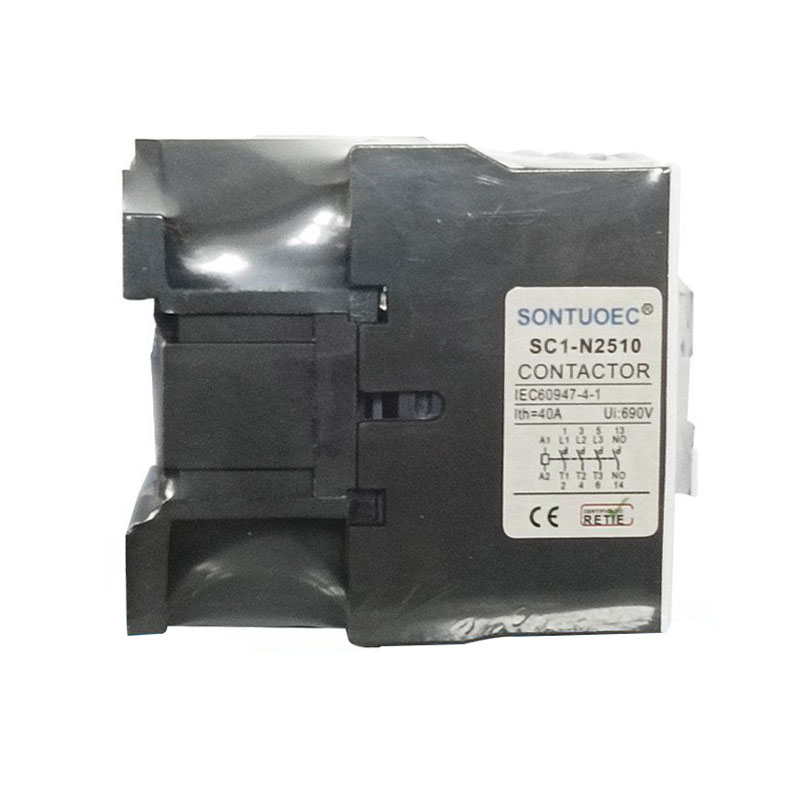

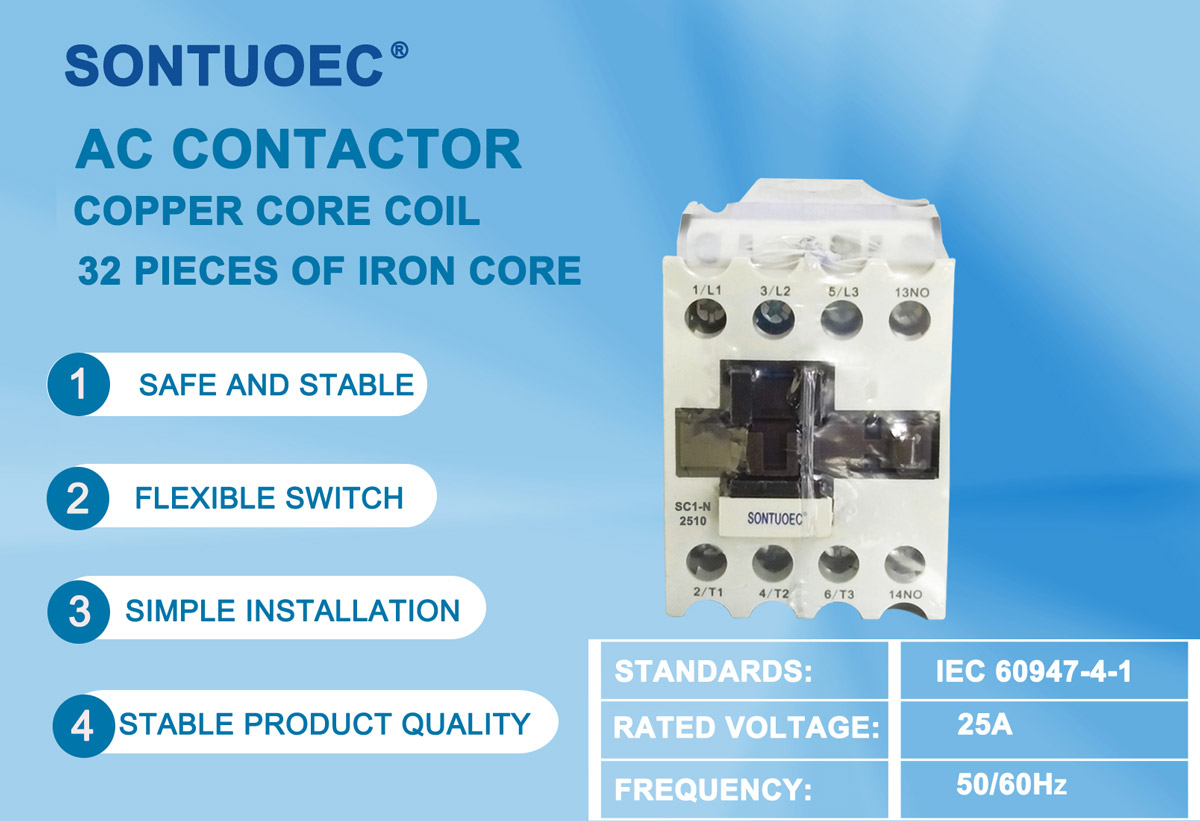

3 Isixhumi se-Pole AC

3 I-Pole AC Contactor iyisixhumi se-AC esithintana nabo abathathu abazimele (noma izigxobo), ngasinye silawula isigaba esisodwa sesistimu yamandla yezigaba ezintathu. Umsebenzi wayo oyinhloko ukulawula ukude ukuqalisa, ukumisa nokubuyisela emuva amamotho ezigaba ezintathu noma eminye imithwalo yezigaba ezintathu. Ngokulawula ukuvula nokuvala kwalaba abathathu othintana nabo, ingakwazi ukubona ukuxhuma nokunqanyulwa kwesekethe yezigaba ezintathu, ngaleyo ndlela ilawule isimo sokusebenza somthwalo kagesi.

Thumela Uphenyo

Incazelo Yomkhiqizo

Imodeli	Amandla esigaba esi-2 se-sqrlel-								Isilinganiso sokushisisa samanje 1th(A)
	Amandla alinganiselwe (KW)				Ukusebenza okulinganiselwe okwamanje(A)
	220V-240v	380-440v	550v	660v	220-240V	380V-440V	550v	660v
I-SC1-N10	2.5	4.0	4.0	4.0	11	9	7	5	20
I-SC1-N11	3.5	5.5	5.5	5.5	13	12	9	7	20
I-SC1-N12	3.5	5.5	5.5	5.5	13	12	9	7	20
I-SC1-N20	5.5	11	11	7.5	22	22	17	9	32
I-SC1-N25	8.5	14	14	14	30	30	12	12	40
I-SC1-N35	12	20	20	20	40	40	17	17	40

Isakhiwo kanye nomgomo wokusebenza

Isakhiwo:

Uhlelo lwe-Electromagnetic: luhlanganisa izingxenye ezinjengamakhoyili, ama-cores, njll., asetshenziselwa ukukhiqiza i-flux kazibuthe ukushayela ukuvulwa nokuvalwa kwesistimu yokuxhumana.

Isistimu yokuxhumana: kufaka phakathi ukuthintana okuyinhloko kanye nokuxhumana okuyisizayo. Othintana naye oyinhloko usetshenziselwa ukuthwala izinga eliphezulu lamanje, futhi othintana naye osizayo usetshenziselwa ukubona ukudluliswa kanye nempendulo yamasignali okulawula.

Idivayisi yokucisha i-arc: Isetshenziselwa ukucisha i-arc ekhiqizwe lapho othintana naye enqanyulwa ukuvikela othintana naye emonakalweni.

Igobolondo: isetshenziselwa ukuvikela izingxenye zangaphakathi endaweni yangaphandle.

Isimiso sokusebenza:

Lapho ikhoyili inikwa amandla, umgogodla wensimbi ukhiqiza uzibuthe futhi uhehe ukuthi uhlelo lokuxhumana luvale, okwenza isekethe yezigaba ezintathu ivuleke.

Lapho ikhoyili ikhishwa amandla, umgogodla wensimbi ulahlekelwa uzibuthe futhi uhlelo lokuxhumana luyahlukana ngaphansi kwesenzo sentwasahlobo ukunqamula isekethe yezigaba ezintathu.

Okwesithathu, isicelo kanye nokukhetha

Izicelo:

I-3 Pole AC Contactor isetshenziswa kabanzi ku-automation yezimboni, isistimu yamandla kanye ne-automation yokwakha.

Ingasetshenziselwa ukulawula imisebenzi efana nokuqala, ukumisa kanye nokuhlehla kwamamotho anezigaba ezintathu.

Ingasetshenziswa futhi ukubona isilawuli kude nokuvikela isistimu yamandla.

Ukukhetha:

Lapho ukhetha i-3 Pole AC Contactor, izici ezifana ne-voltage elinganiselwe, i-current elinganiselwe kanye nohlobo lomthwalo wesistimu yamandla kufanele kucatshangelwe.

Isilinganiso samanje kufanele sibe sikhulu noma silingane nomkhawulo wamanje osebenzayo womthwalo.

Isilinganiso se-voltage kufanele sivumelane neleveli ye-voltage yesistimu yamandla.
