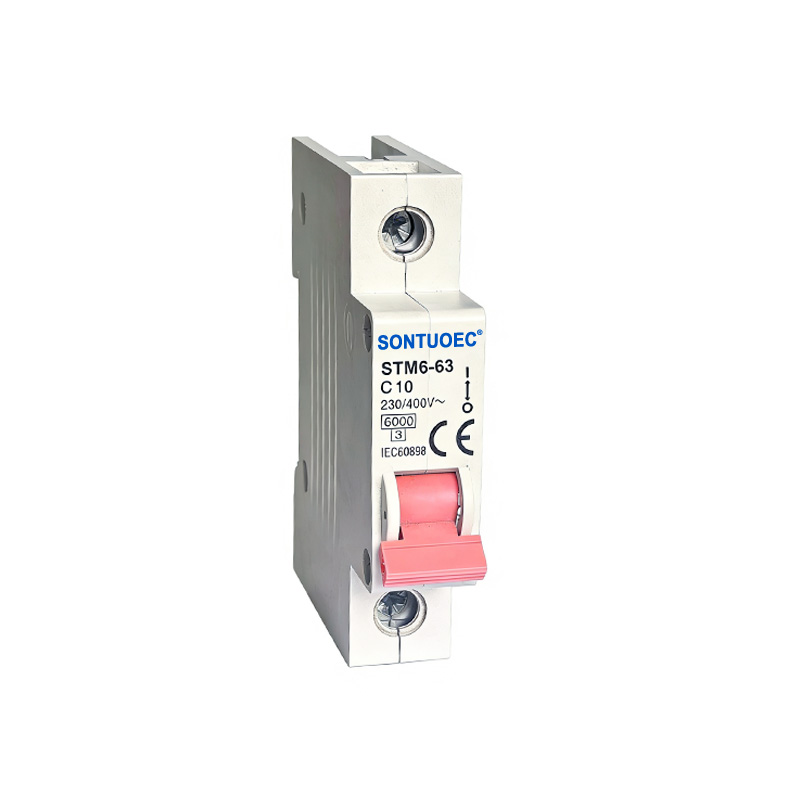

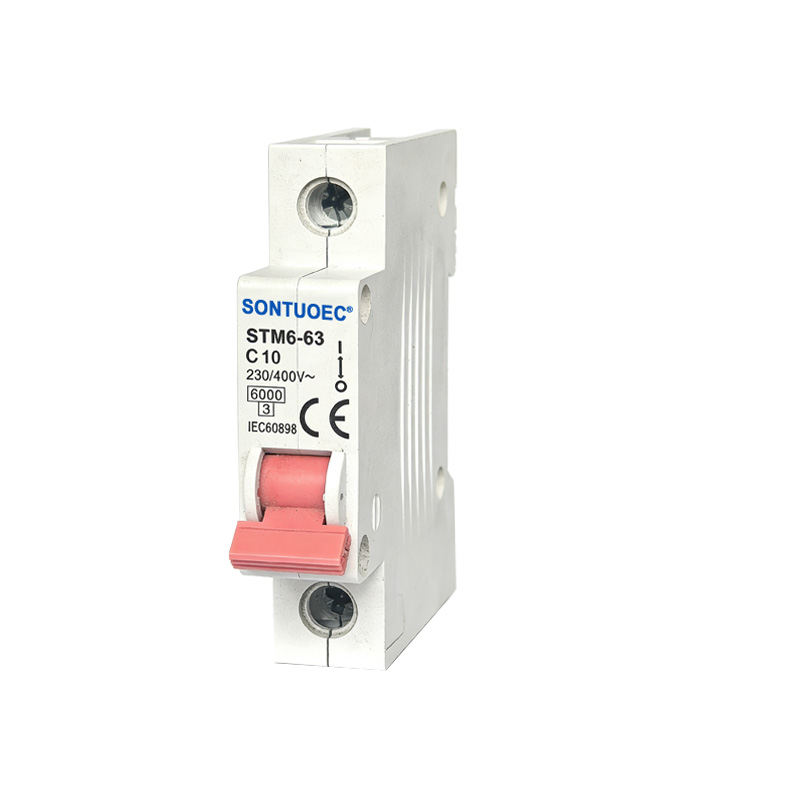

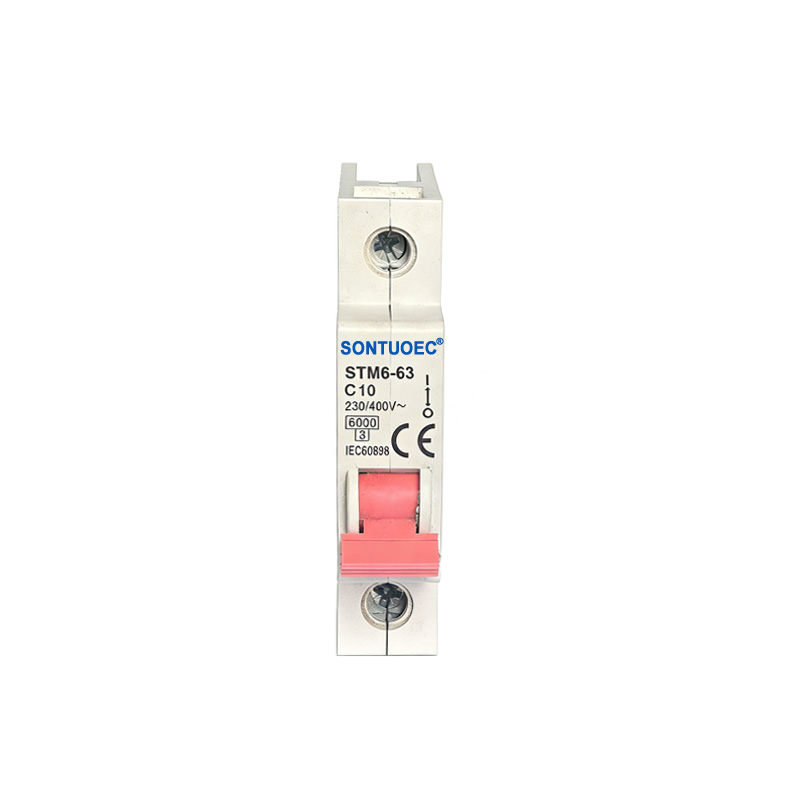

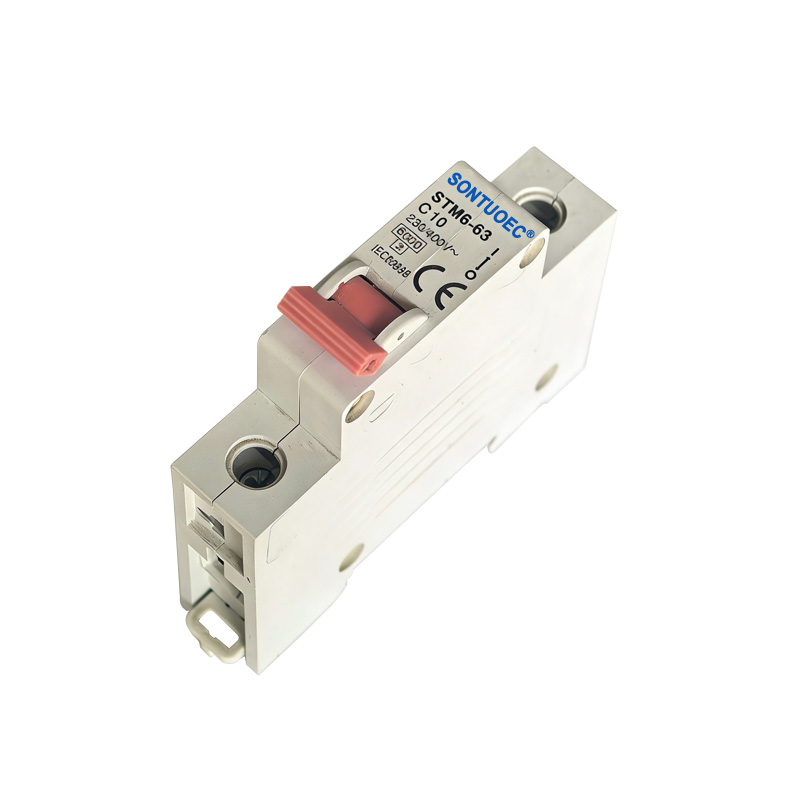

I-Sontuoec Stm6-63 6ka I-Miniature Circuit Breaker 230V MCB

I-SONTUOEC ingomunye wabahlinzeki/abakhiqizi baseShayina abasebenza ngokukhethekile ekukhiqizeni izinto zikagesi ezincane ezihlukahlukene ze-STM6-63 uchungechunge lwe-high breaking capacity mini breaker isetshenziswa ku-AC 50/60Hz, i-voltage elinganiselwe engu-230V 3, 4 poles 400V, ikalwe okwamanje kuya ku-63A ukuze kulayishwe kakhulu futhi kuvikelwe isikhashana kanye nokushintsha okungajwayelekile ngaphansi kwezimo ezivamile. Isetshenziswa kakhulu ezimbonini, ezentengiselwano nezasekhaya.Lo mkhiqizo uhambisana nezinga le-IEC60898.

Imodeli:STM6-63

Thumela Uphenyo

Incazelo Yomkhiqizo

Imininingwane:

Indawo Yomsuka:	Liushi,ueqing,Wenzhou,Zhejiang,China
I gama le-brand:	SONTUOEC, STUOEC,SONTUNE,SONTUOC,WZSTEC
Igama Lomkhiqizo:	I-Miniature Circuit Breaker / MCB
Uhlobo:	Okuncane
Inombolo Yemodeli:	I-STM6-63
Isilinganiso Sokujikeleza Esifushane lcu (V)	B,C,D
I-Voltage elinganiselwe:	230V/400VAC
Ikalwe okwamanje:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Ukuphula Amandla:	6KA
Imvamisa elinganiselwe:	50/60Hz

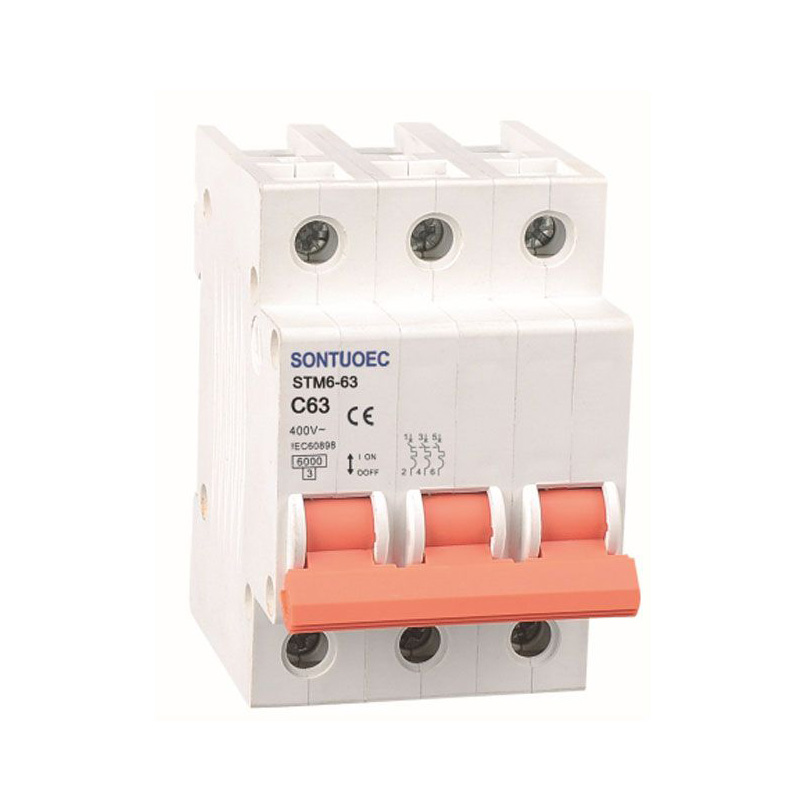

Inombolo Yezigxobo:	1P, 2P, 3P,, 4P
Ukuphakama:	≤2000m
I-Ambience Temperature:	-5 ~ 40ºC
Ububanzi:	18mm/Induku
Okujwayelekile:	I-IEC60898, GB10963
Uhlobo Lokuvikela:	ukuvikelwa kokulayisha ngokweqile, ukuvikelwa kwesekethe emfushane
Uhlobo Lokuhamba:	uhlobo olushisayo
Isitolimende:	TH 35mm din ujantshi
Amandla ezintambo:	≤25mm²
I-Max Operation Frequency:	1A-32A, 240 40A-63A, 120
