2p rcbo uhlobo

I-2p RCBO Uhlobo luhlobo oluyinsalela oluyinsalela oluyinsalela olunesikhathi esisezingeni eliphakeme (i-desiual breater yamanje yokuphepha ngokweqile), ingalawula ukucisha umlilo 2p (l1) kanye ne-4p (L1 (L1 (L1) kanye ne-zero line (n) ngasikhathi sinye. Uhlobo "luvame ukubhekisela kuhlobo oluthile noma ukucaciswa komjikelezo wesifunda, okungabandakanya izici zokusebenza, kulinganiswe njengamanje, ama-voltage alinganiselwe namanye amapharamitha wephule umjikelezo.

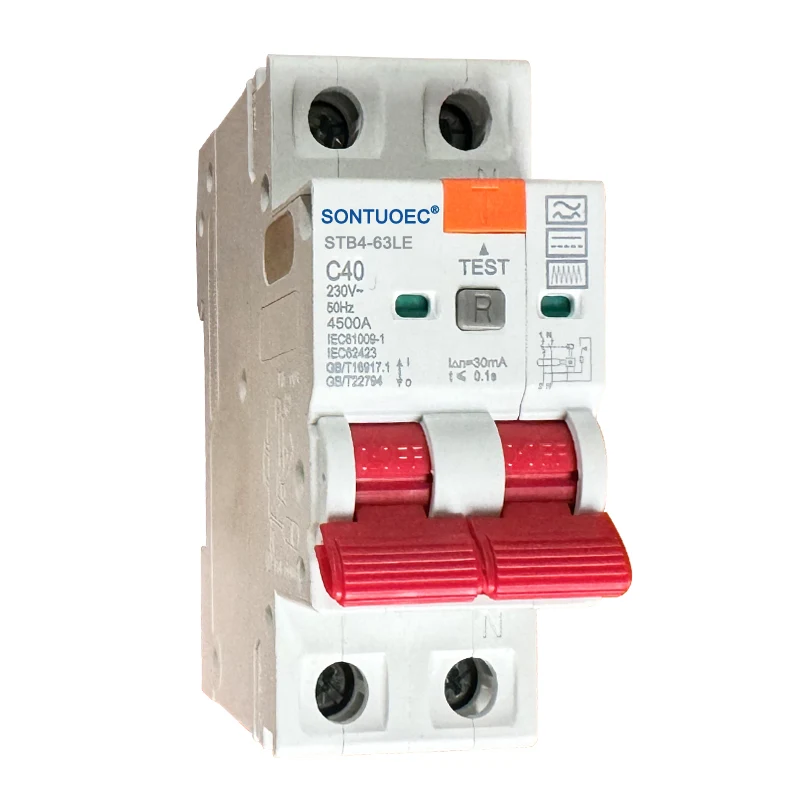

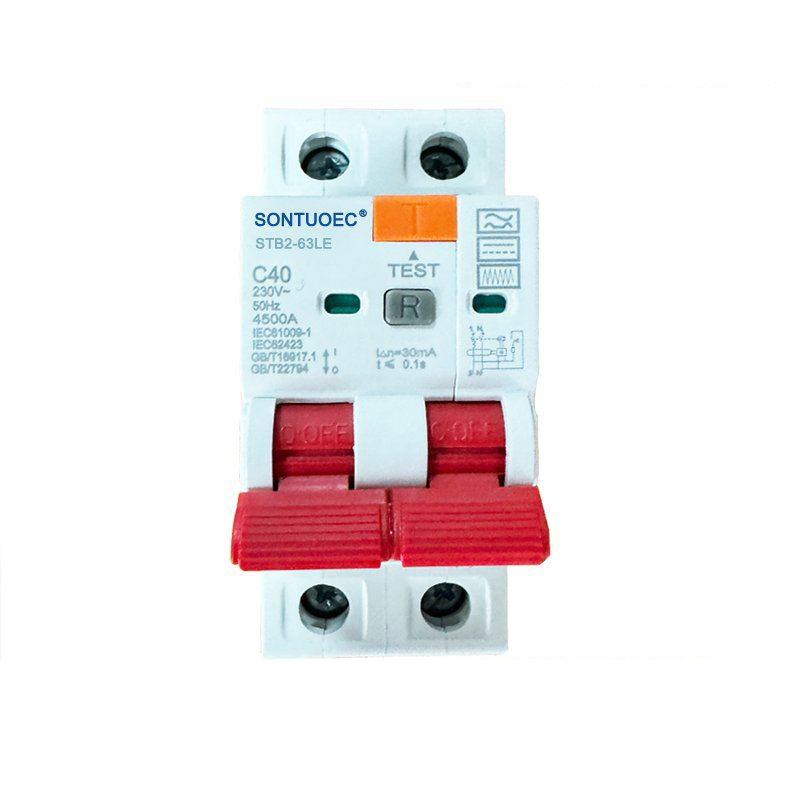

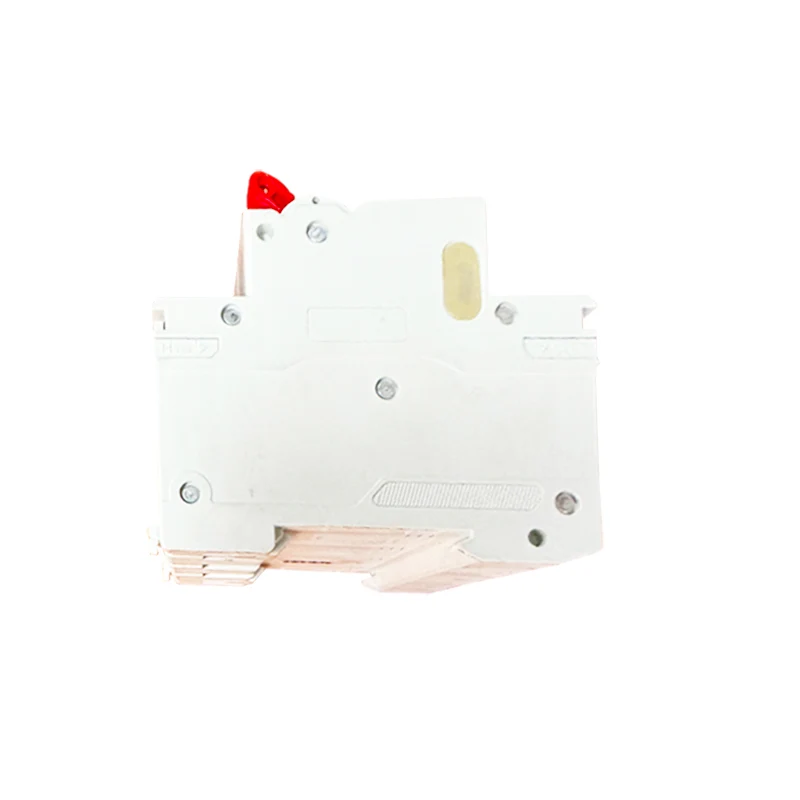

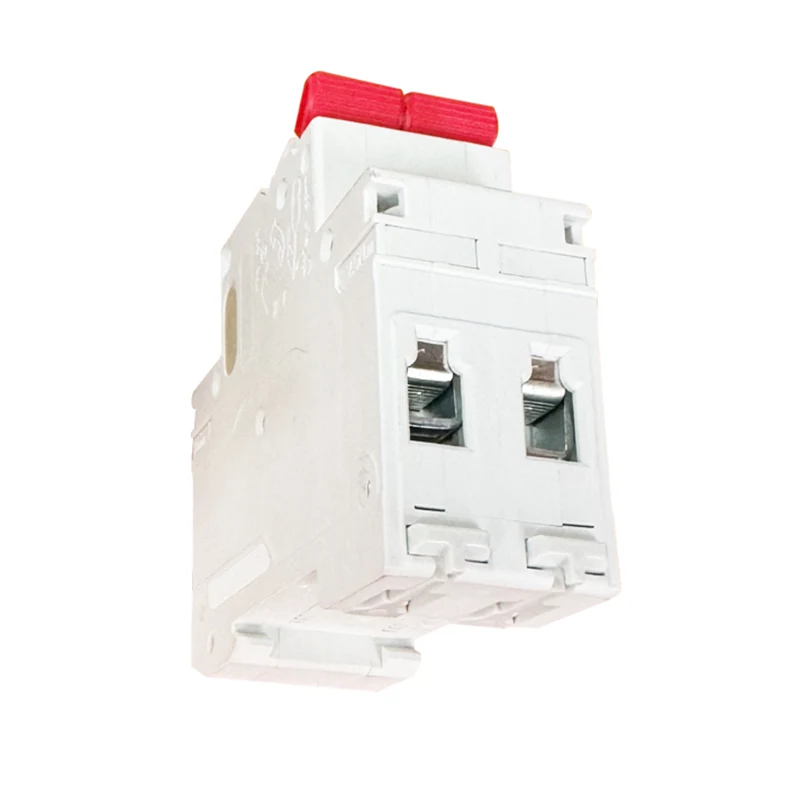

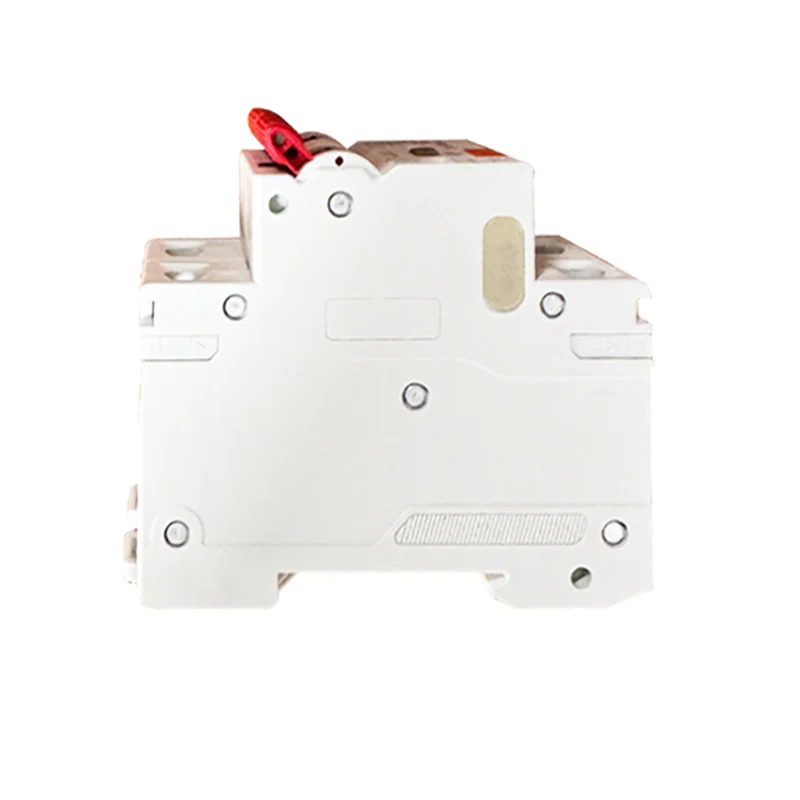

Imodeli:STB2-63LE

Thumela Uphenyo

Incazelo Yomkhiqizo

	-Vamile	Umuvo	IEC / EN 61009-1
-Gesi izici	Umkhuba		Uhlobo lwe-elekthronikhi
	Thayipha (uhlobo lomhlaba Ukuvuza Kwengqondo)		Futhi, futhi
	Ukukhishwa kuka-Thermo-Magnetic -yisimilo		B, c, d
	Ikalwe manje ln	A	6,10,16,20,25,32,35,32,30,40; 63,80a
	Isigodlo	P	1p + n, 3p + n
	I-voltage ue	V	AC 230, 400
	Ukuzwela okulinganiselwe Mina △ n	A	I-0.01, 0.03, 0.1, 0.3, 0.5
	Ukwenziwa okusalayo okulinganiselwe nokuphuka Amandla l △ m	A	500
	I-ICN evunyelwe ye-ICN	A	6000
	Isikhathi sekhefu ngaphansi kwe-I △ n	S	≤0.1
	Imvamisa ekalwe	Hz	50/60
	Kukalwe i-FulseWithastss I-Voltage (1.2 / 50) i-UIMP	V	4000
	I-Dielectric Test Voltage at Ind.freq ye-1min	ingoma eleva	2
	I-UI yokufaka i-UI	V	250
	Ukungcola iziqubu		2
-Omshini izici	Impilo kagesi		4000
	Impilo yomshini		10000
	Inkomba yamanje yecala		Yebo
	Iziqu Zokuvikelwa		I-IP20
	Izinga lokushisa elikhona (nge-average yansuku zonke≤35ºC)	ºC	-5 ~ + 40 (Isicelo esikhethekile sicela ubheke ku- Ukulungiswa kwesinxephezelo sokushisa)
	Ukushisa okushisa	ºC	-25 ~ + 70
Ukufaka	Uhlobo lokuxhuma esibulalayo		Ikhebula / i-pin-hlobo busbar / uhlobo ibhanoyi
	Usayizi we-terminal top / phansi komhlaba	mm2	25
	Usayizi we-terminal top / phansi komhlaba	Kathathu	18-5
	Usayizi we-terminal top / phansi ibhanoyi	mm2	25
	Usayizi we-terminal top / phansi ibhanoyi	Kathathu	18-3
	Engele		Ku-Din Rail en 60715 (35mm) nge yedivaysi esheshayo ye-clip
	Isihlobo		Kusuka phezulu

Izici eziyinhloko namapharamitha

Izici Zesenzo: I-2p RCBBO Uhlobo lunomsebenzi wokuvikelwa osaseleyo, lapho okusasele kwamanje (I.E. Ukuvuza kwamanje) esifundeni kufinyelela inani esethiwe, umjikelezo wesifunda uzothatha isinyathelo ngokushesha ukusika isendlalelo ukuvikela izingozi zikagesi nemililo kagesi.

Kukalwe njengamanje: Ngokuya ngemodeli ethile kanye nokucaciswa, uhla lwamanje lwamanje lwe-2p rcbo Uhlobo lungahluka, kepha luvame ukufaka phakathi okuhlukahlukene okufana ne-6a, 10a, 16a, 20a, 50a, 63a, 80a, kanye nokunye.

I-Voltage evunyelwe: I-2p RCBBO Uhlobo ngokuvamile lukalwa ku-240v ac ngezindawo zikagesi zasekhaya nezentengiselwano.

Imvamisa ekalwe: Imvamisa ekalwe yalokhu kuphuka kwesifunda imvamisa ingu-50 / 60hz, ehambelana nemvamisa yokuhlinzekwa kwamandla emazweni amaningi nasezifundeni.

Umthandvo wesekethe elifushane le-2

Isenzo sokuvuza samanje: Isenzo sokuvuza samanje salolu bhulofu wesifunda imvamisa noma ngaphansi, okuhlangabezana nezidingo zeKhomishini Yezwe Yamazwe Ngamazwe (IEC) kanye namazinga omuntu afanele, futhi angavikela ngempumelelo ukuphepha komuntu siqu.

I-RCBO isetshenziswa ikakhulukazi ku-AC 50HZ (60hz), i-Voltage ekalwe ngo-230 / 400V, ilinganiswe njengamanje 6A ku-40a Low Voltage Sterminal System. I-RCBO ilingana nomsebenzi we-MCB + RCD; Isetshenziselwa ukuvikela okushaqekile ngogesi nokuvikelwa kokuxhumana okungaqondile komuntu, ukuvikelwa kwemishini kagesi lapho umzimba womuntu ethinta ugesi noma inethiwekhi kagesi evuthayo yamanje, nokuvikelwa komjikelezo okufushane nokuvikelwa okufushane; Kungaba futhi no-opharetha okungejwayelekile kumjikelezo, osetshenziswe esifundeni sasendaweni yokuhlala kanye nezentengiselwano. Ihambisana nezinga le-IEC61009-1.

Ukufaka isicelo nokufakwa

Isicelo: 2p RCBBO Uhlobo lufanele ukuvikelwa kwemibuthalo yokusatshalaliswa kwamandla edinga ukuphathwa ngasikhathi sinye komhlaba kanye nezintambo zero, njengokukhanyisa izibani, iziqeshana zezindawo kanye nezinye izindawo ezifuywayo.

Ukufaka: I-Breaker yesekethe ivame ukwamukela ukufakwa kokulandelanayo kwe-symmetrical din-rail noma iphaneli, okulungele ukufakwa okusheshayo nokususwa ebhokisini lokusabalalisa noma ikhabethe lokusatshalaliswa.

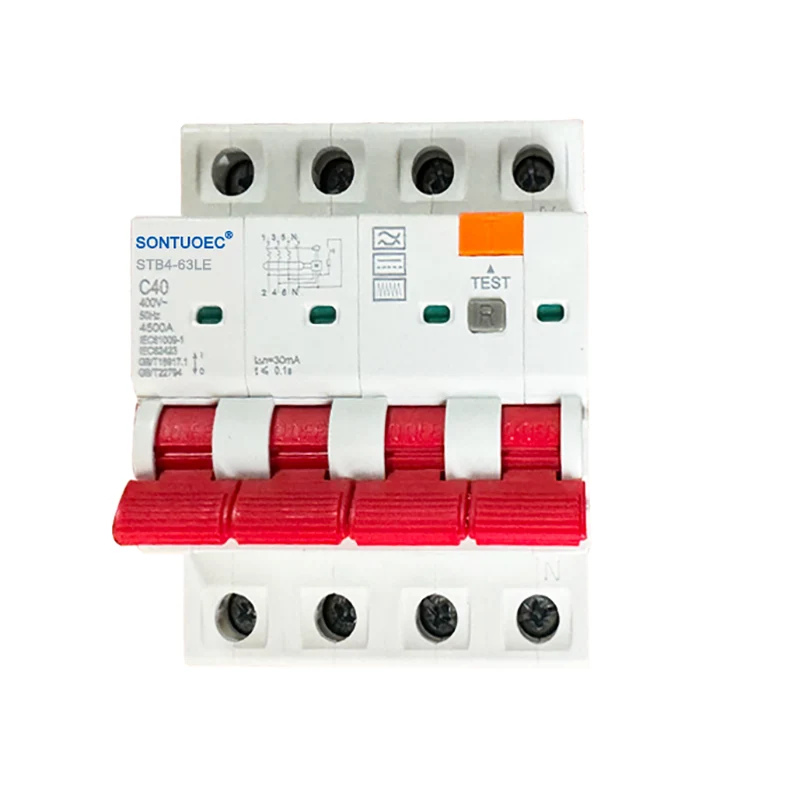

I-Wiring: I-4p RCBBO Uhlobo luguquguqukayo ku-wiring futhi lungaxhunyaniswa ku-Ture-Phase-Trive-Wire ezintathu, iziqebele zesigaba ezintathu noma zesigaba esisodwa. Lapho izintambo, qiniseka ukuthi umlilo, izintambo zero kanye nomhlaba uxhumekile kahle ukugwema ingozi yokushaqeka kukagesi kanye nomlilo kagesi.
