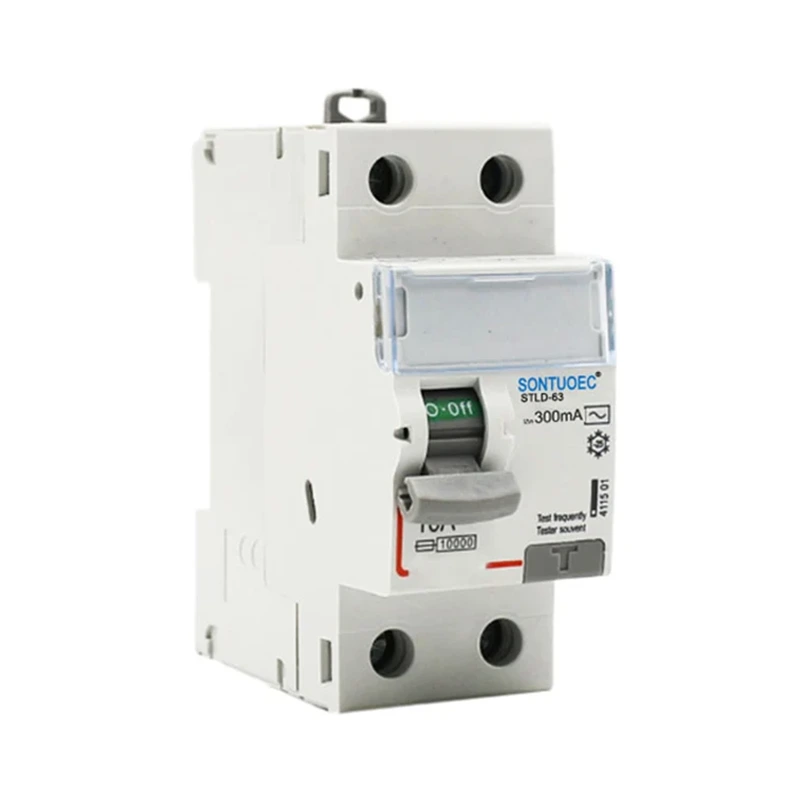

2p 63a / 30mA RCD AC Type

Umgomo wokusebenza we-2p 63a / 30mA RCD AC Type ususelwa ku-transformer yamanje esele. Lapho i-I.E. Ukuvuza) kwenzeka ohlelweni lukagesi, i-Desidial Transformer yamanje ithola le ndlela engenakulinganisela futhi ikhiqiza isilinganiso se-magnetic flux ngokulingana kwamanje. Lo mshini kazibuthe udala umshini wokukhishwa kwangaphakathi kwe-RCD, okwenza i-RCD iwunqume ngokushesha ukuhanjiswa kwamandla.

Thumela Uphenyo

Incazelo Yomkhiqizo

Imodeli:	Uhlobo lwe-electro-kazibuthe; Uhlobo lwe-elekthronikhi
-Vamile	IEC 61008-1
Izici Zamanje Zamanje:	Futhi, futhi

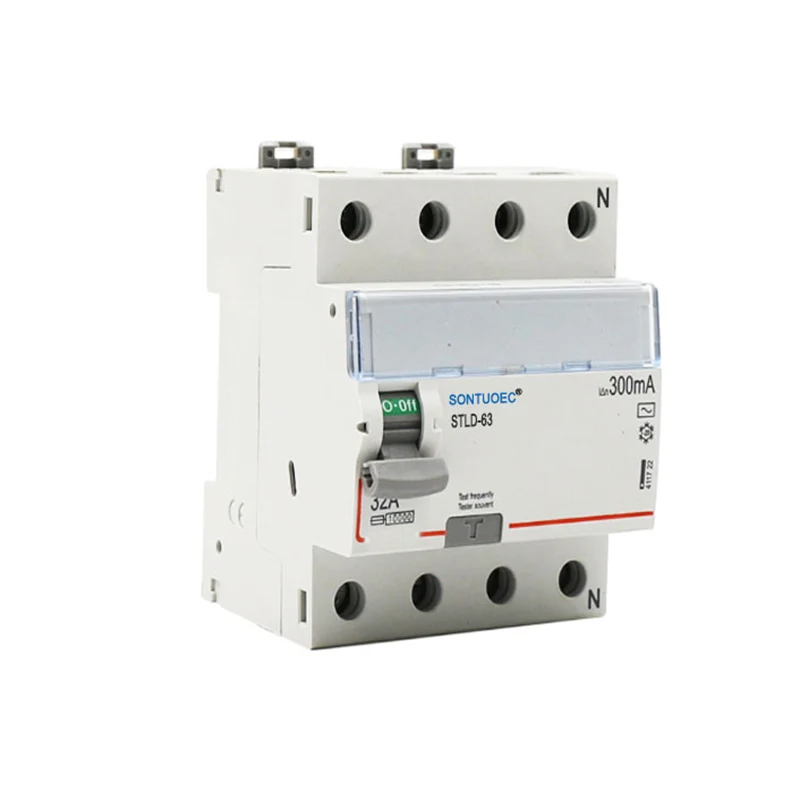

Isigxobo Cha.:	2p, 4p
Kukalwe manje:	16a, 25a, 32a, 40a, 63a;
I-VOLTAGE ekalwe:	230 / 400v AC
Imvamisa ekalwe:	50 / 60hz
Kulinganiselwe okusasele okusebenzayo kwamanje i-IelN:	10A, 30mA, 100MA, 300mA, 500MA
I-rated redial desidual engasebenzi yamanje I ΔNO:	≤0.5iΔ
Kulinganiselwe okunemibandela evamile ye-Short-Circuit CRELTER CASH:	6000a
Kulinganiselwe umjikelezo onemibandela onemibandela I-I1C yamanje:	6000a
Isikhathi Esithuthisiwe:	I-TRIPASHTER≤00.1SEC
I-Residial Tripping Range yamanje:	0.5iΔ ~ Ieln
Ukukhuthazela Nge-Electro-Mechanical:	Imijikelezo engu-4000
I-Torque esheshayo:	I-2.0NM
Isikhungo sokuxhuma:	Isikulungisa isisekelo sensipha

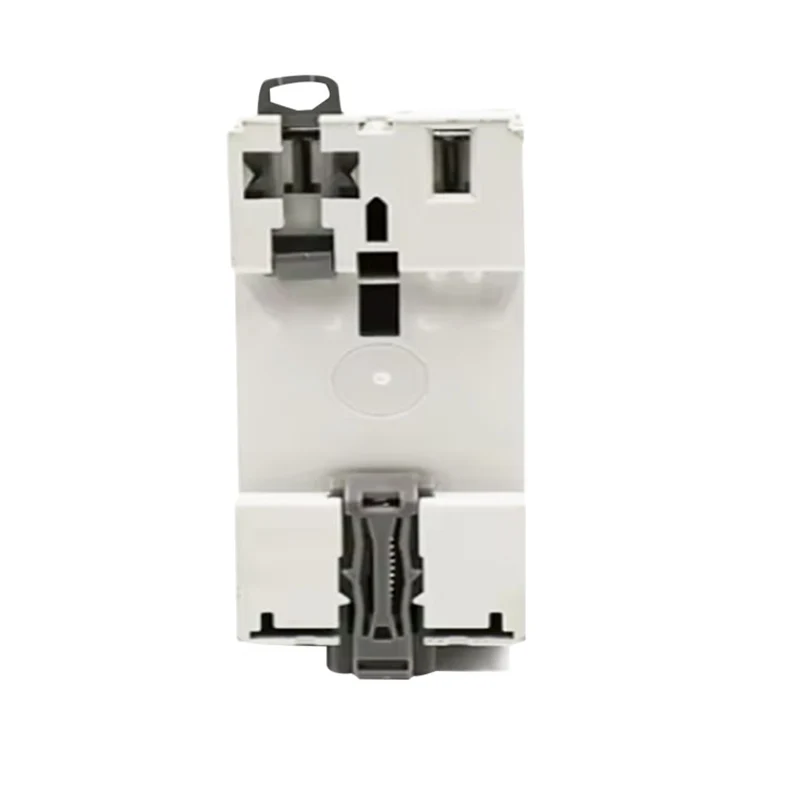

Ukufaka:	35mm din rail ukukhwela

Umqondo oyisisekelo

 2P: Ibonisa ukuthi le RCD (Iseva ye-Residial Yangaphandle) iyisiguquli se-bipolar, I.E., ingalawula ukuvala imigqa emibili ngasikhathi sinye. Lo mklamo uvame ukusetshenziswa lapho zombili izigaba kanye nemigqa ye-zero kudingeka zinqunywe ngasikhathi sinye ukuqinisekisa ukuthi umjikelezo unganqunywa ngokuphelele uma kwenzeka ukuvuza noma iphutha, ukuvikela izingozi zokuphepha ezifana ne-electrocution noma imililo kagesi.

 63a: Kubonisa ukuthi i-RCD ilinganiswe ngama-amps angama-63. I-rated yamanje yinani eliphakeme lamanje le-RCD elingathwala ngokuqhubekayo ngaphandle kokubangela ngokweqile noma ukulimala. Kuzinhlelo zokusebenza ezingokoqobo, intela efanelekile efanelekile kufanele ikhethwe ngokuya ngomthwalo wohlelo lukagesi.

 30mA: Ibonisa ukuthi isenzo sokuvuza samanje sale RCD singama-30 Ma. Isenzo sokuvuza samanje inani eliphansi lenani lamanje lapho i-RCD ibona khona i-ruble yamanje futhi ibangela isenzo. Lapho ukuvuza kwamanje ohlelweni lukagesi kudlula leli nani, i-RCD izonquma ngokushesha ukulethwa kwamandla ukuvikela ukuphepha komuntu siqu futhi kuvikele izingozi ezinjengomlilo kagesi.

 I-RCD: Idivaysi yamanje ye-Residical Crand iyithuluzi lokuphepha elikagesi elisetshenziselwa ukuthola i-rediku Isetshenziswa kabanzi ezinhlelweni zikagesi ezinamandla kagesi ukuhlinzeka ngokuvikelwa okuphelele kwemishini kagesi nabasebenzi.

Uhlobo lwe-AC: Ibonisa ukuthi le RCD ilungele ukushintshashintsha amasistimu wamanje (AC). Ukushintsha kwamanje (ac) kuyindlela ejwayelekile yokudlulisa ugesi futhi kubonakaliswa ngezinguquko ngezikhathi ezithile ekuqondisweni kwamandla kagesi nakumanje kuqhathaniswa nokuqondisa kwamanje (DC). Ngakho-ke, lapho ukhetha i-RCD, imodeli efanele kufanele ikhethwe ngokususelwa ohlotsheni lohlelo lukagesi (AC noma i-DC).

1. Ukuvikelwa kwe-1.Provide ngokumelene ne-Earth Earth / Ukuvuza Kwamanje kanye Nokwehlukaniswa

I-2.High Short-Circh-Circuit yamanje yokuthanda amandla

I-3.Phampluble ku-terminal ne-PIN / Fork Thayipha Uhlobo lweBusbar Connection

4. Ifakwe ngama-terminals okuxhumeka komunwe

I-5.automicame ngokuqondile isembozo lapho amaphutha omhlaba / ukuvuza kwamanje kwenzeka futhi kudlula ukuzwela okukalwe

6.Nculisekelweni athembekile wokuhlinzekwa kwamandla kanye nomugqa we-voltage, futhi mahhala ekuphazanyisweni kwangaphandle, ukushintshashintsha kwe-voltage. ------------ Big usayizi wokuxhumeka ucingo (ikhebula lokuxhuma le-35mm)

2P 63A/30mA RCD AC Type
